Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V
Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V
Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V
Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V
Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V
1 / 5
Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V
Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V
Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V
Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V
Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V

Wholesale 1000Base-Fx to 8*10/100/1000Base-Tx Gigabit Media Converter 20km SC DC12V

Send Inquiry

Product Description

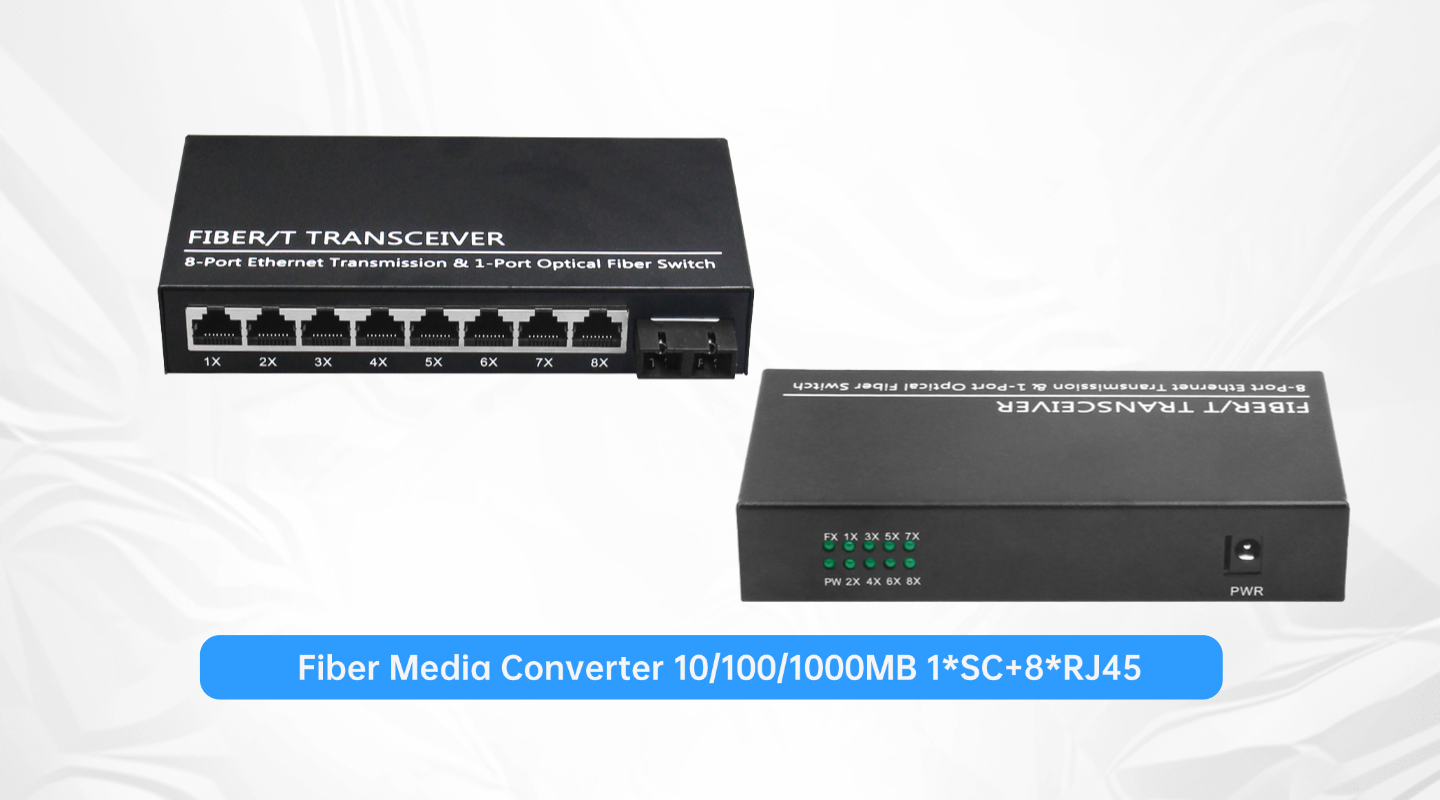

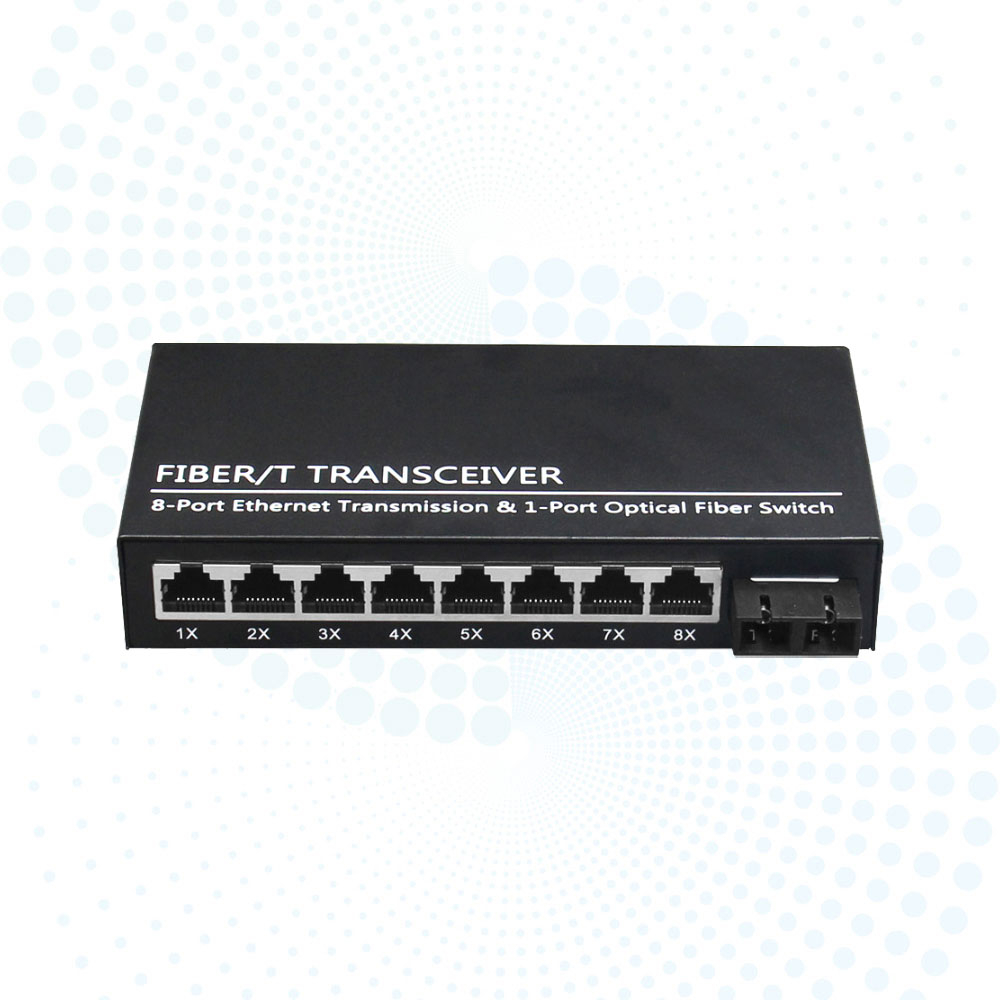

Fiber port device front view

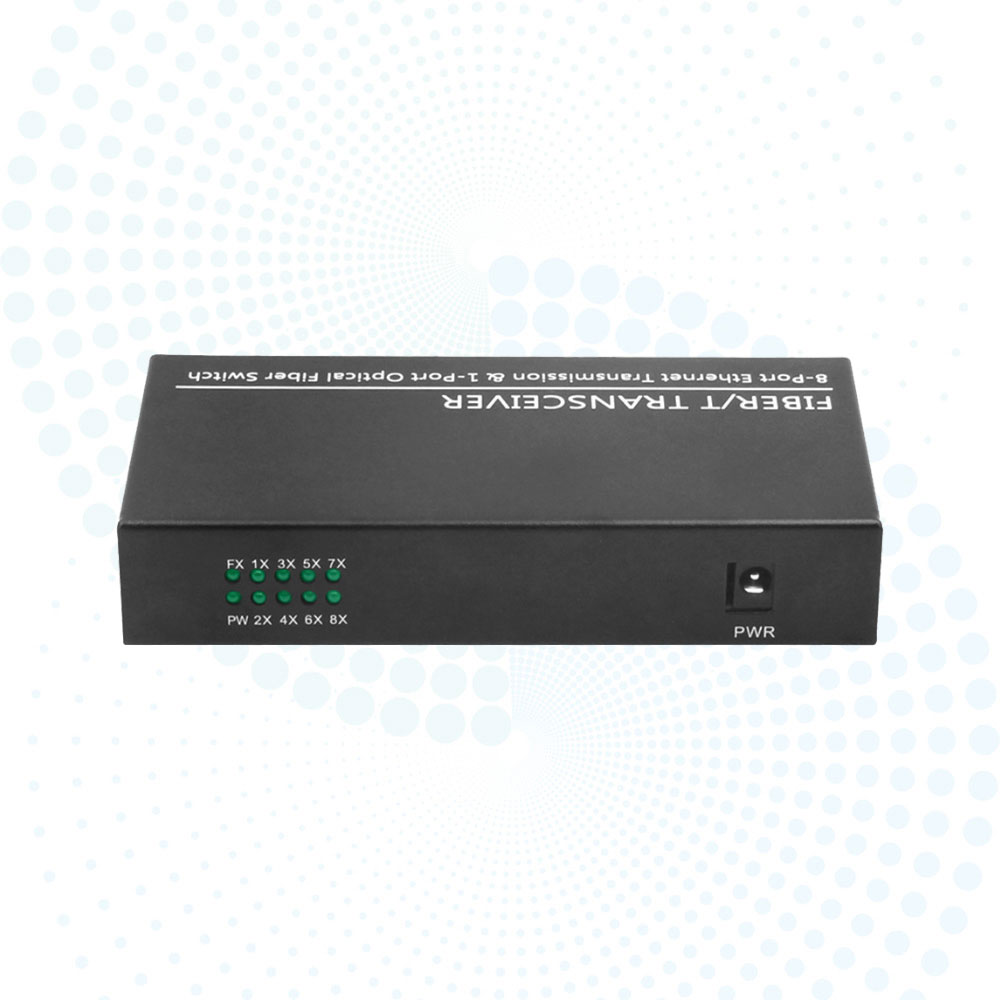

Fiber port device back view
1 Gigabit fiber port with 8*10/100/1000Mbps RJ45 port
Point-to-multipoint high-speed forwarding

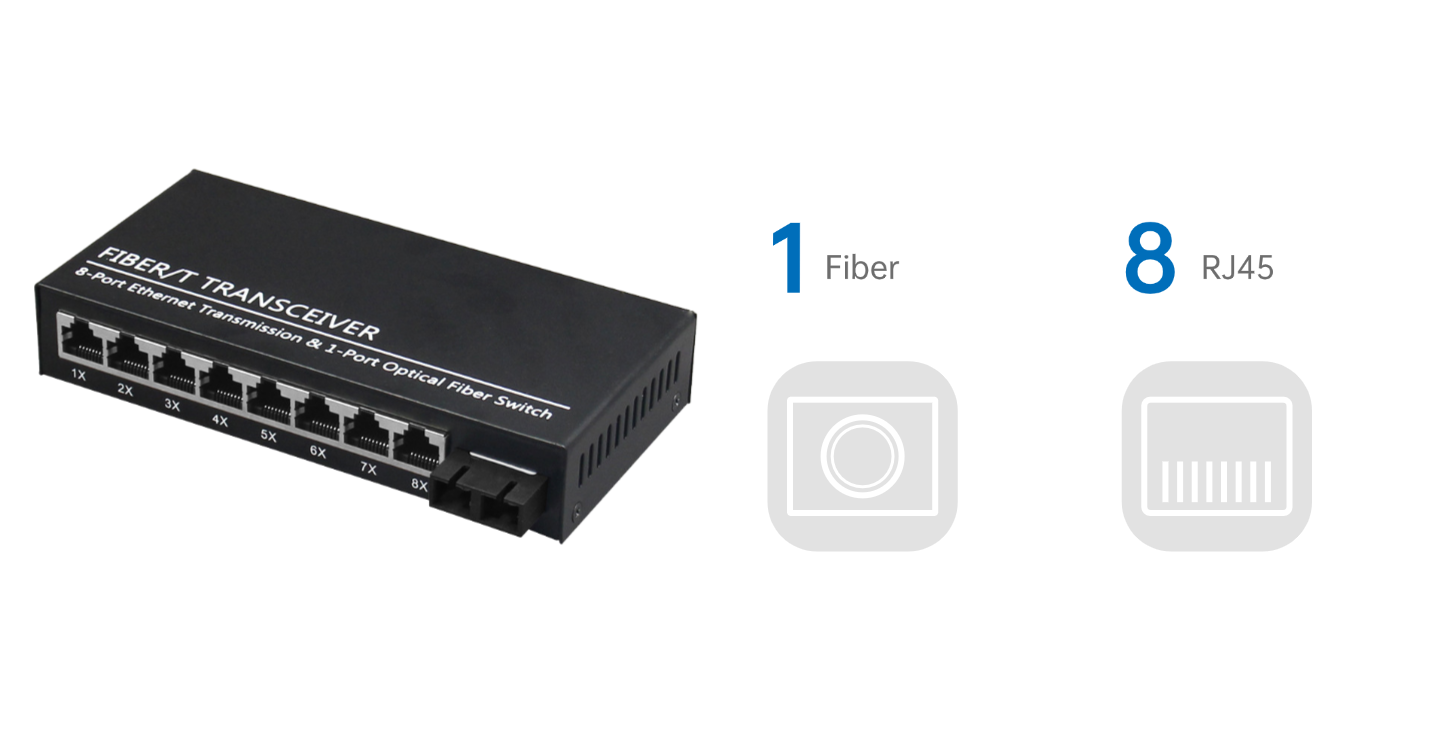

High speed forwarding diagram
Plug-and-play, no need for any configuration

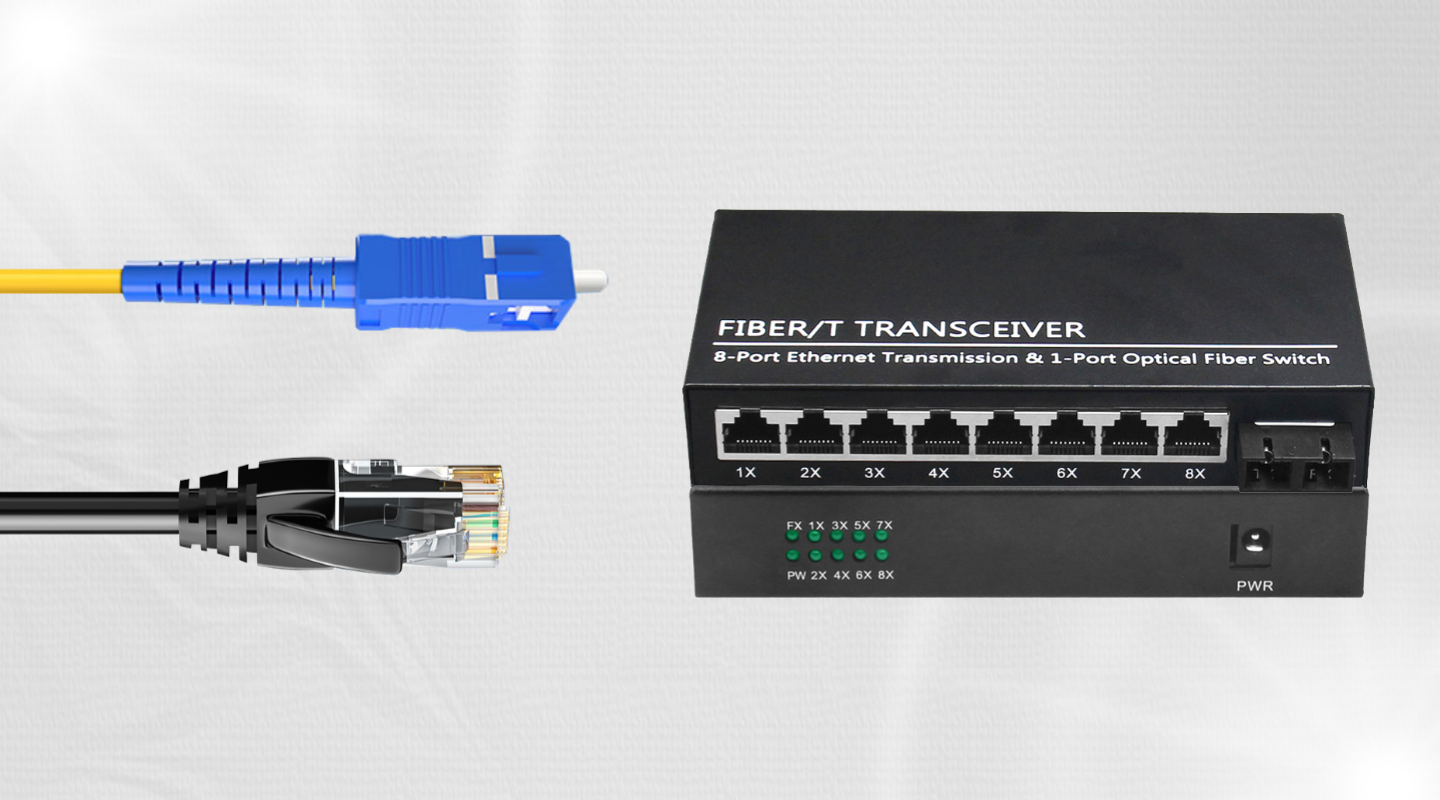

Plug and play setup diagram
Product dimensions and interface definitions

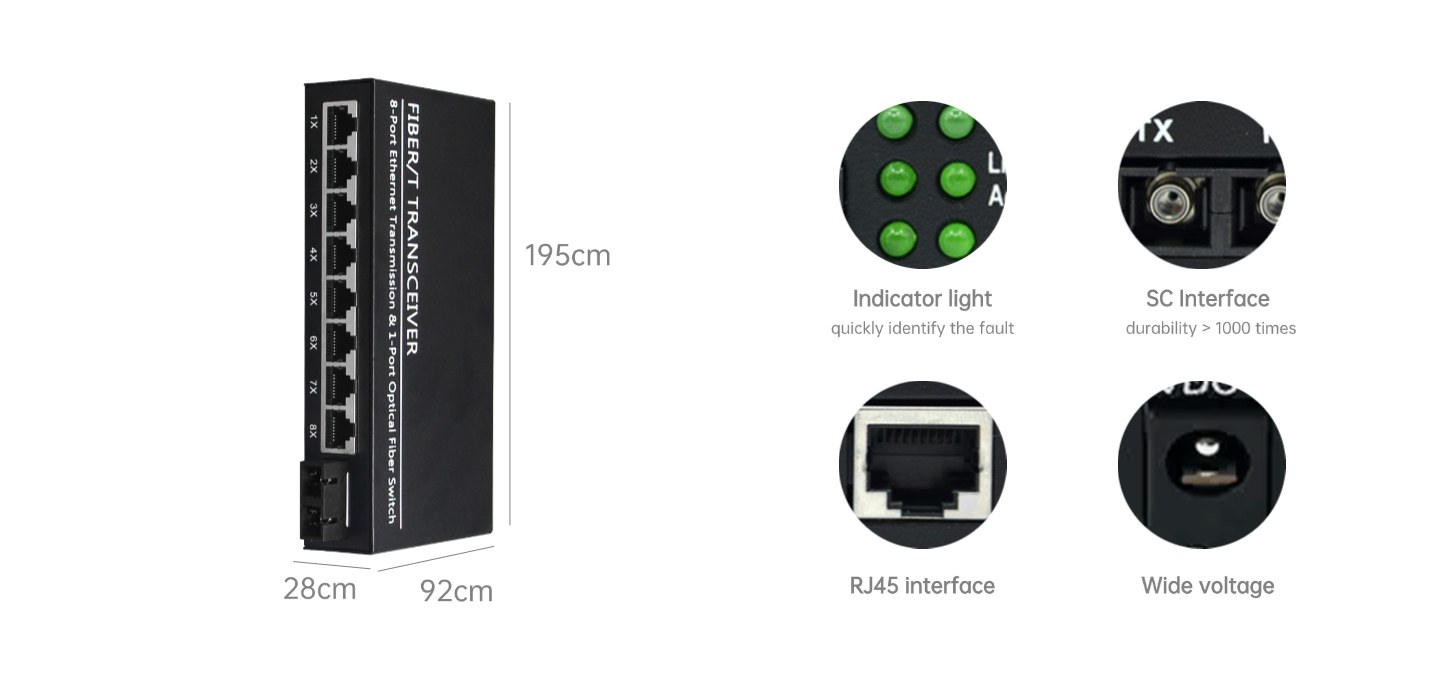

Product dimensions details
Application

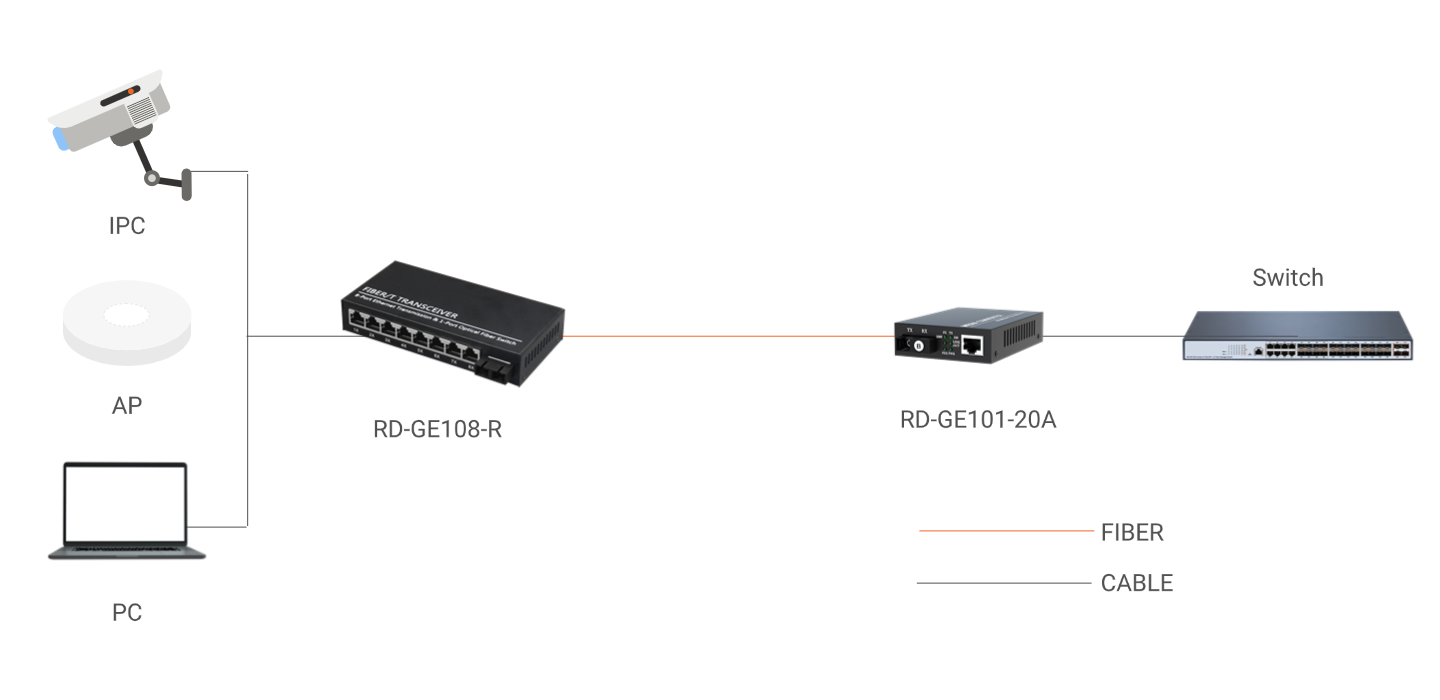

Application scenario diagram
Hardware Specifications
Standard ● IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface ● 1*1.25Gbps SC optical fiber interface
● 8*RJ45 10/100/1000Mbps
Distance ● 100m @CTE5
● 20km @SMF
Wavelength ● A: Tx1310nm/Rx1550nm
● B: Tx1550nm/Rx1310nm
Transmission media ● Cable: CTE5 or higher UTP and STP
● Optical Fiber: 9/125um single-mode optical fiber
Optical parameter ● Average emission power: -9 to -3 dBm
● Receiving sensitivity: -22 dBm
Power ● DC5V/2A
Size ● 195mm*92mm*28mm
Environment ● Operating temperature: -5℃ to 60℃
● Operating humidity: 10% to 90% RH (non-condensing)
● Storage temperature: -40℃ to 70℃
● Storage humidity: 5% to 90% RH (non-condensing)
Order Info
RD-GE108-T Fiber Media Converter 10/100/1000MB 1*SC+8*RJ45 1310-TX
RD-GE108-R Fiber Media Converter 10/100/1000MB 1*SC+8*RJ45 1550-TX
This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.
Frequently Asked Questions
Q1: What is your MOQ request?
Depends on products, different products have different MOQ.
Q2: Do you Support ODM/OEM service?
Yes, we can offer the customization service to you.
Q3: Does your products support other brands?
Yes, all of our products is without lock, support to another brands too.
Q4: Are you the manufacturer or trading company?
We are the manufacturer, we support factory view tour.
Q5: Do you offer free samples?
Yes, for some models we are able to provide the free samples for your testing purpose.
Q6: Are you able to provide the local certificates?
Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
