Compact Size | Low Latency | High Performance

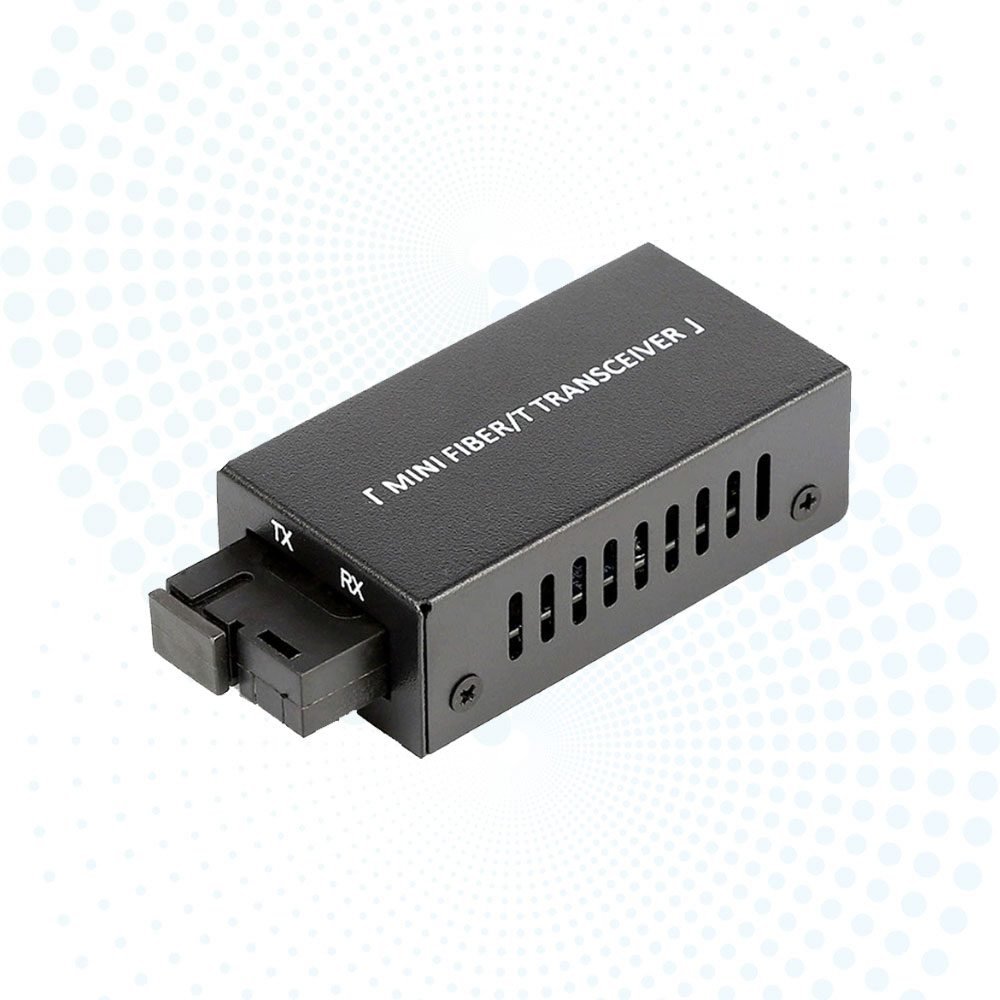

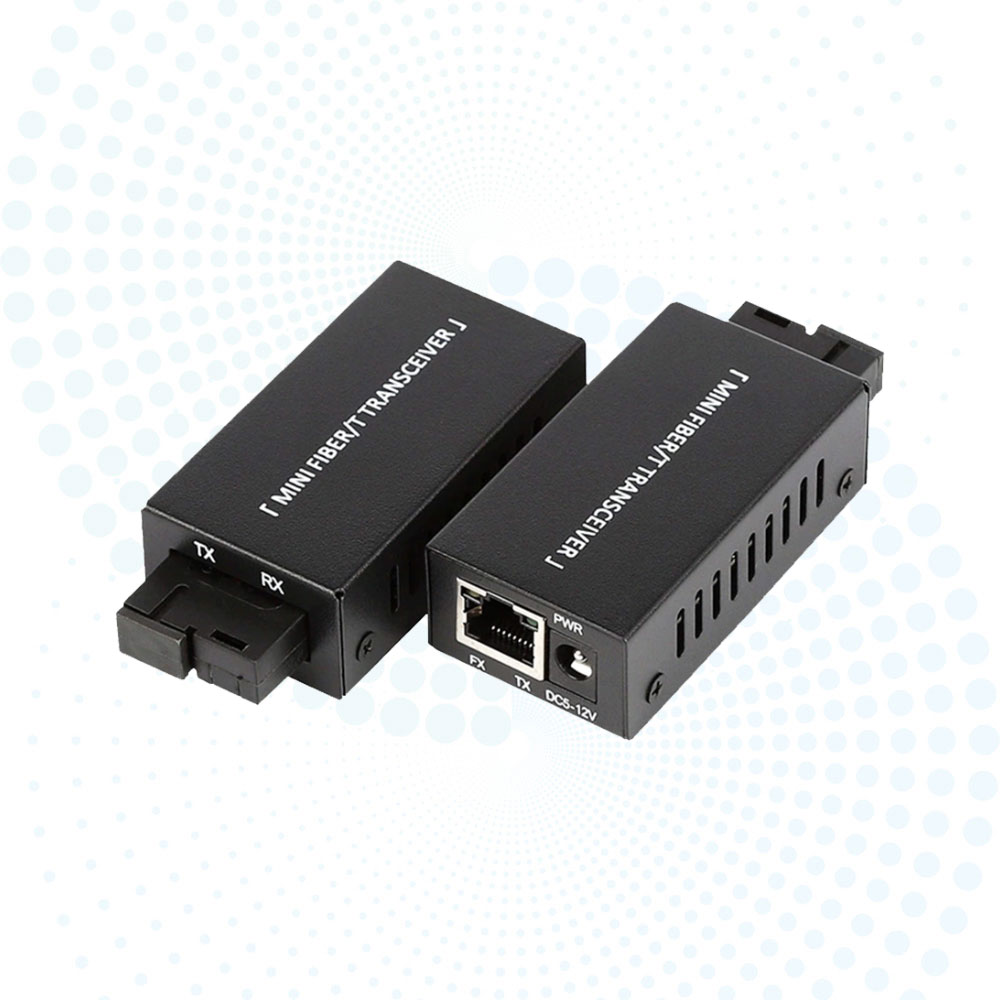

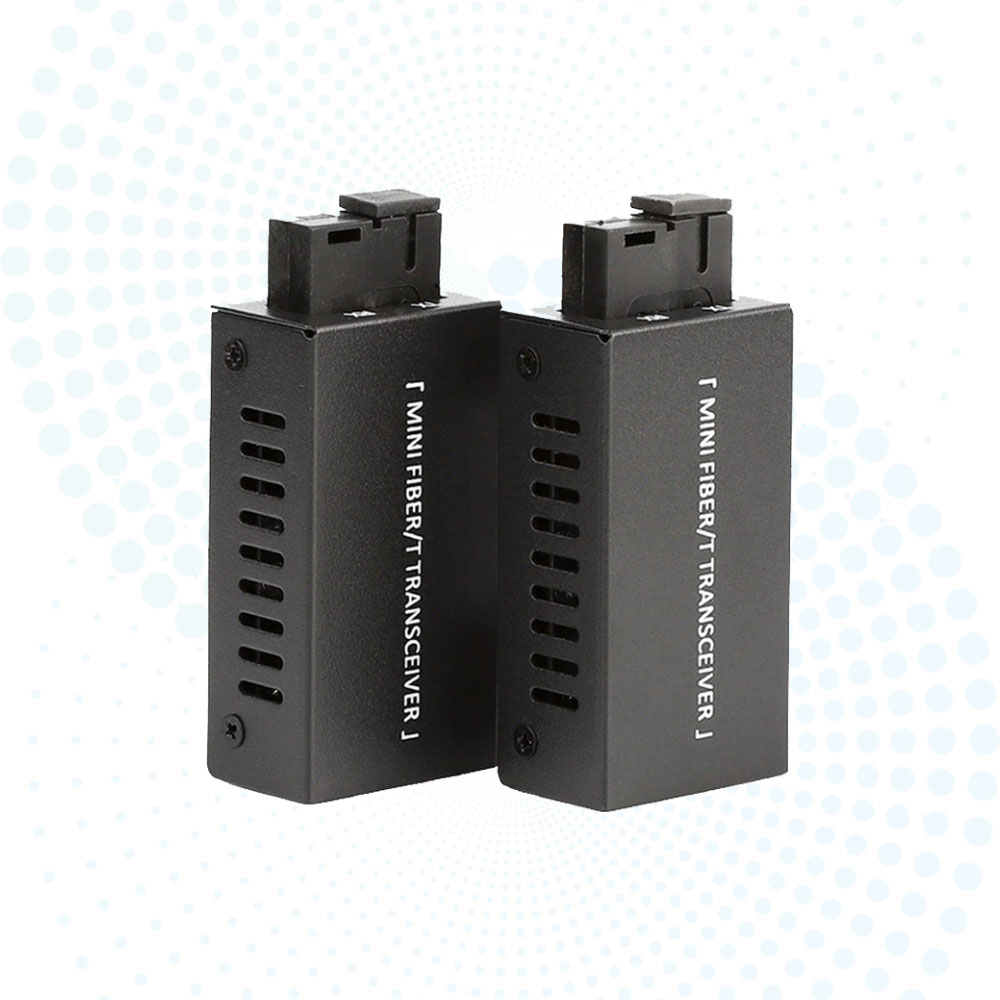

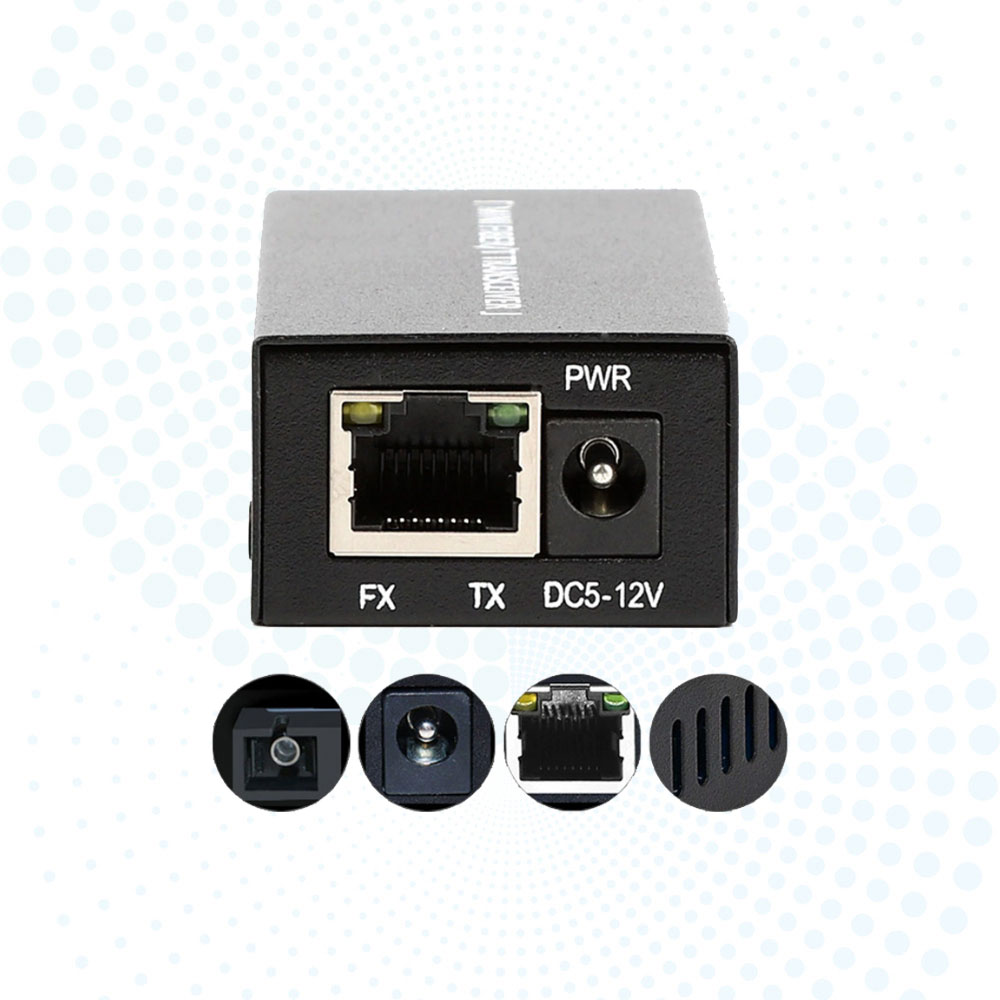

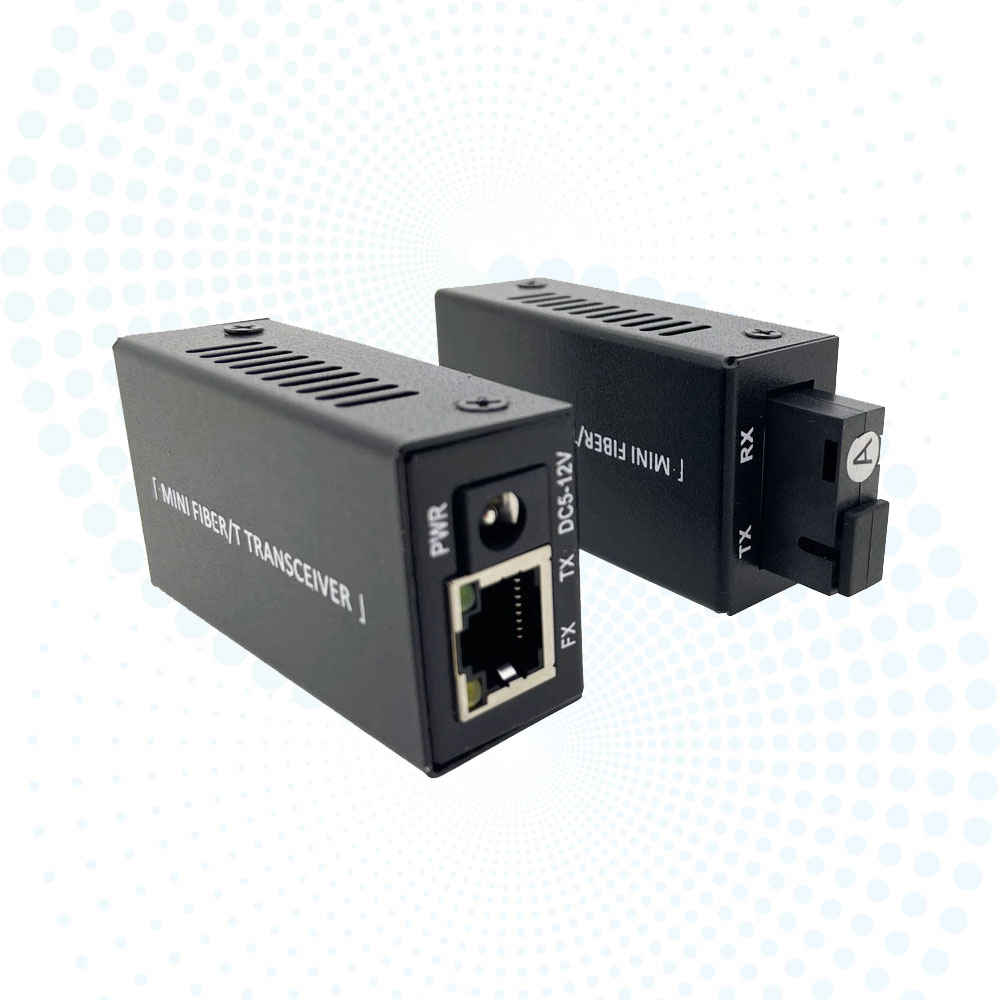

Engineered for versatility and seamless performance, this transceiver features an ultra-compact size perfect for space-constrained industrial setups.
Efficient and fast connection. Simply insert the fiber optic cable to connect the device and start using it immediately without complex configuration steps.
Features a 1*Gigabit fiber port with 1*10/100/1000Mbps RJ45 port config. Ideal for point-to-point high-speed data forwarding.
| Parameter Type | Detailed Specificationss |
|---|---|
| Fixed Port | 1*10/100/1000Base--TX RJ45 port (Data) |
| 1*1000M Optical Fiber Port | |
| Network Protocol | IEEE802.3 |
| IEEE802.3i 10BASE-T | |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3ab 1000BASE-TX/FX | |
| Port Specification | 10/100/1000BaseT(X) Auto |
| Transmission Mode | Store and Forward (full wirespeed) |
| Bandwidth | 1024Mbps |
| Packet Forwarding | 7.2Mpps |
| MAC Address | 4K |
| Buffer | 2.5M |
| MTBF | >100,000 hours |
| Transmission Distance | 10BASE-T : Cat3,4,5 UTP (≤250 meter) |
| 100BASE-TX : Cat5 or later UTP (100 meter) | |
| 1000BASE-TX : Cat5 or later UTP (100 meter) | |
| Multi mode double fiber (MAX 850M/2KM) | |
| Single mode double fiber (default 20KM) | |
| Single mode single fiber (default 20KM) | |
| Optional 3-120KM Optical Fiber Module | |
| Watt | ≤5W |
| LED Indicator | PWR: Power LED |
| PDX: Working status LED | |
| TX: Network Port LED | |
| FX: Optical fiber LED | |
| Link/Act: Optical Fiber Port State LED | |
| Power | External power: DC5V ; Input: AC100~240V; 50/60Hz |
| Operating Temp/Humidity | 0～+70°C; 5%～90% RH Non coagulation |
| Storage Temp/Humidity | -20～+75°C; 5%～95% RH Non coagulation |
| Product / Packing Size | 67mm*42mm*22mm (L*W*H) |
| 230mm*125mm*55mm (L*W*H) | |
| N.W / G.W (kg) | 0.18kg / 0.36kg |
| Installation | Desktop (optional wall hanger + machine hanger parts) |
| Lightning Protection | 3KV 8/20us |
| IP30 | |
| Certificate | CE mark, commercial; CE/LVD EN60950; |
| FCC Part 15 Class B; RoHS; CNAS; MA | |
| Warranty | Whole device for 1 year |
| Model | Introduction | Function |
|---|---|---|
| RD-GS5601-M20A RD-GS5601-M20B |
Mini Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm B:Tx1550nm/Rx1310nm |
| RD-GS5601-20A RD-GS5601-20B |
Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm B:Tx1550nm/Rx1310nm |
| RD-GS5601-S20 | Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| RD-GS5601-SFP | 10/100/1000MB to SFP Media Converter | 10/100/1000M media converter, 1*RJ45+1*SFP port, External DC5V power supply. |
| RD-GS5601-SFP MINI | MINI 10/100/1000MB to SFP Media Converter | 10/100/1000M media converter, 1*RJ45+1*SFP port, media converter only |
| RD-GS5601-SFP PCBA | MINI 10/100/1000MB to SFP Media Converter PCBA | 10/100/1000M media converter, 1*RJ45+1*SFP port, Board only. |
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team serving global clients.
We guarantee quality by implementing a strict dual-stage protocol: providing pre-production samples before mass production, and performing a 100% final inspection before shipment.
We supply FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and various other high-performance fiber optic equipment.
We are a top-tier optical communication supplier. Our core focus is delivering advanced PON and switching solutions supported by a strong engineering team. We provide reliable products and value-added service to all partners globally.
Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
Payment Currencies: USD, EUR, CNY, and more.
Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow.
Languages: English, Chinese, Spanish, French, Russian, etc.
The standard transmission distance for single-mode fiber models is 20km. Custom versions can be requested to support ranges from 3km up to 120km.
