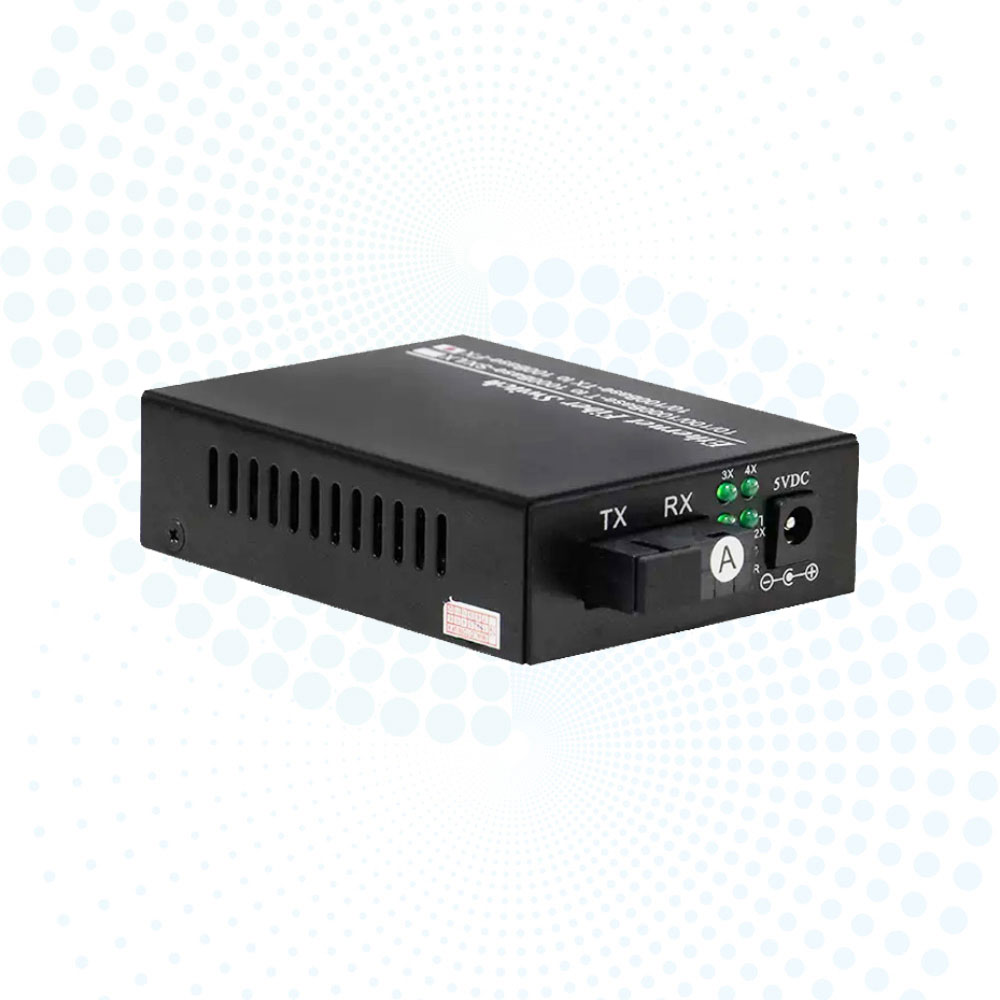

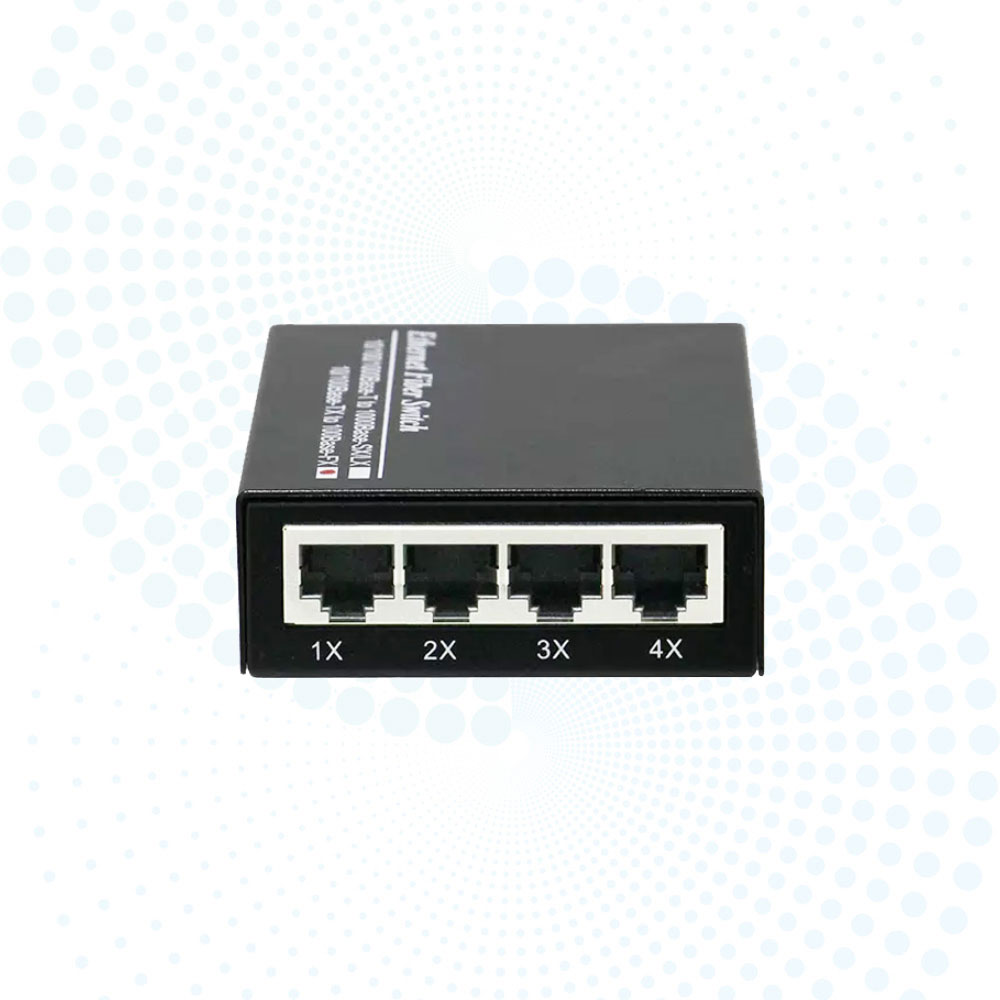

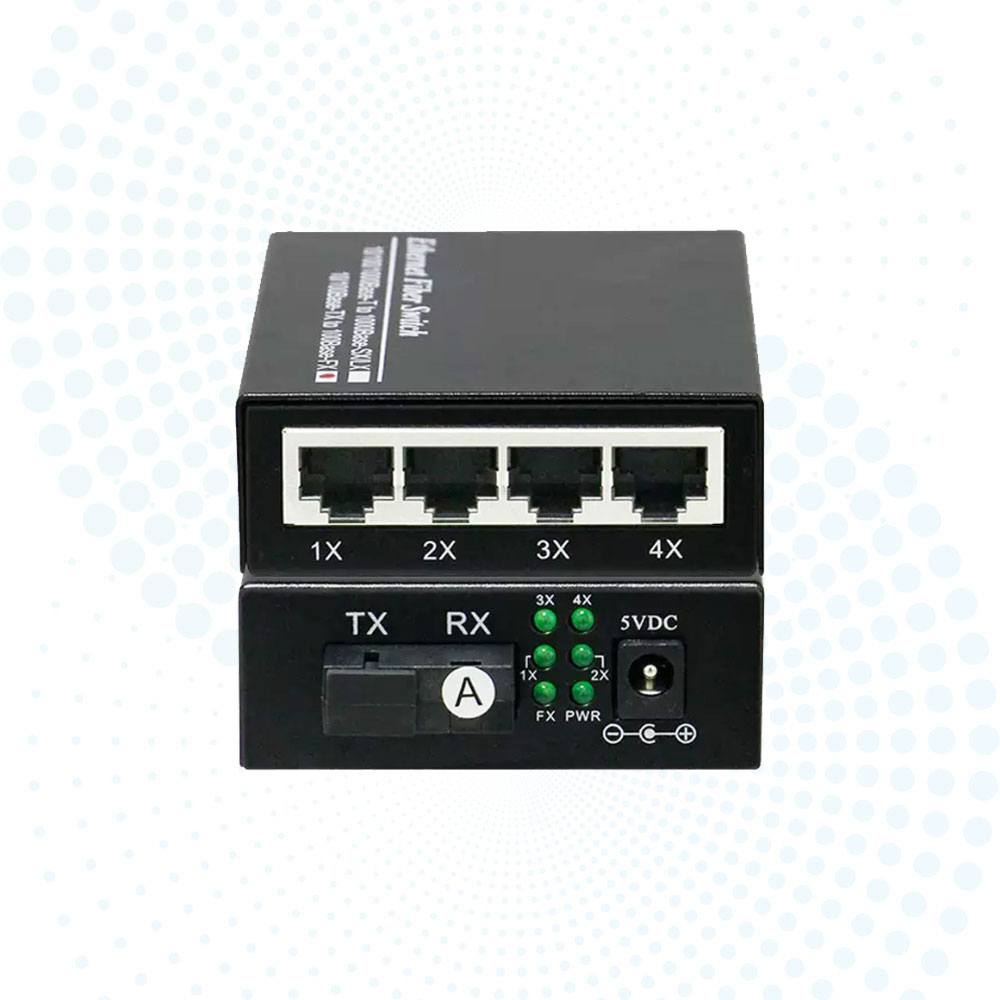

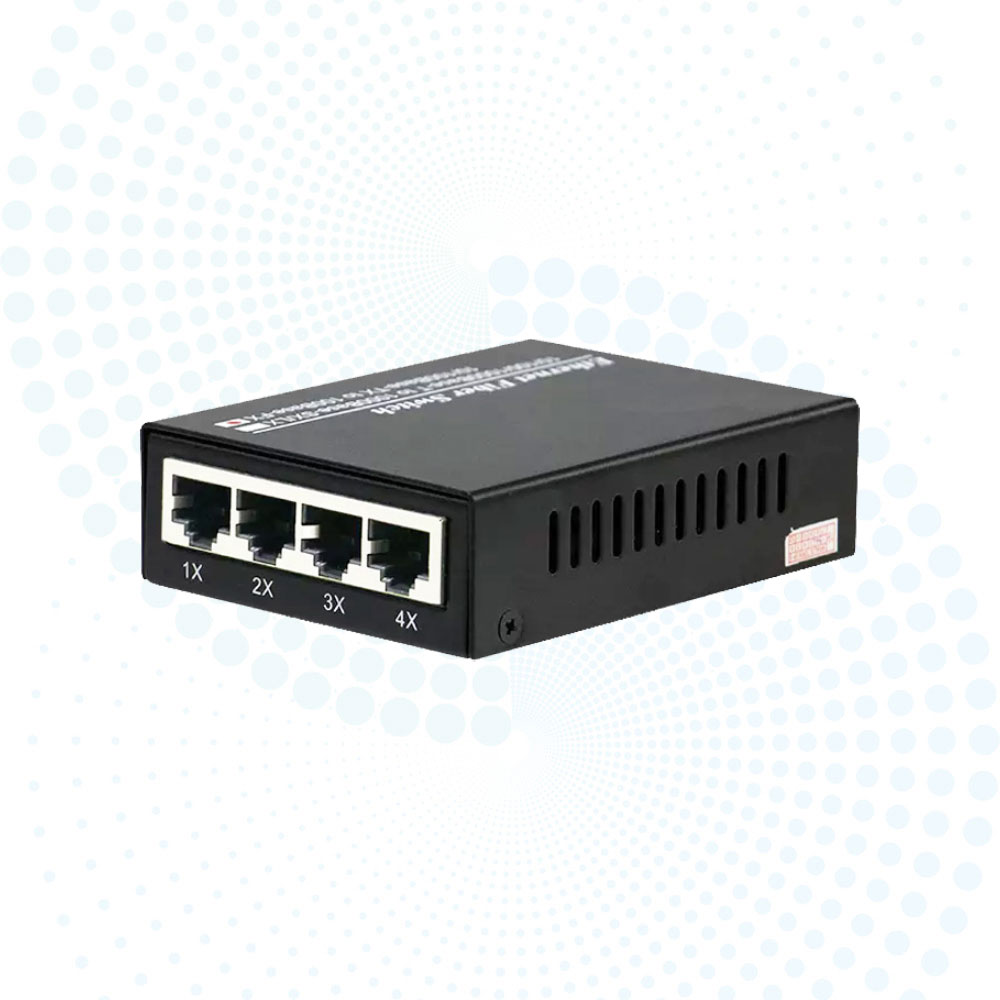

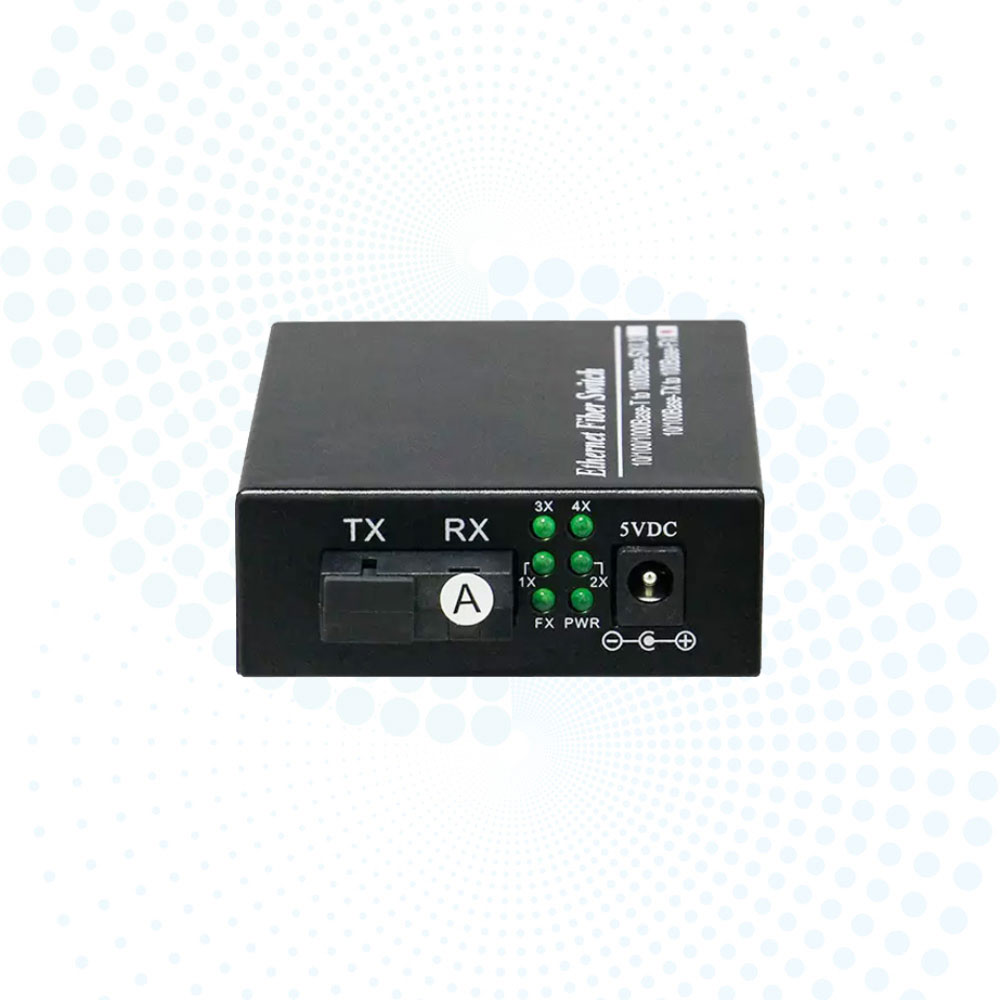

Factory Price 1FX 4TX Gigabit Fiber to Ethernet Converter 20km SC 10/100/1000Mbps Media Converter

1 / 5

Factory Price 1FX 4TX Gigabit Fiber to Ethernet Converter 20km SC 10/100/1000Mbps Media Converter

Send Inquiry

Product Description

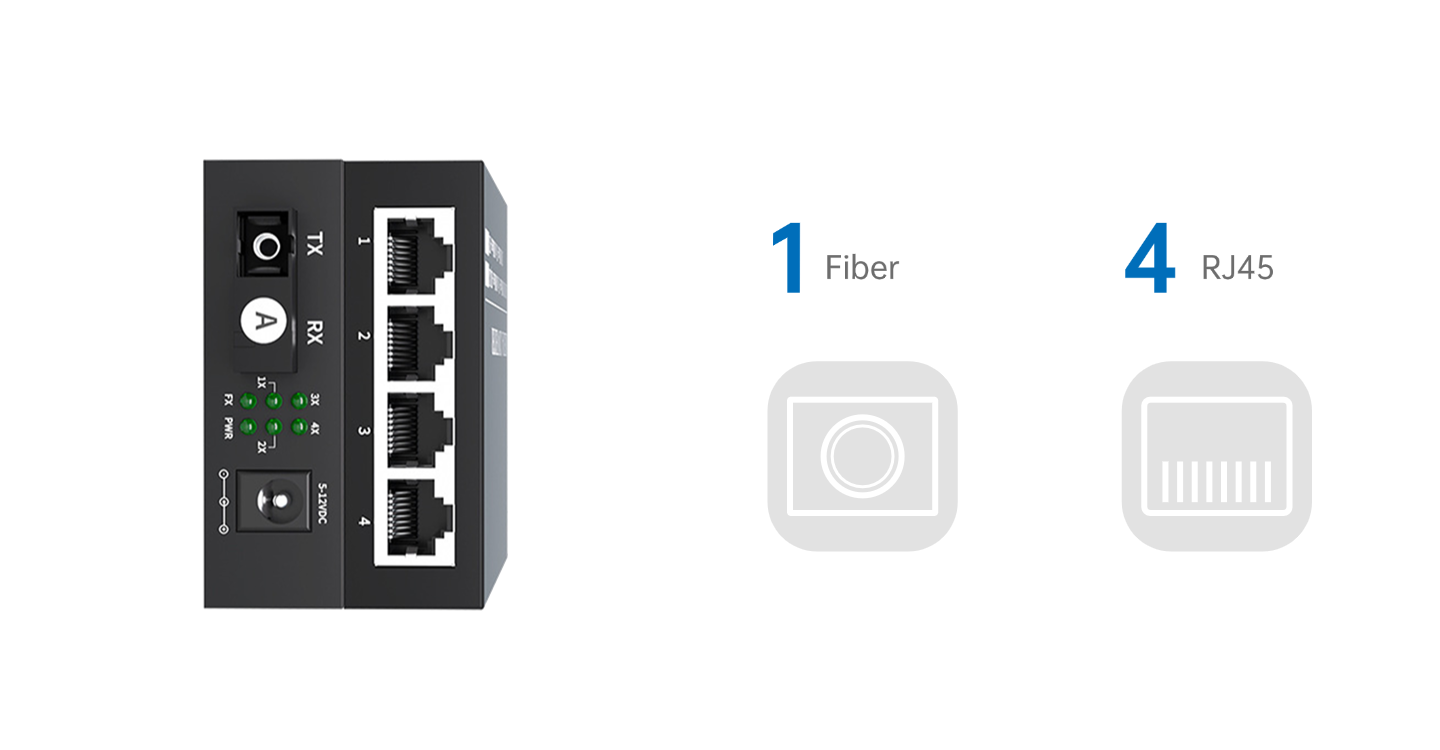

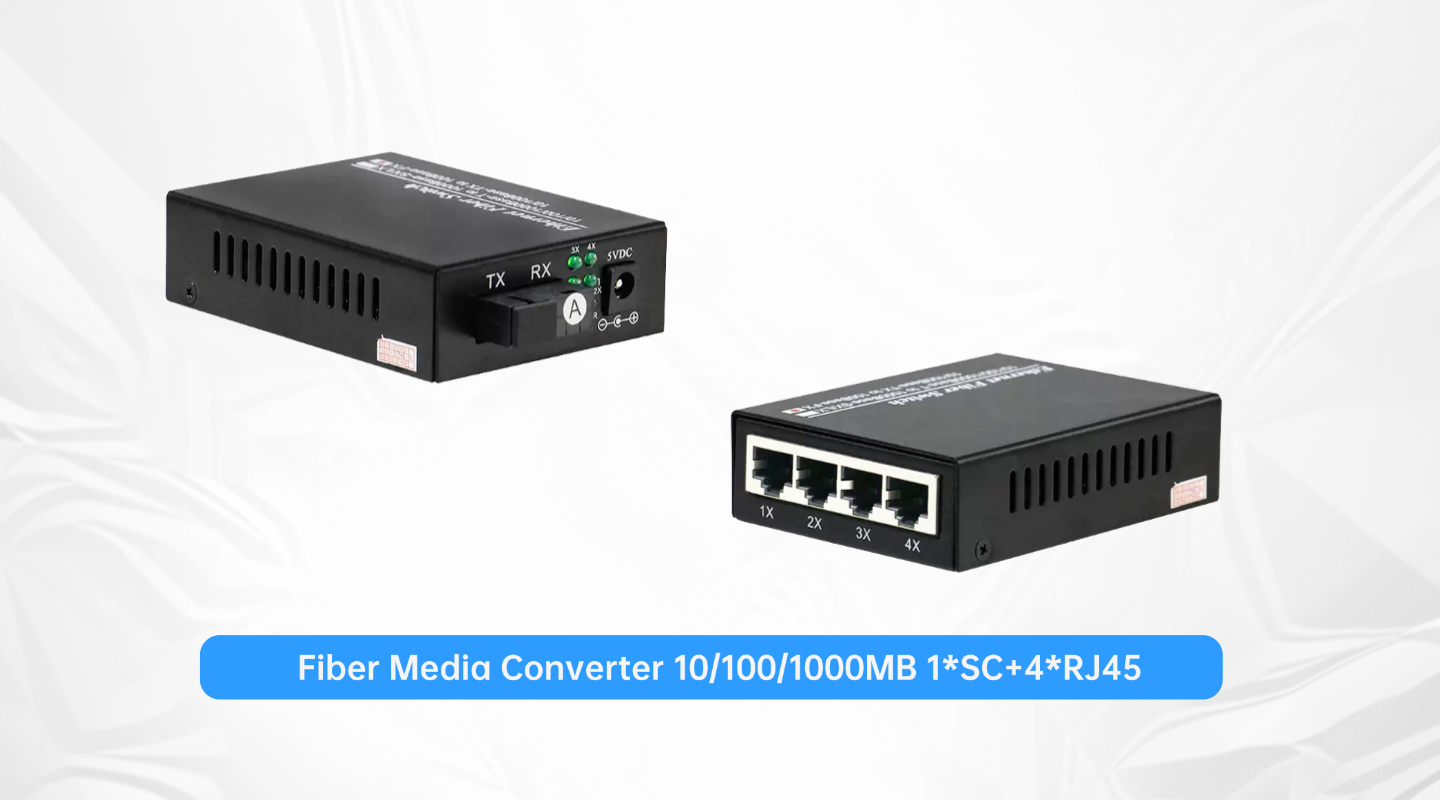

1 Gigabit fiber port with 4*10/100/1000Mbps RJ45 port

Point-to-multipoint high-speed forwarding

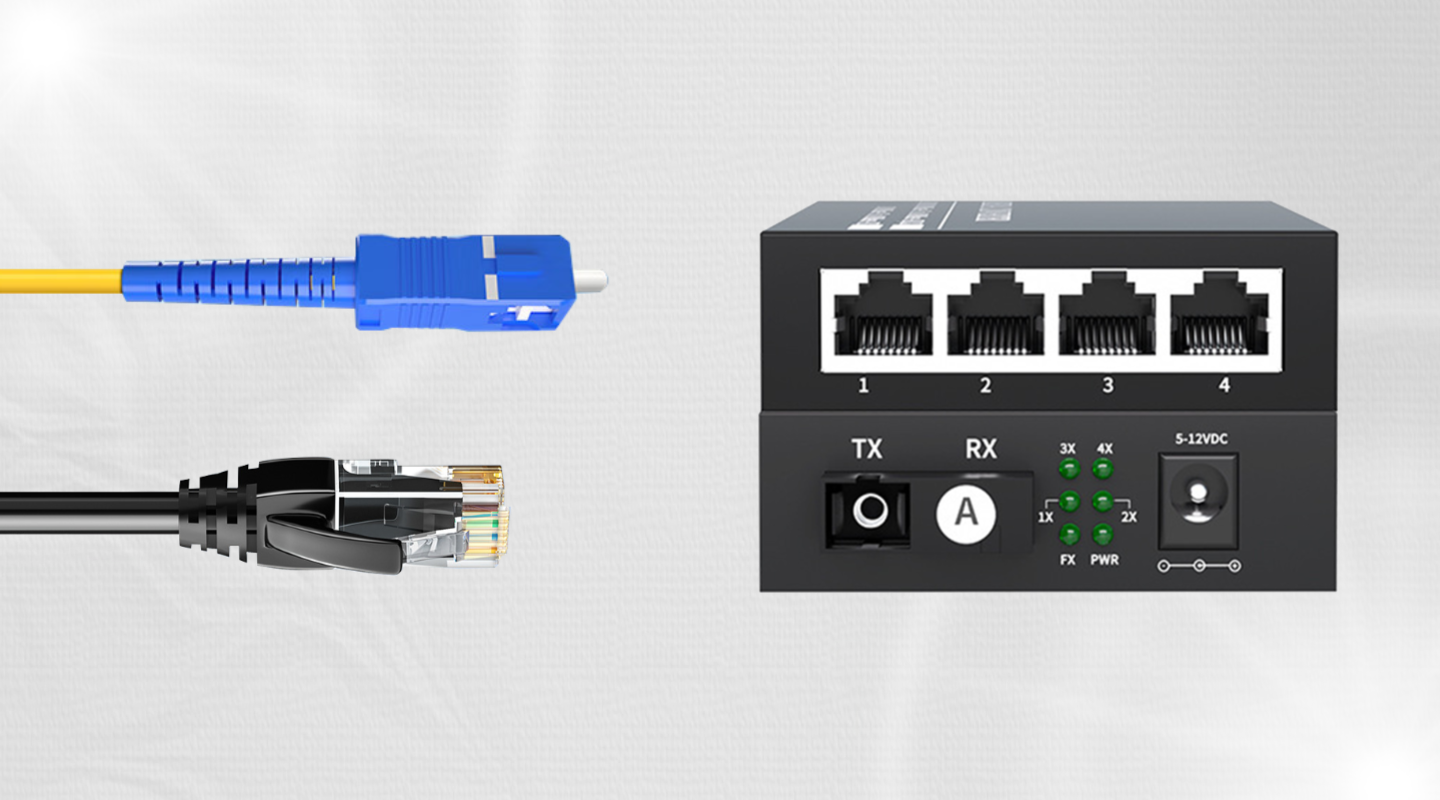

Plug-and-play, no need for any configuration

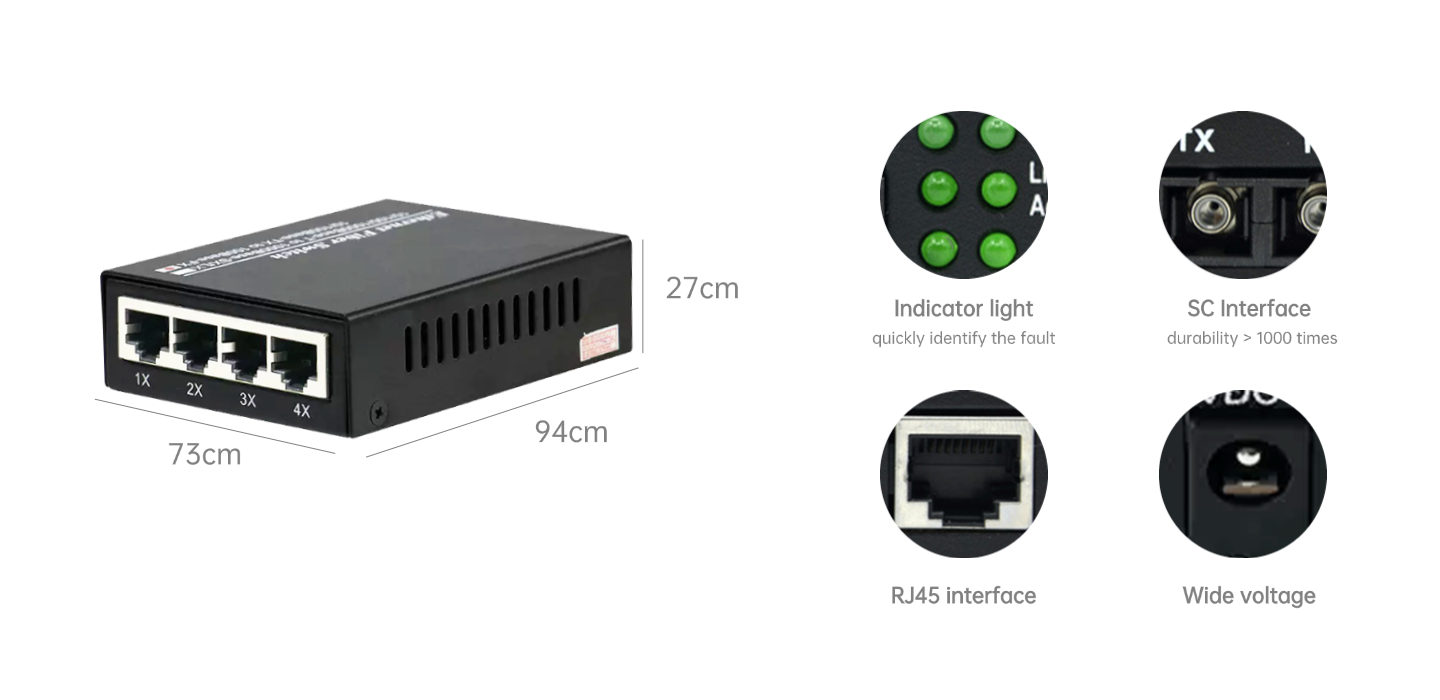

Product dimensions and interface definitions

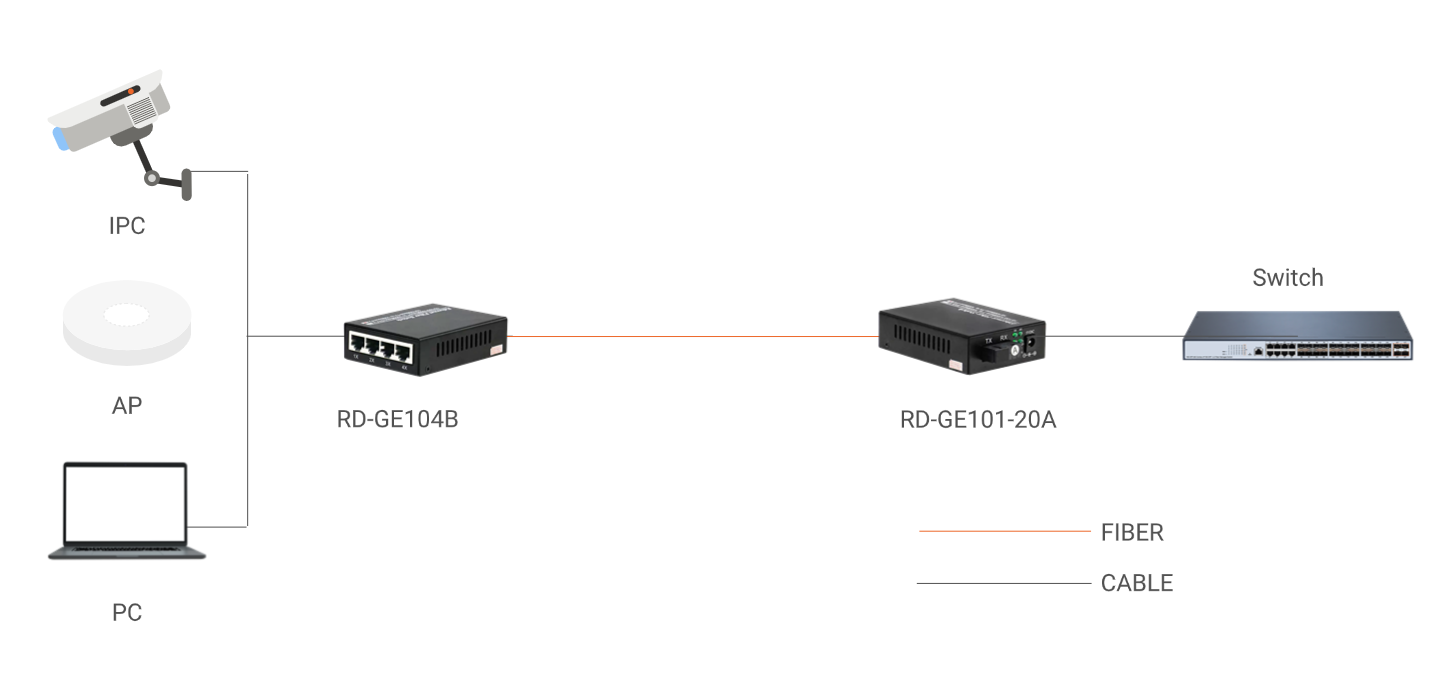

Application

Hardware Specifications
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface	11.25Gbps SC optical fiber interface 4RJ45 10/100/1000Mbps
Distance	100m @CTE5 20km @SMF
Wavelength	A: Tx1310nm / Rx1550nm B: Tx1550nm / Rx1310nm
Transmission media	Cable: CTE5 or higher UTP and STP Optical Fiber: 9/125um single-mode optical fiber
Optical parameter	Average emission power: -9 to -3 dBm Receiving sensitivity: -22 dBm
Power	DC5V / 2A
Size	94mm * 73mm * 27mm
Environment	Operating temperature: -5°C to 60°C Operating humidity: 10% to 90% RH (non-condensing) Storage temperature: -40°C to 70°C Storage humidity: 5% to 90% RH (non-condensing)

Order Info
RD-GE104-T	Fiber Media Converter 10/100/1000MB 1SC+4RJ45 1310-TX
RD-GE104-R	Fiber Media Converter 10/100/1000MB 1SC+4RJ45 1550-TX

💡

This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.

FAQ

Q1: What is your MOQ request?

A1: Depends on products, different products have different MOQ.

Q2: Do you Support ODM/OEM service?

A2: Yes, we can offer the customization service to you.

Q3: Does your products support other brands?

A3: Yes, all of our products is without lock, support to another brands too.

Q4: Are you the manufacturer or trading company?

A4: We are the manufacturer, we support factory view tour.

Q5: Do you offer free samples?

A5: Yes, for some models we are able to provide the free samples for your testing purpose.

Q6: Are you able to provide the local certificates?

A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
