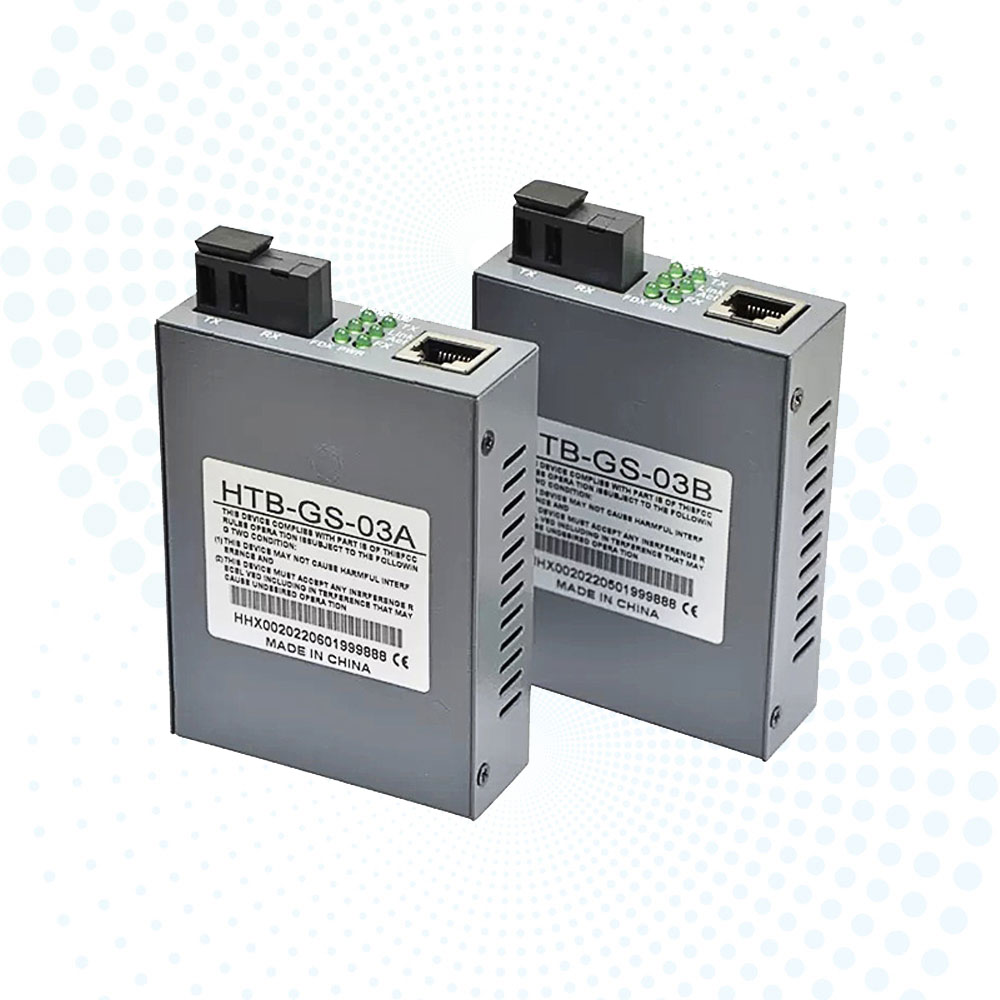

High speed and stable quality chip

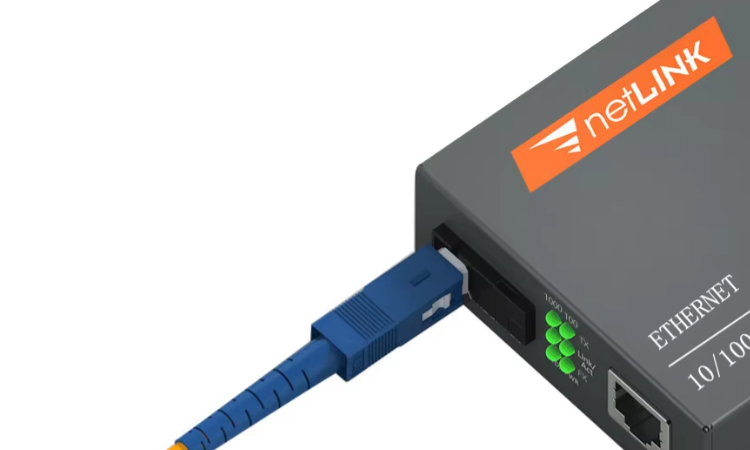

No need any configuration, just plug in the fiber optic network cable and you can use it. No need for more manpower and material resources to maintain.

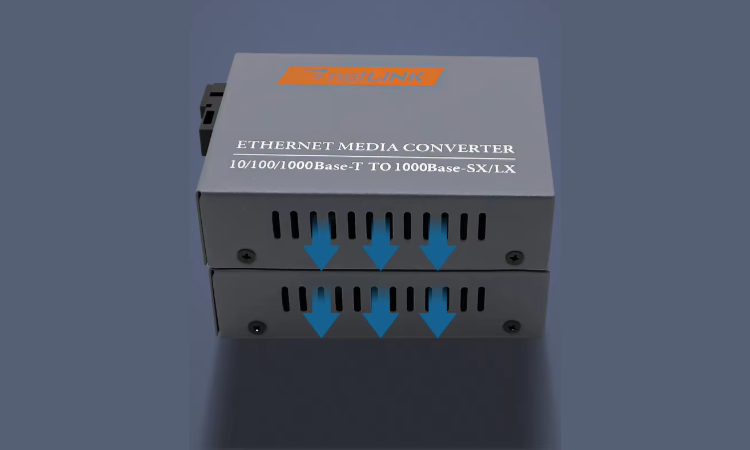

Two side ventilation cooling design, strong cooling work more stable.
Adopting high-quality chips for high-speed stability, low power consumption, and low loss design.

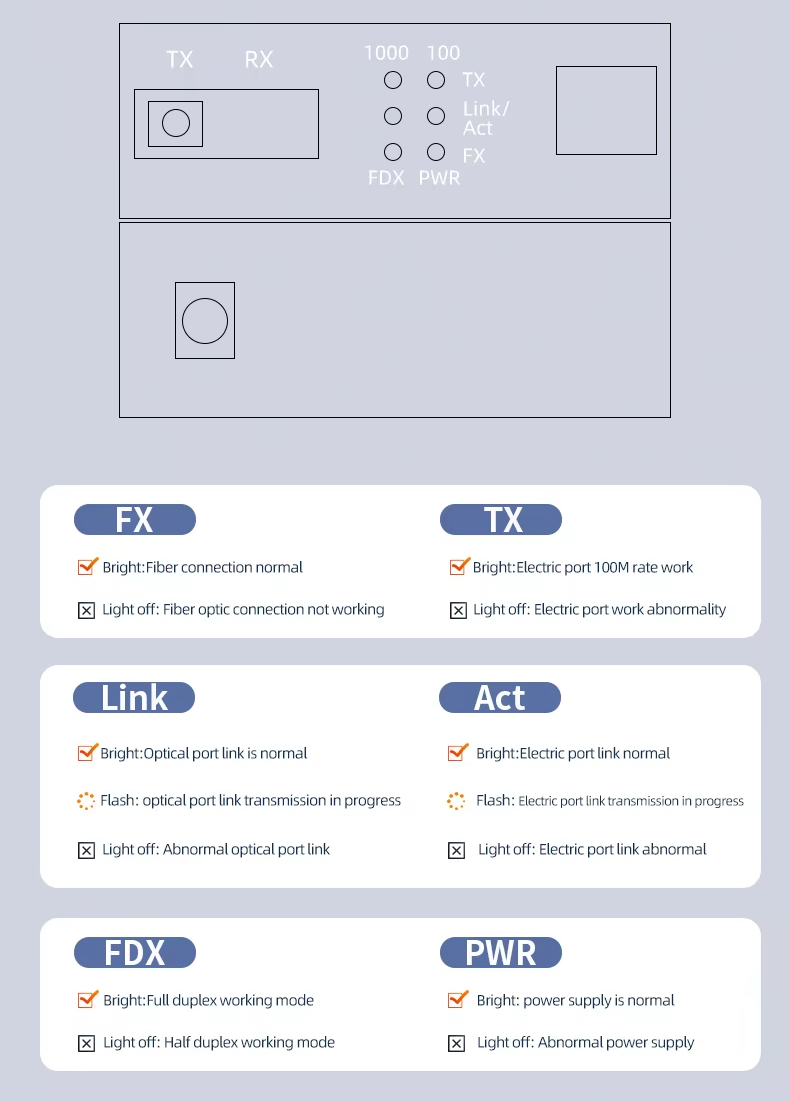

Clear networking status at a glance.
| Specifications | |
|---|---|
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-TX/FX |
| Ethernet Port | Connector: RJ45 Data Rate: 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level |
| Fiber Port | Connector: SC/FC/ST/SFP slot Data Rate: 1.25Gbps Distance: 3km ~ 120km |
| Port | 1 RJ45 port, Single fiber port (SC/LC/ST/FC Optional) |
| Performance | Processing Type: Store and Forward MAC Table Size: 2K Buffer Space: 1Mbit Maximum packet length: 9K Back bandwidth: 4G Time Delay: < 20μs |
| Forward / Filter Rate | 10M: 14,880/14,880pps 100M: 148,800/148,800pps 1000M: 1,488,000/1,488,000pps |

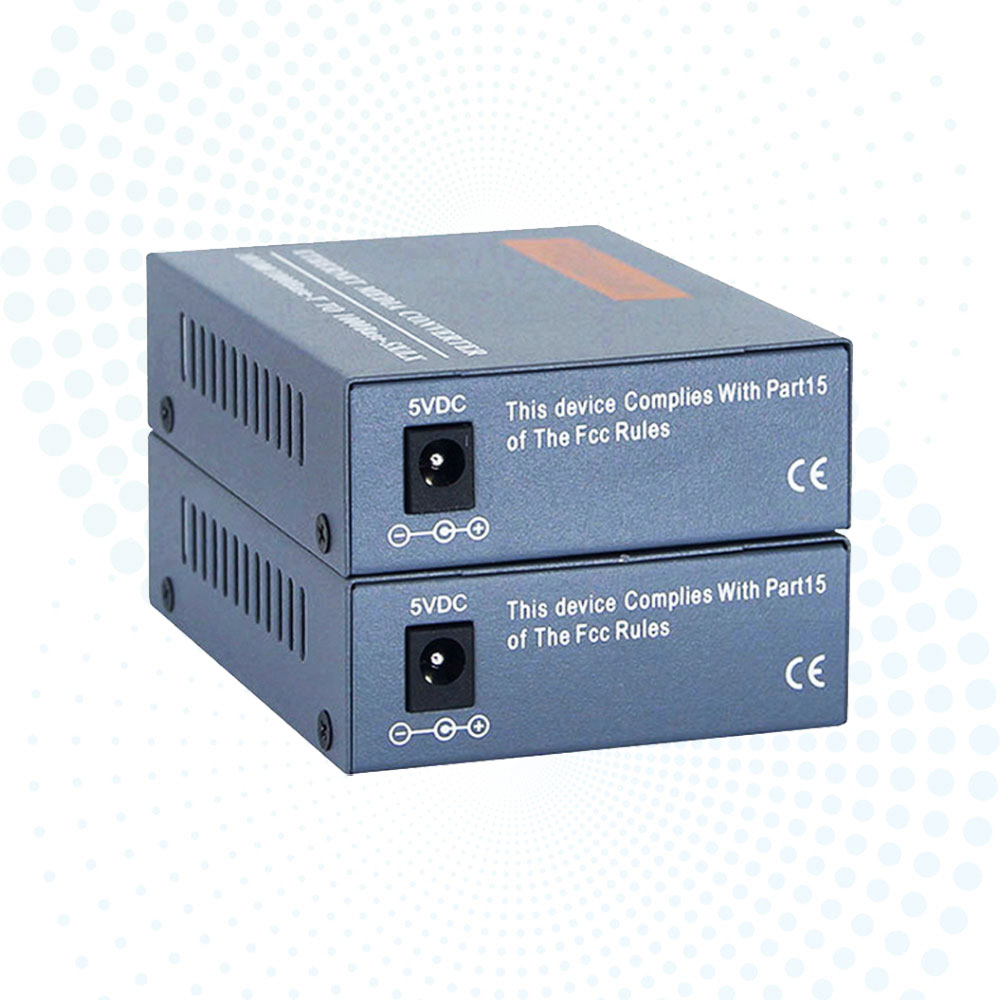

| Power Supply | External : 5V DC 1A Built-in: 100 V to 240 V AC 50Hz to 60Hz Power Consumption : ≤5W |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) |
| Order Info | |||
|---|---|---|---|
| Part Number | Optic Fiber | Wavelength | Distance |
| HTB-GS03 AB | Single mode | A:1310nm-TX/1550nm-RX B:1550nm-TX/1310nm-RX |
3km |
| HTB-GS03-20 AB | Single mode | A:1310nm-TX/1550nm-RX B:1550nm-TX/1310nm-RX |
20km |
| HTB-GS03-40 AB | Single mode | A:1310nm-TX/1550nm-RX B:1550nm-TX/1310nm-RX |
40km |
Depends on products, different products have different MOQ, pls contact our sales for more details.
Yes, we can offer the customization service to you.
Yes, all of our products is without lock, support to another brands too.
We are the manufacturer, we support factory view tour.
Yes, for some models we are able to provide the free samples for your testing purpose.
Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
