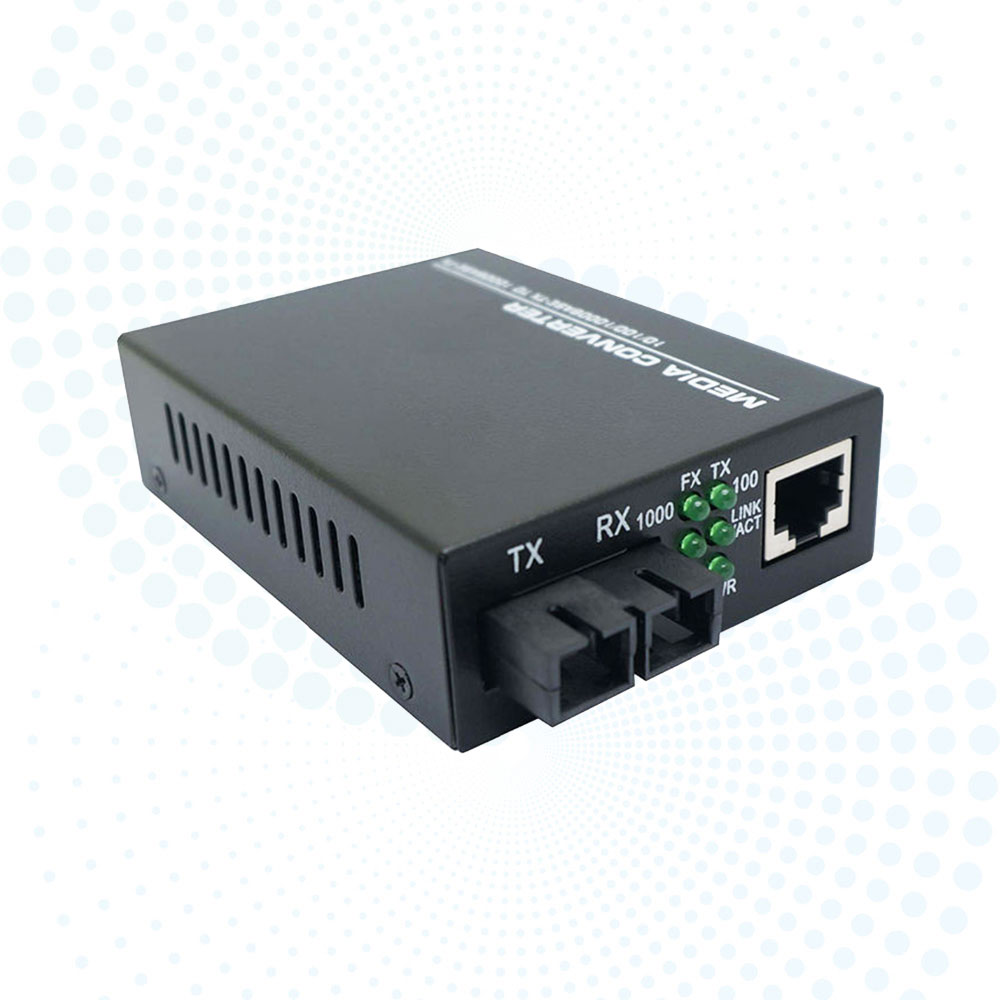

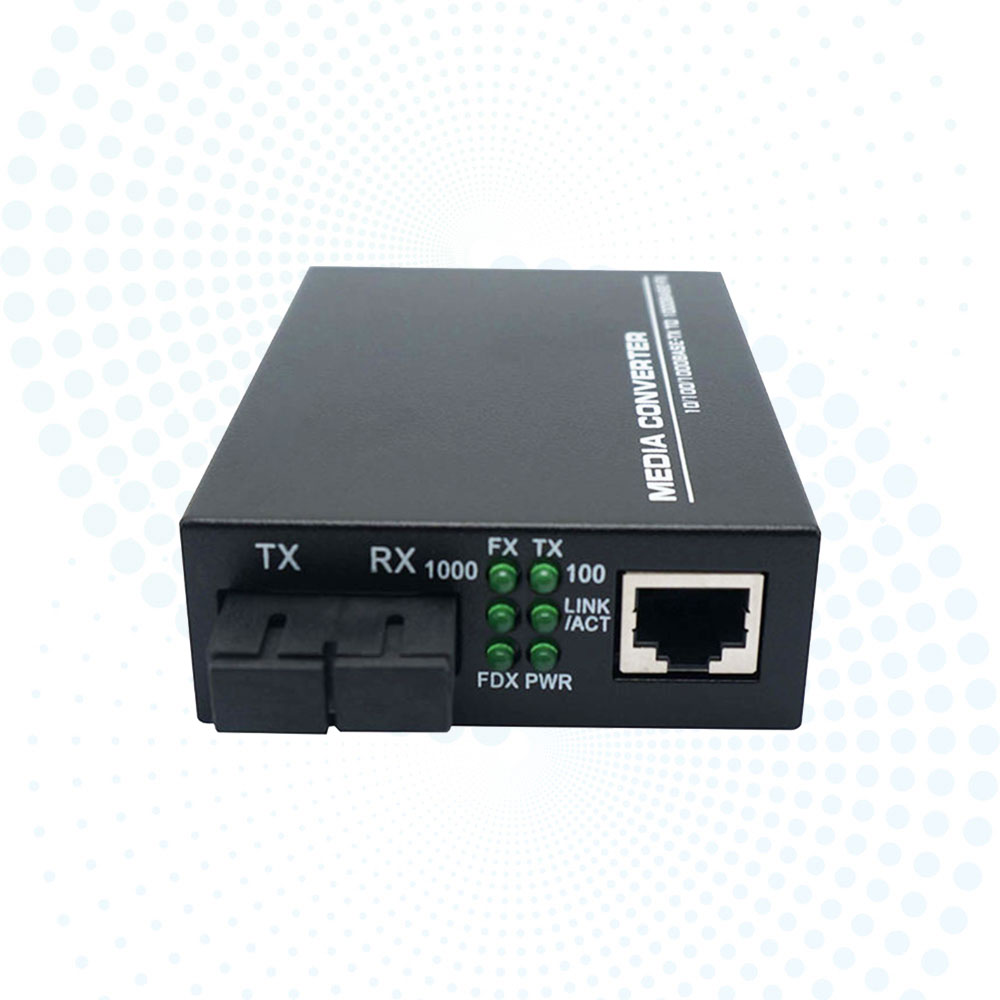

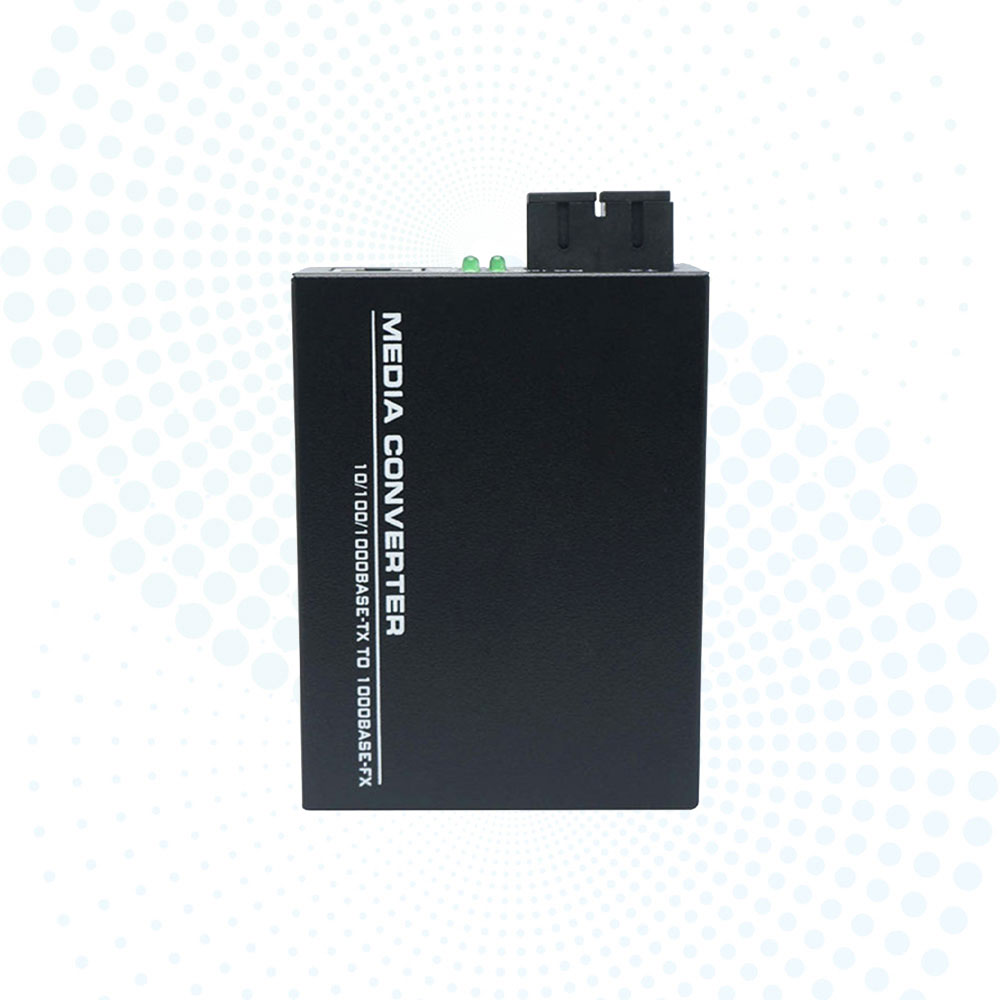

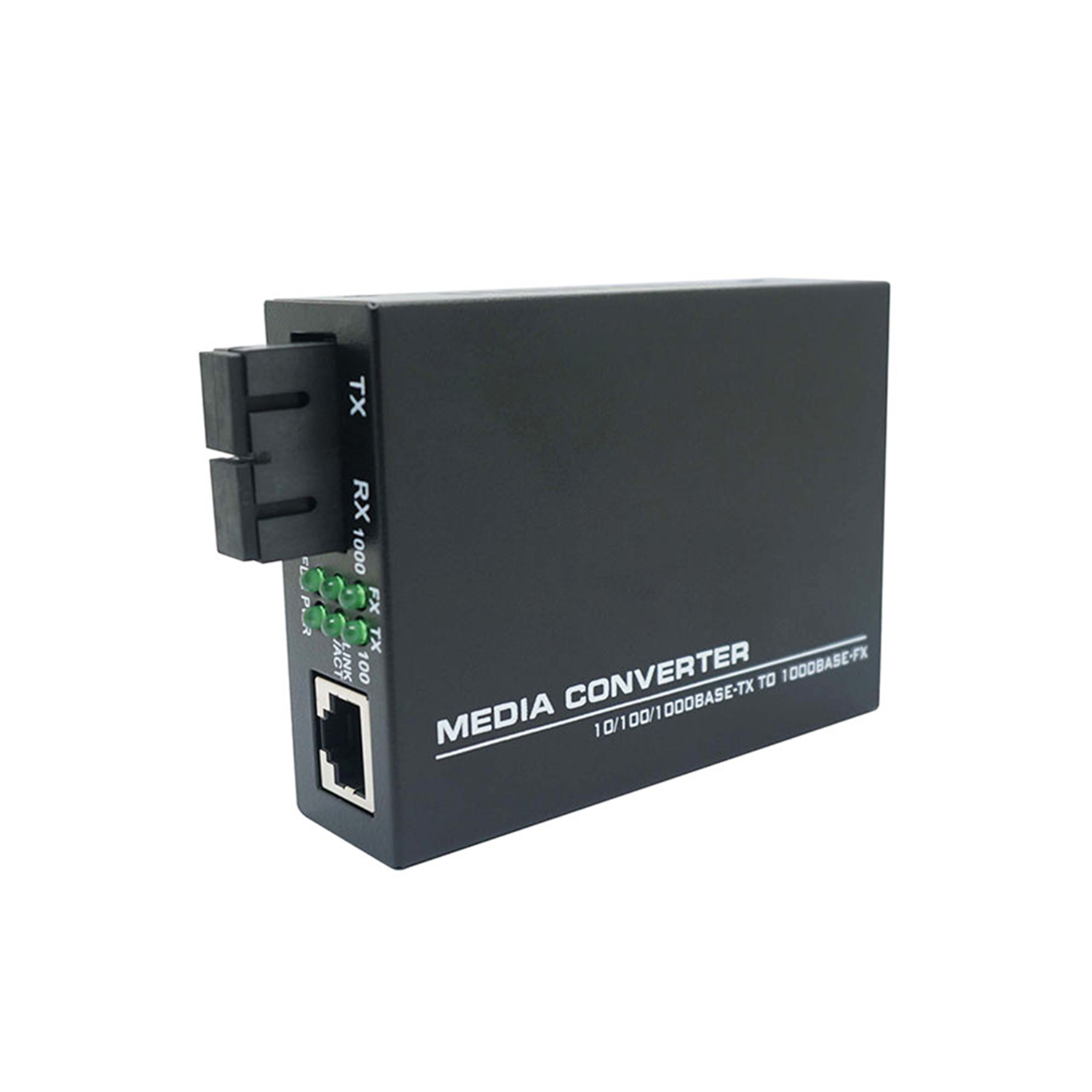

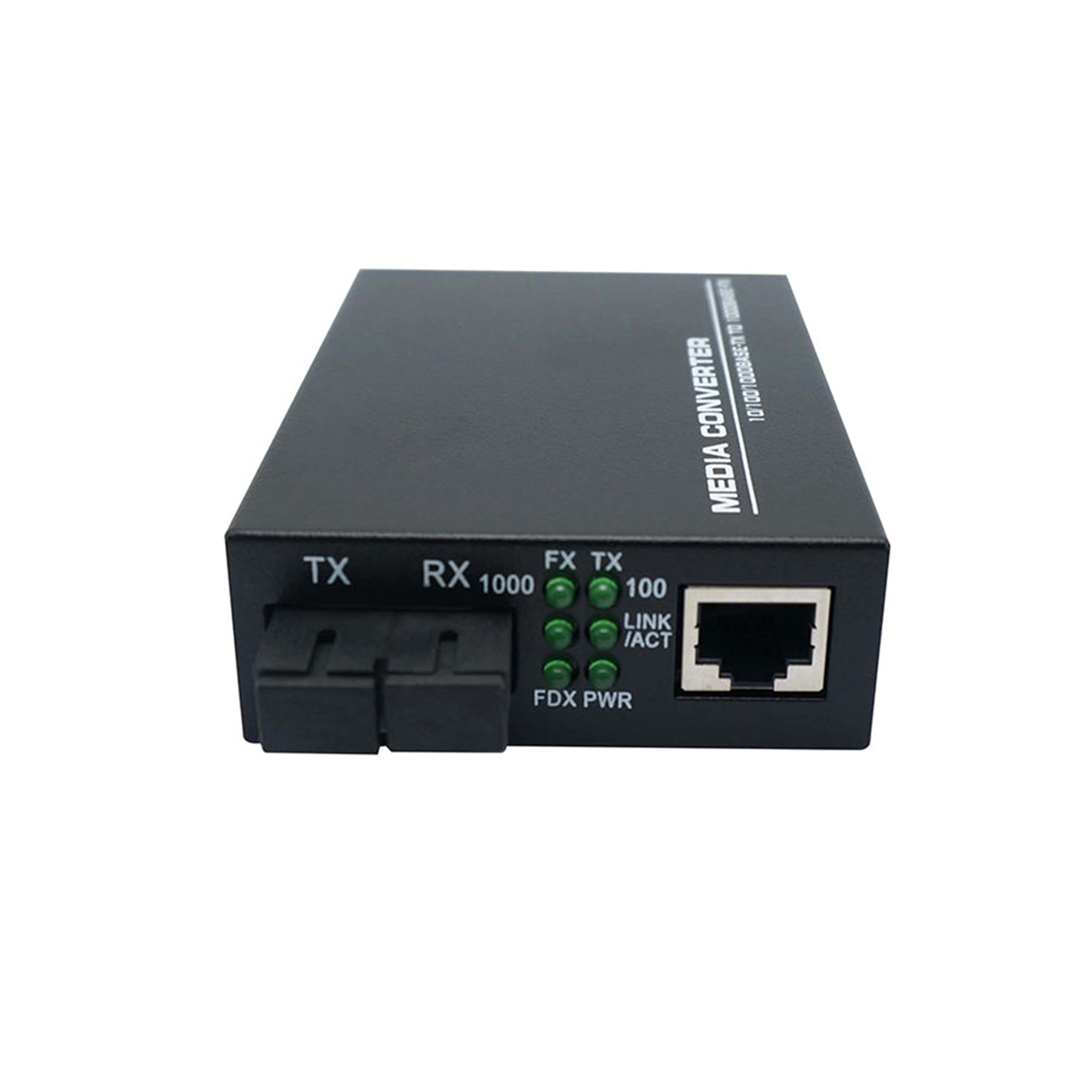

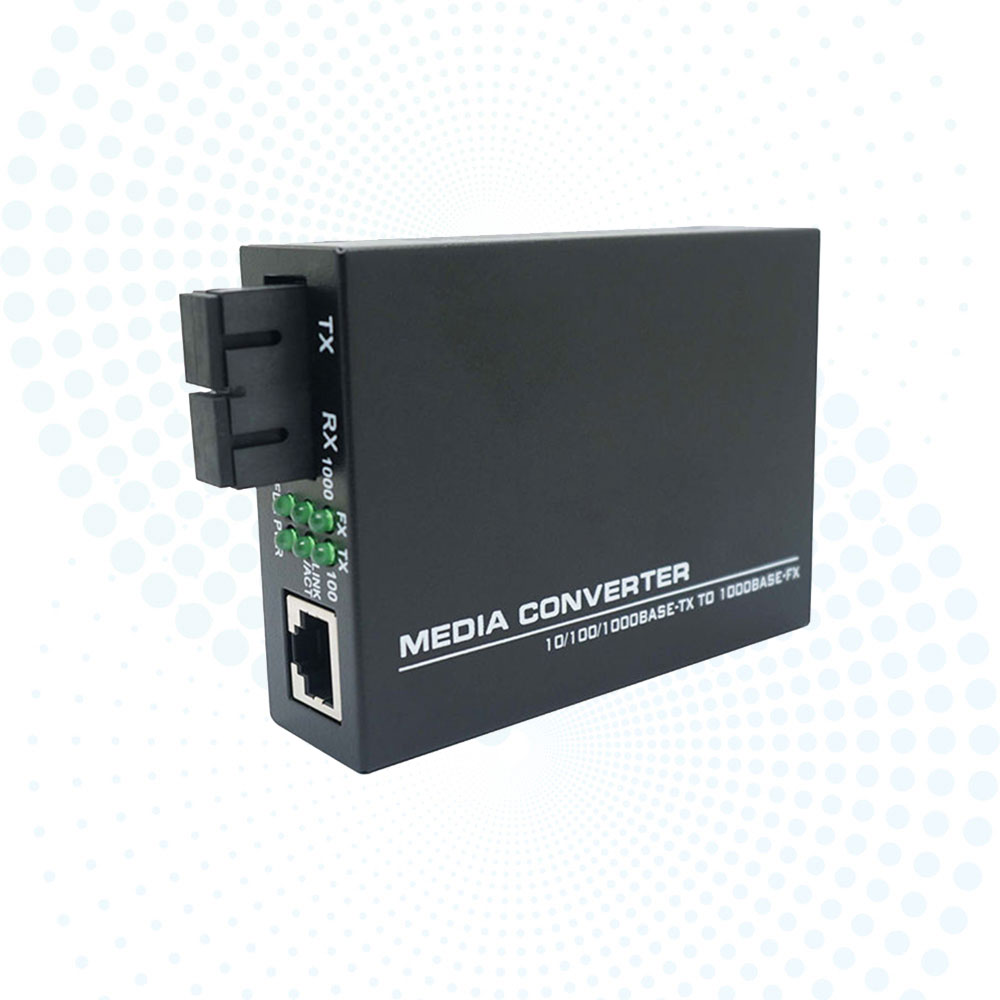

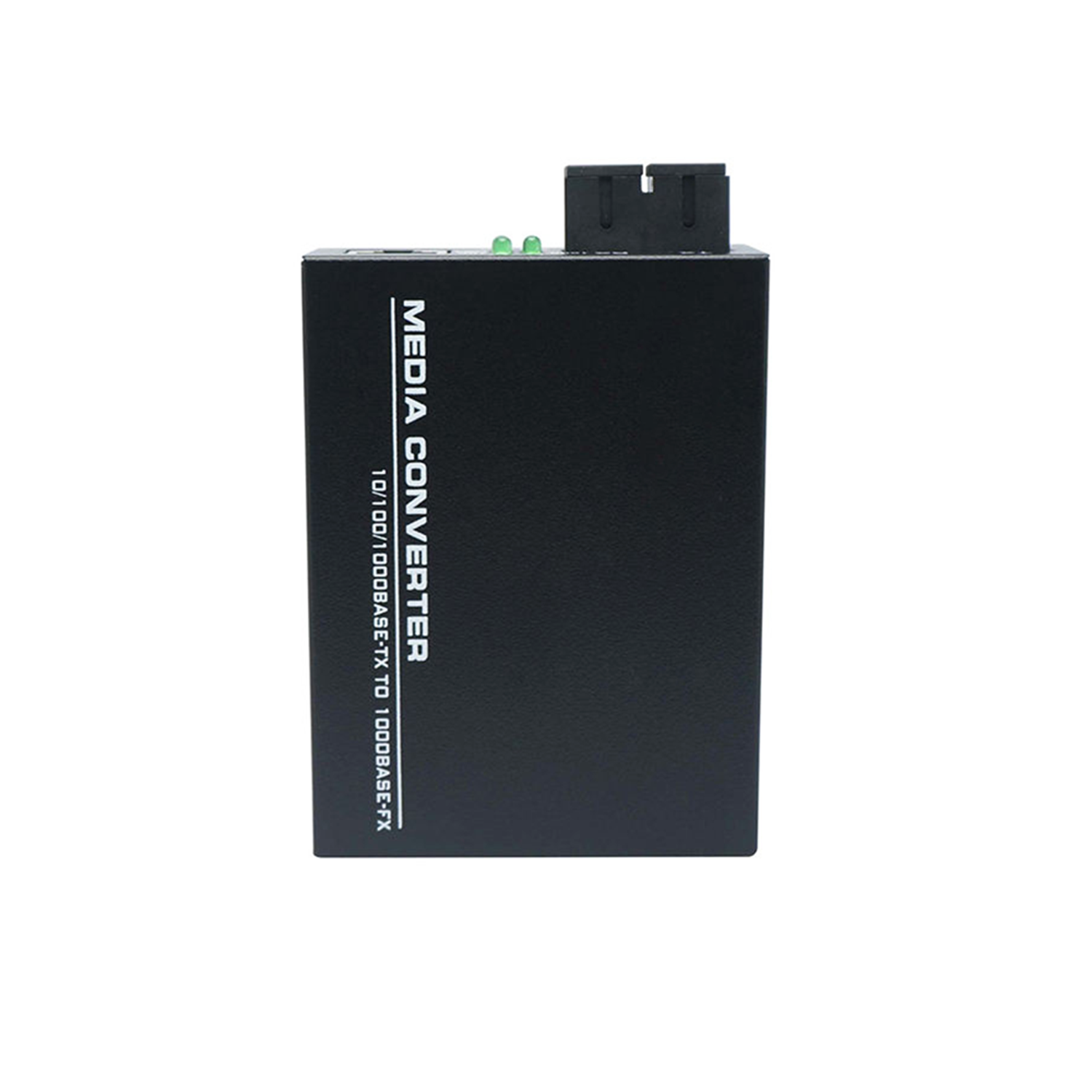

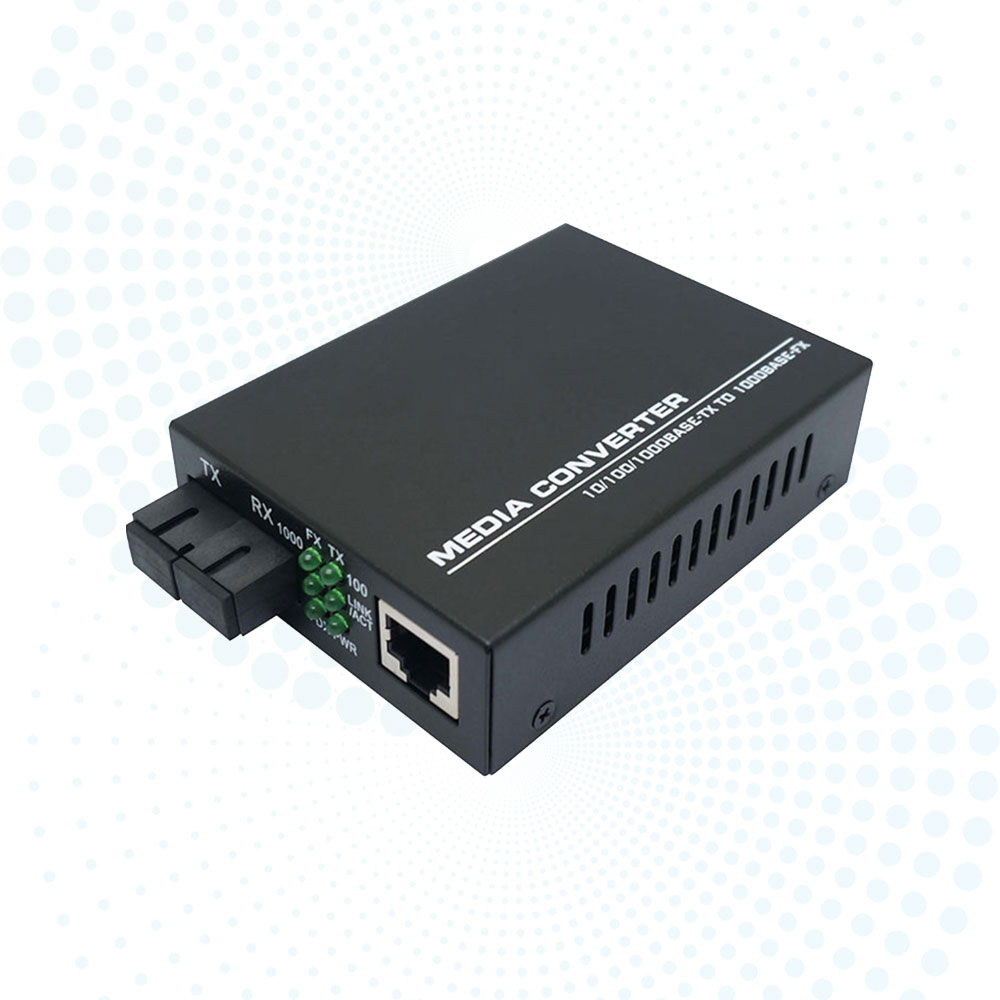

10/100/1000M Fiber Optic Transceivers 850nm 550m Multimode SC/FC/ST SC UPC Connector

1 / 5

10/100/1000M Fiber Optic Transceivers 850nm 550m Multimode SC/FC/ST SC UPC Connector

Send Inquiry

Product Description

⚙️ Specification

Product Technical Specifications
Access Mode	10/100/1000Mbps Gigabit Ethernet Media Converter
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm / 1310nm / 1550nm
Transmission Distance	• Multi-mode Dual-fiber: 0.55km (850nm), 2km (1310nm) • Single-mode Dual-fiber: 20 / 40 / 60 / 80 / 100 / 120 km • Category-5 Twisted Pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
Optical Port	• Multi-mode Dual-fiber: SC/LC/ST (SFP) (50, 62.5/125μm) • Single-mode Dual-fiber: SC/FC/ST/LC (SFP) (9/125μm)
Conversion Means	Media conversion
BER	< 10^-9
MTBF	100,000 hours
LED Indicator	POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate 1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action)
Power Supply	• AC 90V - 260V (internal power) • DC -48V, DC 24V, DC 12V, DC 5V (external power)
Power Consumption	5W
Operating Temp / Humidity	-10 ~ 55ºC / 5% ~ 90%
Storage Temp / Humidity	-40 ~ 70ºC / 5% ~ 90% non-condensing
Dimensions	71mm (W) * 94mm (D) * 26mm (H) (external power supply)

📦 Order Information

Model	Introduction	Function
RD-GS5601-M20A RD-GS5601-M20B	Mini Fiber Media Converter 10/100/1000Mbps 20km	Fiber Media Converter, 10/100/1000Mbps 1Simplex SC - 1LAN SM 20km SC DC5V power supply. Model A: Tx1310nm/Rx1550nm Model B: Tx1550nm/Rx1310nm
RD-GS5601-20A RD-GS5601-20B	Fiber Media Converter 10/100/1000Mbps 20km	Fiber Media Converter, 10/100/1000Mbps 1Simplex SC - 1LAN SM 20km SC DC5V power supply. Model A: Tx1310nm/Rx1550nm Model B: Tx1550nm/Rx1310nm
RD-GS5601-S20	Fiber Media Converter 10/100/1000Mbps 20km	Fiber Media Converter, 10/100/1000Mbps 1Duplex SC - 1LAN SM 20km SC DC5V power supply, TRx: 1310nm
RD-GS5601-SFP	10/100/1000MB to SFP Media Converter	10/100/1000M media converter, 1RJ45 + 1SFP port, External DC5V power supply.
RD-GS5601-SFP MINI	MINI 10/100/1000MB to SFP Media Converter	10/100/1000M media converter, 1RJ45 + 1SFP port, media converter only.
RD-GS5601-SFP PCBA	MINI 10/100/1000MB to SFP Media Converter PCBA	10/100/1000M media converter, 1RJ45 + 1SFP port, Board only.

🏢 Overview

Who Are We?

We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team serving global clients.

How We Guarantee Quality

Pre-production samples before mass production.
100% final inspection before shipment.

Our Product Range

We specialize in FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.

Why Choose Us?

We are a top-tier optical communication supplier. Our core focus centers on PON and switching solutions, backed by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.

Services We Provide

Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.

Payment Currencies: USD, EUR, CNY, and more.

Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.

Languages: English, Chinese, Spanish, French, Russian, and more.

💬 Technical FAQ

What is a Fiber Media Converter and how does it work?

A fiber media converter is a networking device that connects two different media types, typically copper twisted-pair (like Cat5e/Cat6) and fiber optic cabling. It converts electrical signals from the copper side to light pulses for transmission over fiber, and vice versa.

What is the difference between Simplex (BiDi) and Duplex fiber media converters?

Duplex converters use two separate fiber strands for data transmission (one for transmitting, one for receiving). Simplex (BiDi) converters use a single fiber strand to transmit and receive data simultaneously by using two different wavelengths (for example, Tx1310nm/Rx1550nm and Tx1550nm/Rx1310nm).

Do these media converters support auto-negotiation?

Yes, our converters support 10/100/1000Mbps auto-negotiation and Auto-MDI/MDIX on the RJ45 port, allowing seamless integration with legacy devices and eliminating the need for crossover cables.

What transmission distances do these converters support?

Transmission distance depends on the model and fiber type. Multi-mode fiber options support distances up to 2km, while single-mode options can achieve transmission distances ranging from 20km up to 120km.

What do the LED indicators signify on the media converter?

The LED indicators provide real-time status diagnostics: POWER shows the power connection state, FX LINK indicates the status of the optical link, and TP LINK/ACT displays the speed and active data packets on the RJ45 Ethernet link.

Can these media converters operate in harsh temperatures?

These media converters are designed to operate reliably in temperature ranges from -10°C to 55°C and can withstand storage/maintaining temperatures from -40°C to 70°C, making them highly suitable for standard enterprise, commercial, and mild industrial environments.
