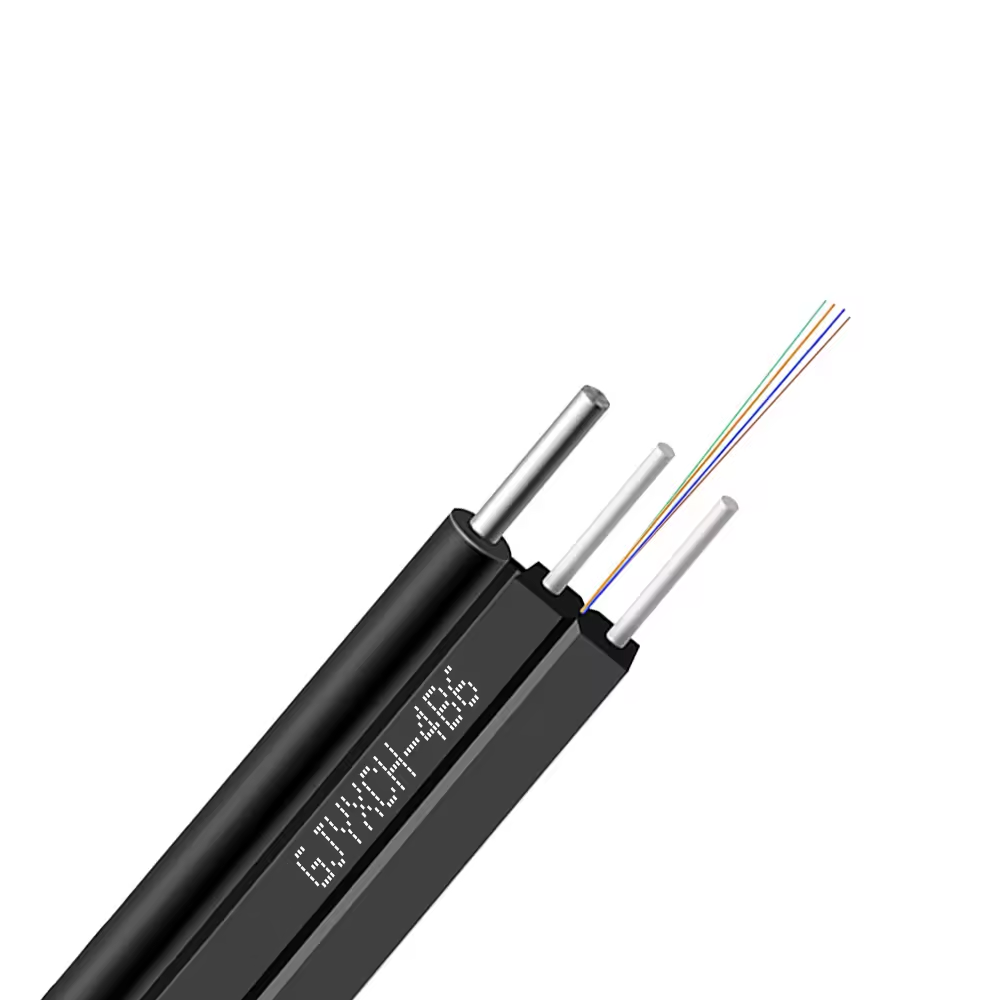

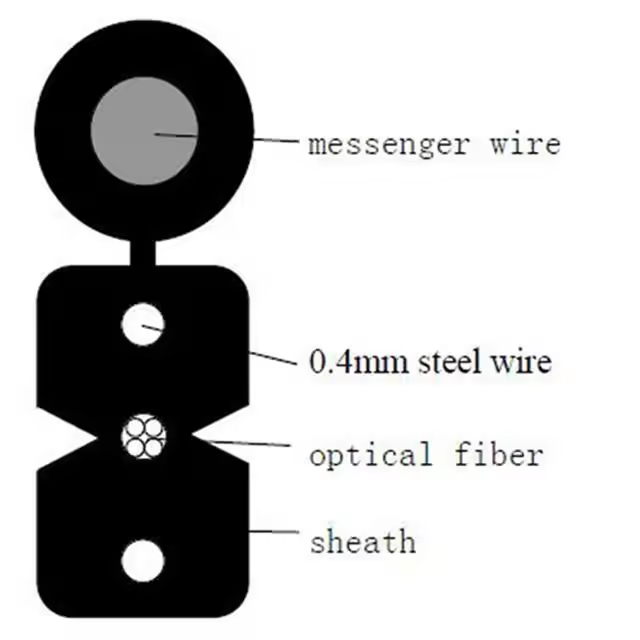

GJYXCH self-supporting access network with a butterfly leading-in cable is the optical communication unit in the center, placed on both sides of two parallel steel wire reinforcement elements, an additional steel wire reinforcement element on the outside, extruded black or color low-smoke halogen-free sheath to form a cable.
| Cable type | Core | Cable size | Cable weight | Tensile performance | Crush | Min. bending radius |
|---|---|---|---|---|---|---|
| (mm) | (kg/km) | long-term/short-term (N) | long-term/short-term (N/100mm) | Dynamic/Static (mm) | ||
| GJYXCH | 1 | (2.0+-0.1)X(5.2+-0.1) | 18.9 | 300/600 | 1100/2200 | 15/30 |
| GJYXCH | 2 | (2.0+-0.1)X(5.2+-0.1) | 18.9 | 300/600 | 1100/2200 | 15/30 |
| GJYXCH | 4 | (2.0+-0.1)X(5.2+-0.1) | 18.9 | 300/600 | 1100/2200 | 15/30 |
