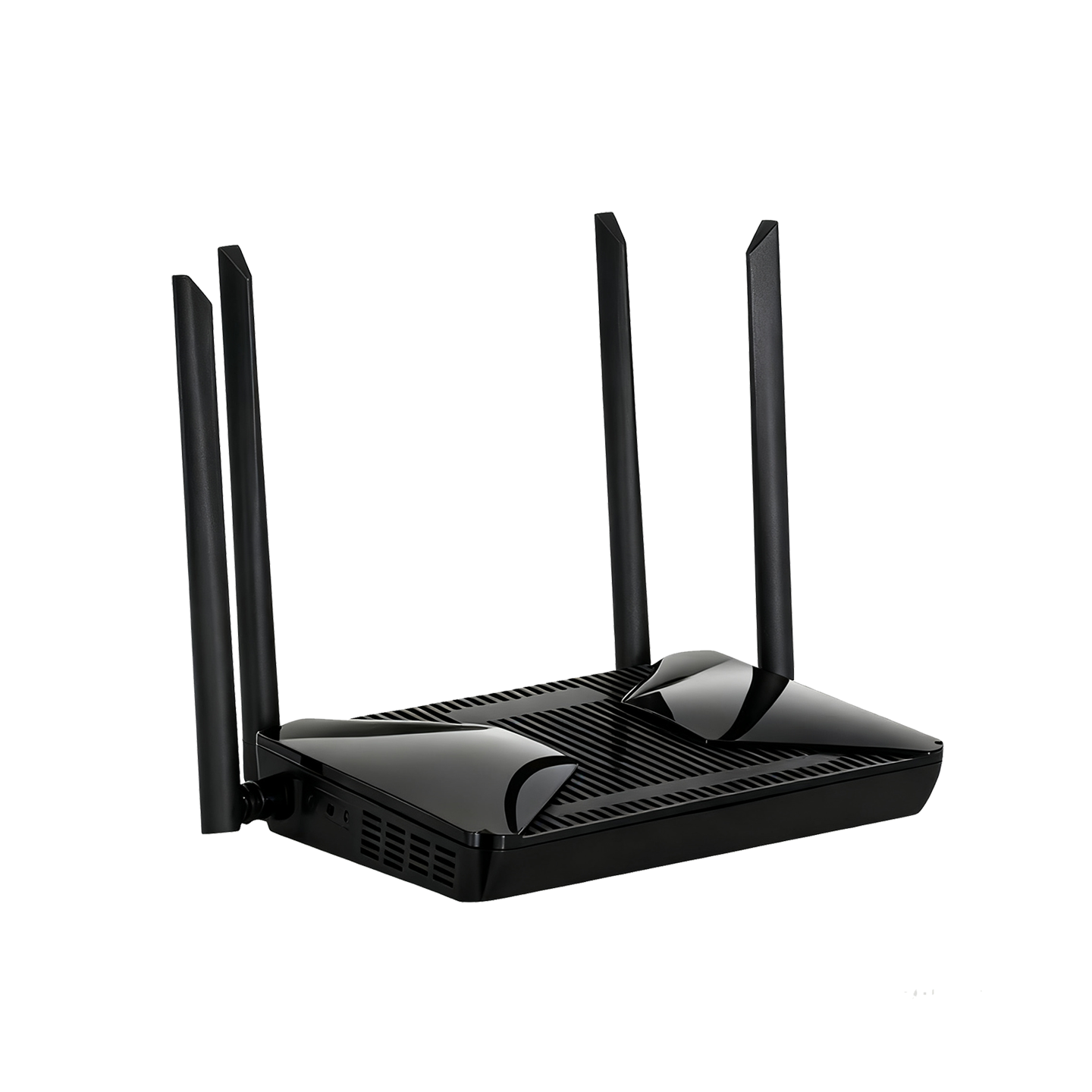

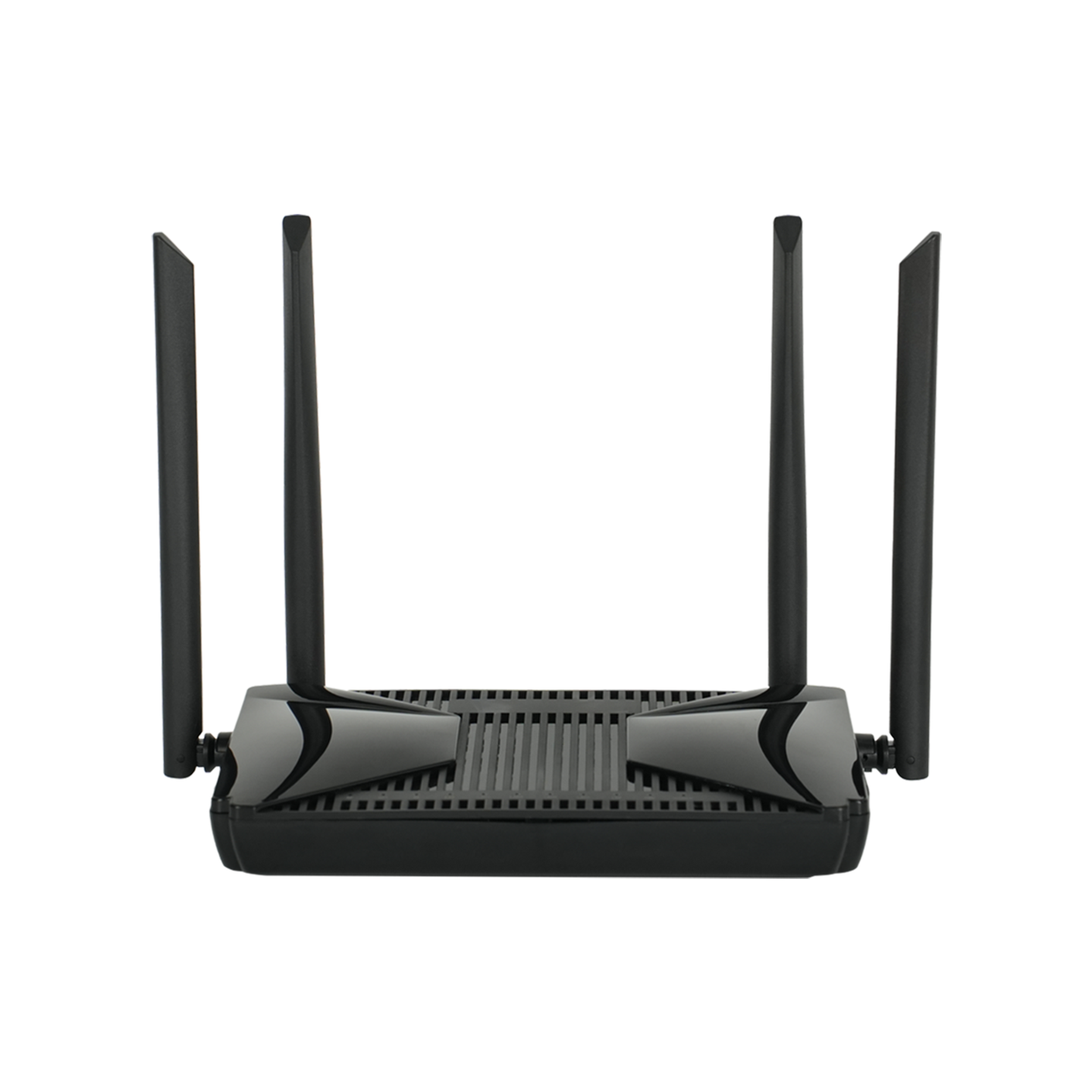

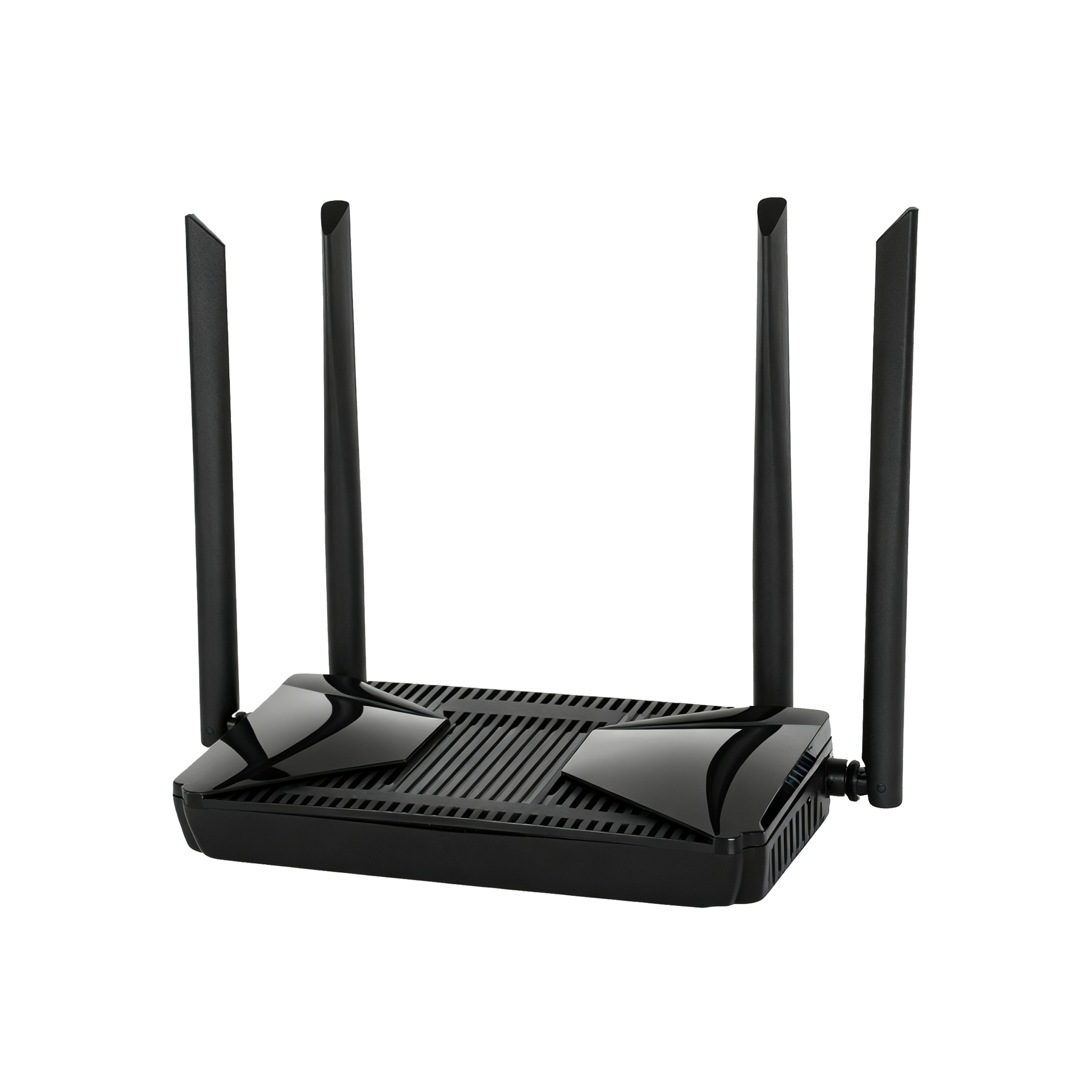

Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon
Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon
Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon
Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon
Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon
1 / 5
Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon
Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon
Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon
Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon
Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon

Fully Compatible Type WiFi-5 AC1200 Dual Band FTTH CATV Optical Receiver 4GE RJ45 ONT Xpon Gpon Epon

Send Inquiry

Product Description

EPON/GPON Dual-mode Access

EPON/GPON Dual-mode Access Reduce the Investment of Operators

Compatible with Various OLT

Compatible with Various OLT, Flexible Networking

2.4G+5G Dual-band WiFi

2.4G+5G Dual-band WiFi, High-Speed Connection

Multiple Application Scenarios

Multiple Application Scenarios

Compact & Elegant Design

Compact & Elegant Design

Product Overview
S

Specification

Model Number HG7024XZ

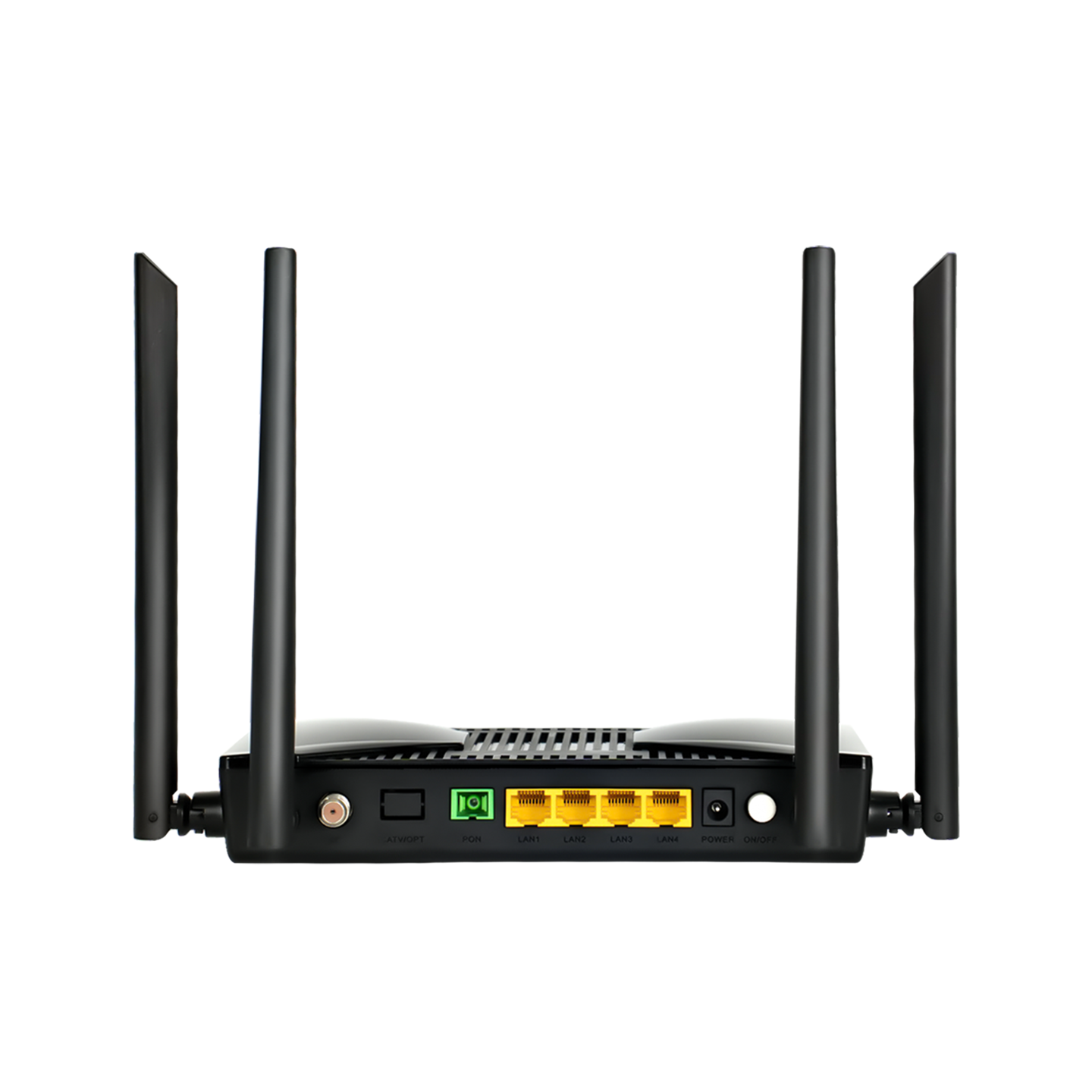

Interface 1* G/EPON + 4*GE + 2.4G/5.8G WLAN + 1*RF
Ethernet Interface 4* RJ45 10/100/1000BASE-T
CATV Interface Interface type: 1*RF
Optical receiving wavelength: 1550nm
RF output level : 80±1.5dBuV
Input optical power: +2~-15dBm
AGC range: 0~-12dBm
Optical reflection loss: >14
MER: >31@-15dBm
PON Interface Interface Type: SC/UPC, CLASS B+
Transmission distance: 0 ~ 20km
Working wavelength: Up 1310nm / Down 1490nm
RX Optical power sensitivity: -27dBm
Transmission rate:
GPON: Up 1.244Gbps / Down 2.488Gbps
EPON: Up 1.244Gbps / Down 1.244Gbps
Wireless Interface type: External 4*2T2R External antenna
Antenna gain: 5dBi
Interface maximum rate:
2.4G WLAN: 300Mbps
5.8G WLAN: 866Mbps
Interface working mode:
2.4G WLAN: 802.11 b/g/n
5.8G WLAN: 802.11 a/n/ac
Indicator light RF/OPT/5G/2.4G/LAN4/LAN3/LAN2/LAN1/LOS/PON/POWER
Power Supply DC 12V/1.5A
Power Adapter Input 100V-240V AC, 50Hz-60Hz
Power Consumption 12W
Working Temperature -20℃ ~ +50℃
Environment Humidity 5% ~ 95% (non-condensing)
Dimensions(L×W×H) 196mm x 125mm x 32mm
O

Order Info

Description XPON, 4*1000M Base-T, 1*WIFI-5(2.4G & 5G 1200M), 1*CATV, 12V/1.5A.
F

FAQ

Q. Can you do OEM?
A: Yes, OEM products can be customized. It's no problem.
Q. How is quality control managed?
A: Every single optic module is individually tested in the test center, and also tested for compatibility on a variety of different network equipments.
Q. Can I get a sample first?
A: Yes, samples can be provided for you to check the quality.
Q. How about the payment terms?
A: T/T, Western Union, and Alibaba orders are accepted.
Q. What is the lead time?
A: For usual orders, stock is maintained, allowing shipping about 3 days after receiving the payment. For large quantities and special products, please verify the lead time with the sales representatives.
Q. How are the goods shipped and how long does it take to arrive?
A: Shipment is usually handled by DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive.
