Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network
Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network
Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network
Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network
Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network
1 / 5
Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network
Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network
Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network
Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network
Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network

Smart Mini GPON OLT Fiber Access Device with 1 PON Port for ISP and Telecom Network

Send Inquiry

Product Description

Product Design
Product Design Concept

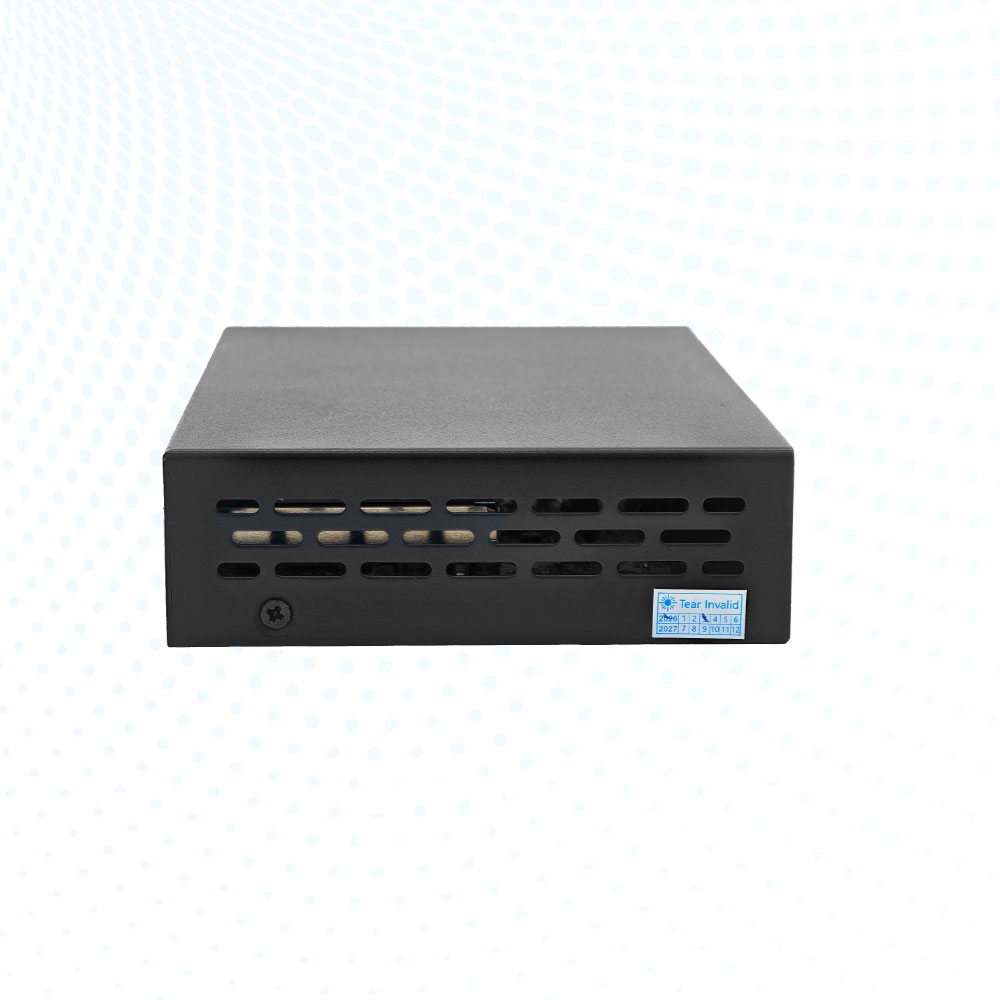

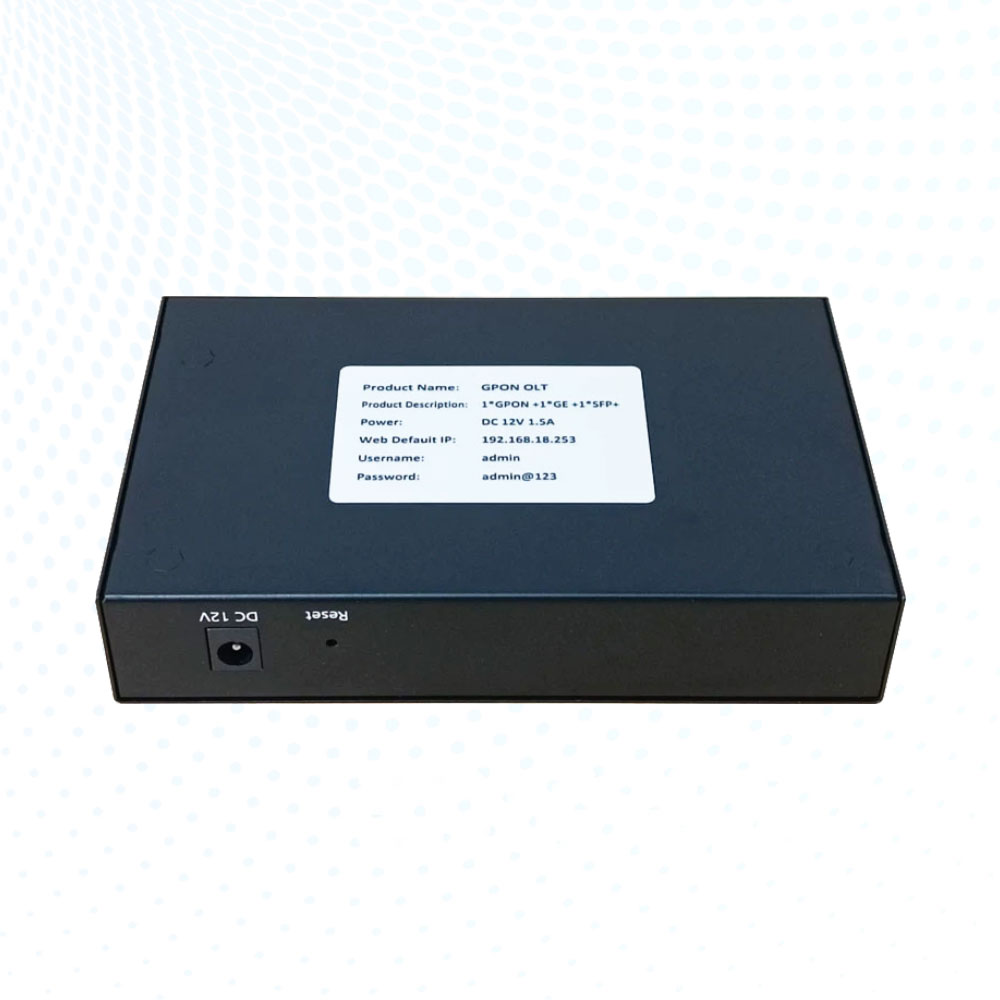

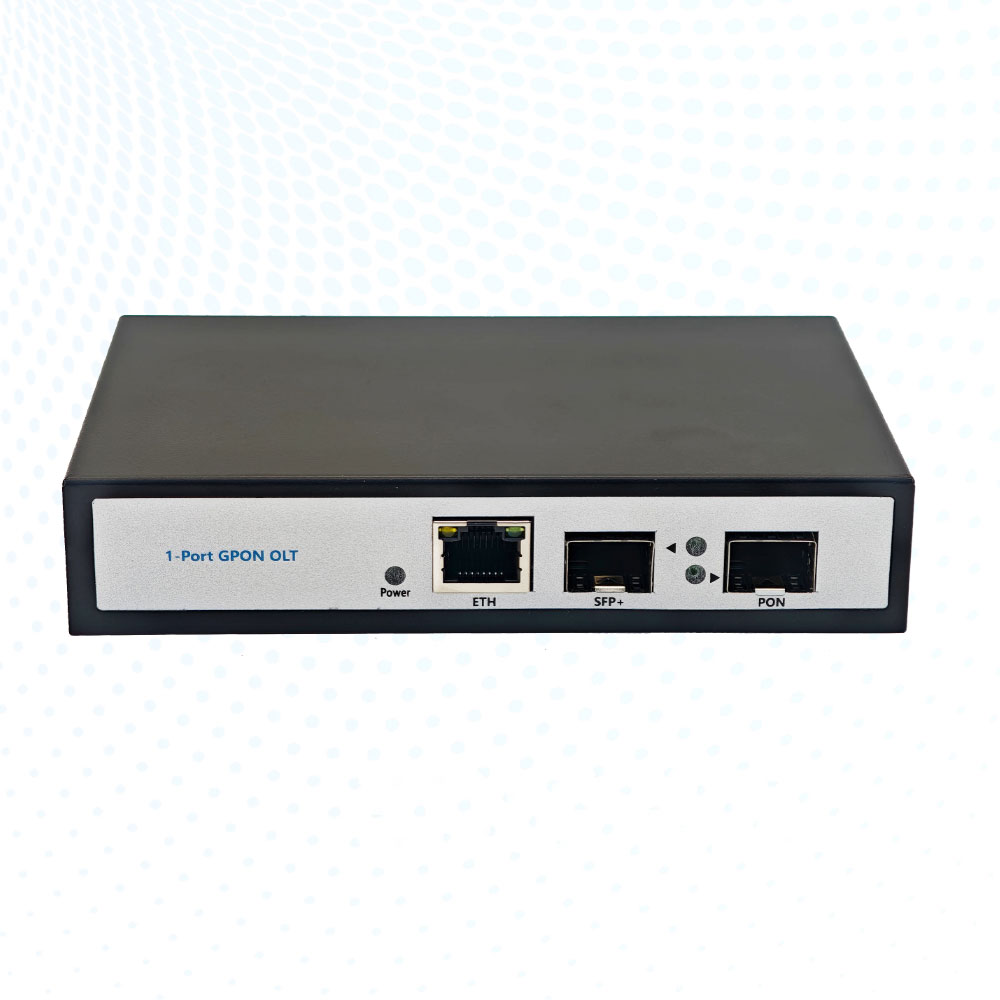

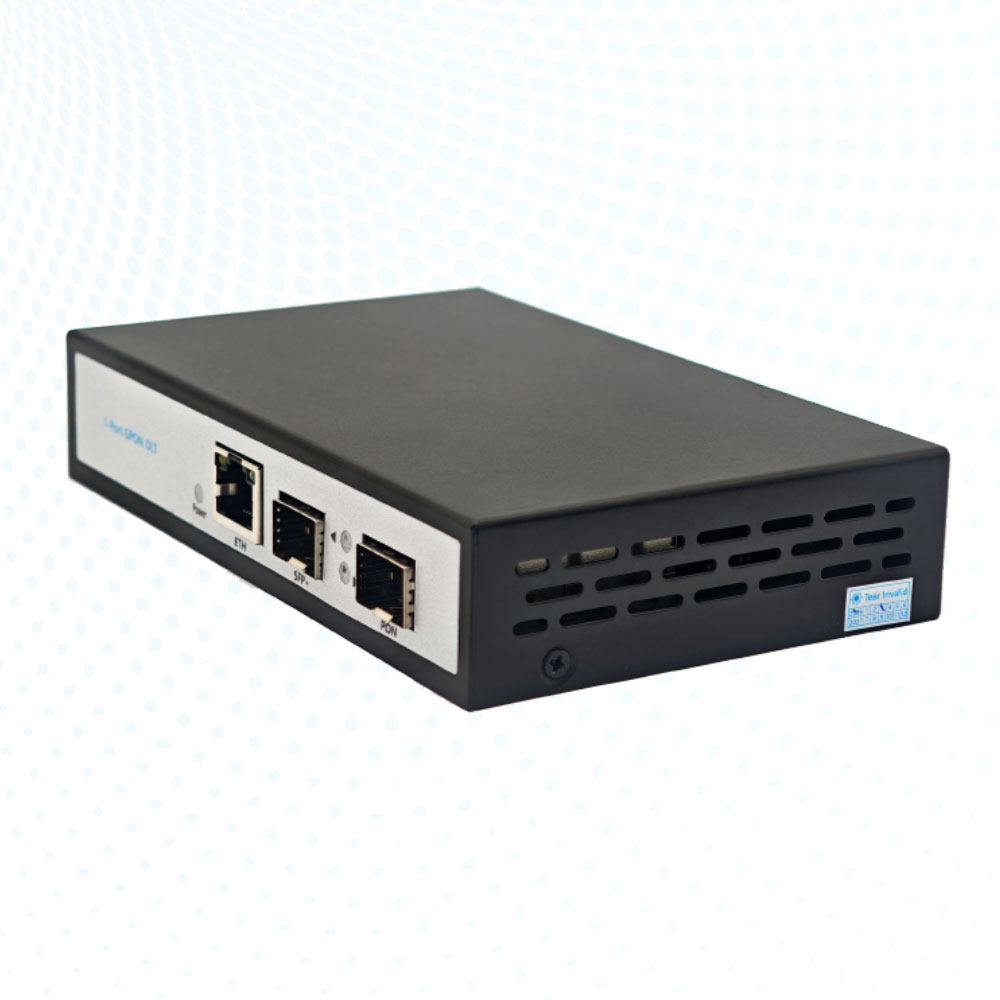

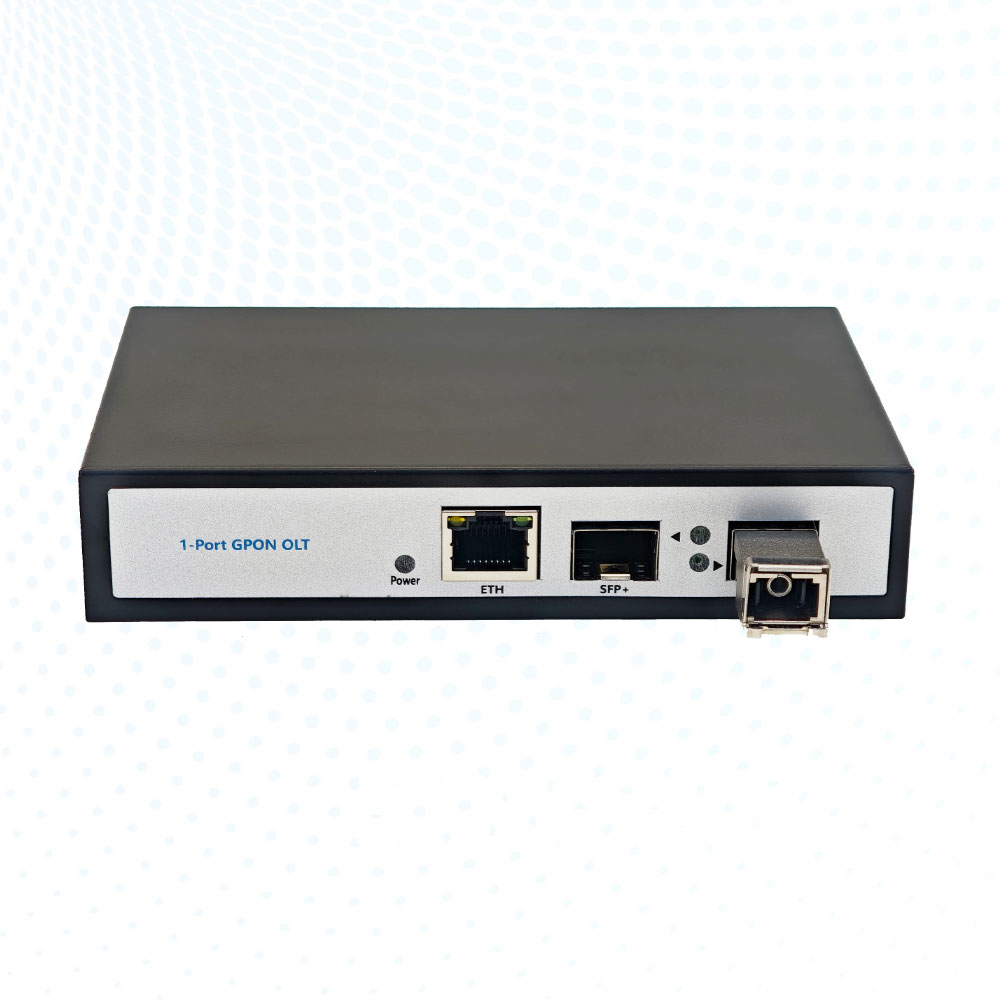

Product View 1 Product View 2 Product View 3
Specifications
Item Specification
PON Port
  • 1*GPON (Class B+ / C+)
  • Uplink 1.244Gbps, Downlink 2.488Gbps, 20Km
  • Maximum Split Ratio 1:128
Uplink Ports
  • 1*10/100/1000Base-T RJ45 (2.5Gbps optional)
  • 1*10G Base-X SFP+ Optical Port
Dimensions
  • 140mm x 87mm x 28mm (L x W x H)
Weight
  • < 1 Kg
Power Consumption
  • < 18W
Power Supply
  • DC Input: 12V/2A
  • POE (Optional)
Operating Temperature
  • -10°C ~ +50°C
Storage Temperature
  • -40°C ~ +70°C
Operating Humidity
  • 5% ~ 95% (Non-condensing)
Software Features
Management
  • CLI (Telnet/SSH)
  • Web UI (HTTP/HTTPS)
GPON Functionality
  • Compliant with ITU-T 984.x
  • Dynamic Bandwidth Allocation
  • ONU Authentication: SN / Password / Loid
  • Supports Data Encryption
  • Supports Uplink / Downlink FEC
  • Diagnosis and Link Monitoring
  • ONU Upgrade
Layer 2 Switching
  • 2K MAC Address Learning
  • Supports 4K VLANs
  • Supports Port VLAN: ACCESS, TRUNK
  • Multicast, Broadcast, Unknown Unicast Storm Control
  • Access Control List
  • Performance Statistics
Multicast
  • IGMPv2/IGMPv3 Snooping
Profile
Factory Profile
FAQ
1. Who Are We?
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team serving global clients.
2. How Do We Guarantee Quality?
  • Pre-production samples before mass production
  • 100% final inspection before shipment
3. What Can You Buy From Us?
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
4. Why Choose Us?
We are a top-tier optical communication supplier. Our core focus is PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.
5. What Services Can We Provide?
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Languages: English, Chinese, Spanish, French, Russian, and more
6. What is the maximum transmission distance of the GPON Port?
The GPON port supports an uplink speed of 1.244Gbps and downlink speed of 2.488Gbps, with a maximum transmission distance of 20Km and a split ratio of up to 1:128.
