Product Description

MINI GPON OLT 2 Port
G5600V2 is highly integrated, medium-capacity box-type GPON OLT. It can be widely used in operator FTTH access, private network access, government and enterprise park access, campus network access, and other access network construction.

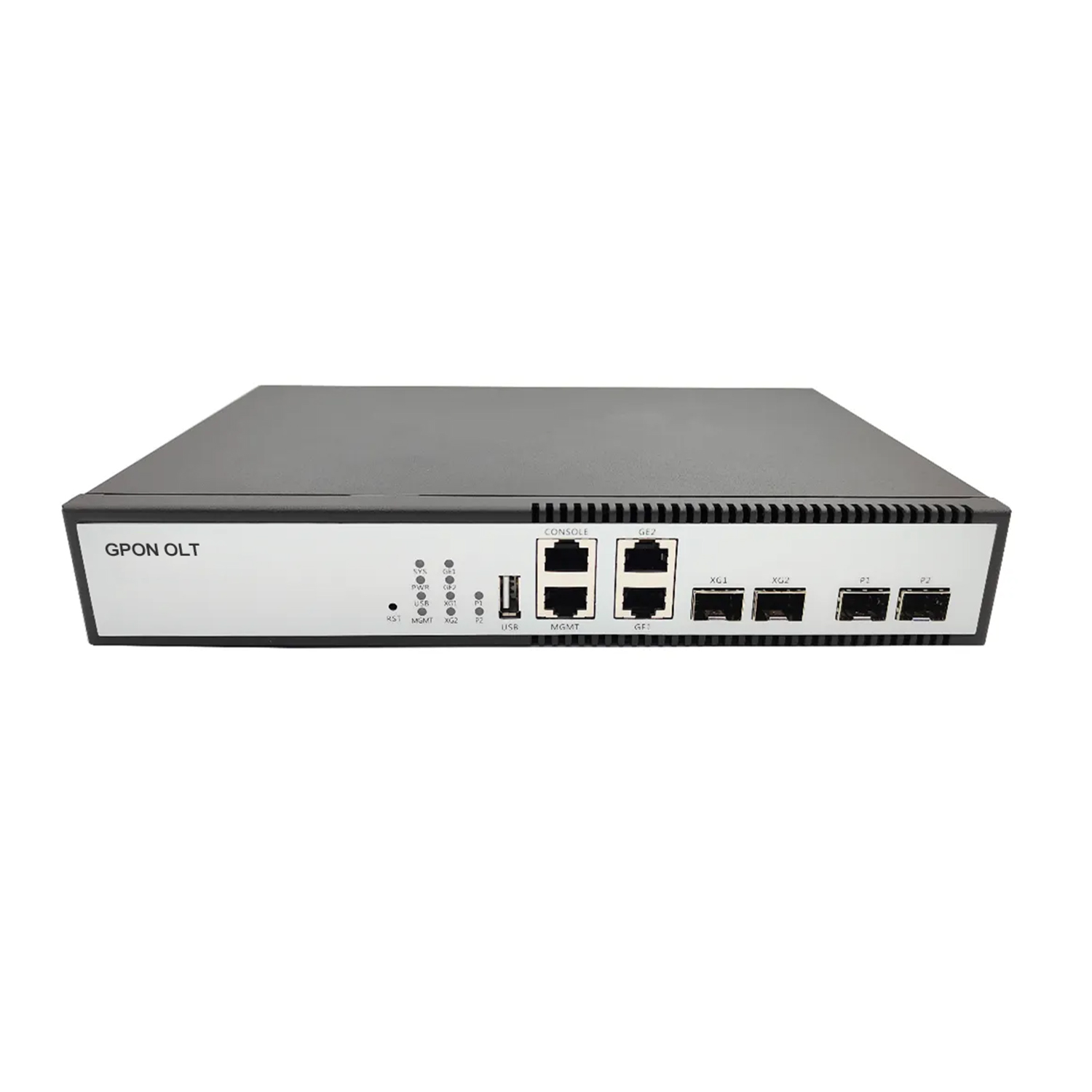

MINI GPON OLT 2 Port Front View

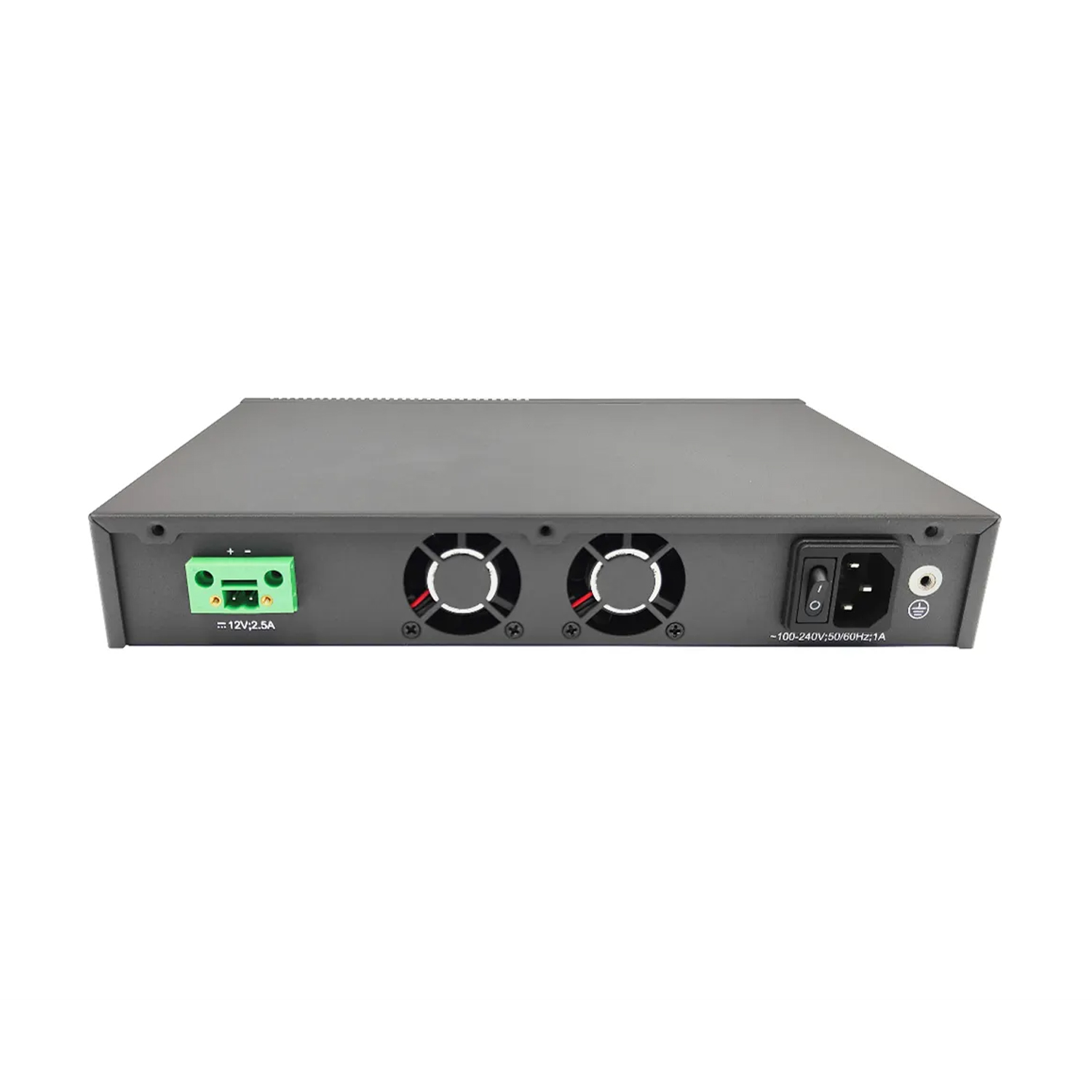

MINI GPON OLT 2 Port Rear View
Specification
Interface 2*GPON Port, 2*10/100/1000M Base-T;
2*1000M Base-X SFP/2*10GE SFP+
Exchange Capacity 51.5Gbps
Forwarding Rate 59.7Mpps
Memory & Flash Memory: 32MB; Storage: 512MB
Management Port Console, MGMT
PON Complies with ITU-T G.984/G.988 standards
20 km physical differential distance, 60 km logical distance
1:128 maximum splitting ratio
Standard OMCI management features
Flexibly compatible with any brand of ONTs
Supports batch software upgrades for ONUs
Fan Fixed fans (two fans)
Power AC: 100~240V 47/63Hz;
DC: 12V
Power Consumption ≤30W
Weight 2kg
Dimensions (W *H *D) 270mm*44mm*180mm
Environment Temperature Working Temperature: -10°C~55°C
Storage Temperature: -40°C~70°C
Environment Humidity Relative Humidity: 5%~95% (non-condensing)
Key Features
✓
Maximum split ratio of 1:128, connecting up to 256 ONTs
✓
Rich Layer 2/3 switching features, flexible management methods
✓
Comply with ITU-TG.984/G.988 standard
✓
Support FlexLink, STP, RSTP, MSTP, ERPS, LACP, ACL, QoS
✓
Support 16K MAC address
✓
Support RIP, OSPF, BGP, ISIS and IPV6
✓
Provides redundant power backup
✓
Supports terminal power-off alarm notifications
✓
Support Power redundancy backup
✓
Support CLI, Telnet, WEB, SNMP v1/v2/v3, SSH2.0, OMCI protocol
✓
Support batch software upgrades on ONUs
✓
Flexibly compatible with any brand of ONT
Purchase Info
Model Number Description
G5600V2 2*GPON port+2GE RJ45+2*GE/10GE SFP+ uplink port
GPON PON Transceiver (GPON SFP-Transmit 1490nm/Receive 1310nm, 7dBm, SC interface-Class C++)
AC/DC optional dual power supply
EU & US power plug optional
Production Facility
FAQ
Can we get a lower price? Any discount?
Yes, price is negotiable based on the purchase quantity.
Are OEM and ODM services available?
Yes, OEM and ODM customization services are supported.
What is the Minimum Order Quantity (MOQ)?
We do not set any MOQ limits for sample testing.
Can I place a sample order for testing?
Yes, sample orders are supported to help verify product quality.
What are the supported trade and payment terms?
  • Payment Terms: T/T bank transfer, PayPal, and Western Union are supported.
  • Price Terms: EXW.
  • Shipping Methods: EMS, DHL, FedEx, TNT, UPS, by sea, or through your own shipping agent.
What is the warranty period?
Most products include a 24-month warranty. Non-original brand items and issues caused by human factors are excluded.
