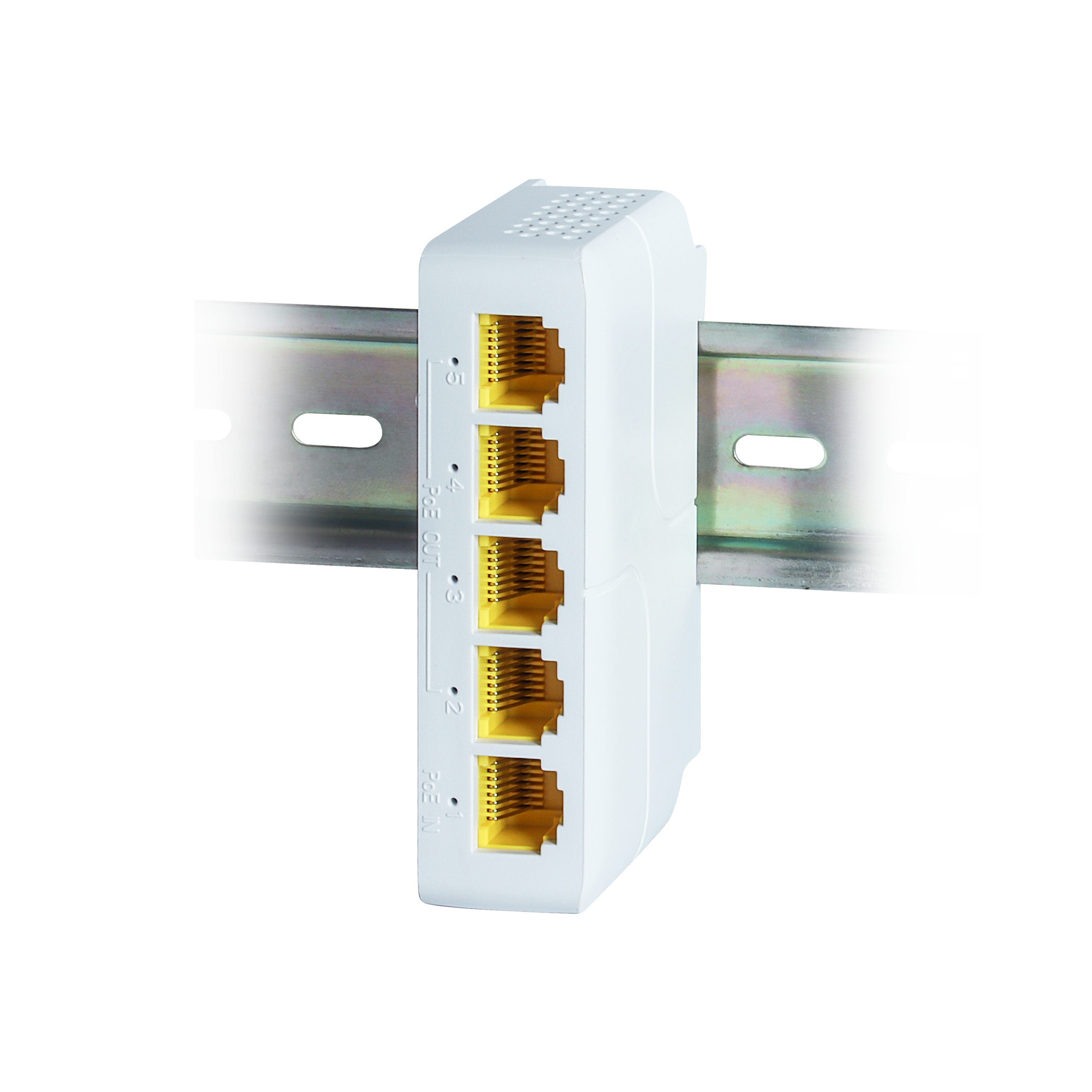

Rail-Mounted 5 Port 1000Mbps IEEE 802.3AF/AT/BT PoE Extender 1 in 4 Out 0~250m for PoE Switch NVR IP Camera

Send Inquiry

Product Description

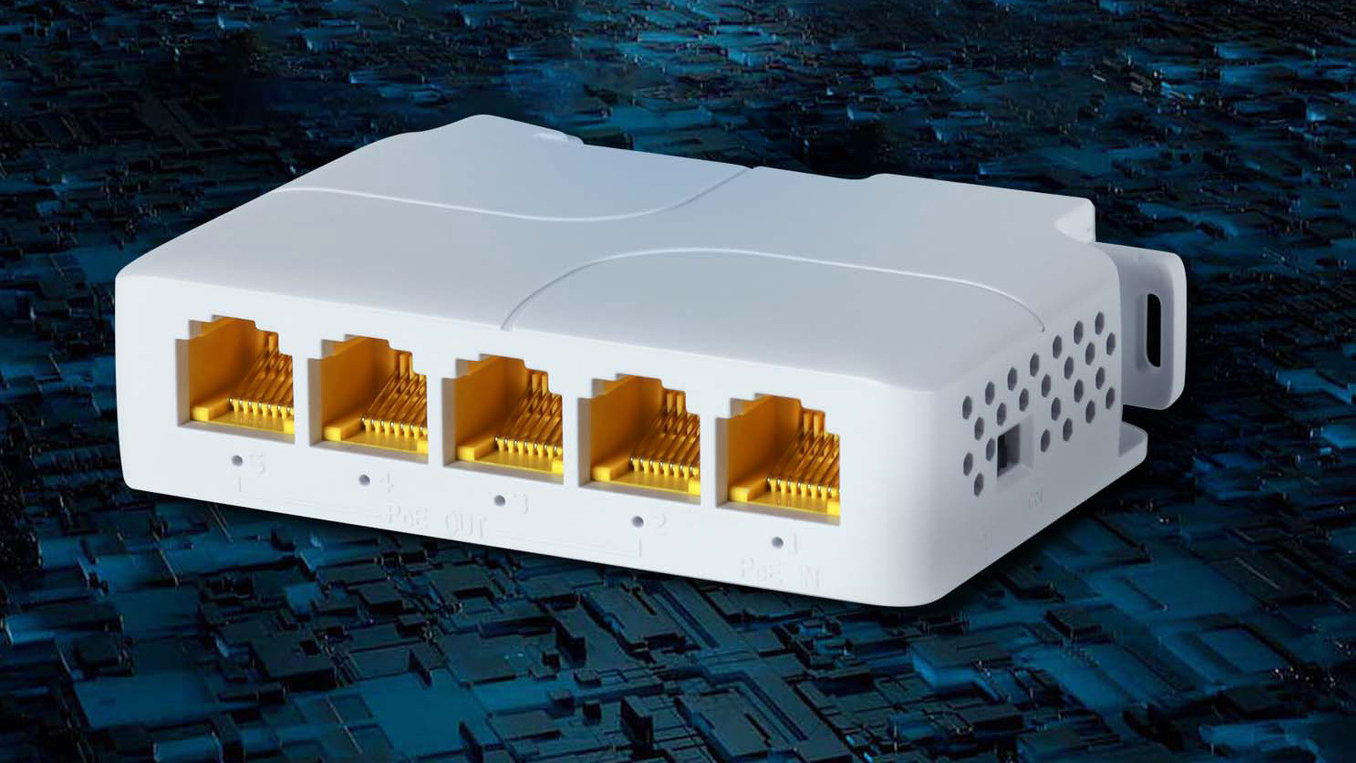

Rail-mounted high-power POE Extender

Save time, Reduce costs, More convenient

Built-in professional POE chip

Automatically identify POE-connected devices

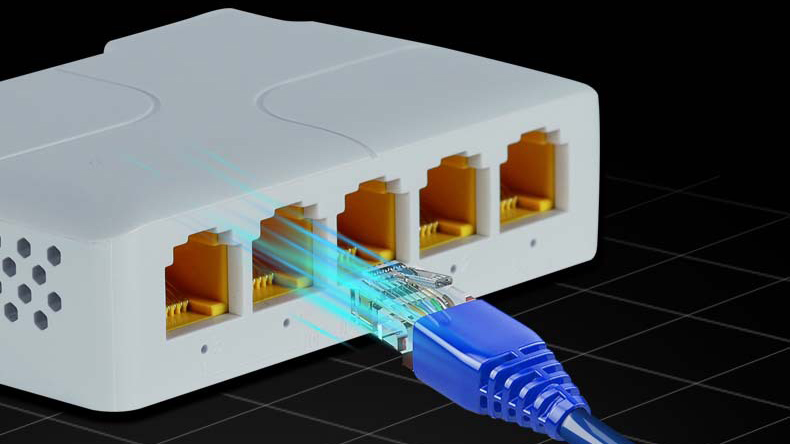

Plug-and-play

No need for power supply, Just plug in the network cord and it can be used

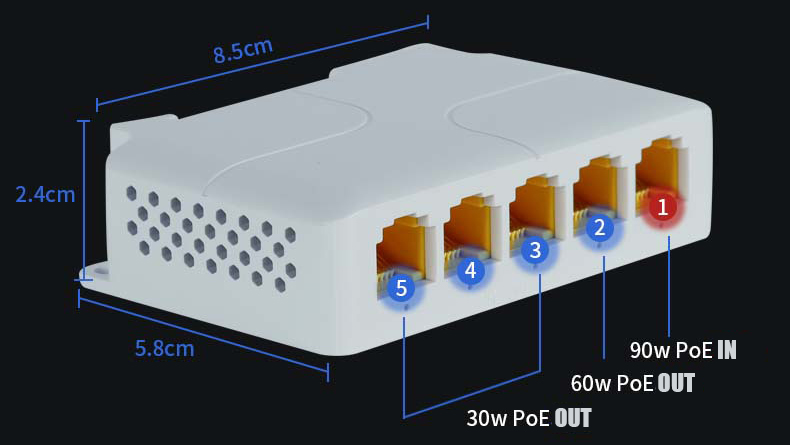

Product Parameters

Specification

Model	AT13-C	BT14-A	AT13G-C	BT14G-A
Rate	10/100Mbps	10/100Mbps	10/100/1000Mbps	10/100/1000Mbps
POE Port	1 in 3 out	1 in 4 out	1 in 3 out	1 in 4 out
Power input Pin	1/2+,3/6- ,4/5+,7/8-
Power output pin	1/2+,3/6-
Whole Power	≤25W	Port2:60W max, Port(3~5):30W max	≤25W	Port2:60W max, Port(3~5):30W max
POE Protocol	IEEE 802.3af/IEEE 802.3at/EEE 802.3bt
Power Distance	≤250m
POE Protocol	IEEE 802.3af/IEEE 802.3at
Network Standard	IEEE 802.3, IEEE802.3u,802.3x,802.3af/at
Data Distance	≤100m
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Working temp	-10°-- 55°C
Weight	0.55kg
Size(LWH)	825223mm

Order Info

Model	Introduction
AT13-C	POE Extender 10/100Mbps 1-IN 3-OUT, 100m POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT
BT14-A	POE Extender 10/100Mbps 1-IN 4-OUT,100m POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max, IEEE802.3AF/AT
AT13G-C	POE Extender 10/100/1000Mbps 1-IN 3-OUT, 100m POE Input:44~57V/30W, POE Output(1~3):44~57V/25W, IEEE802.3AF/AT
BT14G-A	POE Extender 10/100/1000Mbps 1-IN 4-OUT,100m POE Input:44~57V/90W, POE Output:Port2:60W max, Port(3~5):30W max, IEEE802.3AF/AT

FAQ

Q1: What is your MOQ request?

Depends on products, different products have different MOQ, please contact our sales for more details.

Q2: Do you Support ODM/OEM service?

Yes, we can offer the customization service to you.

Q3: Does your products support other brands?

Yes, all of our products is without lock, support to another brands too.

Q4: Are you the manufacturer or trading company?

We are the manufacturer, we support factory view tour.

Q5: Do you offer free samples?

Yes, for some models we are able to provide the free samples for your testing purpose.

Q6: Are you able to provide the local certificates?

Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
