Save time, Reduce costs, More convenient
Automatically identify PoE-connected devices to ensure stable power delivery and protect system components.

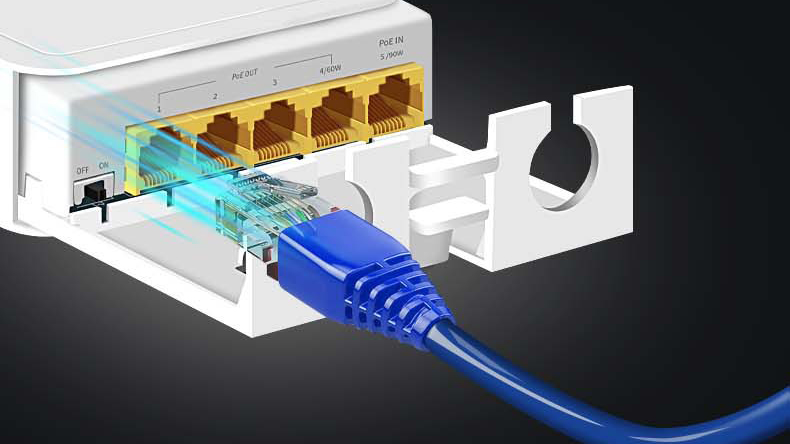

No need for external power supply. Just plug in the network cord and it can be used instantly.

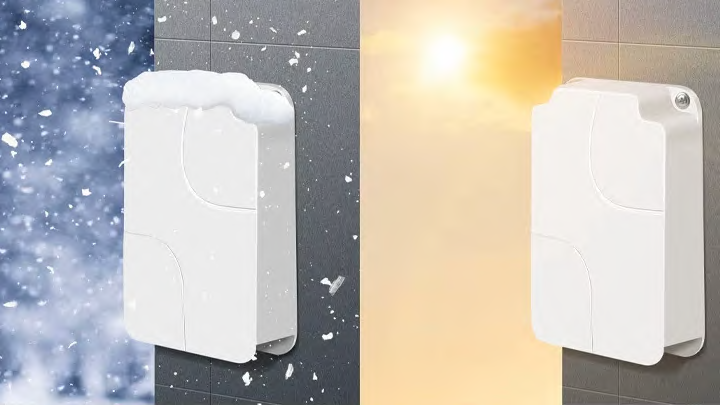

Using a highly weather-resistant shell, it can adapt to various extreme weather conditions seamlessly.
| Model | WAT13-C | WAT13G-C | WBT14-A | WBT14G-A |
|---|---|---|---|---|
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3AF/AT | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3AF/AT/BT | ||
| Port | 10/100Mbps | 10/100/1000Mbps | 10/100Mbps | 10/100/1000Mbps |
| POE Power | POE Input: 44~57V/30W POE Output(1~3): 44~57V/25W |
POE Input: 44~57V/90W POE Output: Port 2: 60W max, Port(3~5): 30W max |
||
| POE Connection |
POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8- POE output power supply core: 1/2+, 3/6- 100M Transmission |
|||
| Performance | Store and forward MAC address table 2k |
|||
| Forwarding Rate | 10BASE-T: 14880PPS/port 100BASE-tx: 148800pps/port |
10BASE-T: 14880PPS/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port |
||
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode | |||
| Environment | Operating Temperature: -10℃ ~ 55℃ | |||
| Power | Input: DC44-57V | |||
| Weight & Size | 180g, 98mm×148mm×34mm(L×W×H) | |||
| Model | Introduction |
|---|---|
| WAT13-C | Outdoor Waterproof POE Extender 10/100Mbps 1-IN 3-OUT, 100m, POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W, IEEE802.3AF/AT |
| WBT14-A | Outdoor Waterproof POE Extender 10/100Mbps 1-IN 4-OUT, 100m, POE Input: 44~57V/90W, POE Output: Port 2: 60W max, Port(3~5): 30W max, IEEE802.3AF/AT |
| WAT13G-C | Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 3-OUT, 100m, POE Input: 44~57V/30W, POE Output(1~3): 44~57V/25W, IEEE802.3AF/AT |
| WBT14G-A | Outdoor Waterproof POE Extender 10/100/1000Mbps 1-IN 4-OUT, 100m, POE Input: 44~57V/90W, POE Output: Port 2: 60W max, Port(3~5): 30W max, IEEE802.3AF/AT |
Depends on products. Different products have different MOQ. Please contact us for more details.
Yes, we can offer the customization service to meet your specific requirements.
Yes, all of our products are without lock, supporting compatibility with other brands as well.
We are the manufacturer, and we support factory view tours.
Yes, for some models we are able to provide free samples for testing purposes.
Yes, according to the contract agreement, we are able to apply for local certificates for you, such as Postel, CE, Rohs, Anatel, etc.
