Specifications
|
||
|---|---|---|
| Agreement | Standard |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.1W Spanning Tree IEEE 802.3x flow control |

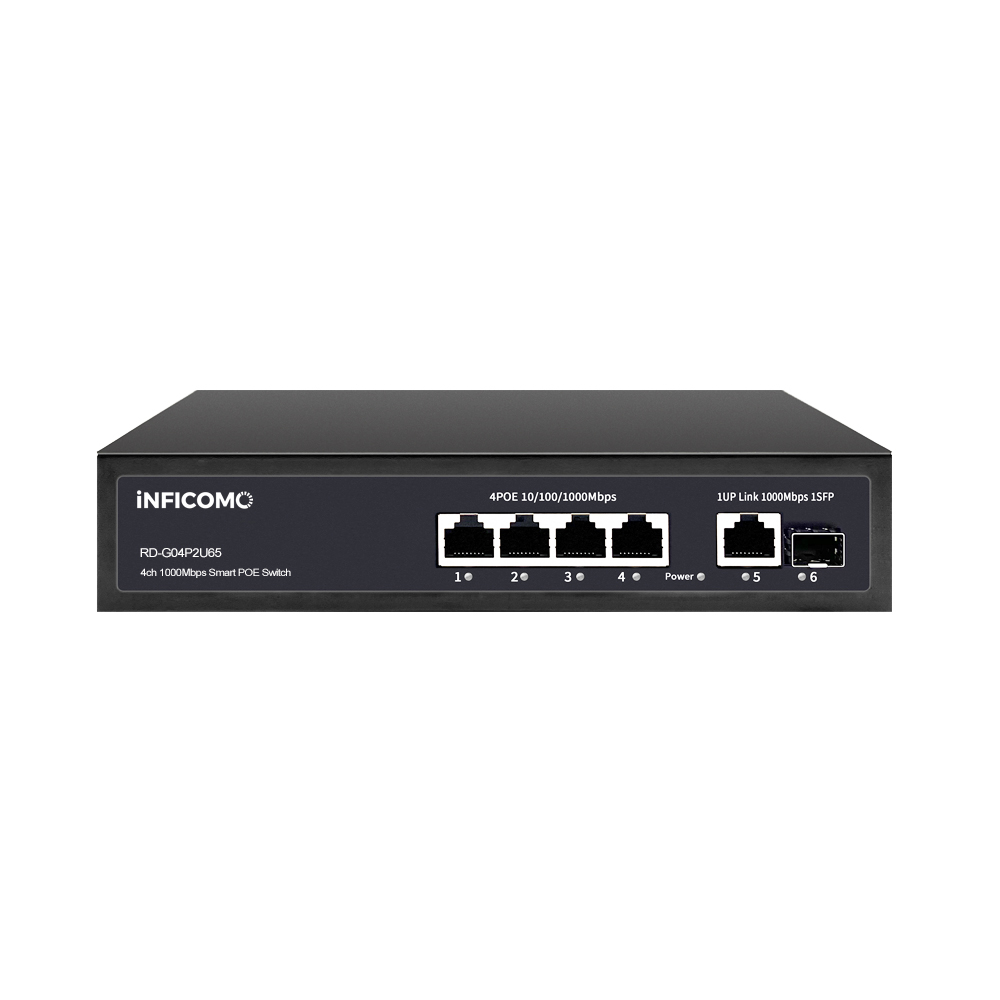

| Network characteristics | interface type | 4* PoE, 1* RJ45, 1* SFP |
| transmission rate | 10/100/1000Mbps adaptive | |
| transmission distance |
10Base-T: ≤250m (CAT3,4,5 UTP) 100Base-TX: ≤100m (CAT3,4,5 UTP) 1000Base-T: ≤100m (CAT3,4,5 UTP) |
|
| Performance | pass-through mode | Store-and-forward (full line speed) |
| transmission mode | Full duplex/half duplex adaptive | |
| MAC Address Capacity | 2K | |
| Switching Capacity | 12Gbps | |
| Packet Forwarding Rate | 7.44Mpps | |
| Packet Cache | 1.5Mbits | |
| Jumbo frames | 9216 bytes | |
| LED | Power | blue |
| Link/Act | blue | |
| PoE | blue | |
| 1000M | Blue*2 | |
| Power | input voltage | AC100~240V, 50Hz |
| Consumption |
Standby power consumption: ≤3W; Power consumption: ≤65W |
|
| POE | 1/2+, 3/6- | |
| Maximum power | ≤25.4W | |
| Work | operating | -20℃ ~ 60℃ |
| storage | -40℃ ~ 85℃ | |
| humidity | 5% ~ 95% No condensation | |
| Flat | Size | 201×118×44mm |
| Weight | N.G 0.92kg, W.G 1.02kg | |
A1: Depends on products, different products have different MOQ, pls contact our sales for more details.
A2: Yes, we can offer the customization service to you.
A3: Yes, all of our products is without lock, support to another brands too.
A4: We are the manufacturer, we support factory view tour.
A5: Yes, for some models we are able to provide the free samples for your testing purpose.
A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
