| Access mode | 10/100/1000Mbps SFP Media Converter |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Port | SFP Port |
| Transmission distance | Multi-mode Dual-fiber: 0.55km(850nm), 2KM(1310nm) |
| Single mode Dual-fiber: 20/40/60/80/100/120 Km | |
| Single mode Single fiber: 20/40/60/80/100/120 Km | |
| Category-5 twisted pairs: 100m | |
| Port | One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
| Optical port | Multi-mode Dual-fiber: SC/LC/ST(SFP) (50, 62.5/125μm) |
| Single mode Dual-fiber: SC/FC/ST/LC(SFP) (9/125μm) | |
| Single mode Single fiber: SC/FC/ST/LC(SFP) (9/125μm) | |
| Conversion means | Media conversion |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator | POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT(TP cable packet forwarding action) |
| Power supply | AC90V-260V( internal power ) |
| DC-48V,DC24V,DC12V,DC5V (external power) | |
| Power consumption | 2W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions | 71*21*13mm |
| Model | Introduction | Function |
|---|---|---|
| RD-GS5601-M20A RD-GS5601-M20B |
Mini Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS5601-20A RD-GS5601-20B |
Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS5601-S20 | Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC -1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| RD-GS5601-SFP | 10/100/1000MB to SFP Media Converter | 10/100/1000M media converter, 1*RJ45+1*SFP port, External DC5V power supply. |
| RD-GS5601-SFP MINI | MINI 10/100/1000MB to SFP Media Converter | 10/100/1000M media converter, 1*RJ45+1*SFP port, media converter only |

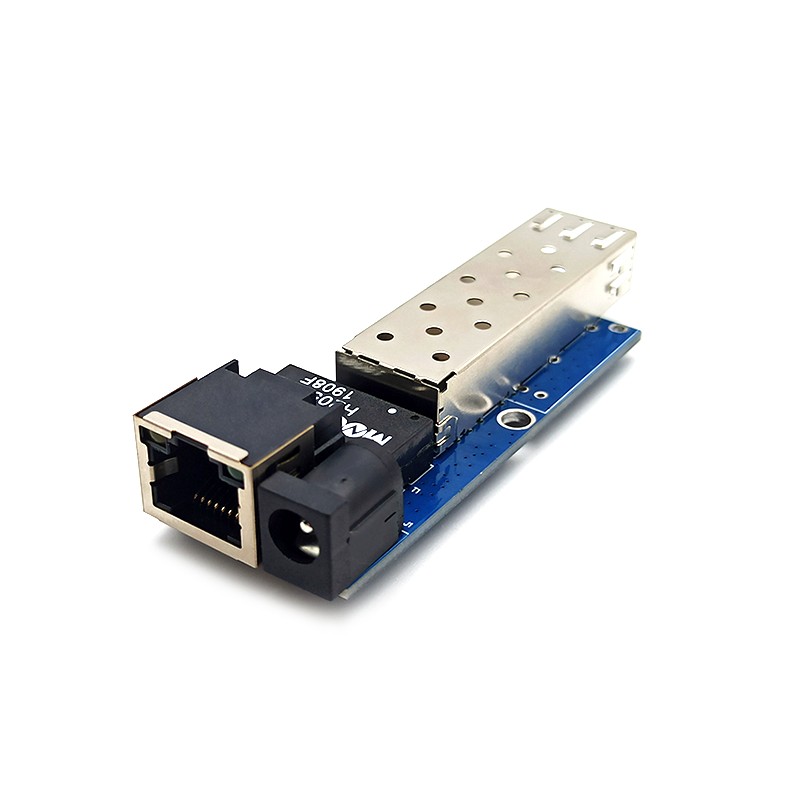

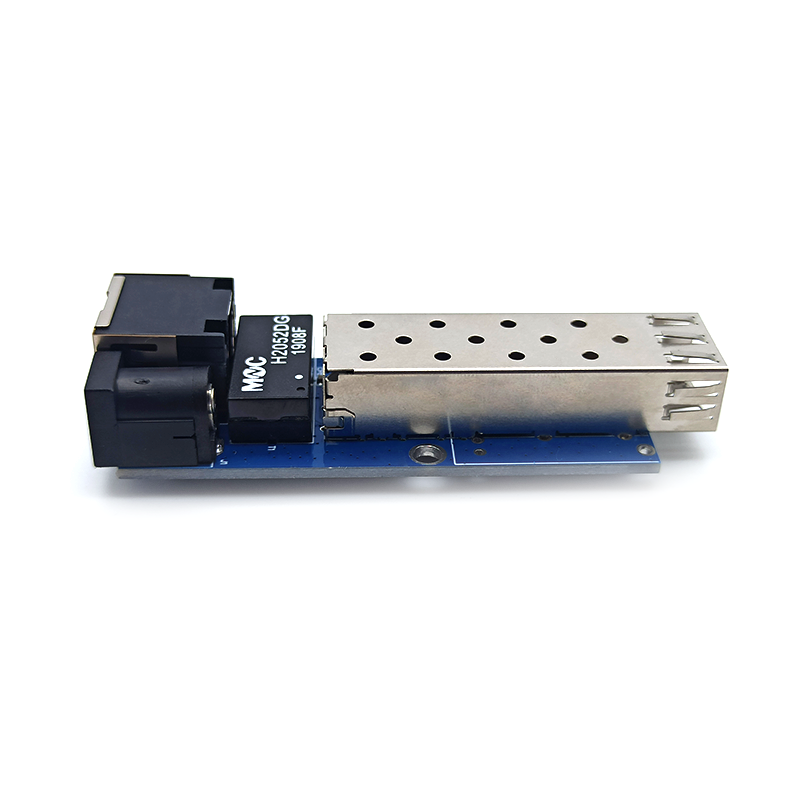

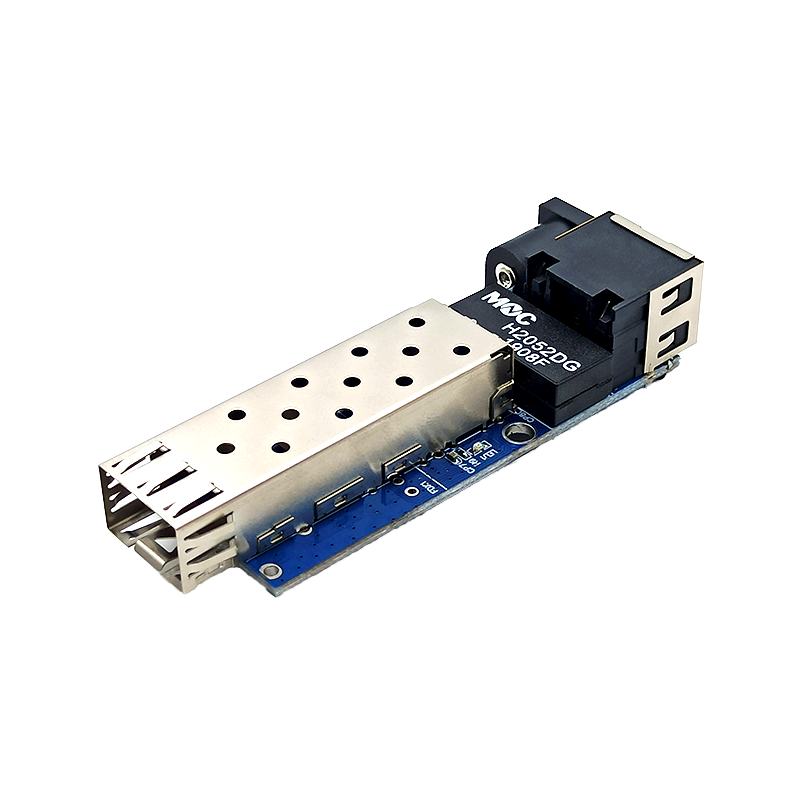

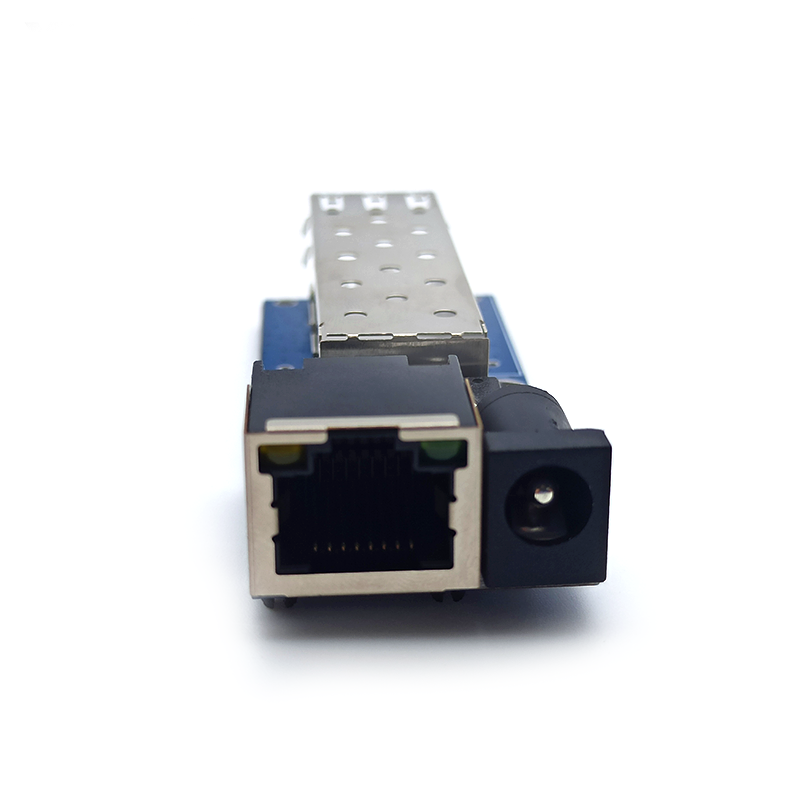

| RD-GS5601-SFP PCBA | MINI 10/100/1000MB to SFP Media Converter PCBA | 10/100/1000M media converter, 1*RJ45+1*SFP port, Board only |
