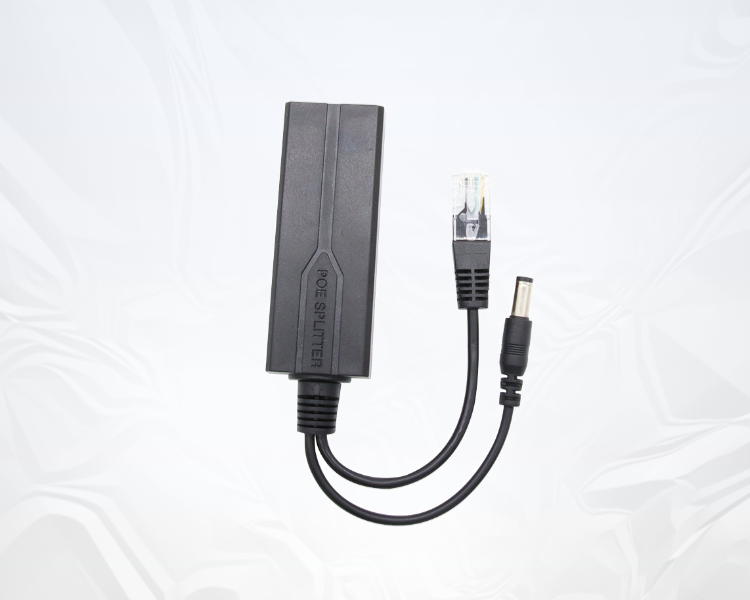

Output DC12V to 1~2A can provide power for network cameras, wireless bridges, access control systems and so on. Provide power supply, POE input supports 12/36 or 45/78 power supply.
Adopt pure copper wire with good conductivity, network signal transmission is more stable.

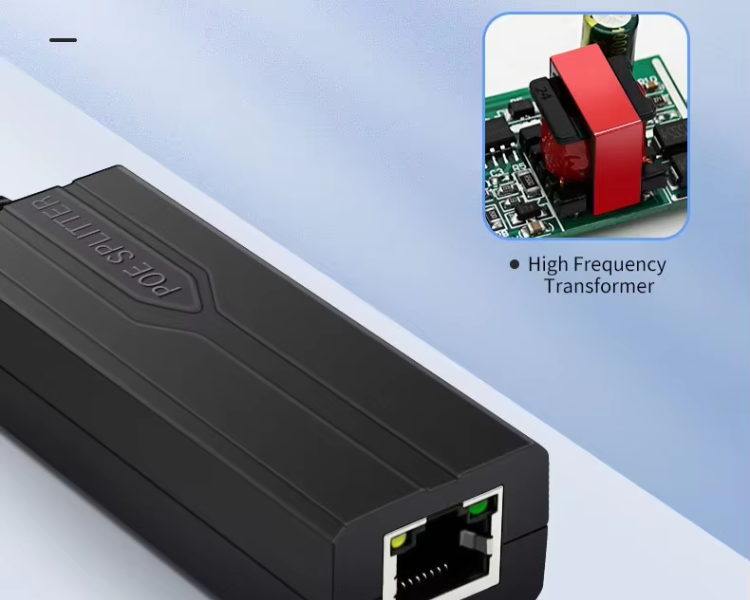

Isolated built-in high-frequency transformer, eliminating common ground problems caused by the Potential difference, make the signal transmission more stable.

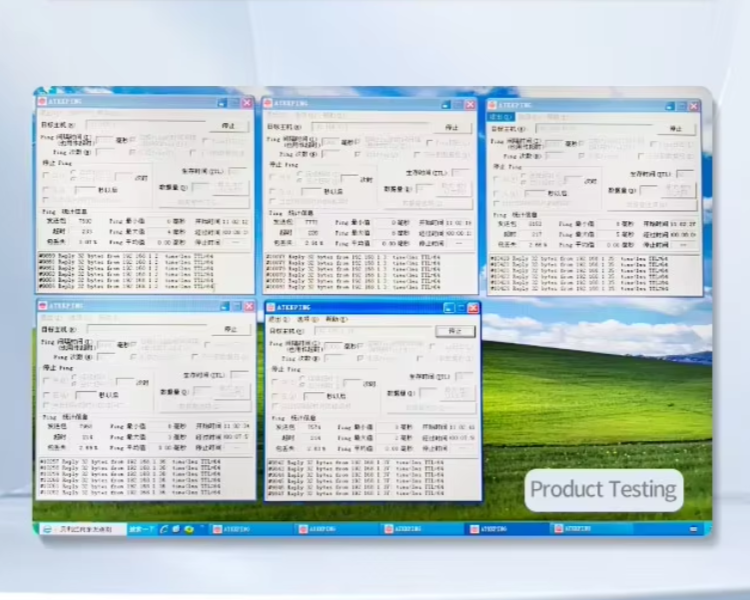

The products have been tested by aging for 8 hours to ensure the shipment quality and solve potential quality problems.
Compatible with various brands of network cameras on the market, built-in step-down module, can convert DC44-57V standard POE switch voltage into DC12V output, plug and play.
| Product name | PS4812 | PS4812G |
|---|---|---|
| POE voltage | 40V-57V | |
| Output voltage | 12V | |
| Output current | 1.2A | 2A |
| Power supply mode | 1/2(+)/3/6(-) | |
| Agreement | IEEE802.3-AF/IEEE802.3-AT | |
| Most powerful | AF/15.4W AT/30W | |
| Transmission rate | 10/100Mbps | 10/100/1000Mbps |
| Transmission distance | 100 meter | |
| Wire type | CLASS 5 AND OVER CLASS 5 UNSHIELDED TWISTED PAIR | |
| waterproof | Yes | |
| Working temperature | -20°C - 60°C | |
| Working humidity | 0-90%(NO CONDENSATION) | |
| Model | Introduction |
|---|---|

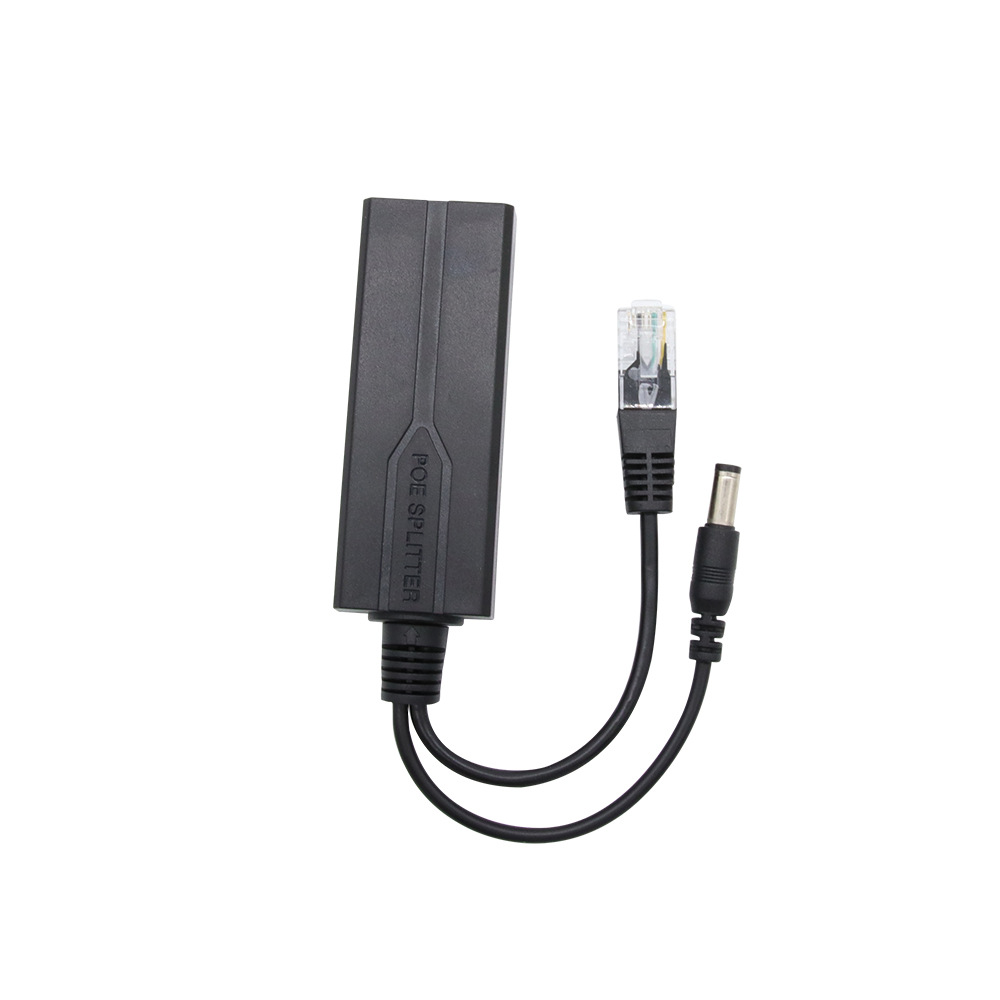

| PS4812 | 10/100M PoE splitter 48V to 12V/1.2A IEEE802.3af Isolated type:1.5KV |
| PS4812G | 10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af, Isolated type:1.5KV |
