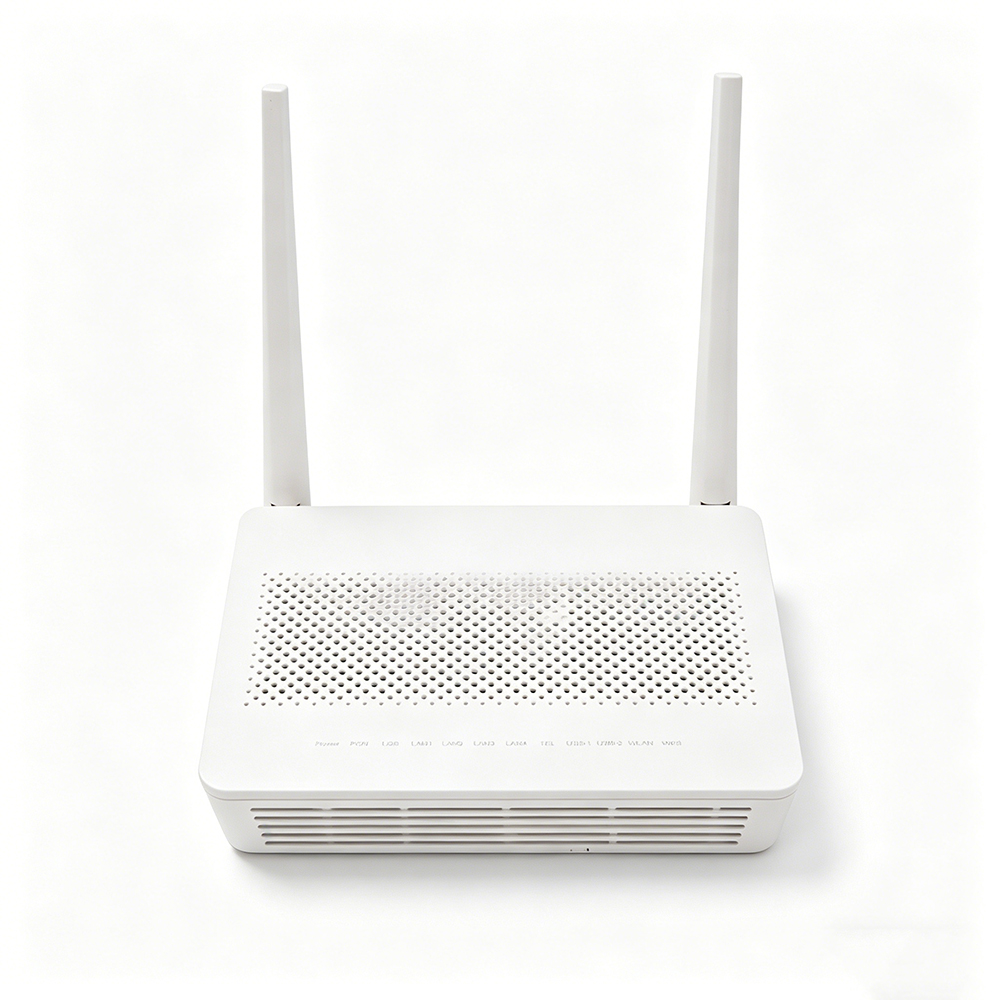

The EchoLife HG8145V5 provides one GE port, one POTS port, three FE ports and supports 2.4G Wi-Fi. The ONT features high-performance forwarding capabilities to ensure excellent experiences with VoIP, Internet, and HD video services. These features make the HG8145V5 a perfect choice for broadband access.
| Parameter | Detail |
|---|---|
| Type | Routing |
| Dimensions (H x W x D) | 173 mm x 120 mm x 30 mm (without antenna and pads) |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100V to 240V AC, 50 Hz/60 Hz |
| System Power Supply | 11V to 14V DC, 2A |
| Network-side Ports | GPON |
| User-side Ports | 1 POTS + 4 GE + Wi-Fi + 2USB |
| Indicators | POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS |

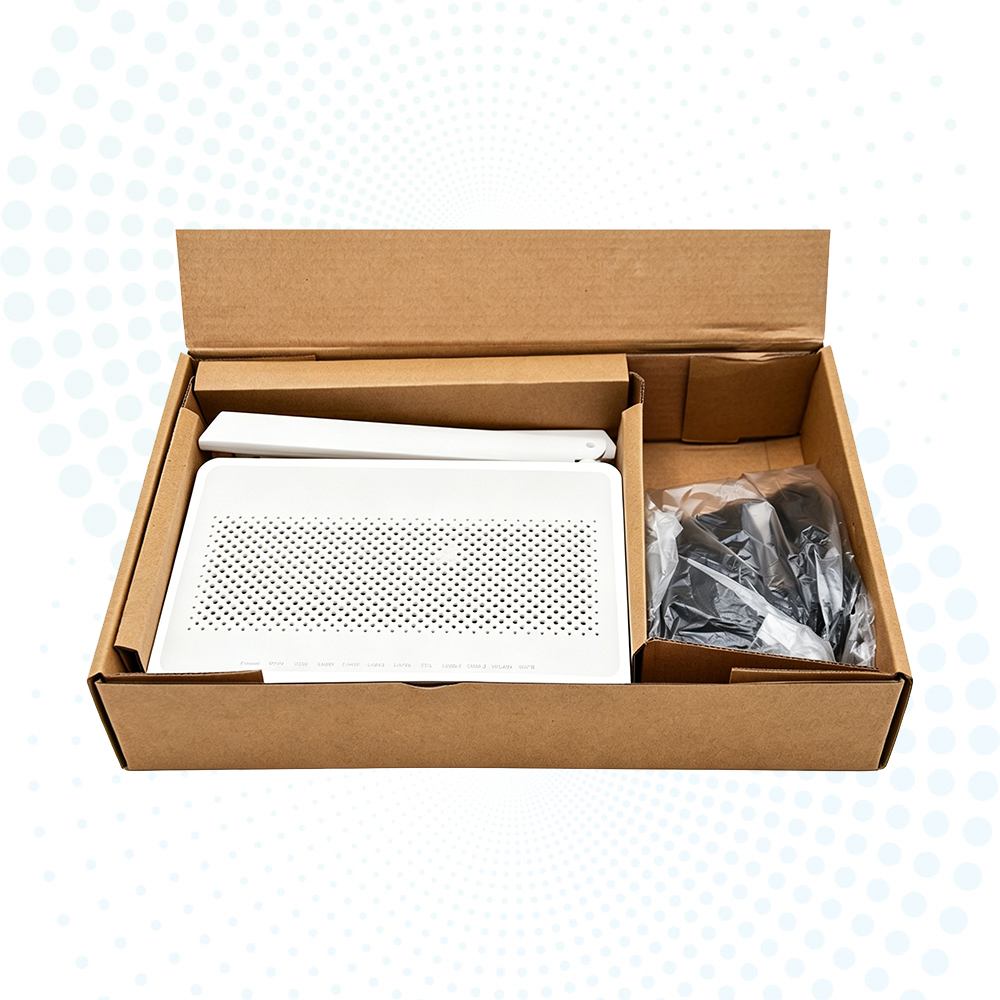

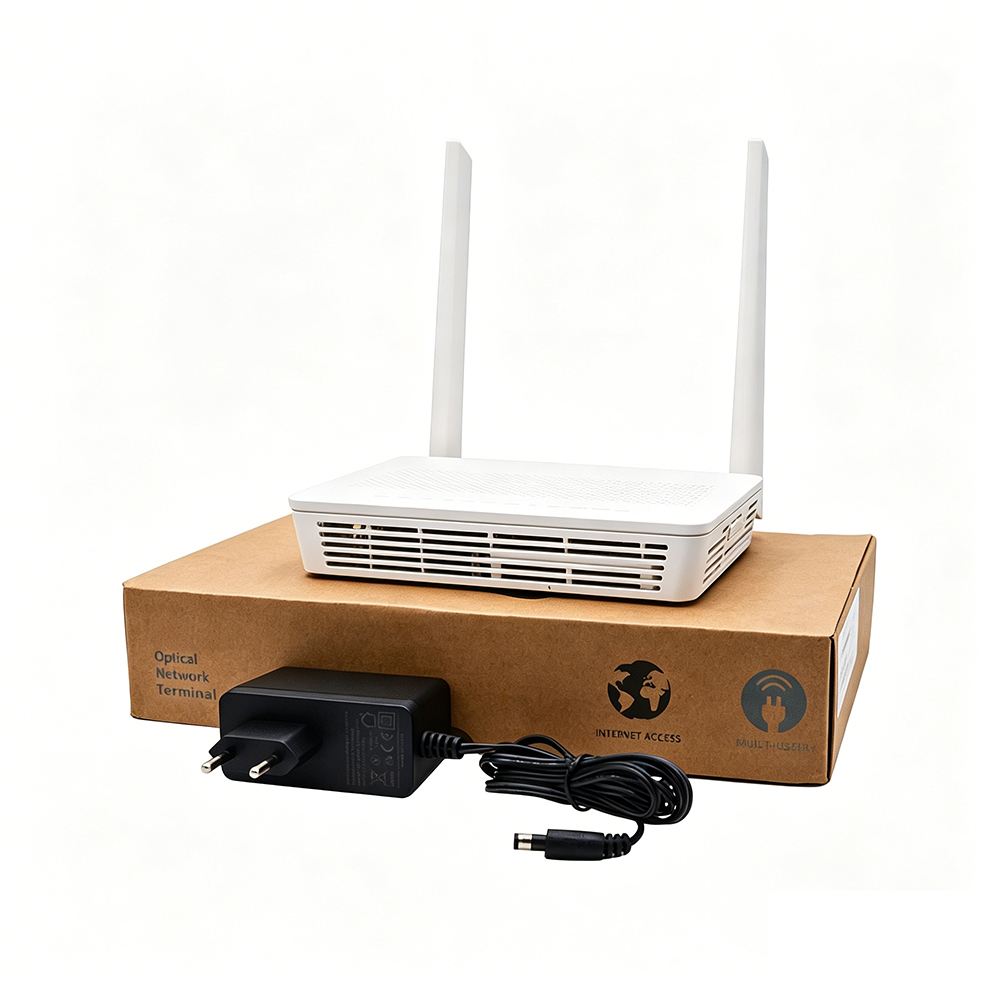

| Description | Accessories Pack |
|---|---|
| XPON ONU, 1*xPON + 4*GE RJ45 + 1*RJ11 POTS + 1*USB + 2.4GHz&5GHz Dual-Band Wi-Fi5 (2*External 5dBi antennas) | Power Adapter |
Depends on products, different products have different MOQ.
Yes, we can offer the customization service to you.
Yes, all of our products is without lock, support to another brands too.
We are the manufacturer, we support factory view tour.
Yes, for some models we are able to provide the free samples for your testing purpose.
Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
