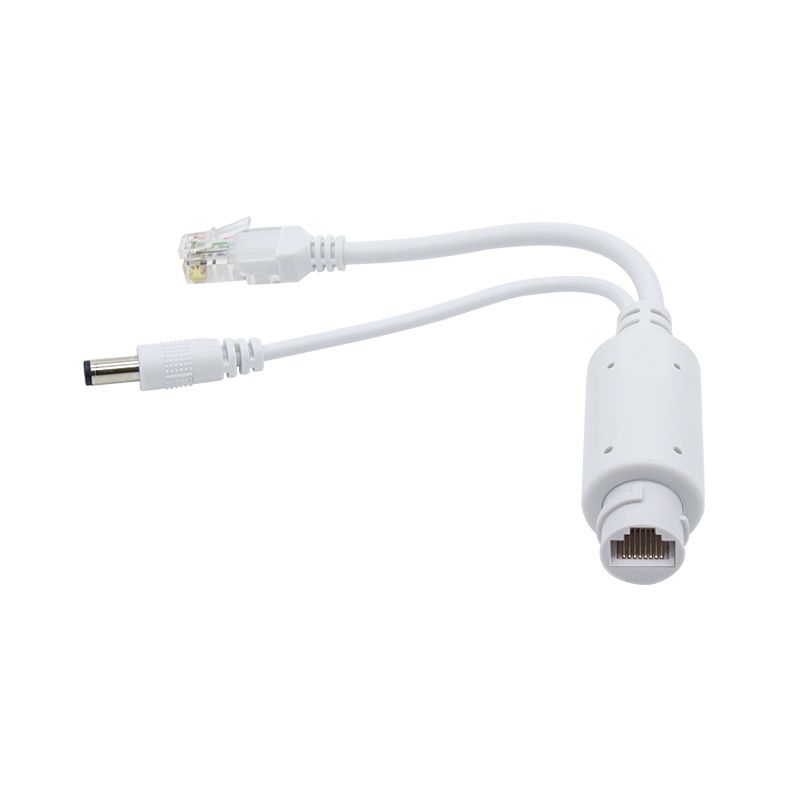

POE splitter is a POE remote power receiving equipment based on IEEE 802.3af/at standard, which can separate the power supply transmitted through network cable from the data signal. Power supply equipment conforming to IEEE 802.3af/at standard can provide power supply and data transmission for network equipment that does not support POE at the same time.

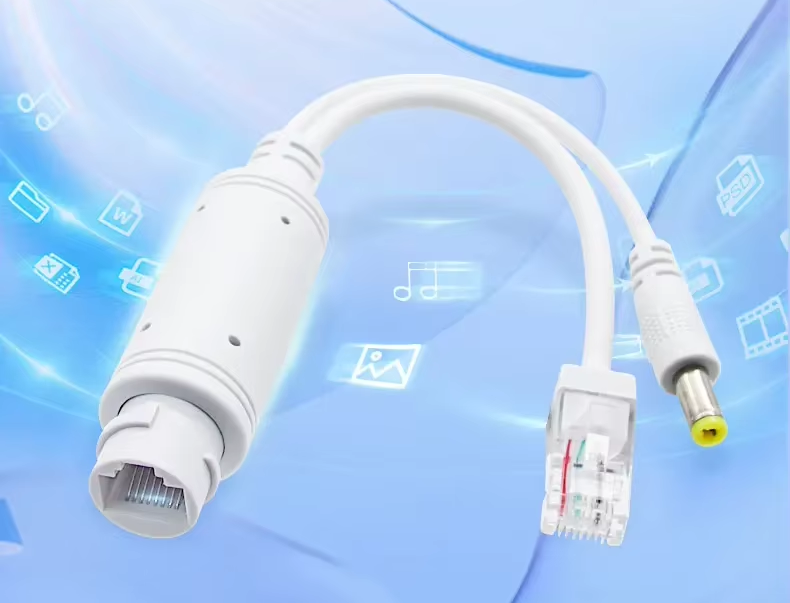

Output DC12V 1.2A can be given to the IP camera, wireless bridge, access control system, etc. Provide power supply and support 12/36 or 45/78 power supply.
Using pure copper wire with good electrical conductivity, the network signal transmission is more stable.

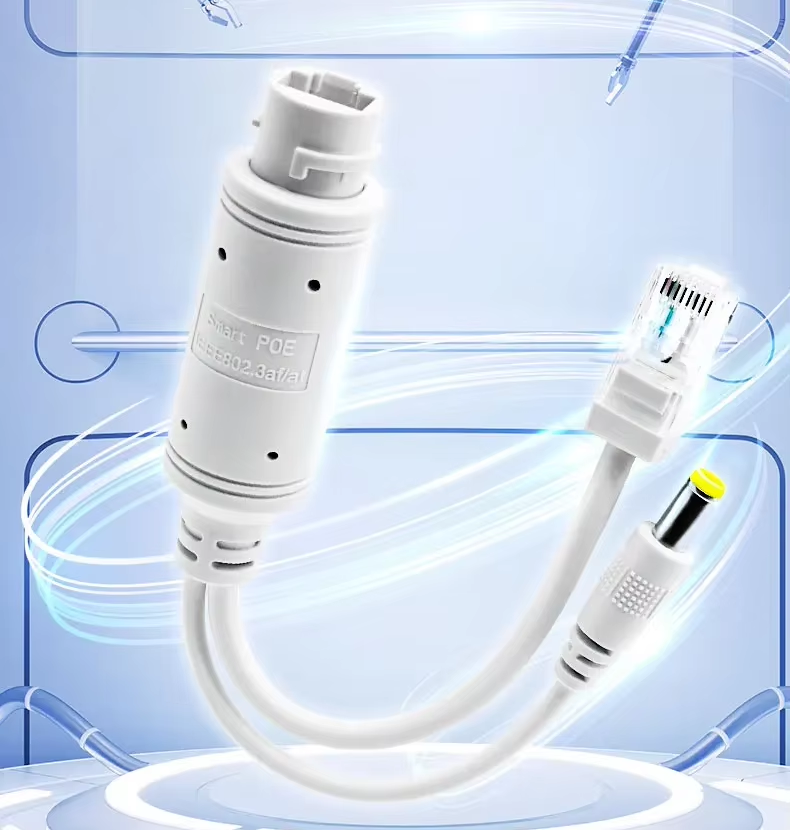

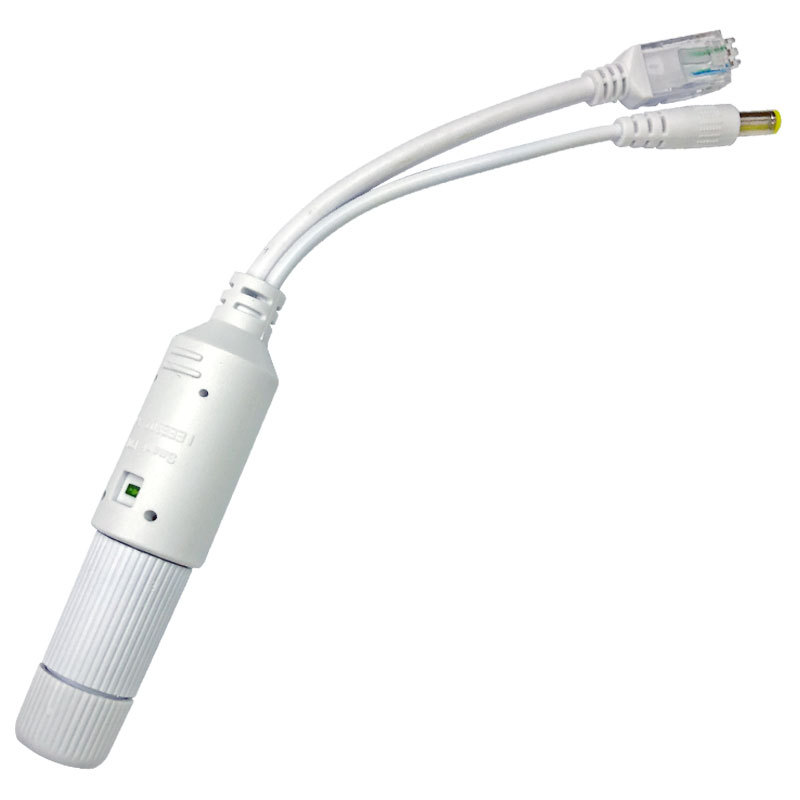

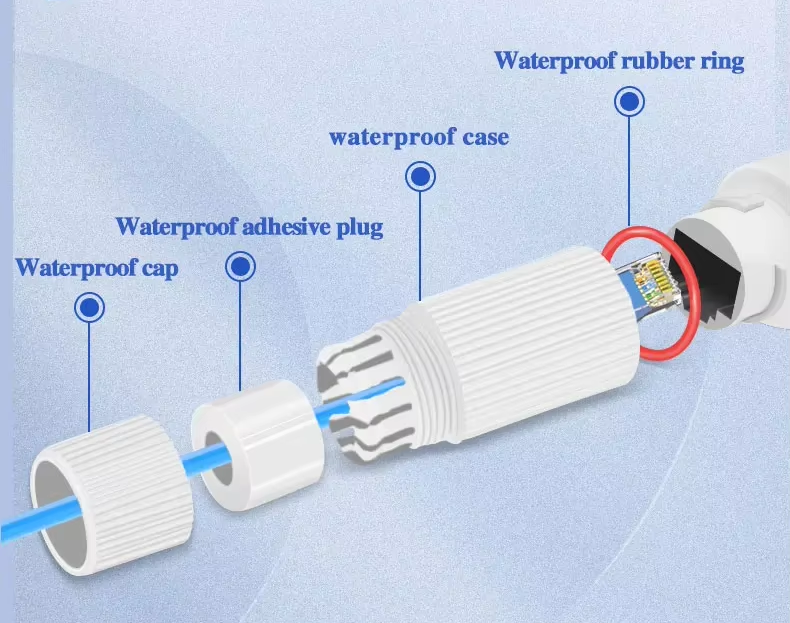

Product injection molding integrated plus waterproof kit. Significant waterproof effect.
| Technical Specifications | |
|---|---|

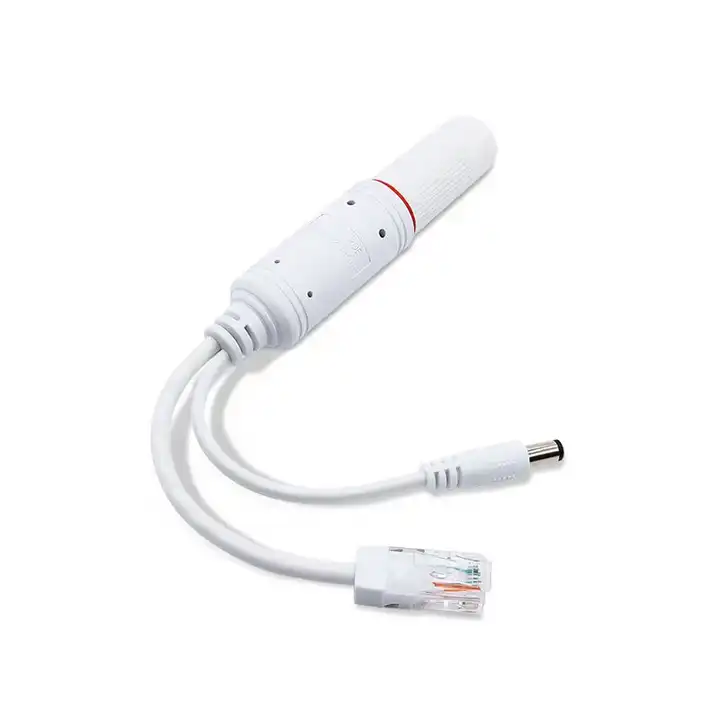

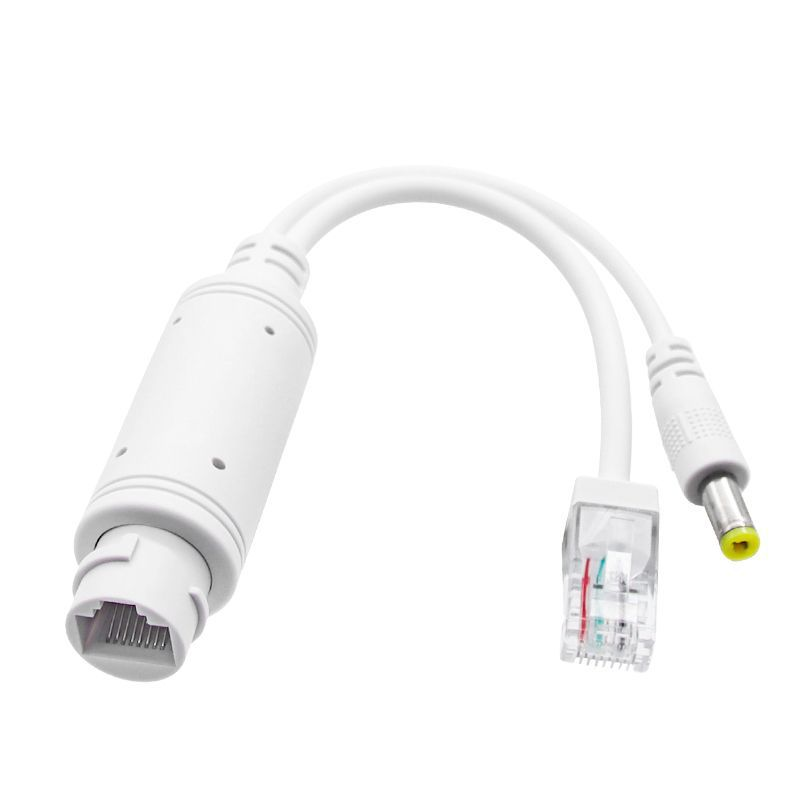

| Product name | Standard 48V to 12V waterproof POE separator |
| POE voltage | DC38V-57V |
| Output voltage | DC24V |
| Rated current | 1.2A |
| Power pin | 1/2(+),3/6(-) or 4/5(+),7/8(-) |
| Compatible agreement | IEEE802.3AF/AT |
| Maximum power | 12W |
| Transmission speed | 10/100MbpS |

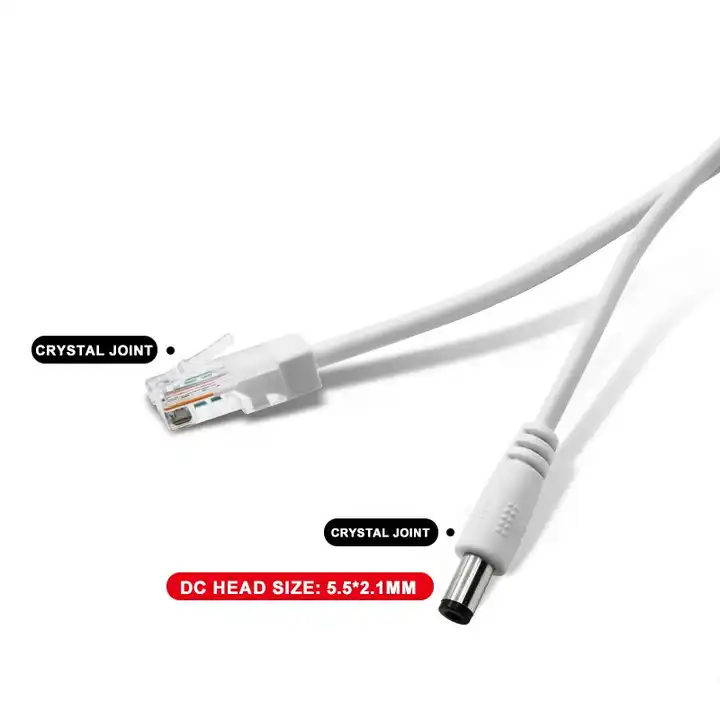

| Power interface | 5.5*2.1mm |
| Appearance material | Engineering plastic |
| Whether waterproof | Yes |
| Working temperature | -10°C~70°C |

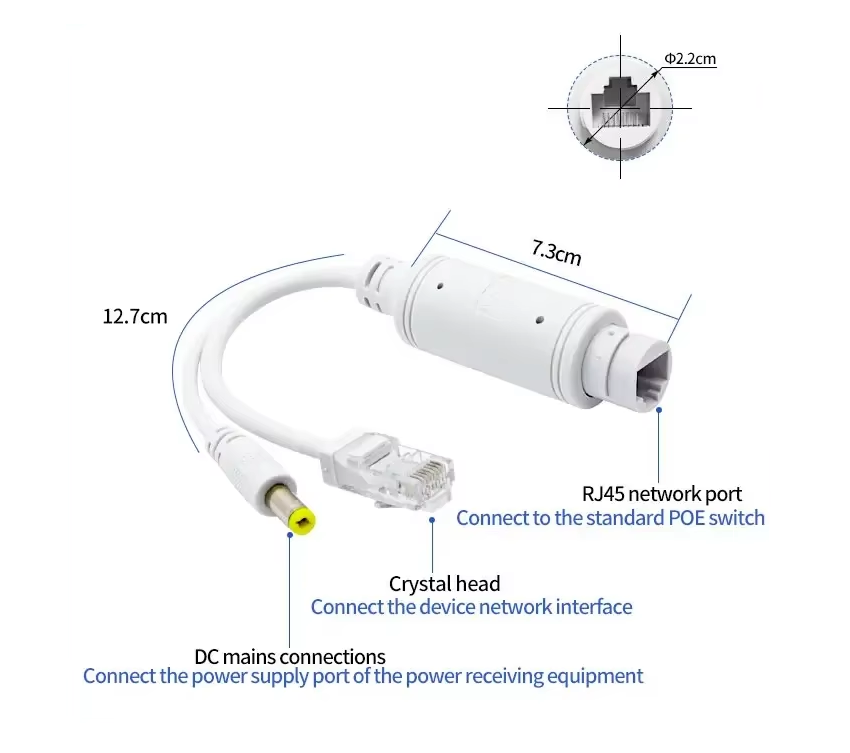

| Product size | 73*23*23 mm(cable length 127mm) |
| Product weight | 0.06KG |
| Model | Introduction |
|---|---|
| PS4812 | 10/100M PoE splitter 48V to 12V/1.2A IEEE802.3af Isolated type:1.5KV |
| PS4812G | 10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af,Isolated type:1.5KV |
| PS4812W | White Waterproof 10/100M PoE splitter, 48V to 12V/1A, IEEE802.3af |
| PS4812-O | Outdoor 10/100M PoE splitter, 48V to 12V/1.2A, IEEE802.3af, Isolated type:1.5KV |
| PS4812G-O | Outdoor 10/100/1000M PoE splitter, 48V to 12V/2A, IEEE802.3af,Isolated type:1.5KV |
A1: Depends on products, different products have different MOQ, please reach out for more details.
A2: Yes, we can offer the customization service to you.
A3: Yes, all of our products is without lock, support to another brands too.
A4: We are the manufacturer, we support factory view tour.
A5: Yes, for some models we are able to provide the free samples for your testing purpose.
A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
