| Ethernet Port | 16 * 10/100/1000Mbps PoE Port 2* 10/100/1000Mbps Uplink Port 2* 1000Mbps SFP Port 1 * RJ45 Console Port |
| Bandwidth | 40Gbps |
| Packet Forwarding rate | 29.76Mpps |
| DDR SDRAM | 128MB |
| Flash Memory | 16MB |
| Packet Buffer Memory | 4M |
| MAC Address | 8K |
| Jumbo frame | 9.6Kbytes |
| VLANs | 4096 |
| Network Protocols | IEEE 802.3: Ethernet MAC Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad: Standard method for performing link aggregation IEEE 802.3x: Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization (Multicast filtering function) IEEE 802.1q: VLAN Bridge Operation IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP |
| PoE protocol | IEEE802.3af (15.4 W) IEEE802.3at (30 W) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
| Network Media | 10BASE-T: Cat3, 4, 5 or above UTP (≤100 M) 100BASE-TX: Cat5 or above UTP (≤100 M) 1000BASE-TX: Cat5 or above UTP (≤100 M) |
| Fiber Medium | Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Working Environment | Operating temperature: -10~50°C Storage temperature: -40~70°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~90%, No condensation |
| Indicator | PWR, SYS, PoE/ACT, Link/ACT |
| PWR (Power Indicator) | Lighting: Powered Un-Light: No Power |
| SYS (System Indicator) | Flashing: System Start-up Lighting: System Running |
| PoE/ACT | Lighting: PoE on Un-Light: PoE off |
| Link/ACT | Lighting: Link connection Flashing: Data transmission Un-Light: Link disconnect |
| Reset | Short press restart, long press 5 seconds to restore factory settings |
| Voltage | Input Voltage: AC100-240V/50-60Hz Power supply: 52V 5.76A |

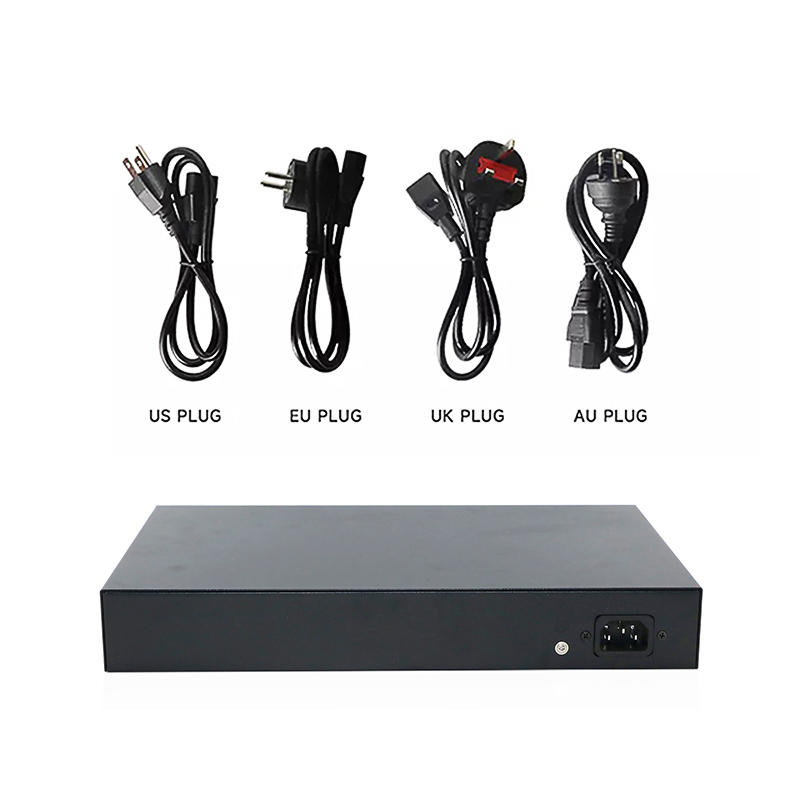

| Packing list | 1. Ethernet switch: 1 Set 2. Instruction manual: 1 PCS 3. Certificate, warranty card: 1 PCS 4. Power cord: 1PCS 5. Serial cable: 1PCS 6. Rack ear: 1 Pair |
A: Yes, price is not a problem, everything could be negotiated based on the quantity.
A: Yes, we provide full support for OEM and ODM customization services.
A: There is no MOQ limit; we support sample orders for testing prior to bulk orders.
A: For trade terms, we mainly support payment via T/T bank transfer, PayPal, and Western Union.
A: Most of our products come with a 24-month warranty. Please note that user-inflicted damages and products of other brands are excluded.
A: Yes, they support plug and play with zero configuration required, allowing for quick and simple deployment.
