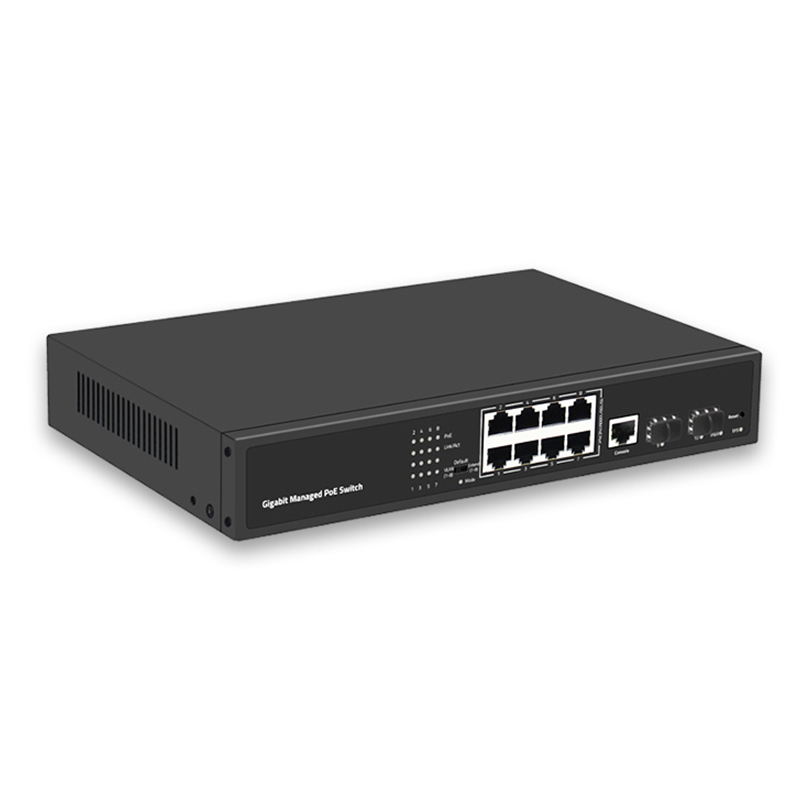

8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch
8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch
8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch
8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch
8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch
1 / 5
8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch
8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch
8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch
8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch
8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch

8 Port L2 Managed Ethernet PoE Switch 48V Gigabit 802.3af/at 150W SNMP QoS Smart Managed PoE+ Switch

Send Inquiry

Product Description

POE Managed Switch
8 * 10/100/1000Mbps PoE+ 2 * 1000Mbps SFP+ 1 * RJ45 Console

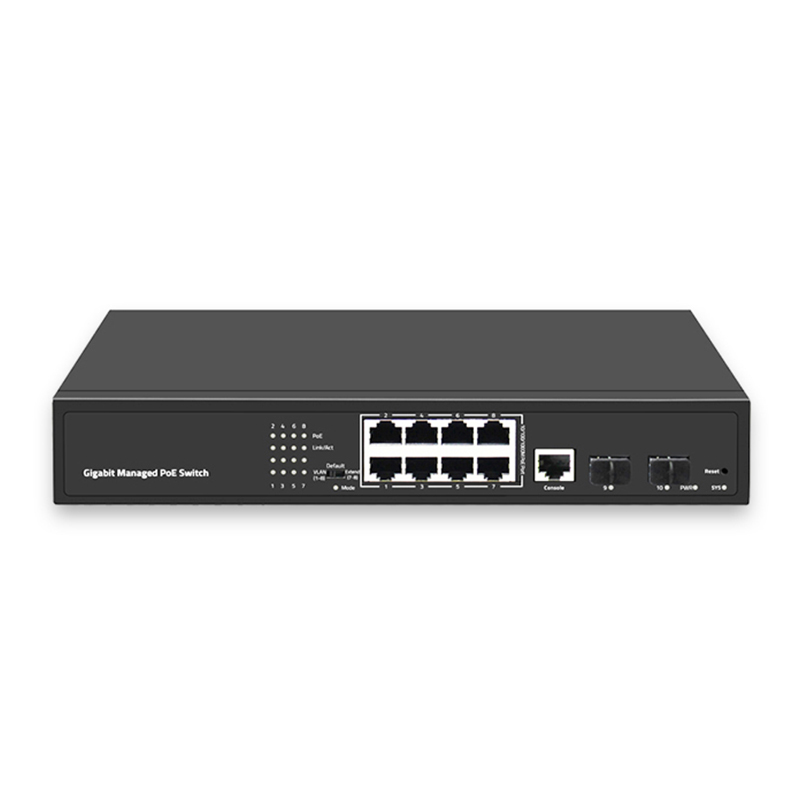

POE Managed Switch Port View

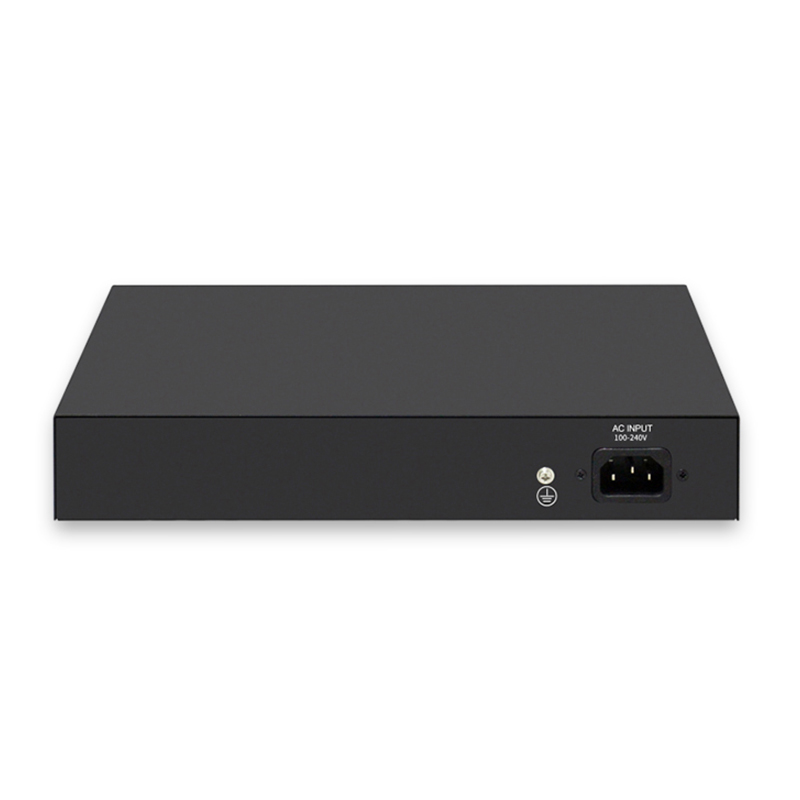

POE Managed Switch Angle View
10-Ports Gigabit Managed PoE Switch. It adopts High-Quality and High-Speed Network IC and the most stable PoE Chip. The PoE port meets the IEEE802.3af or IEEE802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The Non-PoE devices are forcibly powered and only transmit data.
Specification

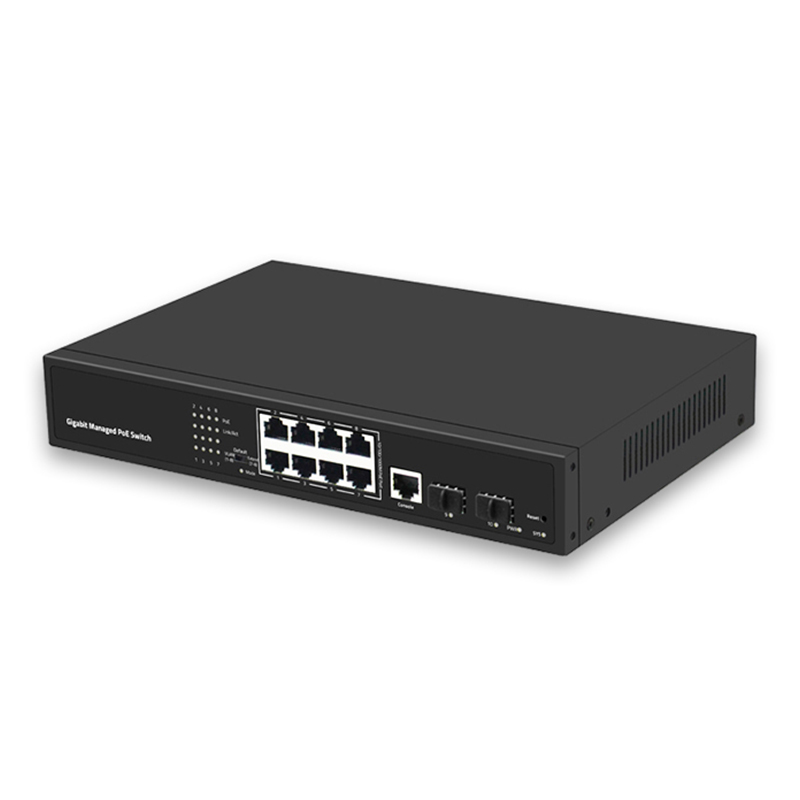

Features Display Part 1
Key Features & Connectivity
  • 8 x 10/100/1000Mbps auto-sensing PoE Ports, 2 x Gigabit SFP Uplink Ports, 1 x Console Port.
  • Support IEEE802.3/IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3
  • Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4W)
  • Ethernet port supports 10/100/1000M adaptive
  • Panel indicator monitoring the status and help failure analysis
Features Display Part 2
Advanced Management & Reliability
  • Fanless design, Natural Cooling, Compatible with 1U Rack Mount
  • Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication
  • Support WEB, TELNET, CLI, SSH, SNMP, RMON management
  • Support PoE Power Management, PoE watch dog
  • The port supports 6kV lightning protection
Ethernet Port 8 * 10/100/1000Mbps PoE Port
2 * 1000Mbps SFP Port
1 * RJ45 Console Port
Bandwidth 20Gbps
Packet Forwarding rate 14.88Mpps
DDR SDRAM 128MB
Flash Memory 16MB
Packet Buffer Memory 4M
MAC Address 8K
Jumbo frame 9.6Kbytes
VLANs 4096
Network Protocols IEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ad: Standard method for performing link aggregation
IEEE 802.3x: Flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization (Multicast filtering function)
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1x: Client/Server Access Control and Authentication Protocol
IEEE 802.1d: STP
IEEE 802.1s: MSTP
IEEE 802.1w: RSTP
PoE protocol IEEE802.3af (15.4 W)
IEEE802.3at (30 W)
Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Network Media 10BASE-T: Cat3, 4, 5 or above UTP (≤100 M)
100BASE-TX: Cat5 or above UTP (≤100 M)
1000BASE-TX: Cat5 or above UTP (≤100 M)
Fiber Medium Multi-mode Fiber: 50/125, 62.5/125, 100/140um
Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Working Environment Operating temperature: -10~50°C
Storage temperature: -40~70°C
Operating Humidity: 10%~90%, No condensation
Storage Humidity: 5%~90%, No condensation
Indicator PWR, SYS, PoE, Link/ACT
PWR (Power Indicator) Lighting: Powered
Un-Light: No Power
SYS (System Indicator) Flashing: System Start-up
Lighting: System Running
PoE Lighting: PoE on
Un-Light: PoE off
Link/ACT Lighting: Link connection
Flashing: Data transmission
Un-Light: Link disconnect
Reset Short press restart, long press 5 seconds to restore factory Settings
Voltage Input Voltage: AC100-240V/50-60Hz
Power supply: 52V2.3A
Packing list 1. Ethernet switch: 1 Set
2. Instruction manual: 1 PCS
3. Certificate: 1 PCS

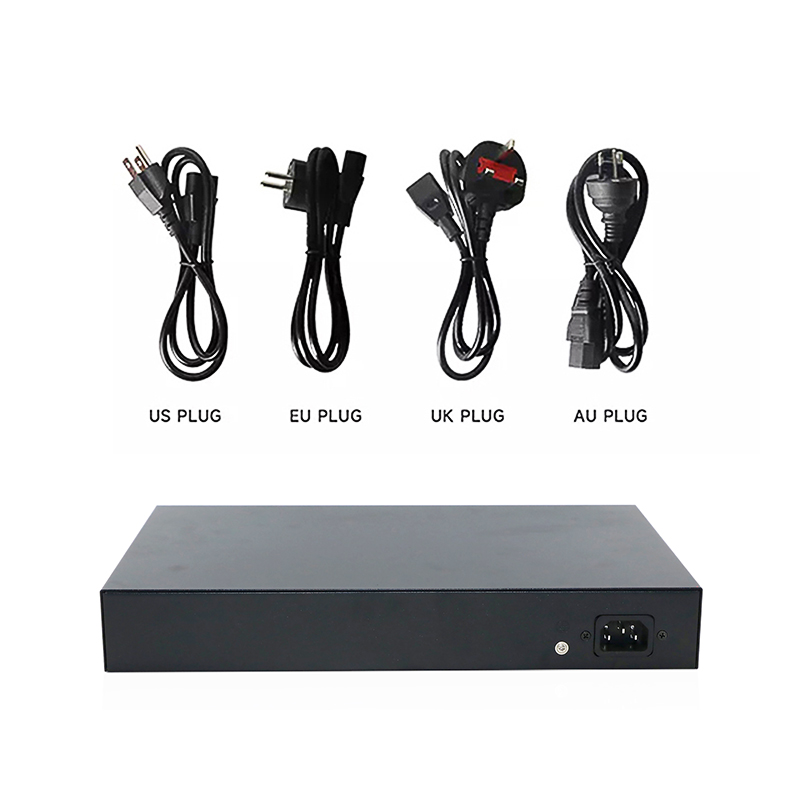

4. Power cord: 1PCS
5. Serial cable: 1PCS
6. Brackets: 1 pair
Production Facility
Frequently Asked Questions
Q Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
Q Is OEM/ODM Service available?
Yes, we support OEM and ODM services.
Q What is your MOQ?
We have no MOQ requirements for any sample test.
Q Can I have a sample order for this product?
Yes, sample orders are supported.
Q What are the Trade Terms and Payment Methods?
  • Payment Terms: We mainly support T/T bank transfer, Paypal and Western Union.
  • Price Terms: EXW.
  • Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.
Q How about the Warranty?
Most products come with a 24-month warranty. Damage caused by human factors or products of other brands are not included.
