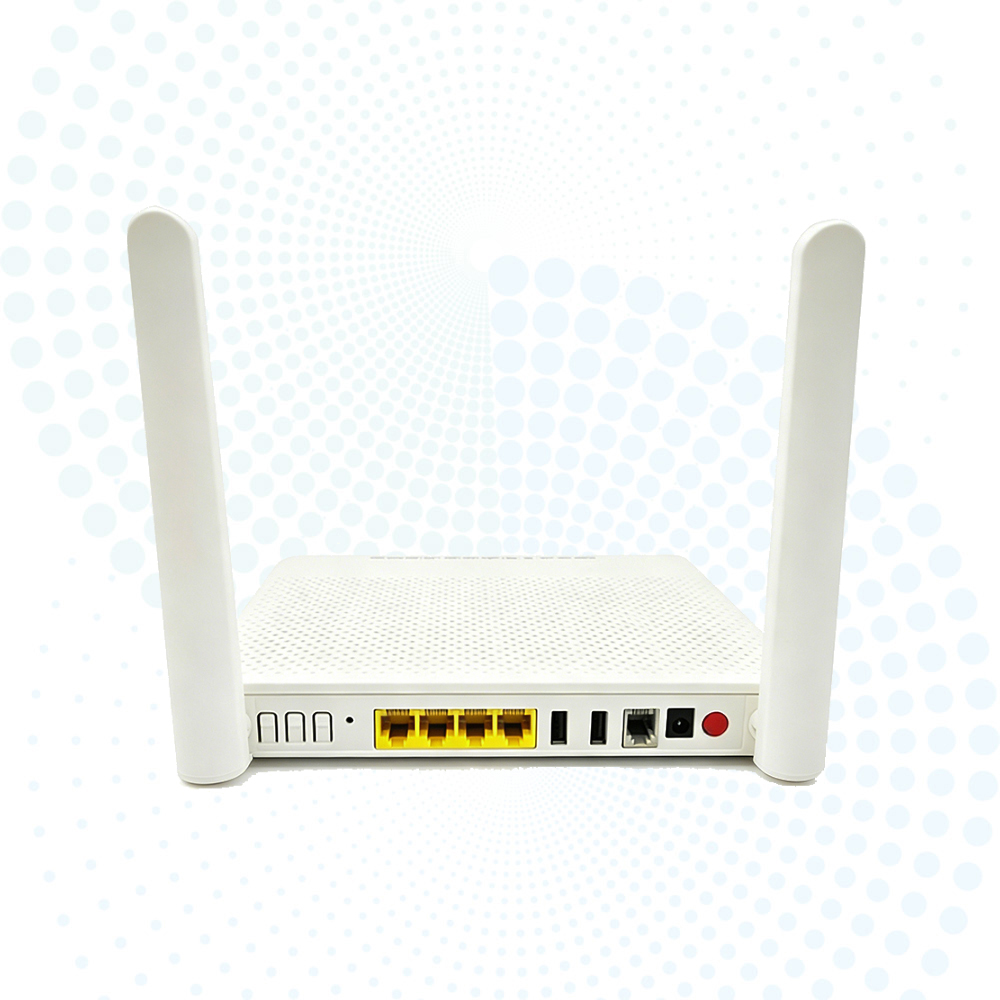

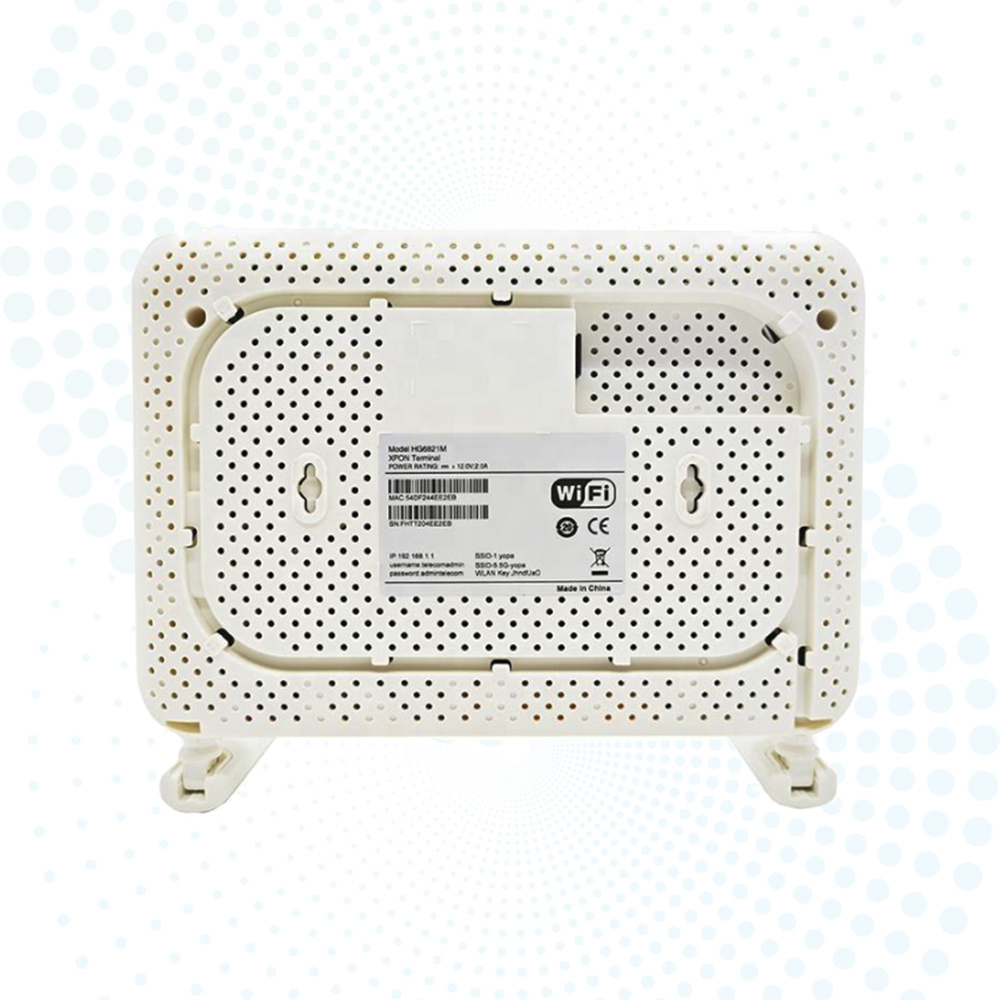

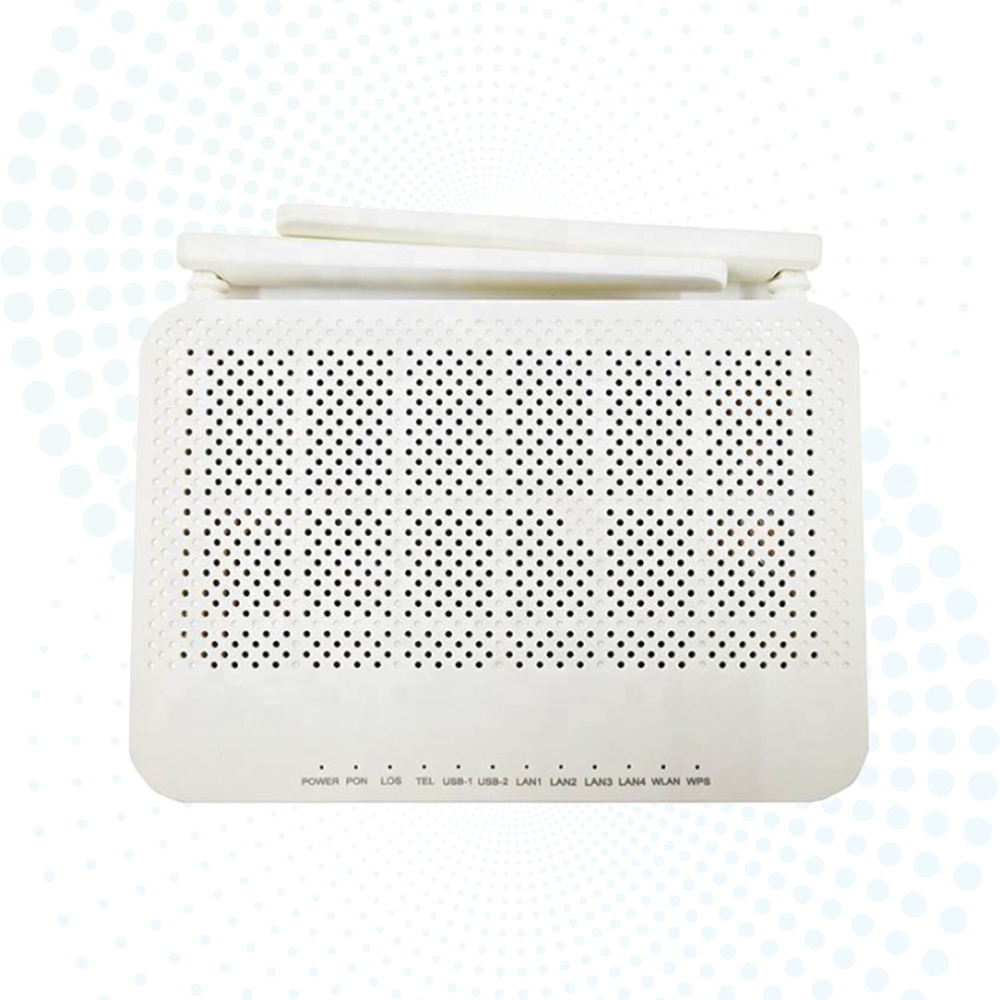

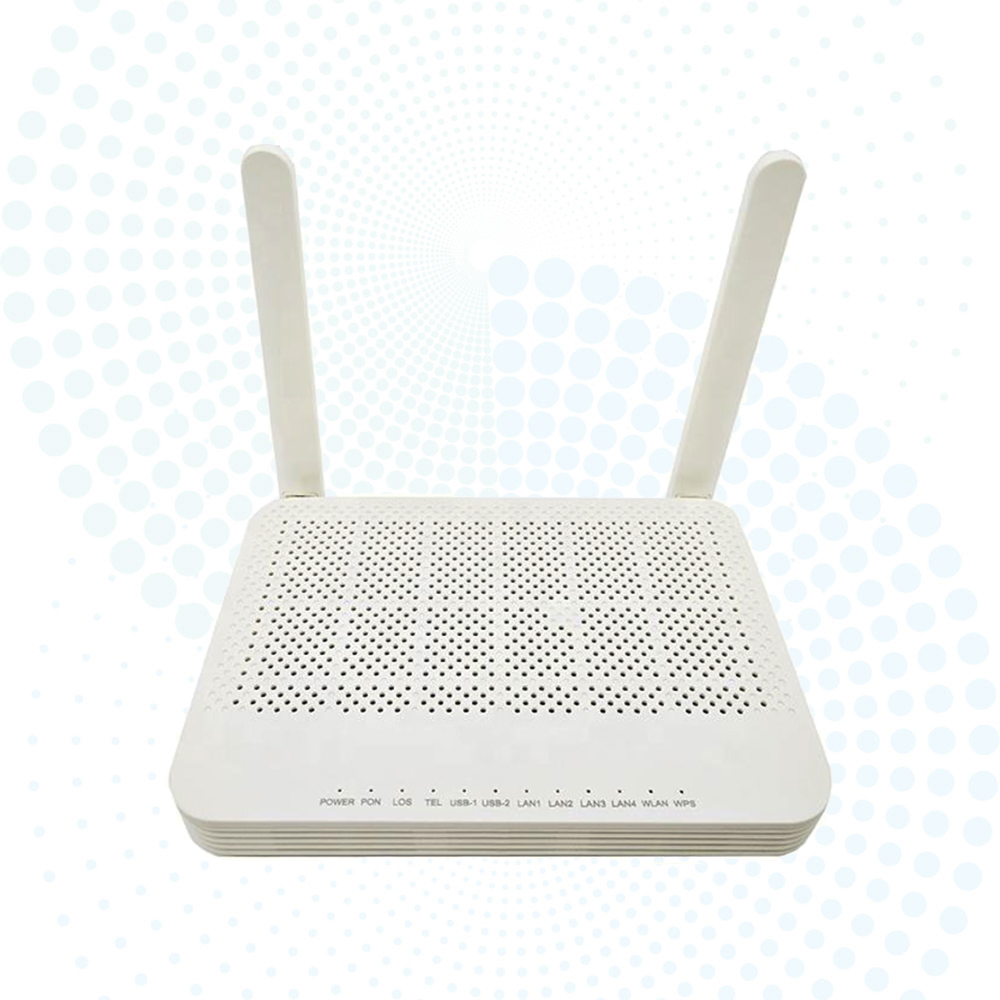

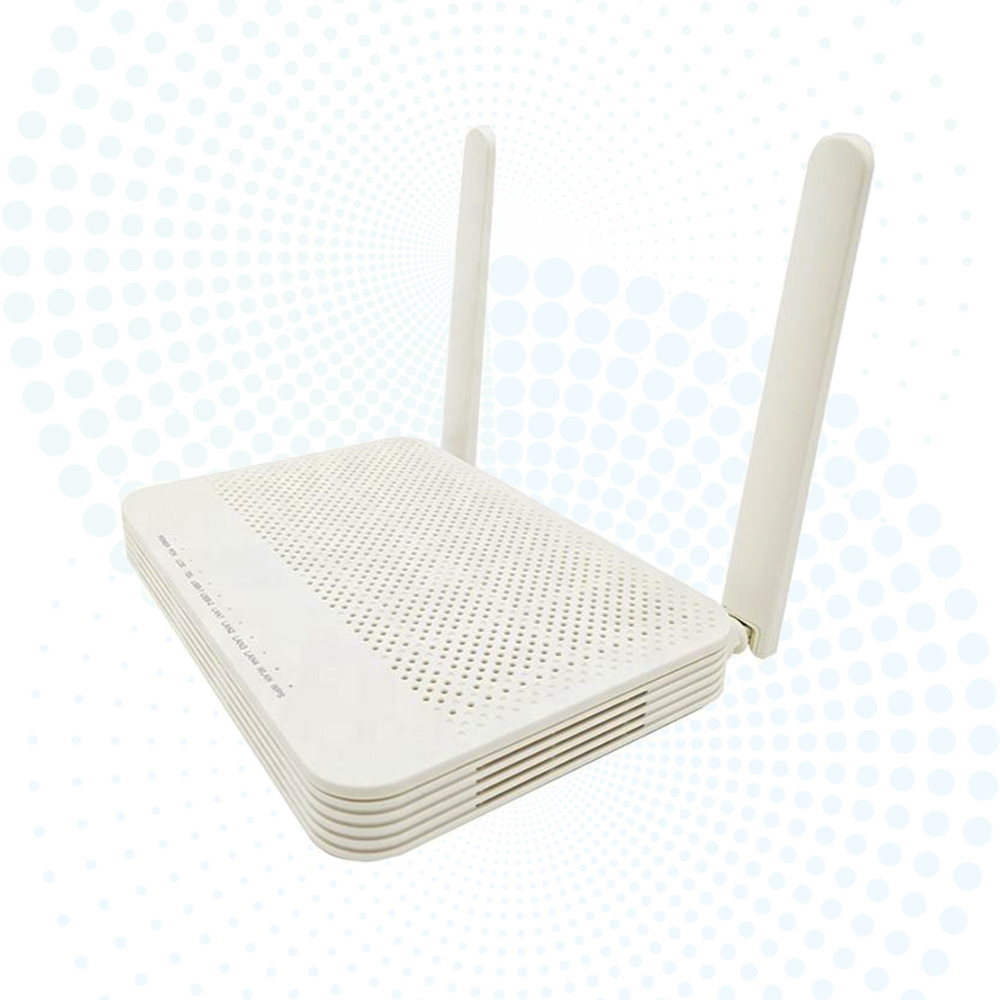

HG6821M XPON ONU Dual Band WiFi 4GE+1POTS+2USB FTTH GPON ONT Fiber Router

Product Design

Specification

Model	HG6821M
Out Port contains	4GE+1TEL+2USB+Dual Band WiFi
WIFI signal	2.4G & 5G WiFi
Wireless gain	5dBi
USB	USB2.0
LAN	4*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
TEL	H248/Sip Voice protocol
PPPOE/DHCP/Staic/Bridge	support
Firmware	English
Dimension/weight	280mm173mm42mm/419g
Fiber port	1 GPON interface, single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Fiber interface	SC/FC-UPC/APC Dual mode/Single mode
RX sensitivity	>-28dBm (1490nm)
DC power	12V 2.0A, external AC-DC power adapter
Button	Reset, power, WPS, Wireless
Operation	Working temperature: -5℃ - +55℃, working humidity: 10-90% (non-condensation)
Storage	Storage temperature: -30℃ - +60℃, storage humidity: 10-90% (non-condensation)

Order Info

Description	XPON ONU, 1xPON + 4GE RJ45 + 1RJ11 POTS + 2USB + 2.4GHz & 5GHz Dual-Band Wi-Fi5 (2*External 5dBi antennas);
Accessories Pack	Power Adapter

FAQ

Q1What is your MOQ request?

Depends on products, different products have different MOQ, pls contact our sales for more details.

Q2Do you Support ODM/OEM service?

Yes, we can offer the customization service to you.

Q3Does your products support other brands?

Yes, all of our products is without lock, support to another brands too.

Q4Are you the manufacturer or trading company?

We are the manufacturer, we support factory view tour.

Q5Do you offer free samples?

Yes, for some models we are able to provide the free samples for your testing purpose.

Q6Are you able to provide the local certificates?

Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
