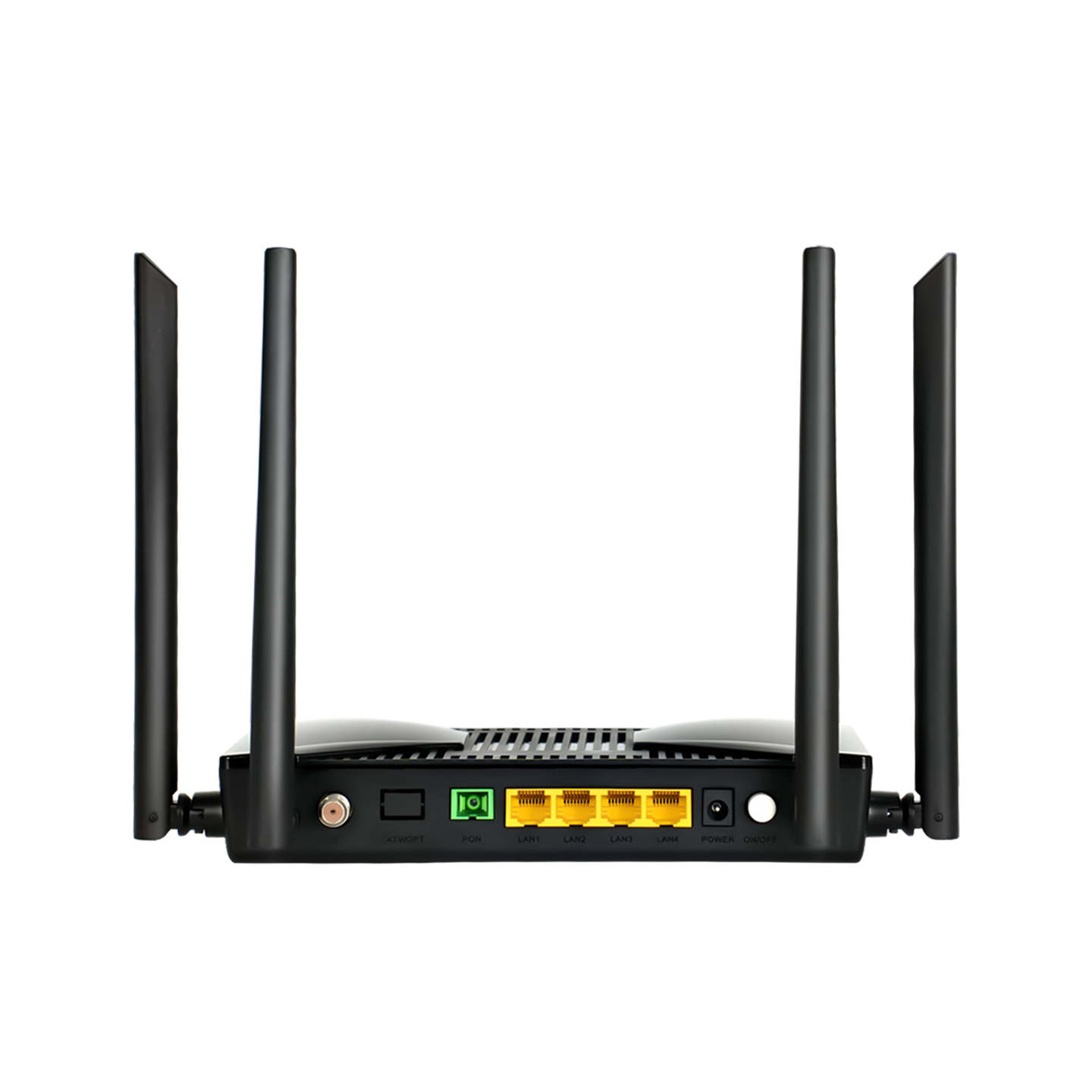

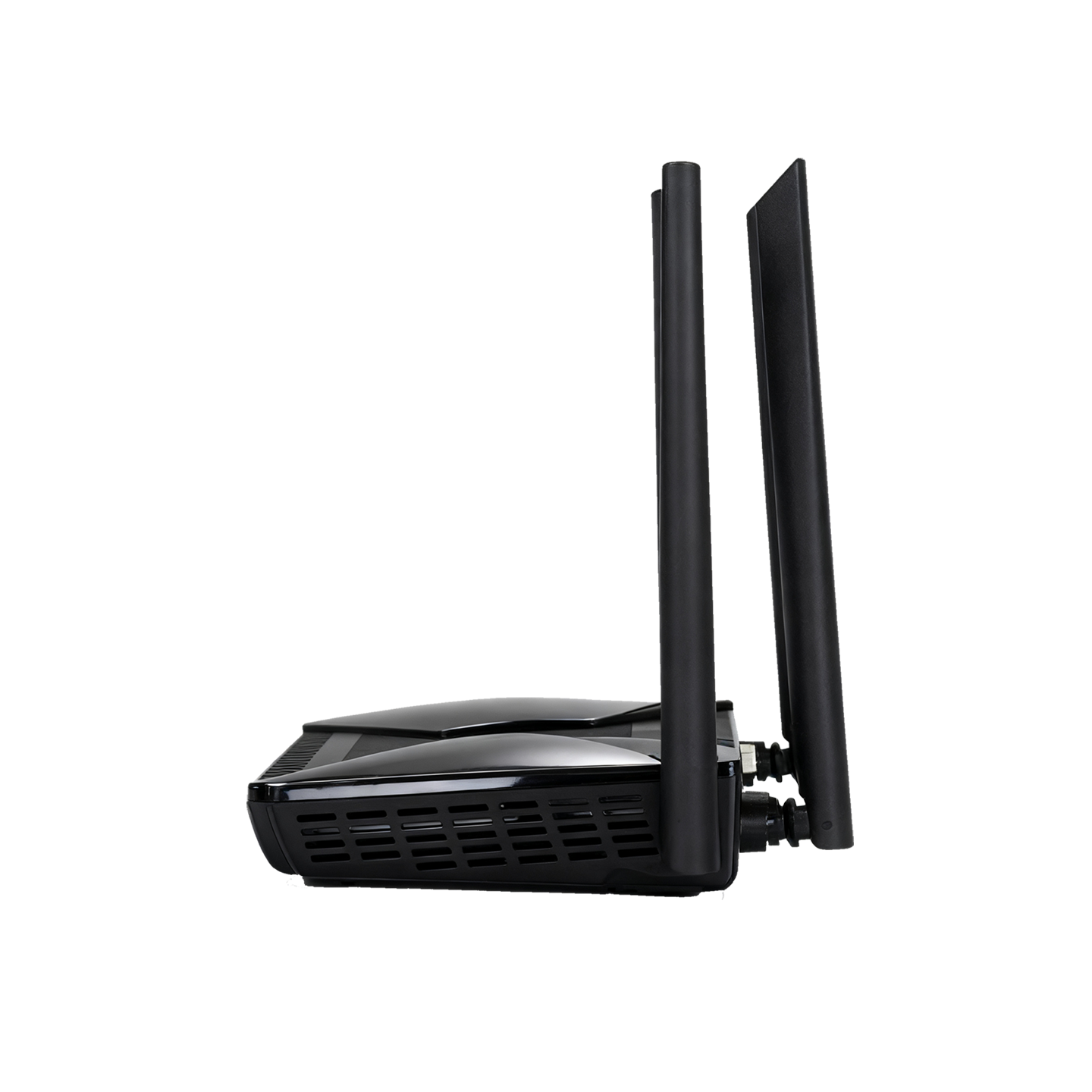

| Model Number | HG7024XZ |
| Interface | 1* G/EPON+4*GE+2.4G/5.8GWLAN+1*RF |
| Ethernet Interface | 4* RJ45 10/100/1000BASE-T |
| CATV Interface |
Interface type: 1*RF Optical receiving wavelength: 1550nm RF output level : 80±1.5dBuV Input optical power: +2~-15dBm AGC range: 0~-12dBm Optical reflection loss: >14 MER: >31@-15dBm |
| PON Interface |
Interface Type: SC/UPC, CLASS B+ Transmission distance: 0～20km Working wavelength: Up 1310nm；Down 1490nm； RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps；Down 2.488Gbps EPON: Up 1.244Gbps；Down 1.244Gbps |
| Wireless |
Interface type：External 4*2T2R External antenna Antenna gain: 5dBi Interface maximum rate: 2.4G WLAN：300Mbps / 5.8G WLAN：866Mbps Interface working mode: 2.4G WLAN：802.11 b/g/n 5.8G WLAN：802.11 a/n/ac |
| Indicator light | RF/OPT/5G/2.4G/LAN4/LAN3/LAN2/LAN1/LOS/PON/POWER |
| Power Supply | DC 12V/1.5A |
| Power Adapter Input | 100V-240V AC, 50Hz-60Hz |
| Power Consumption | 12W |
| Working Temperature | -20℃～+50℃ |
| Environment Humidity | 5%～95% (non-condensing) |

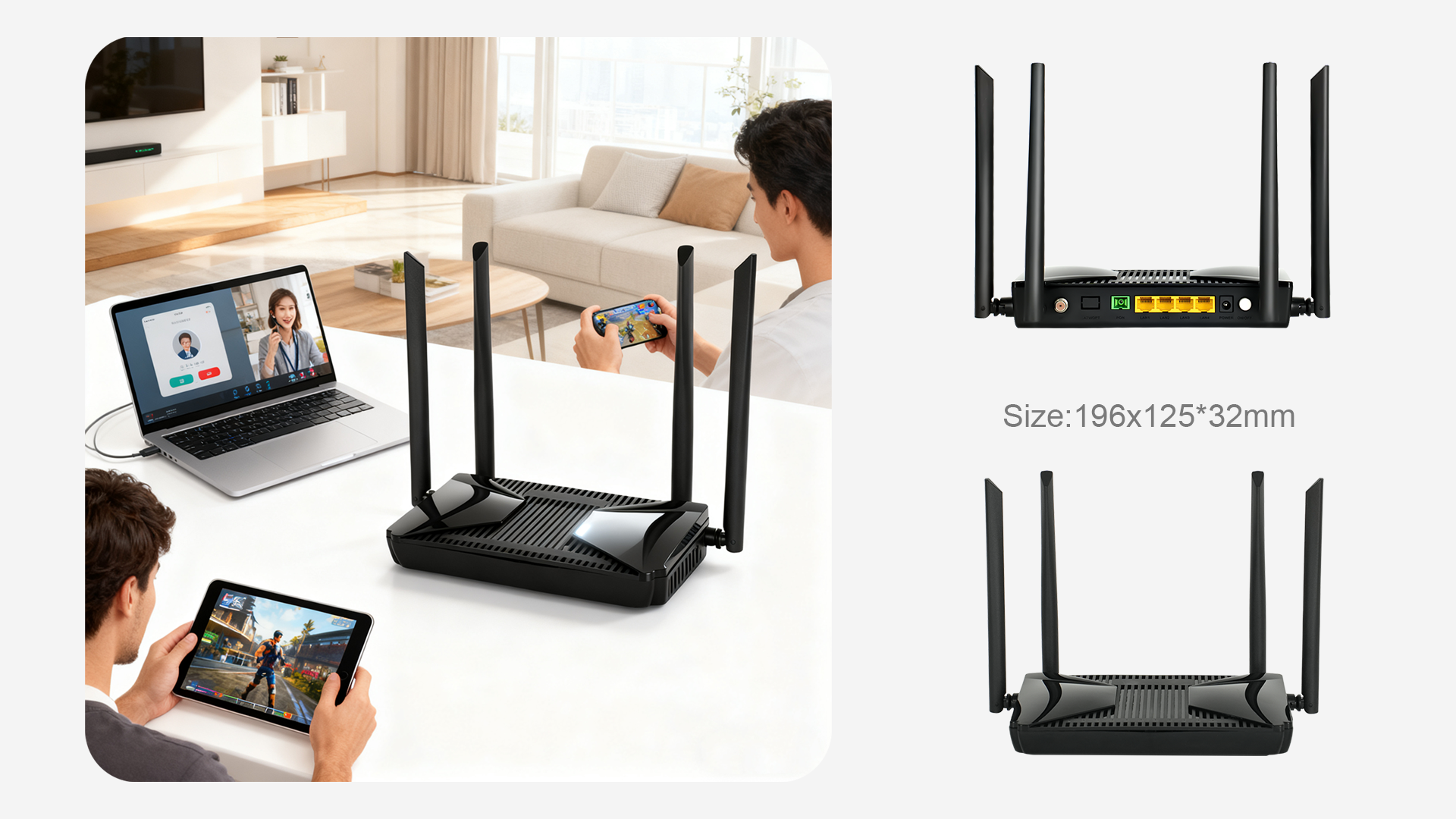

| Dimensions(L×W×H) | 196mm x 125mm x 32mm |
| Transmission Rate |
EPON: Upstream 1.25Gbps/Downstream 1.25Gbps GPON: Upstream 1.25Gbps/Downstream 2.5Gbps |
| LAN Interface Type | RJ45（10/100/1000Mbps） |
| USB | USB3.0 |
| WIFI | Dual-band WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G) |
| Description | XPON,4*1000M Base-T,1*WIFI-5(2.4G&5G 1200M),1*CATV,12V/1.5A. |
