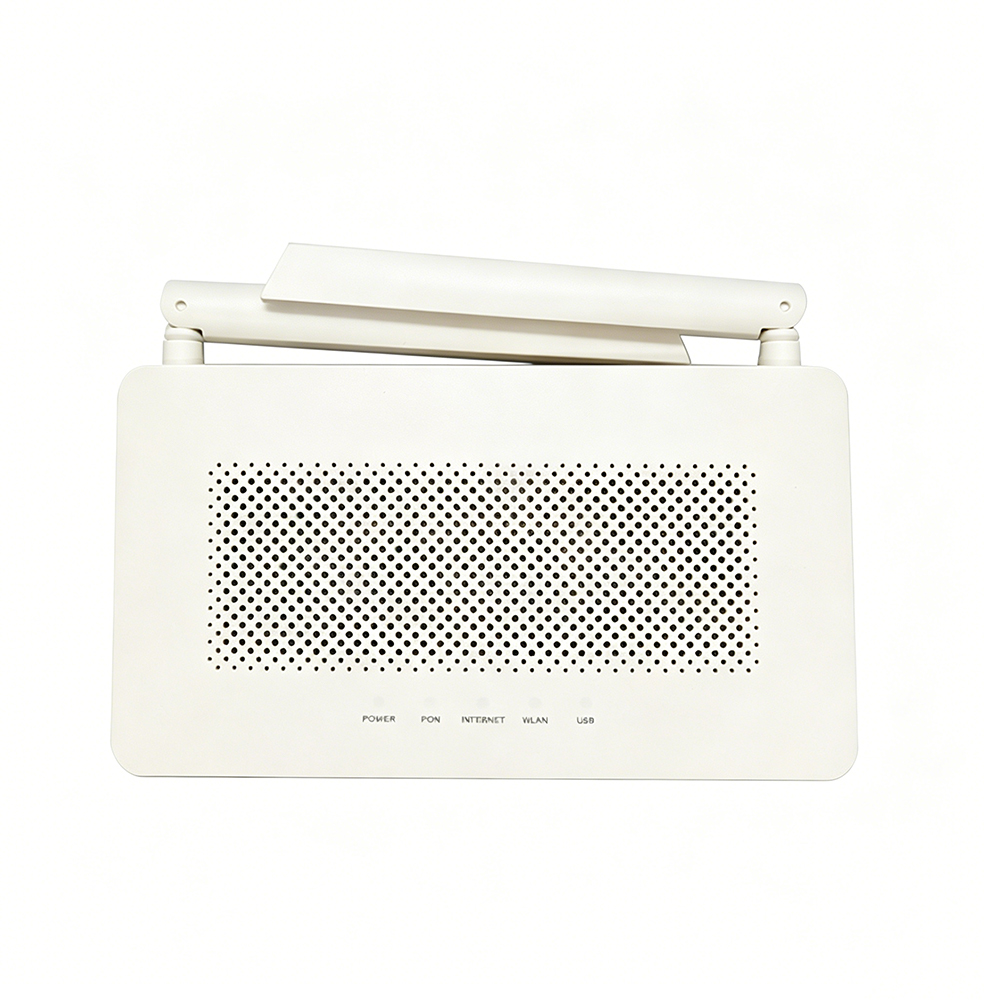

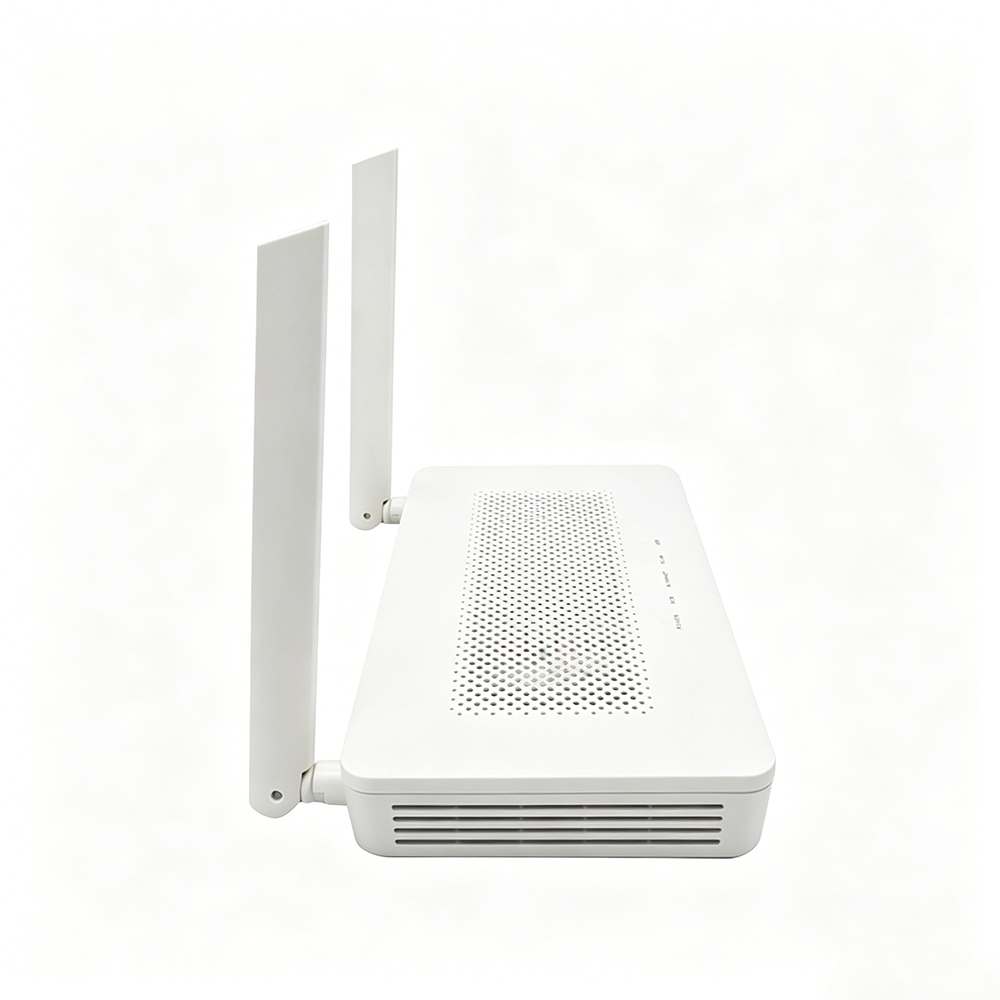

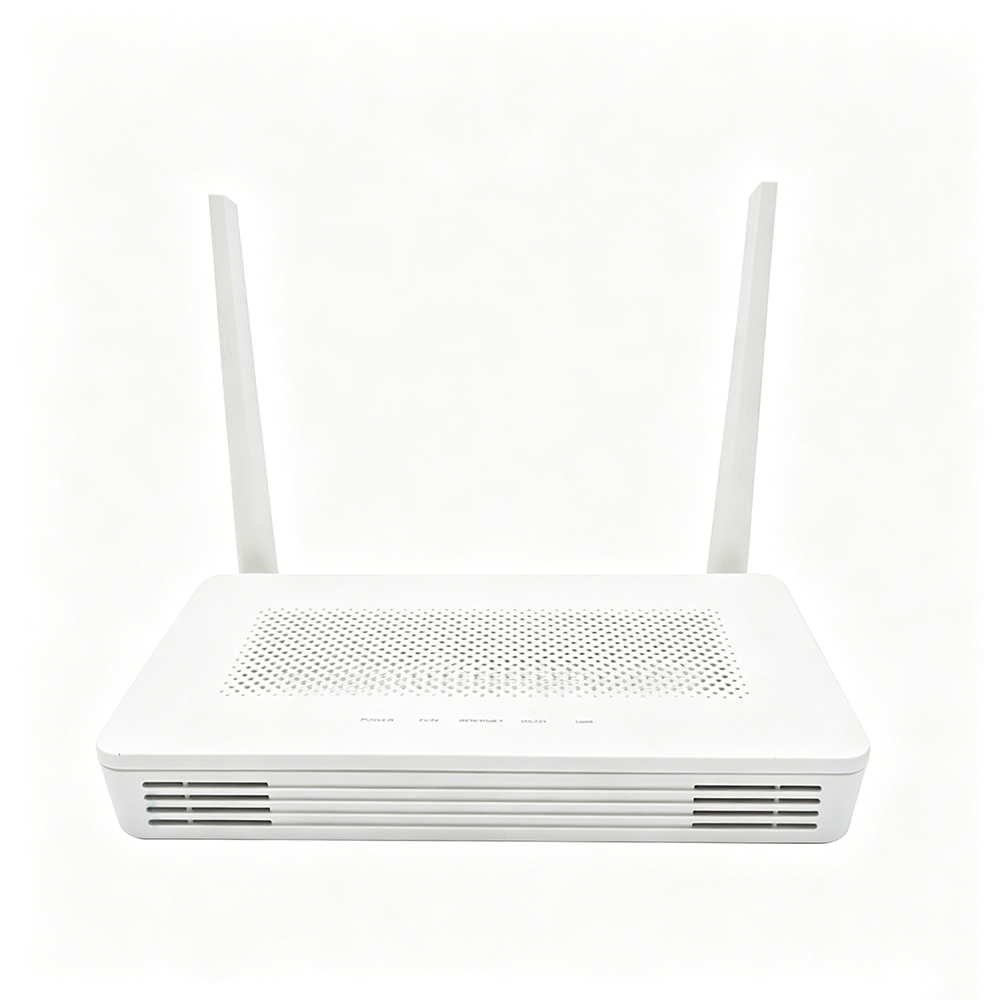

XPON ONU HG8145V5 WiFi Router 2.4G 5G 4GE + Voice Port FTTH ONT Device

Product Design

Specification

GPON ONU EG8145V5 XPON ONT 4GE+1VOIP+WIFI+2.4G+5G SC/UPC SC/APC FTTH
Dimensions (H x W x D)	30 mm x 173 mm x 120 mm (without external antenna and pads)
Weight	About 250 g
Operating Temperature	0°C to +40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply	11 V to 14 V DC, 1.5 A
Static Power Consumption	5.3 W
Maximum Power Consumption	18 W

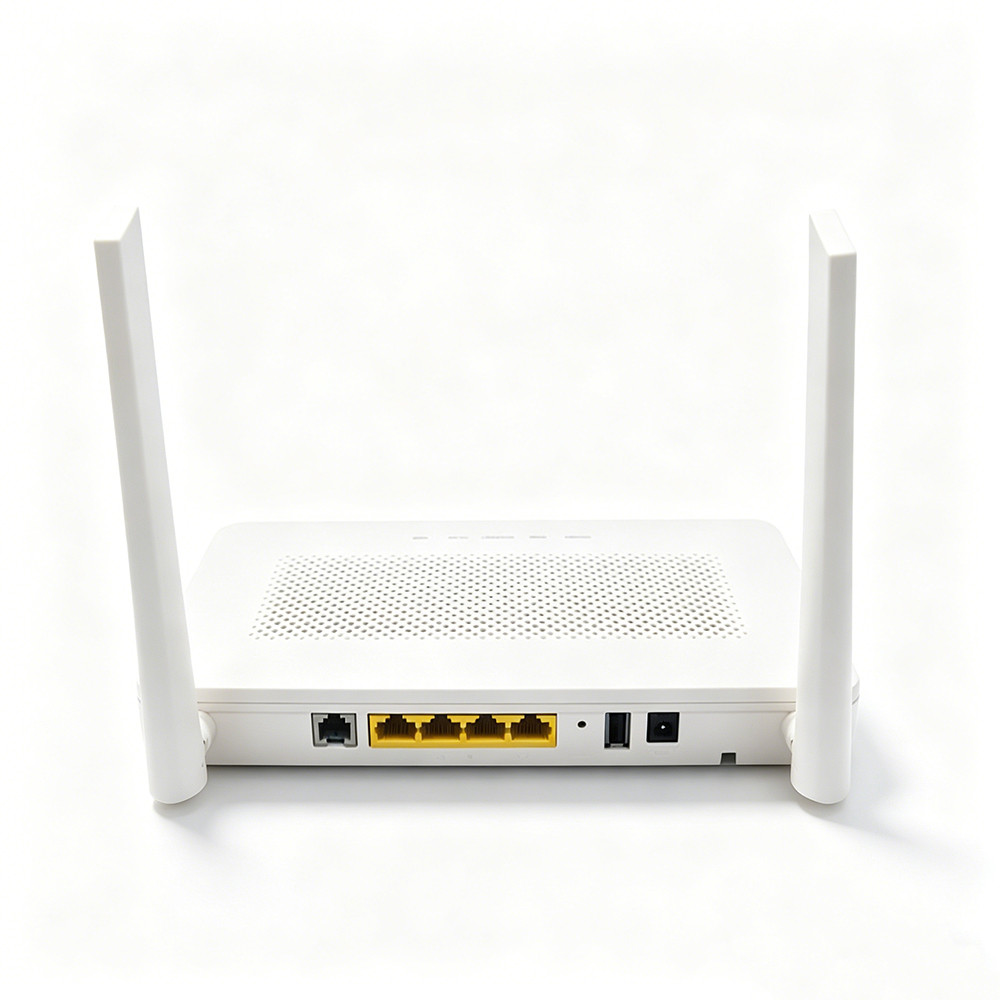

Ports	1POTS+4GE+2.4G/5G Wi-Fi+1USB
Optical Connector	SC/APC SC/PC
Indicators	Power/PON/LOS/LAN/TEL/WLAN/WPS
Power Consumption	12W

Order Info

Part Number	Description
HG8145V5	GPON ONU, 4×GE + 1×POTS + 1×USB + 2.4G/5G Wi-Fi 5dBi, external DC 12V/1.5A power supply.

Profile Overview

FAQ

Q Who Are We?

We are a Guangdong-based optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a 11-50 person team dedicated to serving global clients.

Q How Do We Guarantee Quality?

We guarantee quality through the following measures:

Pre-production samples before mass production.
100% final inspection before shipment.

Q What Can You Buy From Us?

FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.

Q Why Choose Us?

We are a top-tier optical communication supplier with over 50 employees. Our core focus is PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.

Q What Services Can We Provide?

Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
Payment Currencies: USD, EUR, CNY, and more.
Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
Languages: English, Chinese, Spanish, French, Russian, and more.

Q What are the key technical highlights of the EG8145V5?

The EG8145V5 XPON ONT features dual-band Wi-Fi (2.4G & 5G), 4 Gigabit Ethernet (GE) ports, 1 VoIP port, and supports both SC/UPC and SC/APC connector interfaces, making it highly versatile for FTTH deployments.
