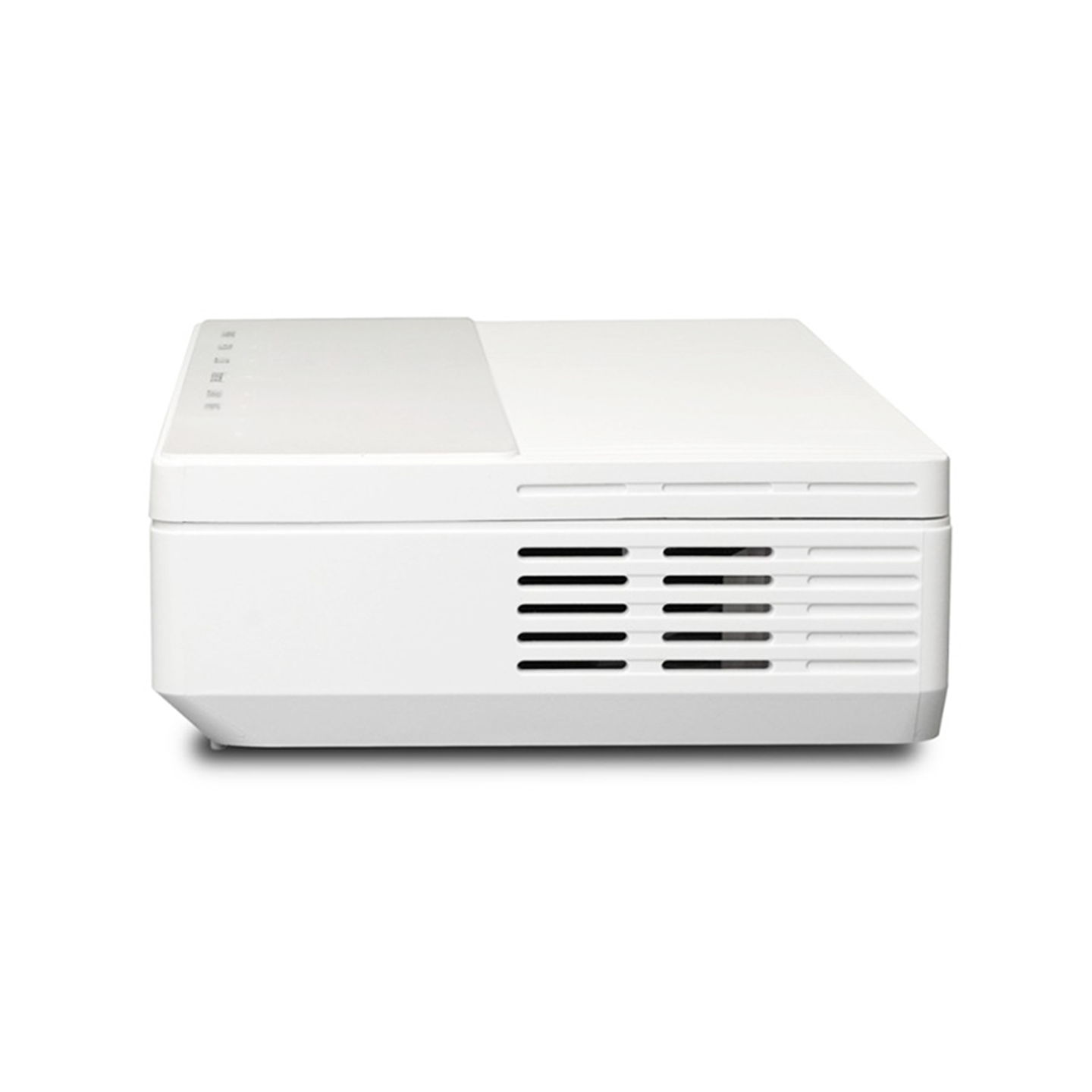

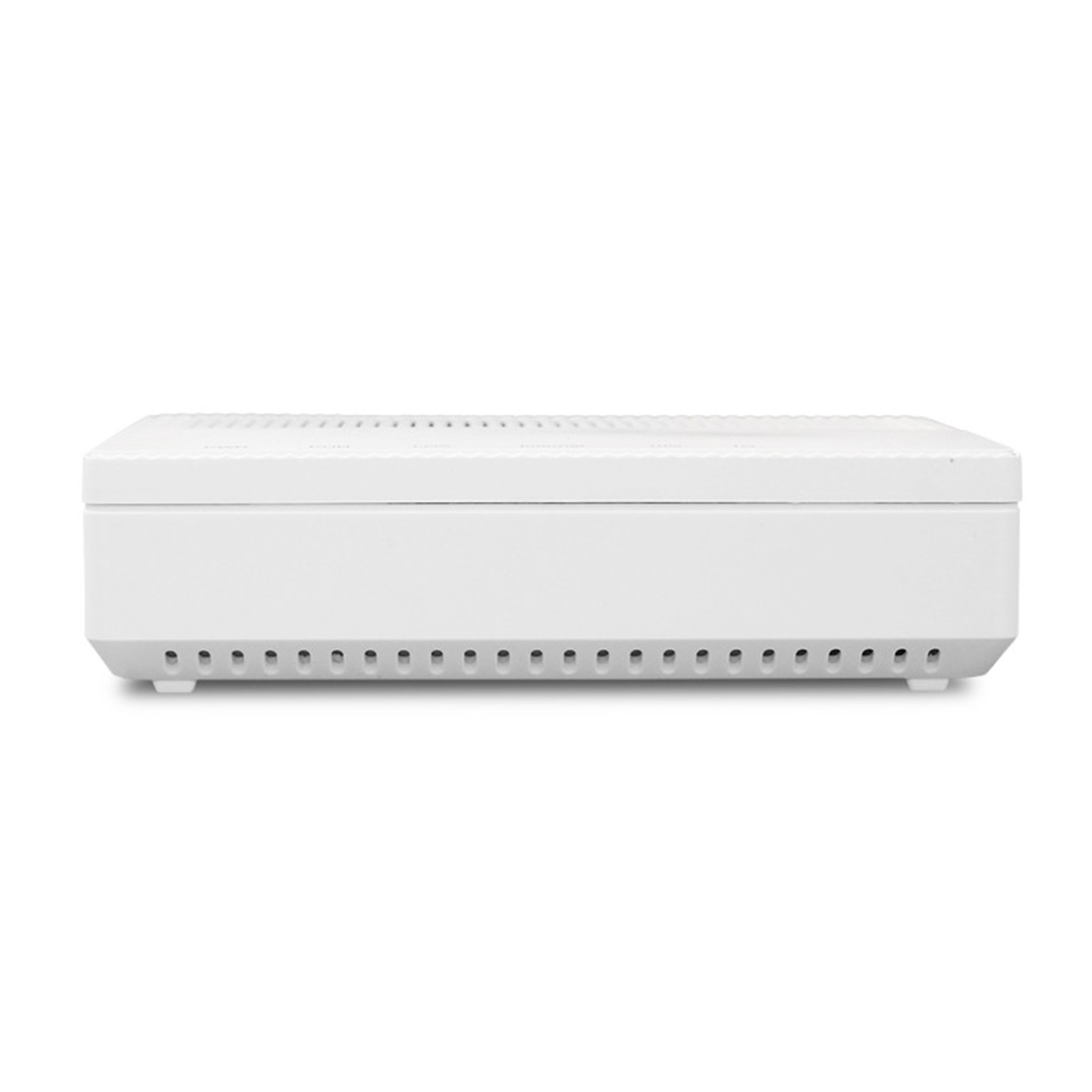

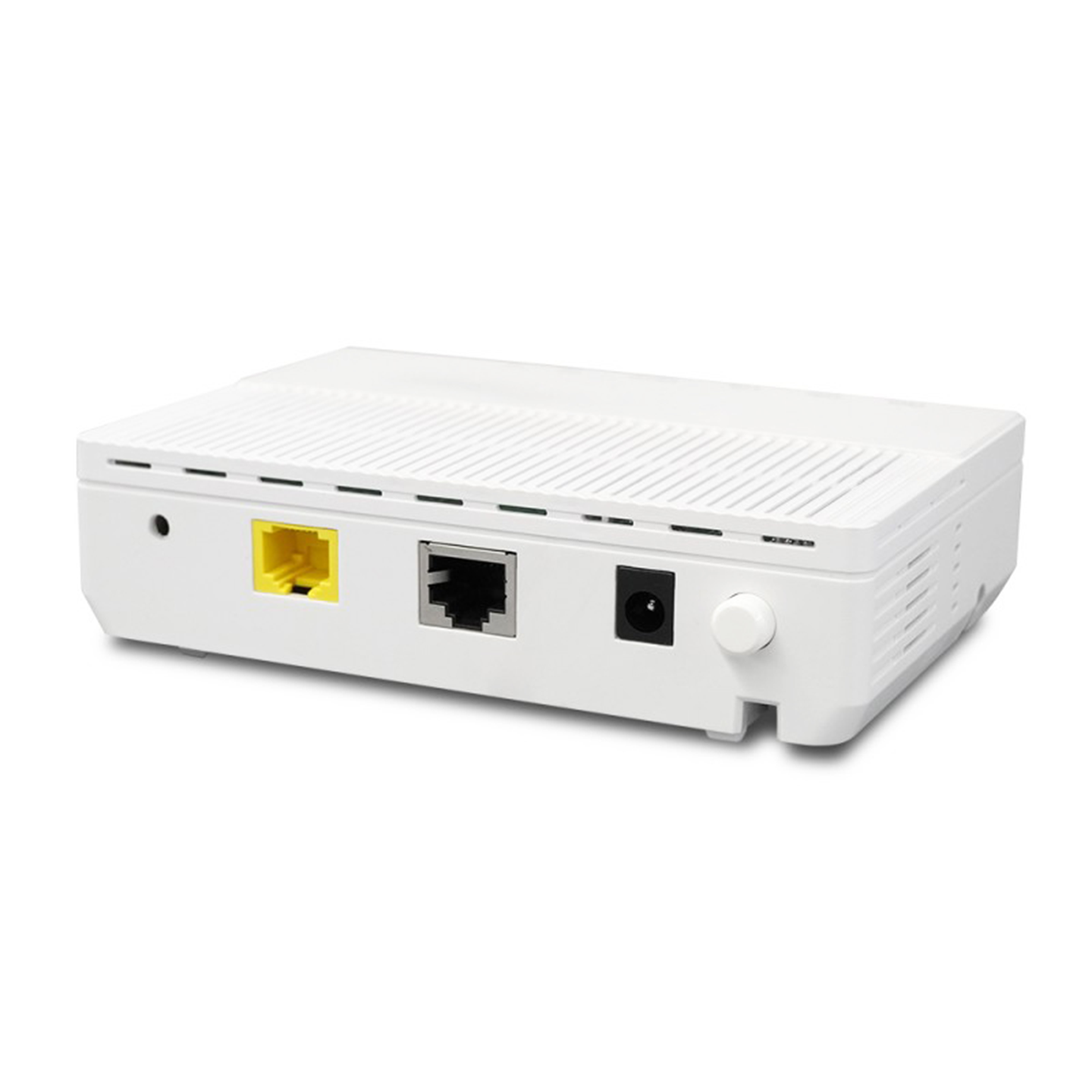

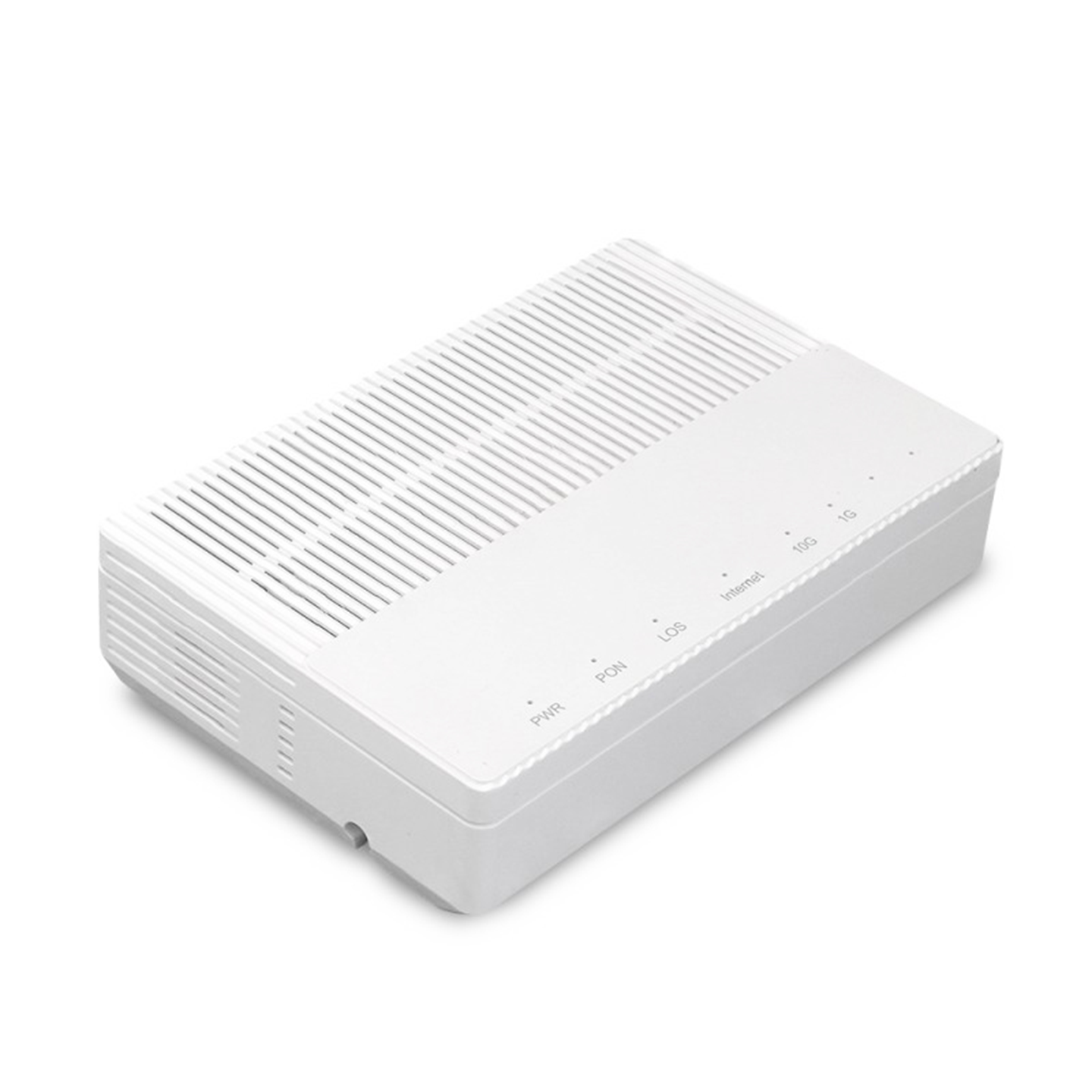

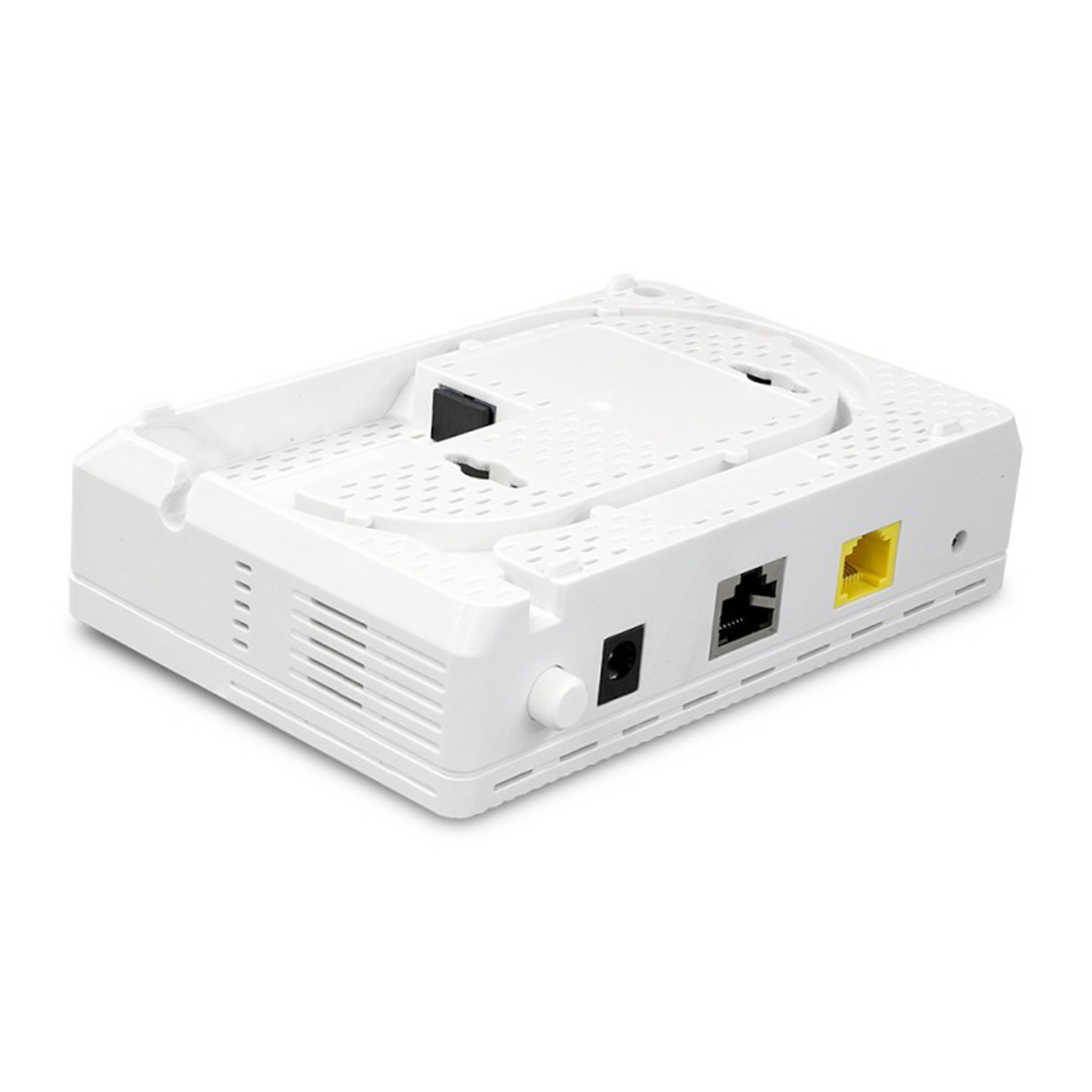

XGSPON ONU FTTH with RJ45 Connector 1 Port DC 12V Powered Wired LAN INFICOMO XS3082 for FTTB/FTTX

Send Inquiry

Product Description

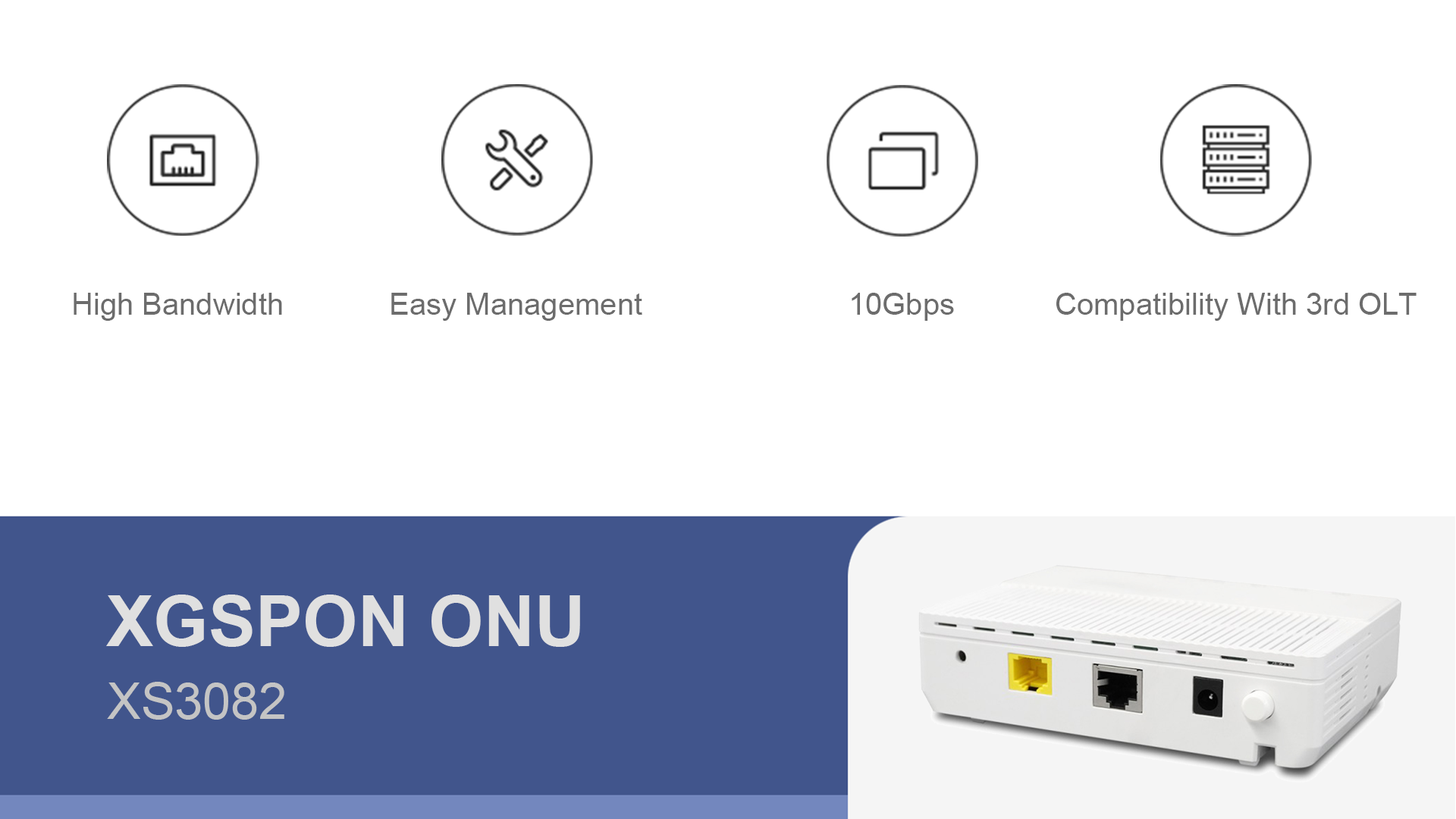

Elevating Network Capacity with High Bandwidth

Efficient Solution for Home/Enterprise Network Construction

The exquisite and compact design is in line with your corporate image.

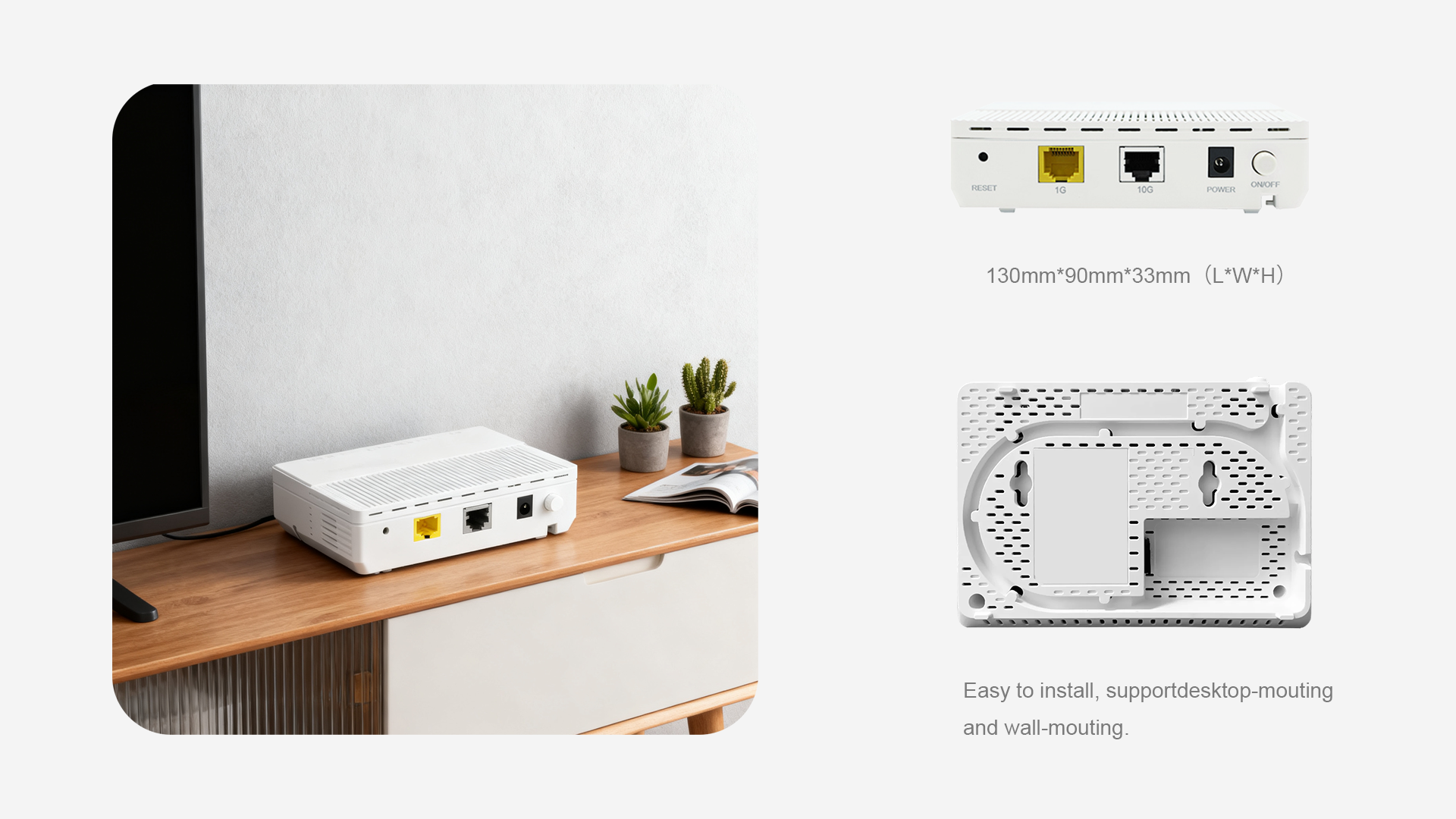

High Performance Device Layout

Specification

Hardware Specification
ONT Type	SFU/HGU
Interface	1RJ45 (GE)+1RJ45 (10GE) + XGSPON
LED	POWER+PON/LOS+INTERNET+1G+10G
CPU Frequency	1 GHz Dual-Core
Flash & Memory	Flash: 128MB NAND; Memory: 512 DDR3
Power Supply	12V/1A
Power Consumption	≤12W
Environment Standard	Operating Temperature: -5°C~50°C Storage Temperature: -20°C~70°C Relative Humidity: 5%~95% (non-condensing)
Weight	0.15KG
Size	135mm90mm36mm (LWH)
Module Type	Class B+, SC/UPC
Wavelength	UP 1270nm, Down 1577nm
TX Optical Power	5-9dBm
RX Optical Sensitivity	-28dBm
Transmission Distance	0~20km
Transmission Rate	XGSPON: Upstream 10Gbps, Downstream: 10Gbps
LAN Interface Type	1G :RJ45 (10/100/1000Mbps) 10G :RJ45 (1/2.5/5/10 Gbps)

Software Specification
Feature	ITU-T G.987 ITU-T G.988/TR255/TR156 15 TCONTs /256GEM ports 8 Egress queues per TCONT at least VLAN/ priority/VEIP gem mapping mode SN/LOID/SN +Password authentication Performance monitoring: eth/Gem port Dying gasp
Ethernet Port	Ethernet port-based VLAN tags and tag removal MAC address learning 10/100/1000/10000Mbps Auto negotiation
L2 Feature	MAC learning (SVL)/aging Support max frame length to 1518 bytes VLAN tagging for untagged packets Support VLAN 1-4094
L3 Feature	PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP, DDNS IPv4/IPv6 dual stack, DS-Lite Static, and Default Routes Multiple services on one WAN port
QoS	Support 8 Queues with Strict Priority Ethernet port rate limitation 802.1 priority SP/WRP Service flow classification
Multicast	IGMP v2 (RFC 2236) and IGMP v3 (RFC 3376) IGMP snooping and IGMP Proxy MLD v1
Management	OMCI/WEB UI/TR069 Telnet/SSH Management with CLI commands Dual-system software backup and rollback

Order Info

Description	Accessories Pack
1GE+110GE+XGSPON	Power Adapter, RJ45 cable

FAQ

Q1: What is your MOQ request?

A1: Depends on products, different products have different MOQ, pls contact sales for more details.

Q2: Do you Support ODM/OEM service?

A2: Yes, we can offer the customization service to you.

Q3: Does your products support other brands?

A3: Yes, all of our products is without lock, support to another brands too.

Q4: Are you the manufacturer or trading company?

A4: We are the manufacturer, we support factory view tour.

Q5: Do you offer free samples?

A5: Yes, for some models we are able to provide the free samples for your testing purpose.

Q6: Are you able to provide the local certificates?

A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
