Elevating Network Capacity with High Bandwidth
Not afraid of high or low temperatures
Attractive design

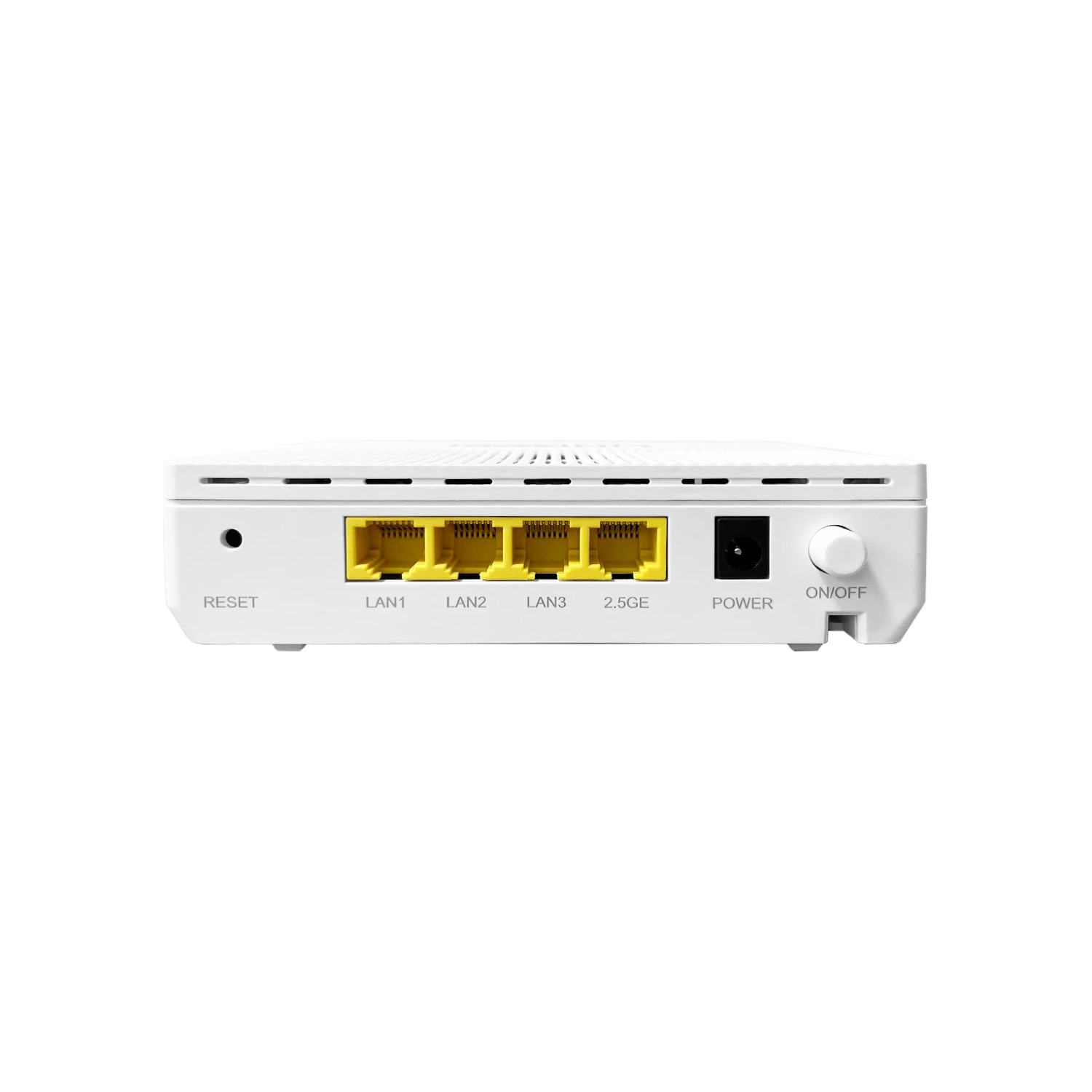

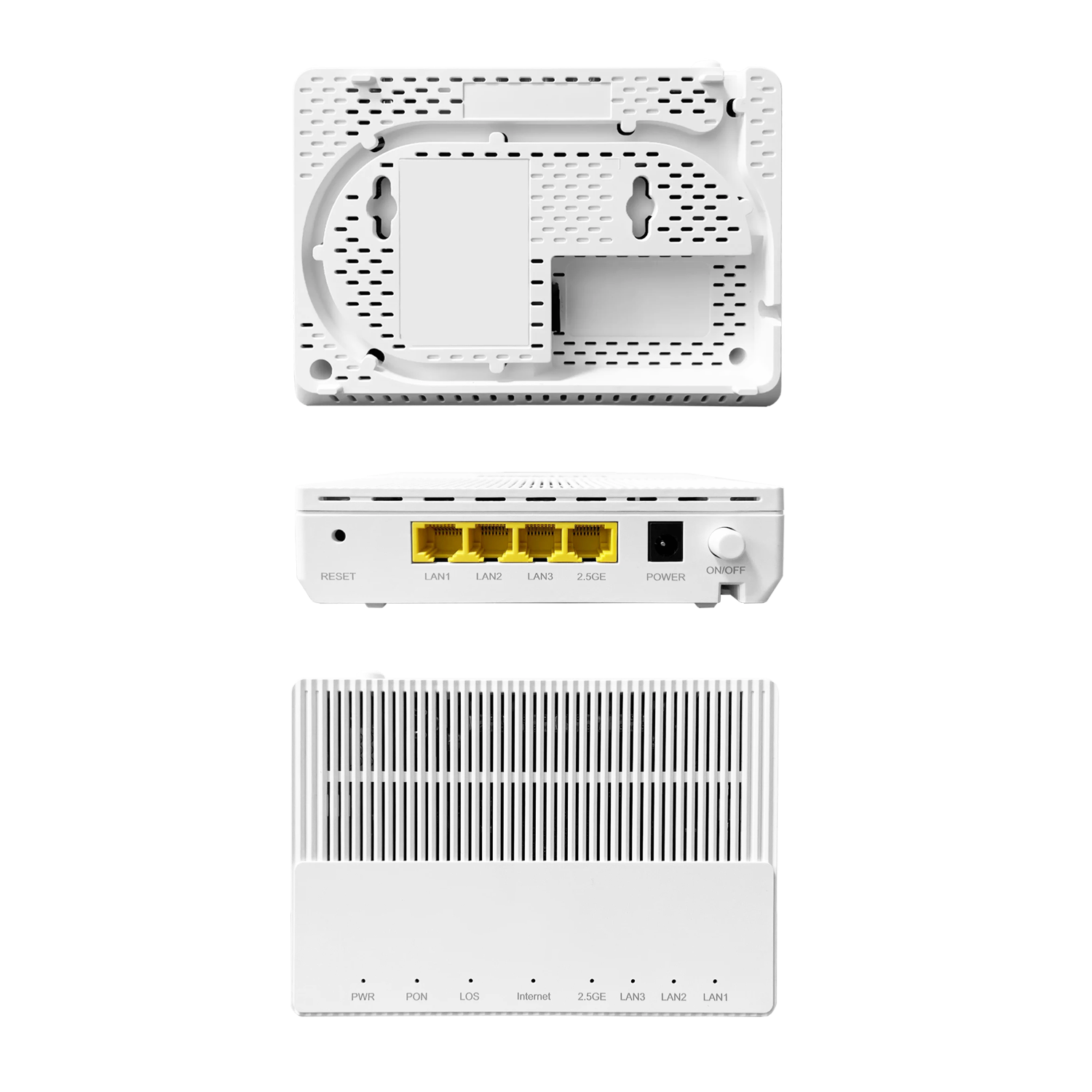

High Performance Interface Layout
| ONT Type | SFU/HGU |
| Interface | 3*GE+1*2.5GE+XGPON |

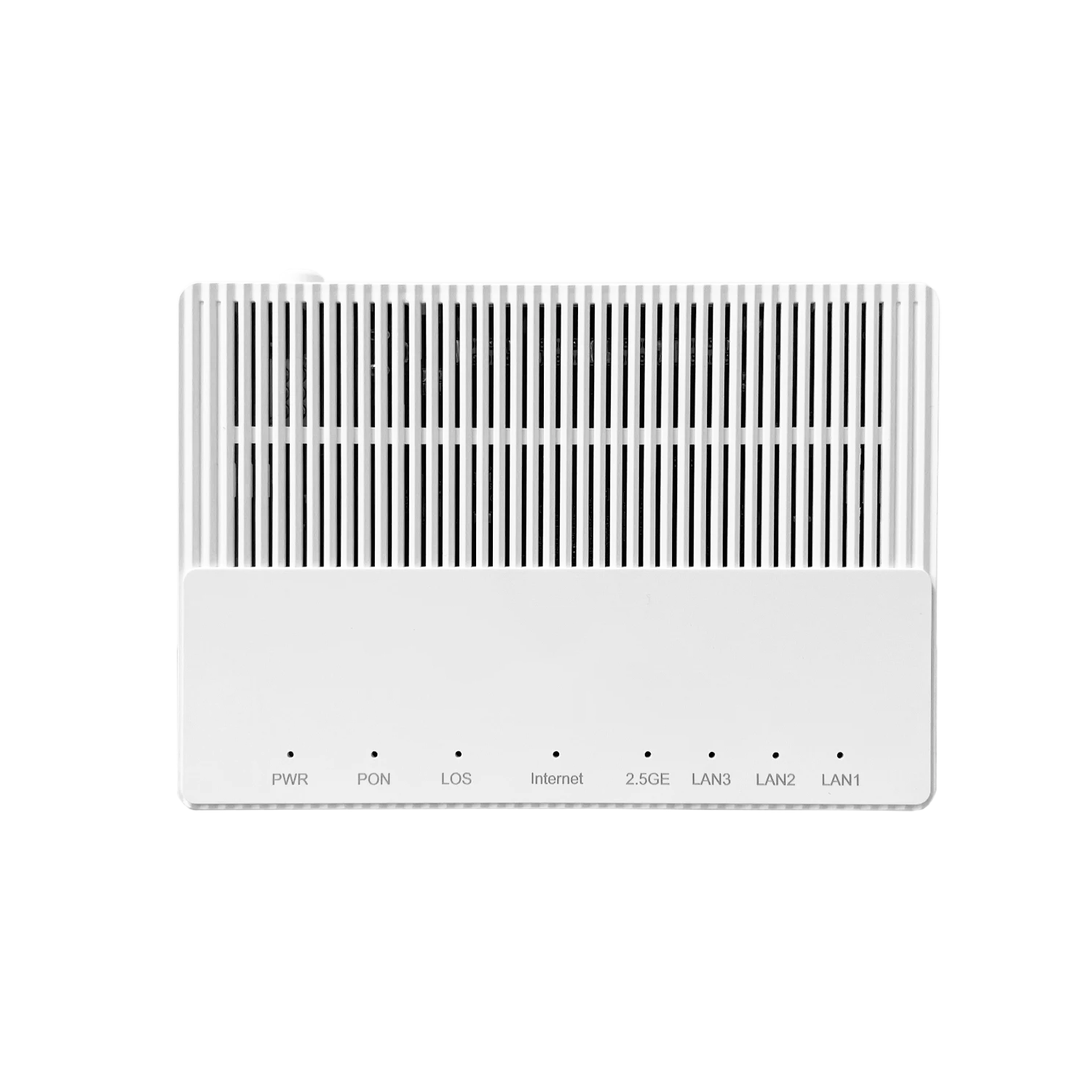

| LED | POWER+PON/LOS+INTERNET+1G+10G |
| Button | POWER + RST |
| Power Supply | 12V/1A DC power input 100V ~ 240V AC/50Hz ~ 60Hz external power adapter |
| SRAM & Flash | SRAM: 512MB; Flash: 256MB |
| Power Consumption | ≤ 8W |
| Environment Standard |
Operating Temperature: -5℃ ~ 45℃ Storage Temperature: -20℃ ~ 70℃ Relative Humidity: 5% ~ 95% (non-condensing) |
| Weight | 0.15KG |
| Size | 135mm*90mm*36mm (L*W*H) |
| Module Type | Class B+, SC/UPC |
| Wavelength | UP 1270nm, Down 1577nm |
| TX Optical Power | 4 ~ 9dBm |
| RX Optical Sensitivity | -28dBm |
| Transmission Distance | 0 ~ 20km |
| Transmission Rate | XGPON: Upstream 2.5Gbps / Downstream 10Gbps |
| LAN Interface Type | 3x 10/100/1000Mbps RJ45 1x 2.5G RJ45 |
Description: XGPON, 1*2.5G Base-T + 3*1000M Base-T, DC12V/1.5A
Yes, we can do OEM products. It is not a problem.
Every single optic module is individually tested in our test center, and also tested for compatibility on a variety of different network equipment.
Yes, we can provide samples for you to check the quality.
We accept T/T, Western Union, and other standard secure payment methods.
For standard orders, we maintain stock and can ship within approximately 3 days of receiving payment. For large quantities and specialized products, please confirm the lead time with our support team.
We usually ship via reliable express couriers such as DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive.
