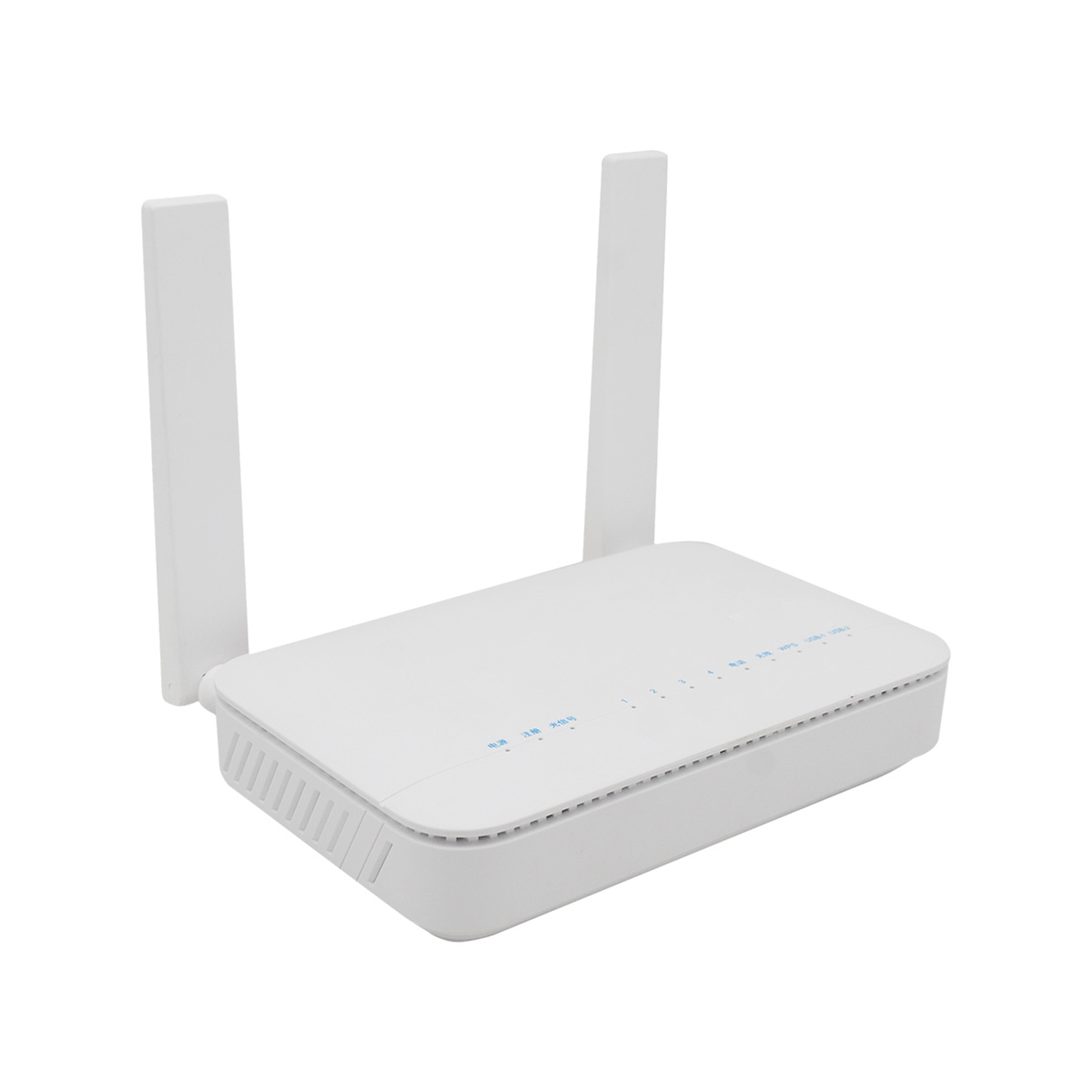

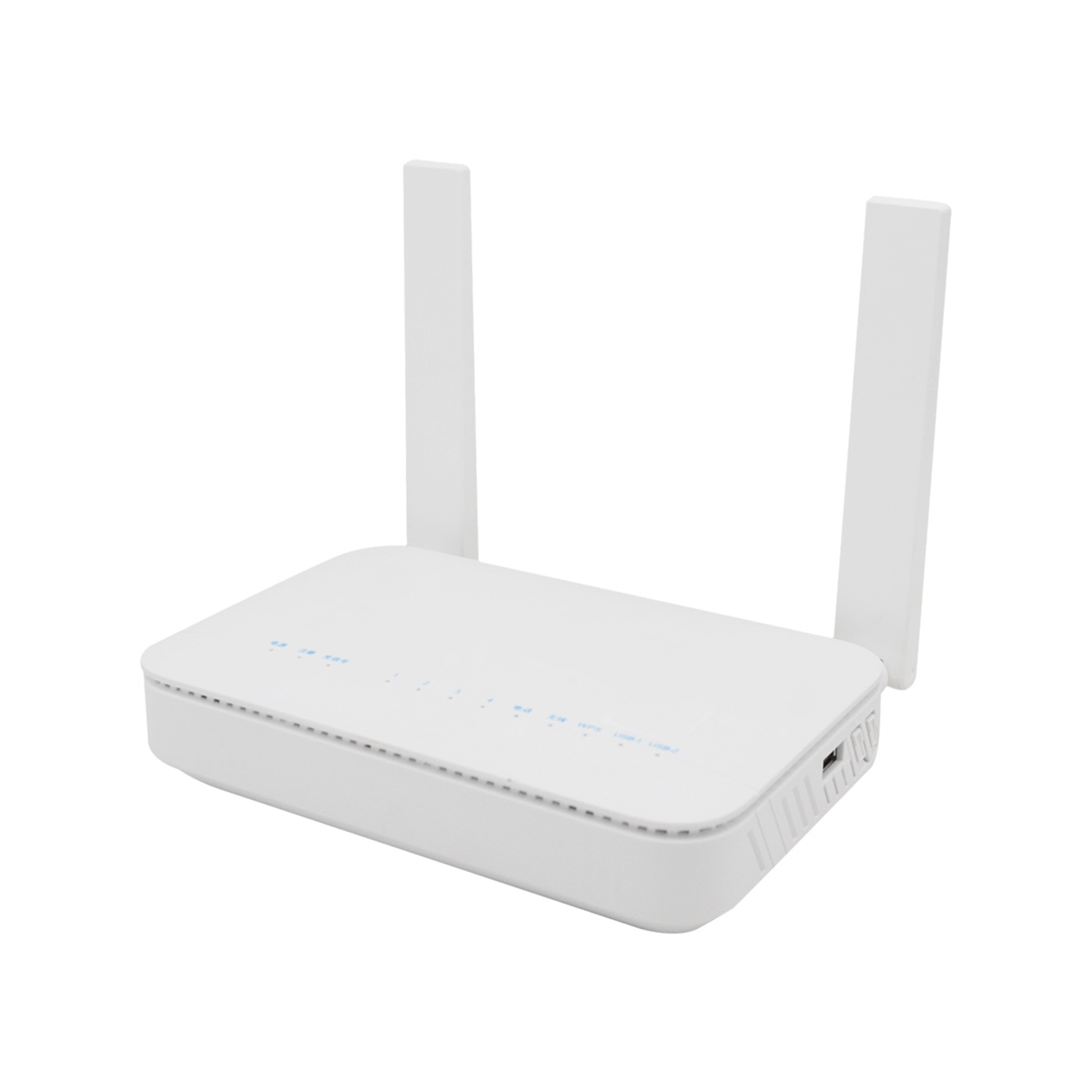

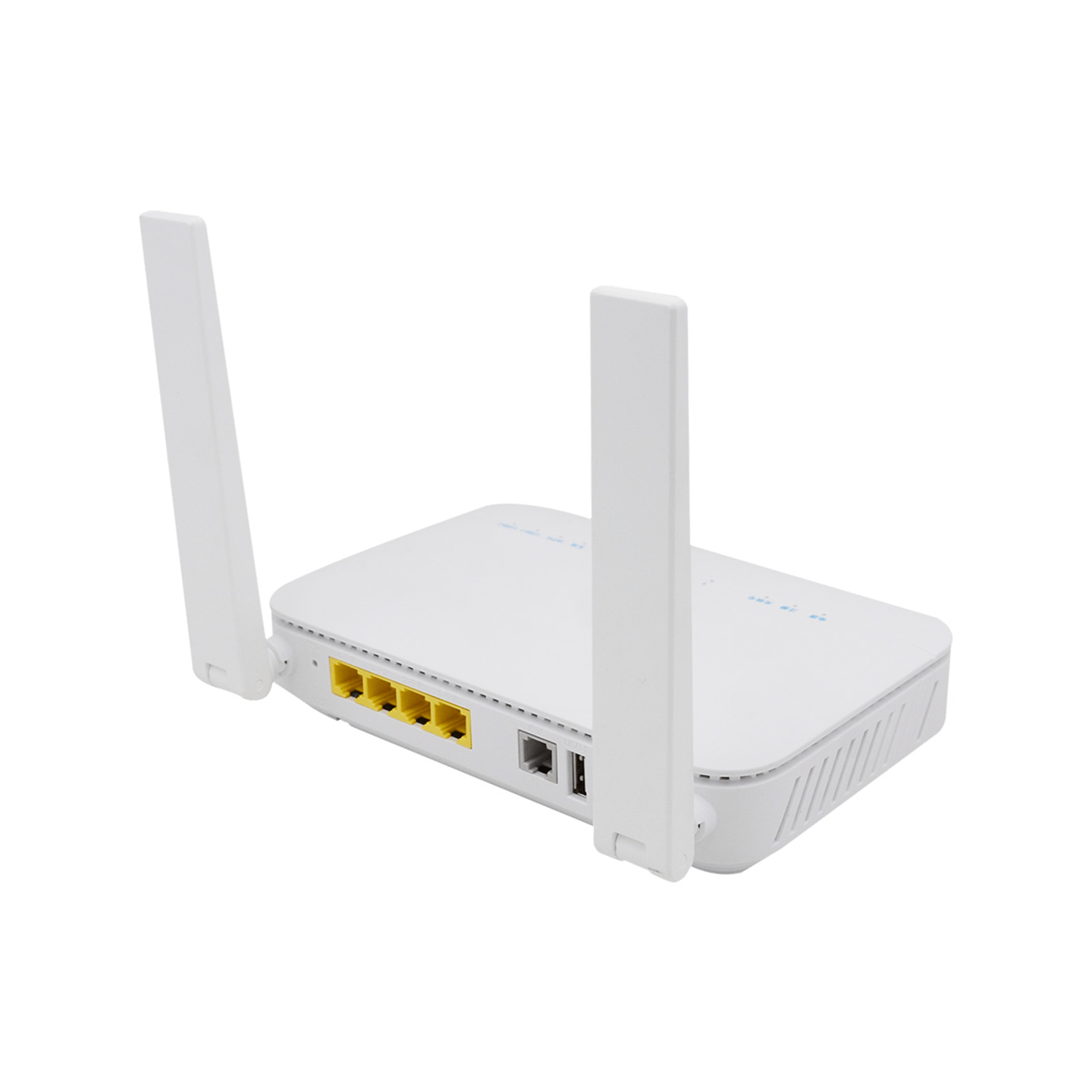

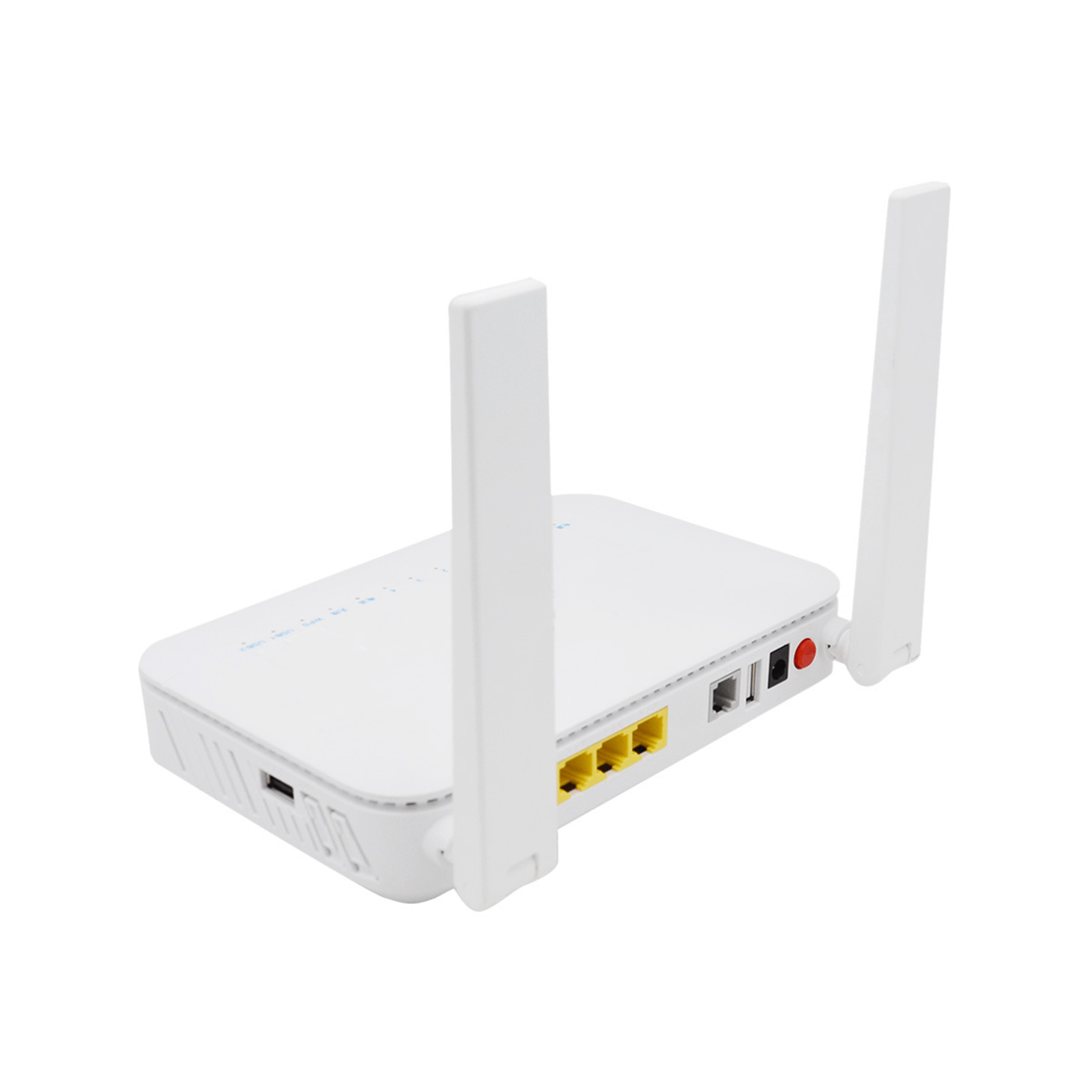

The F6610M AX3000 WiFi6 XPON ONT is an advanced network device that combines the power of XPON technology with the cutting-edge features of WiFi6. With ultra-fast speeds and enhanced network efficiency, it provides a seamless and reliable Internet experience. Equipped with 4 GE LAN ports, 1 TEL port, and 2 USB ports, it provides high-speed connectivity for a wide range of devices. The F6610M offers advanced security features, easy installation, and powerful network management options. Experience lightning-fast Internet speeds and superior performance with this feature-rich device.
| Basic Parameters | |
|---|---|
| Ports | 1 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 1 x USB |
| PON Interface | SC/UPC XPON |
| Working environment |
Operating temperature: 0ºC to 40ºC Environment humidity: 5% to 95% (noncondensing) |
| Static power consumption | 5.3 W |
| Max. power consumption | 18 W |
| Power specifications |
Power adapter input: 100 to 240 V AC, 50–60 Hz System power supply: 11–14 V DC, 1.5 A |
| WLAN |
2.4GHZ: 802.11n 5GHZ: 802.11ax |
| Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| GPON Port |
|
| WLAN Specs |
|
| Dimensions | 195 mm x 125 mm x 35 mm (length x width x height) |
| Weight | About 400g |
| Description | Accessories Pack |
|---|---|

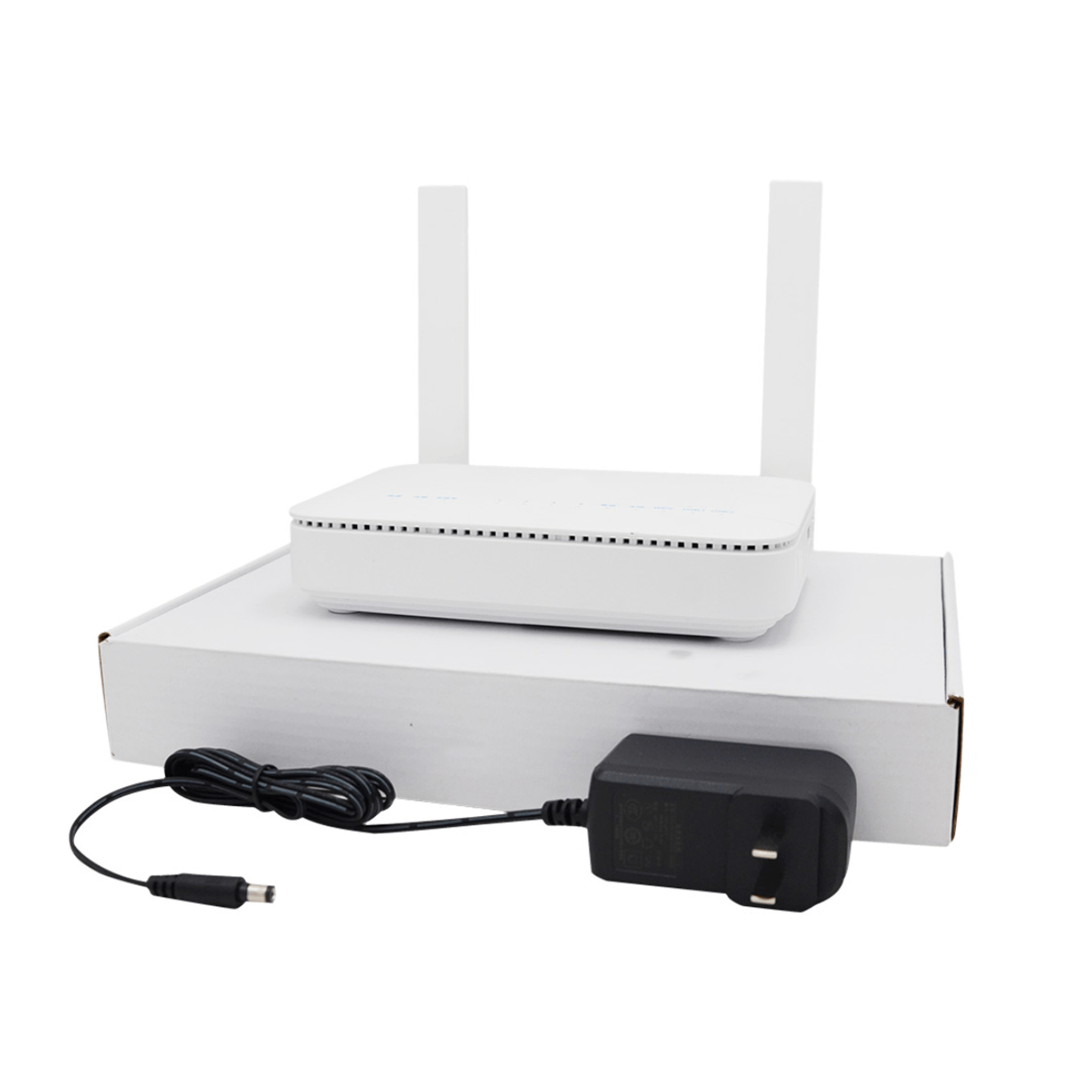

| GPON ONU, 1*GPON + 4*GE RJ45 + 1*RJ11 POTS + 1*USB+ 2.4GHz&5GHz Wi-Fi6(2*External 5dBi antennas); | External DC 12V/1.5A power adapter; |
Depends on products, different products have different MOQ, pls contact our sales for more details.
Yes, we can offer the customization service to you.
Yes, all of our products is without lock, support to another brands too.
We are the manufacturer, we support factory view tour.
Yes, for some models we are able to provide the free samples for your testing purpose.
Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
