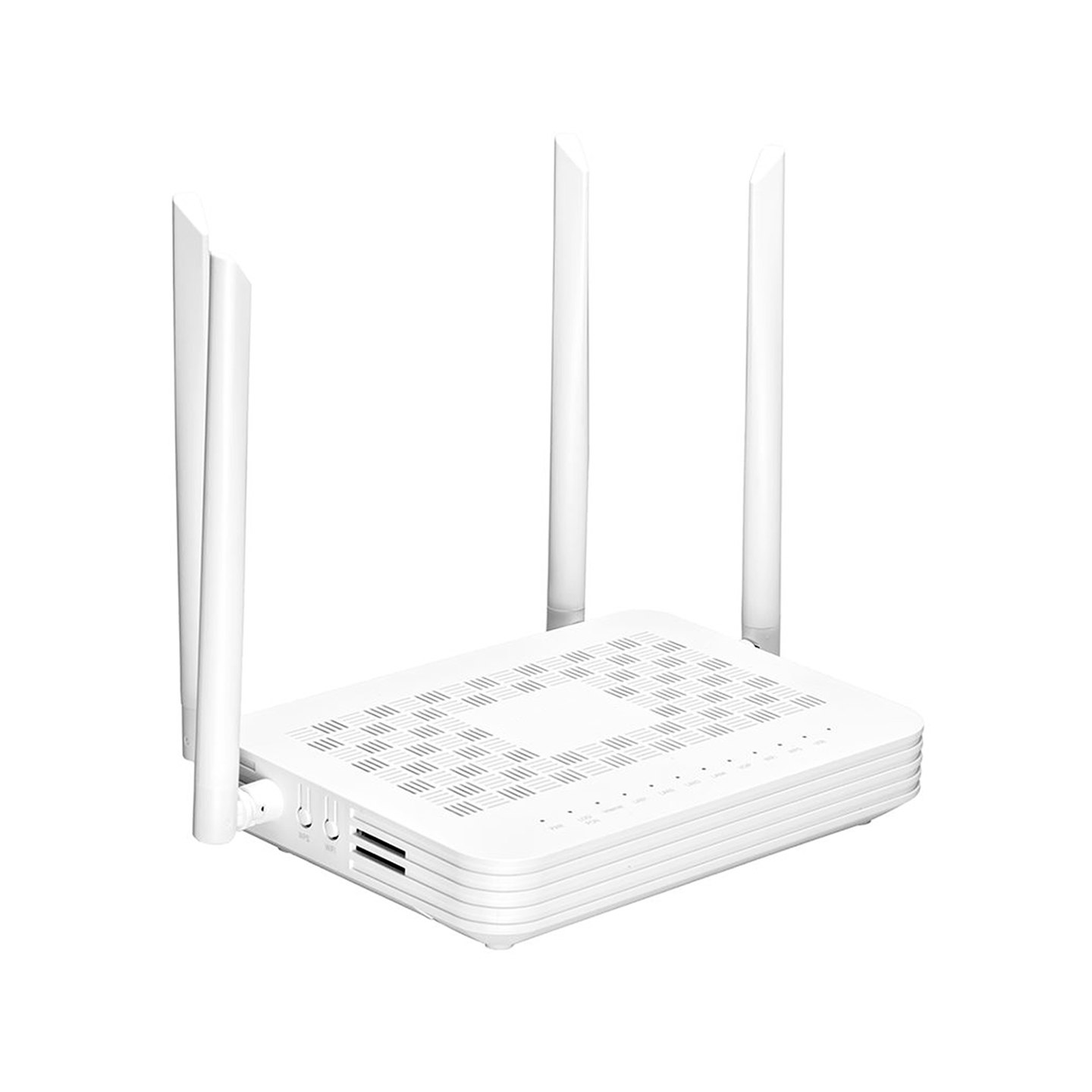

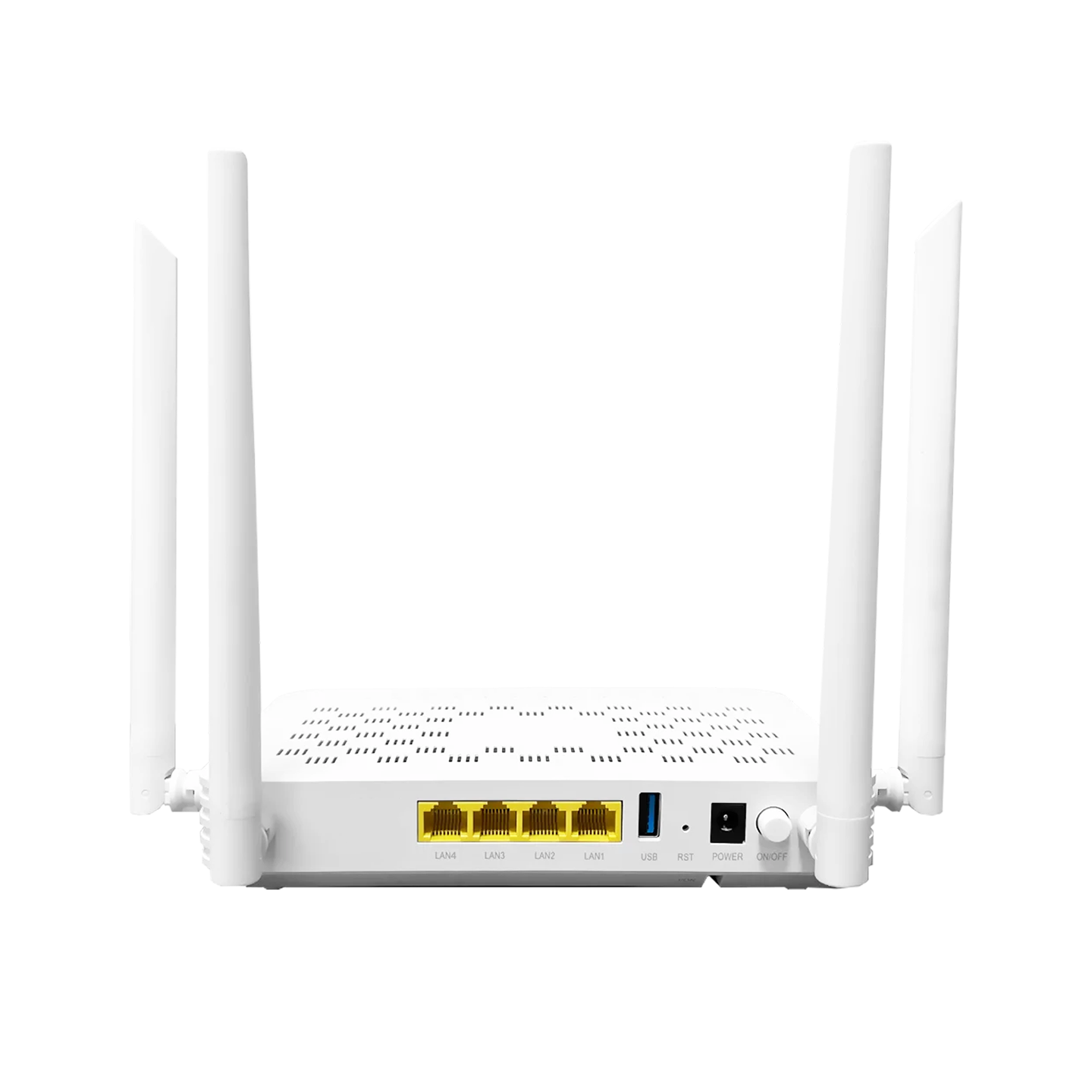

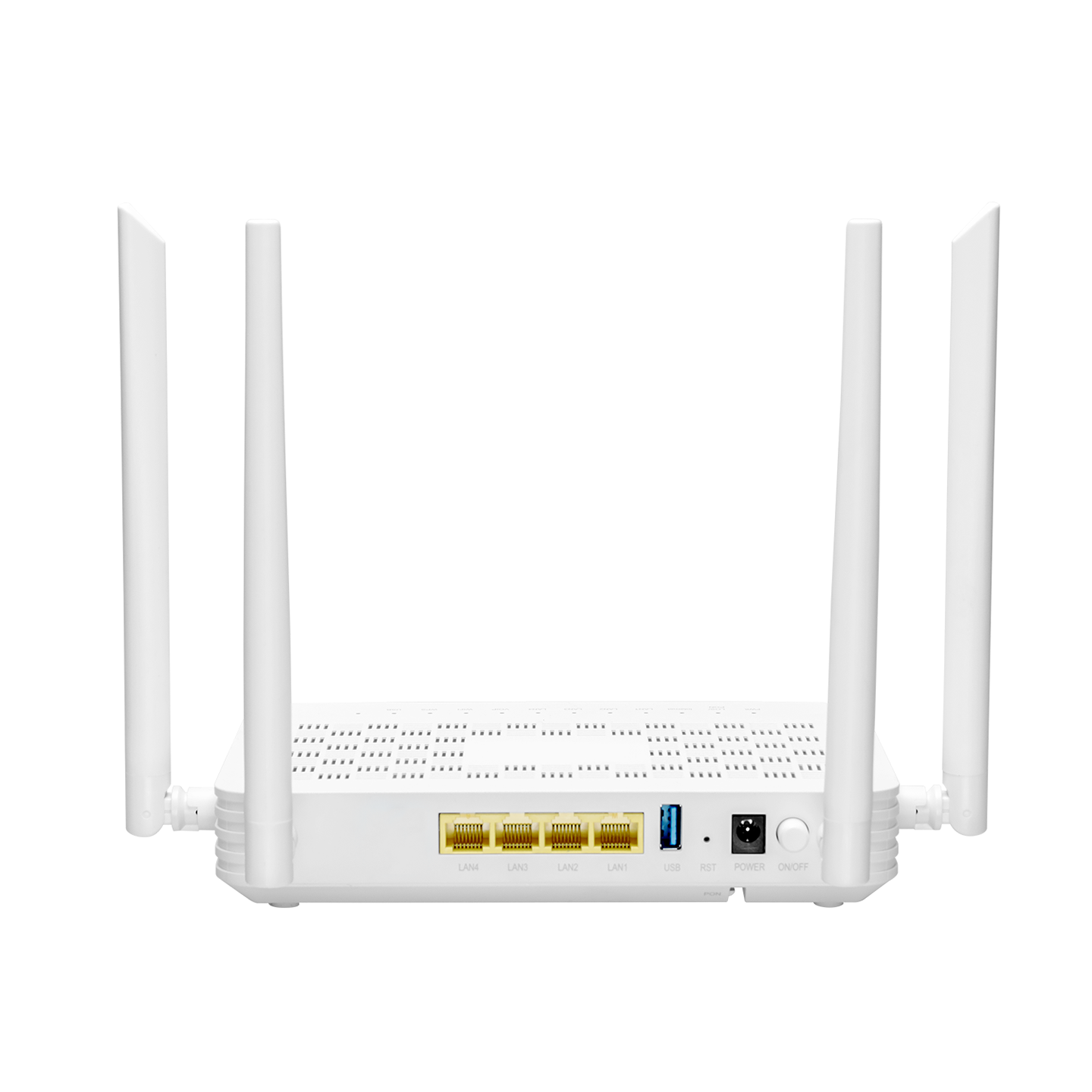

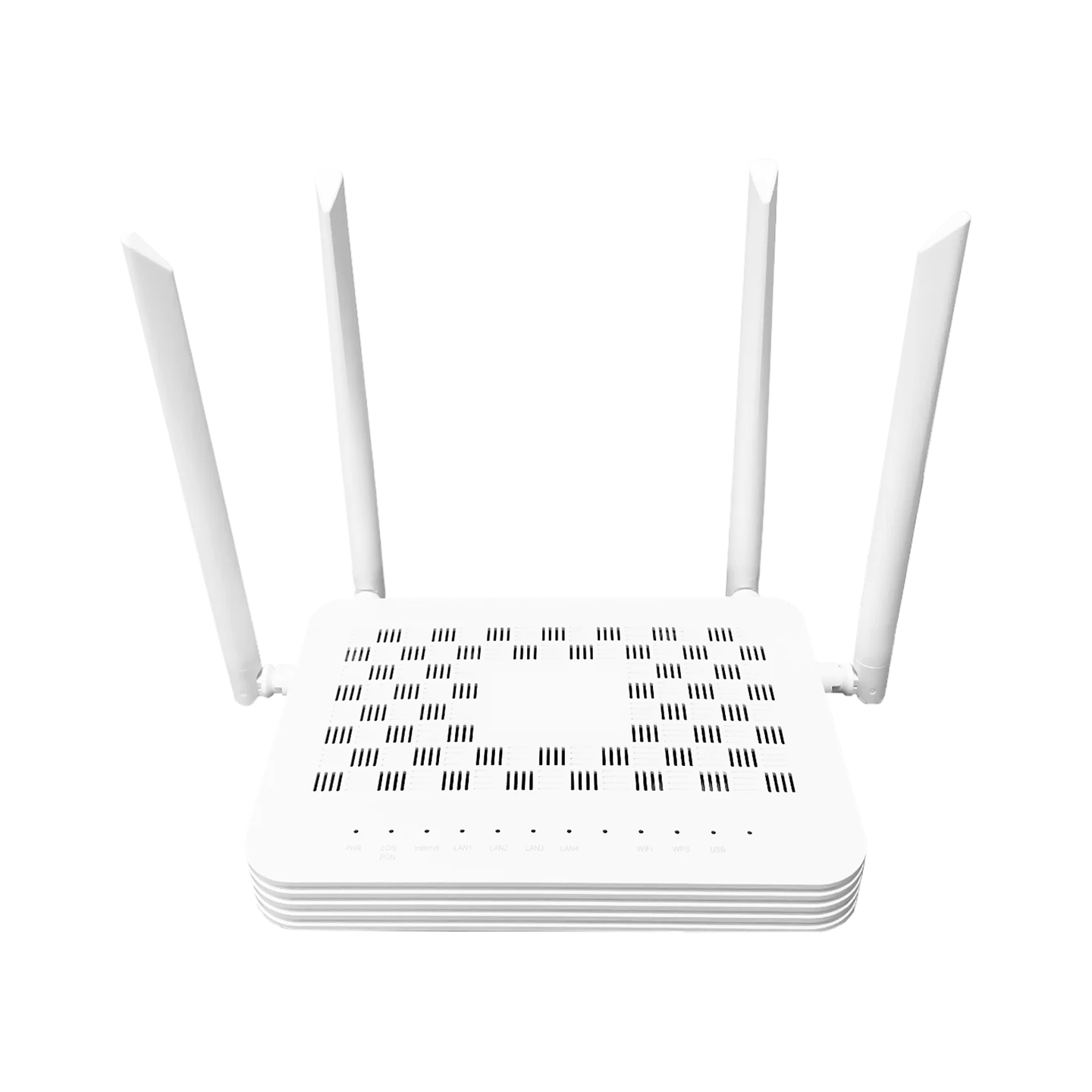

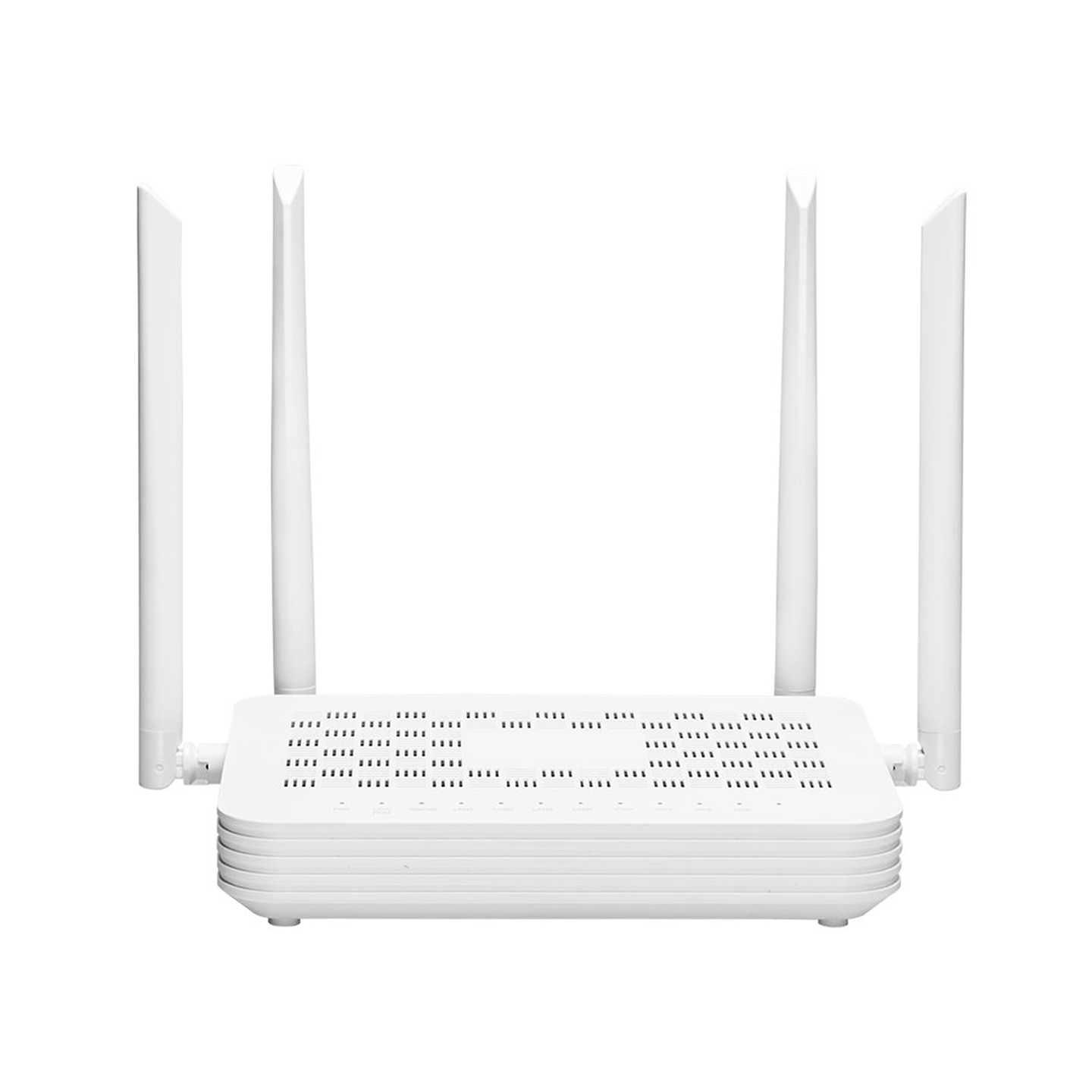

High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port
High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port
High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port
High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port
High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port
1 / 5
High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port
High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port
High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port
High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port
High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port

High Speed WiFi6 FTTH Fiber Optic Access Point AX3000 MESH XPON ONU Router with RJ45 LAN Port

Send Inquiry

Product Description

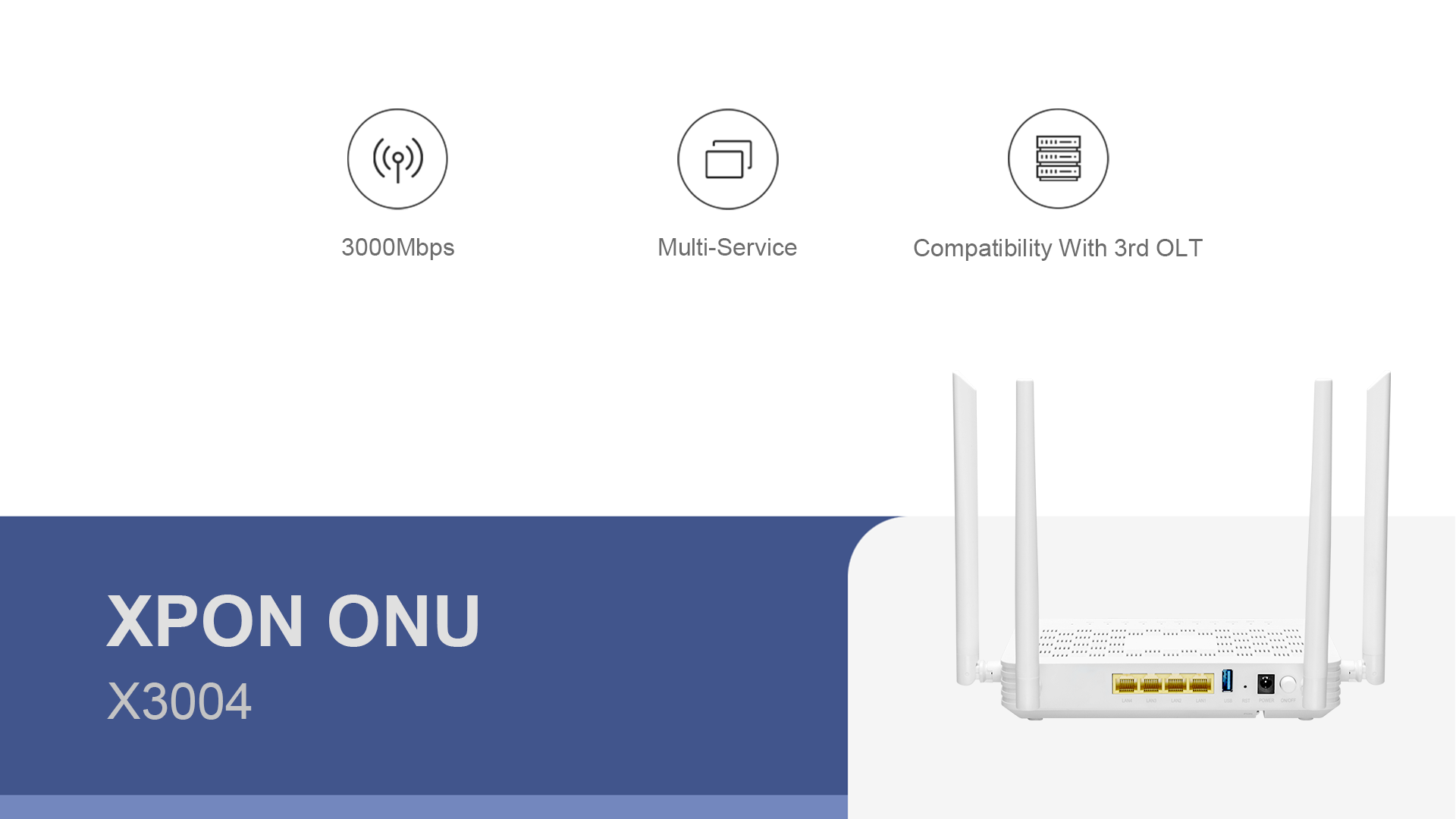

Wi-Fi 6 Next-Gen Speed

Better Signal, Wi-Fi 6 Next-Gen Speed

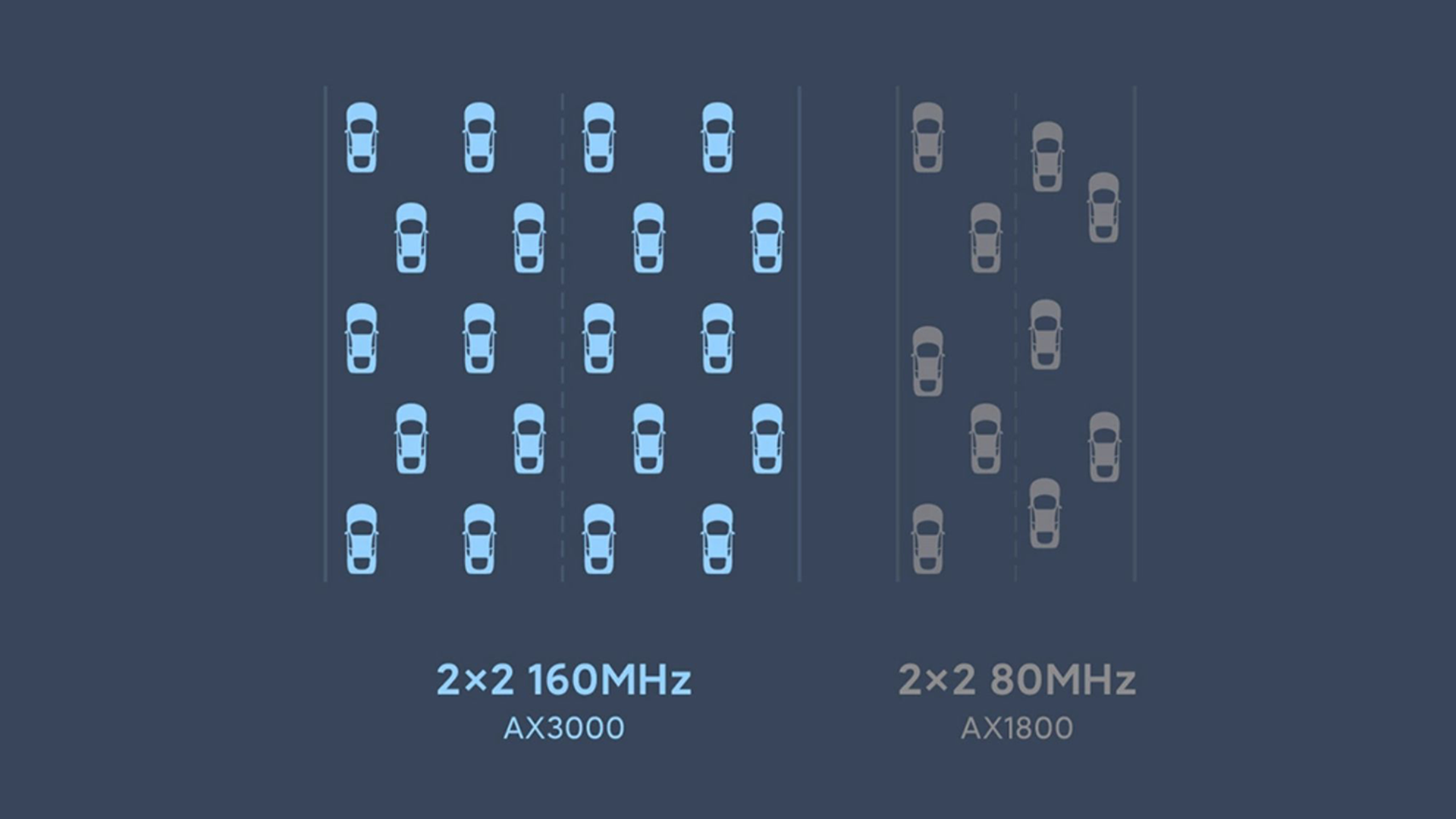

Higher Bandwidth

Higher Bandwidth

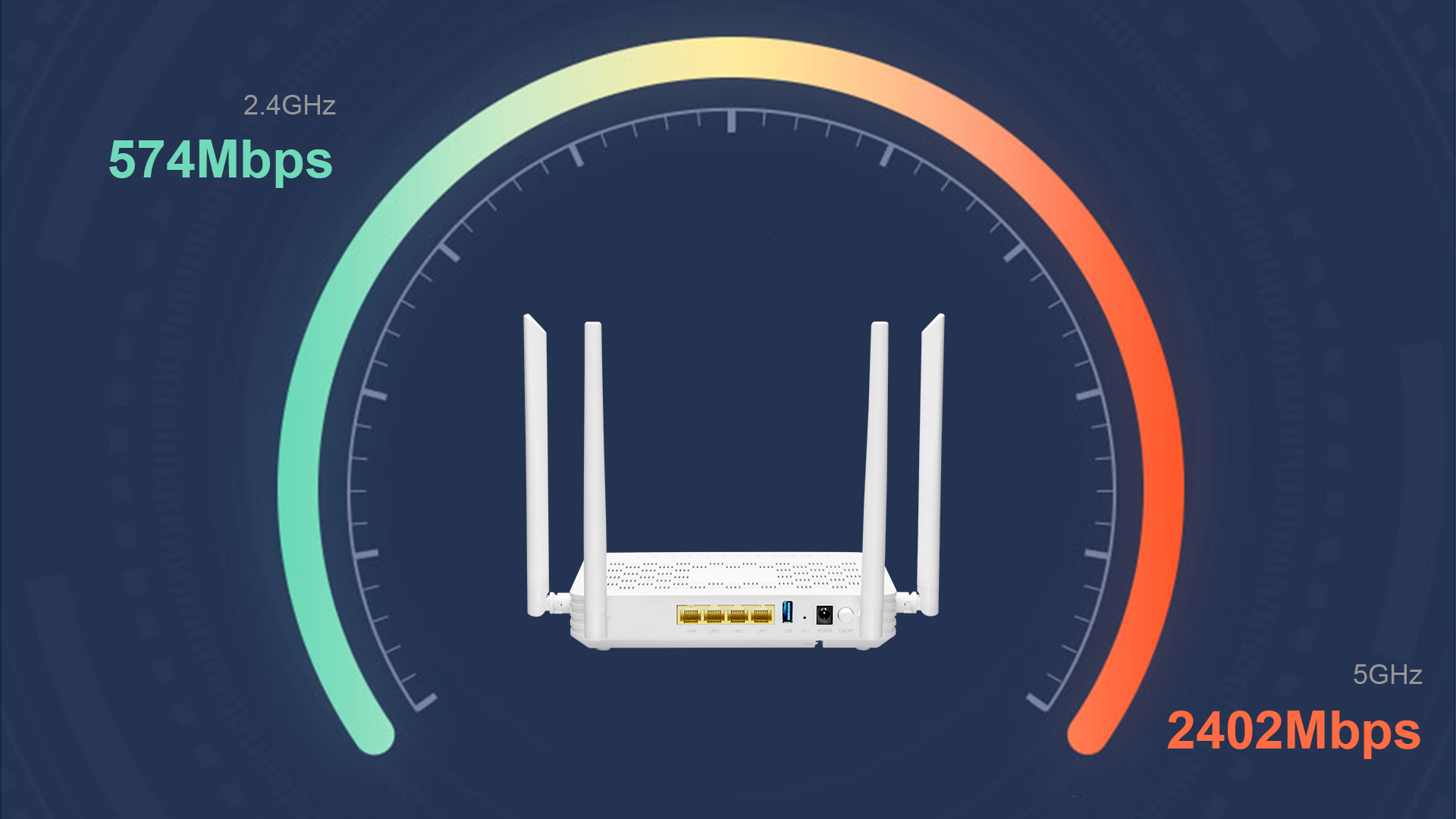

Extremely Powerful Penetration

Extremely Powerful Penetration

Interface & Overview

Interface Definition Design

Interface Definition

Multi-functional Support Overview

Provide Multi-Functional Support

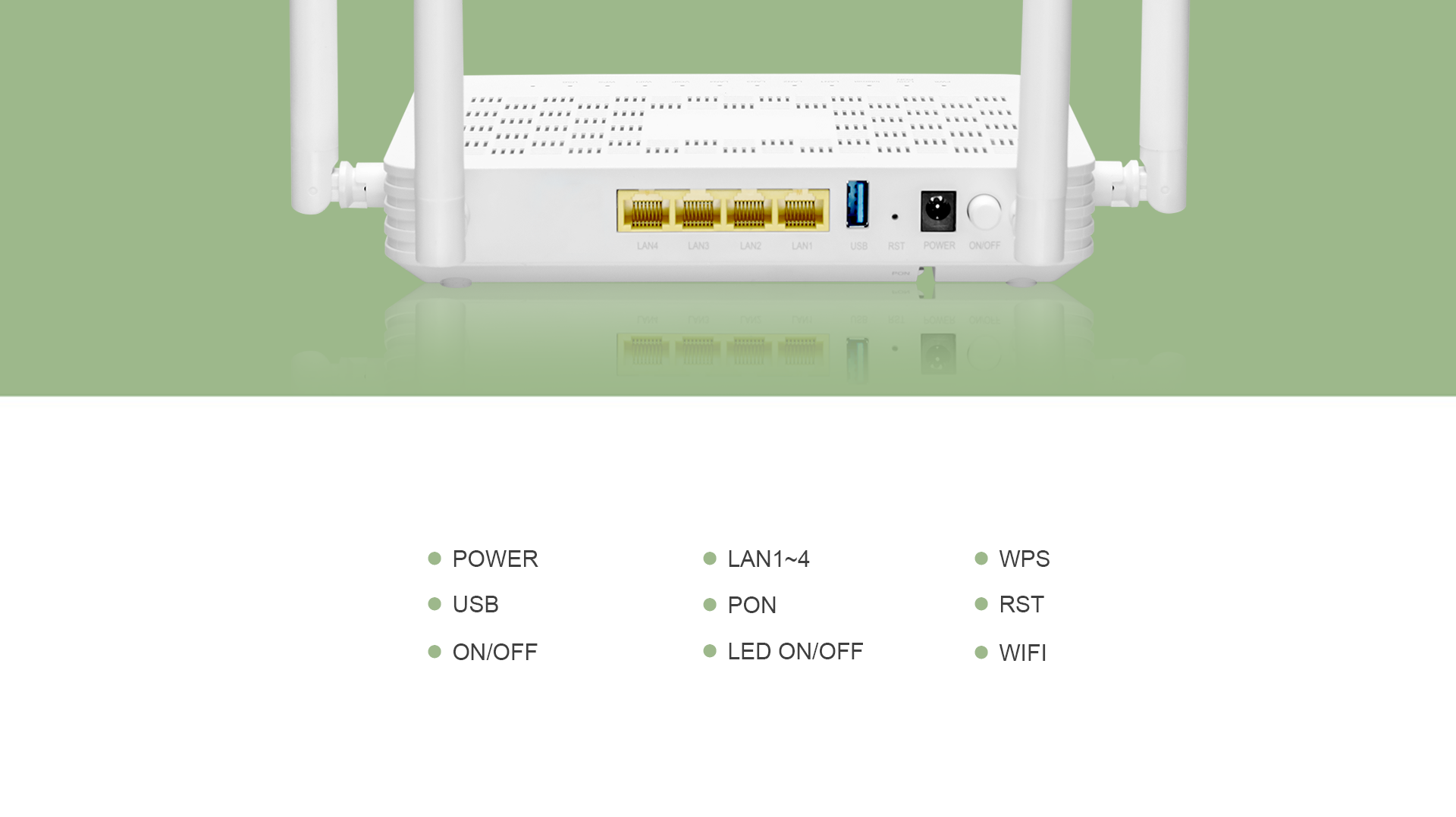

Detailed Interfaces Diagram

Specification

Parameter Details
Interface 4GE+1USB+WIFI6+G/EPON
LED POWER+PON/LOS +INTERNET +LAN + WiFi + WPS+USB
Flash & Memory Flash: 256MB NAND; Memory: 512 DDR4
Power Supply 12V/1.5A
Power Consumption ≤15W
Environment Standard Operating Temperature: -5°C~45°C
Storage Temperature: -20°C~70°C
Relative Humidity: 5%~95% (non-condensing)
Weight 0.35KG
Size W*D*H 190mm*135mm*33mm
Module Type Class B+, SC/UPC
Wavelength UP 1310nm, Down 1490nm
TX Optical Power 0.5~5dbm
RX Optical Sensitivity -28dBm
Transmission Distance 0~20km
Transmission Rate EPON: Upstream 1.25Gbps/Downstream 1.25Gbps
GPON: Upstream 1.25Gbps/Downstream 2.5Gbps
LAN Interface Type RJ45 (10/100/1000Mbps)
USB USB3.0
WIFI Dual-band WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G)

Order Info

Description & Configurations
XPON, 4*1000M Base-T, 1*WIFI-6 (2.4G&5.8G3000M), 1*USB3.0, 12V/1.5A
XPON, 4*1000M Base-T, 1*POTS, 1*WIFI-6(2.4G&5.8G 3000M), 1*USB3.0,12V/1.5A
XPON, 4*1000M Base-T, 1*POTS, 1*WIFI-6(2.4G&5.8G 3000M), 1*USB3.0,1*CATV, 12V/1.5A

Frequently Asked Questions

Q. Can you do OEM?
A: Yes, we can do OEM products. It is not a problem.
Q. How is quality control managed?
A: Every single optic module is individually tested in our test center, and also tested for compatibility on a variety of different network equipment.
Q. Can I get a sample first?
A: Yes, we can provide samples for you to check the quality first.
Q. What are the payment terms?
A: We accept T/T, Western Union, and Alibaba trade orders.
Q. What is the lead time?
A: For standard orders, we maintain stock and can ship within approximately 3 days after receiving the payment. For large quantities and special products, please verify the lead time directly.
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive at your destination.
