Home > Standard Series > Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
1 / 5
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001
Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001

Stable 1GE XPON ONU Bridge Mode FTTH ONT Compatible with Huawei ZTE Fiberhome OLT HG1001

Send Inquiry

Product Description

EPON/GPON Dual-mode Access
EPON/GPON Dual-mode Access Reduce the Investment of Operators
Wide-Working-Temperature Designed
Wide-Working-Temperature Designed
Compatible with Various OLT
Compatible with Various OLT, Flexible Networking
ONU Plug and Play
ONU plug-and-play, Quick Connect
Boasting an exquisitely crafted design, it effortlessly becomes the center of attention in any setting.
Exquisitely Crafted Design

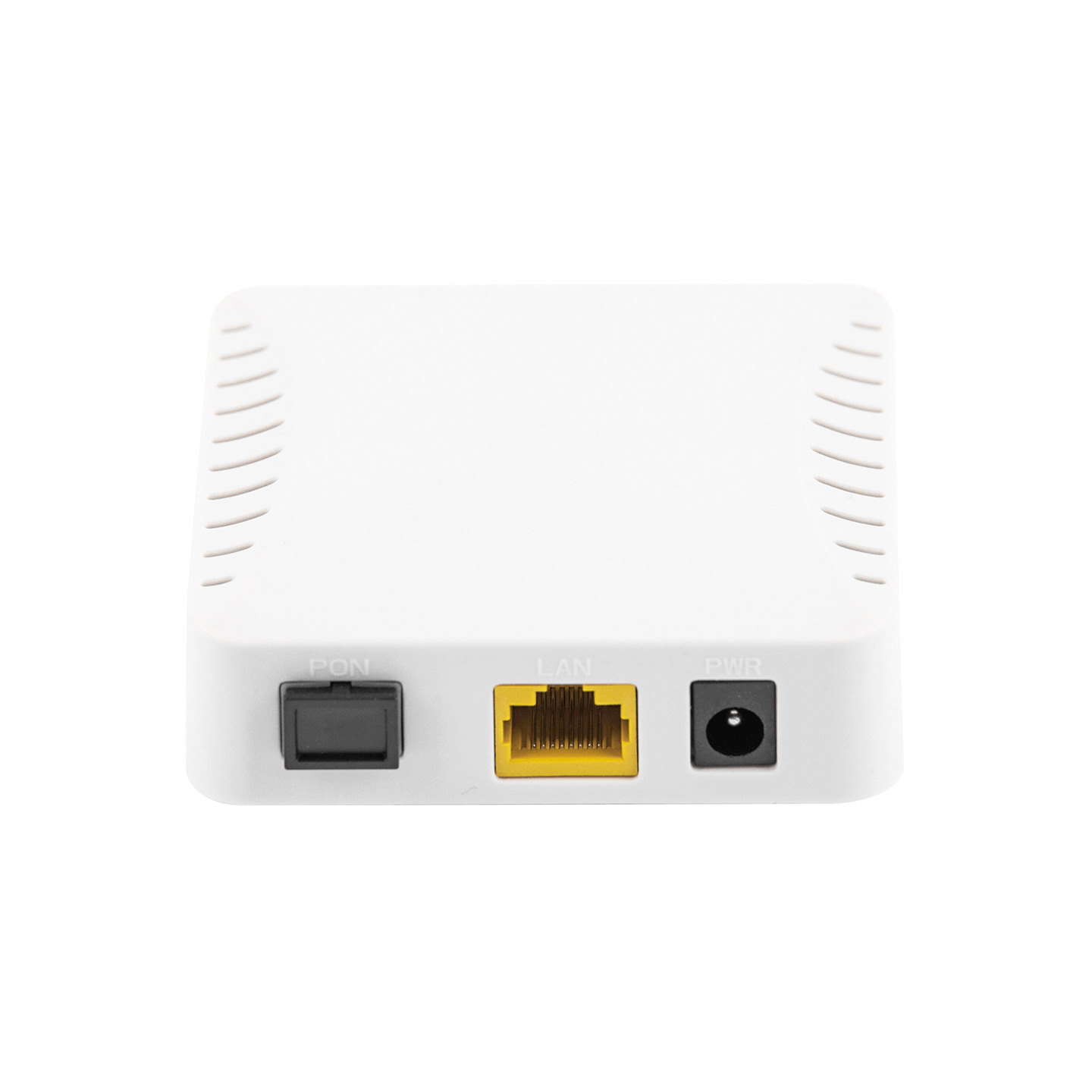

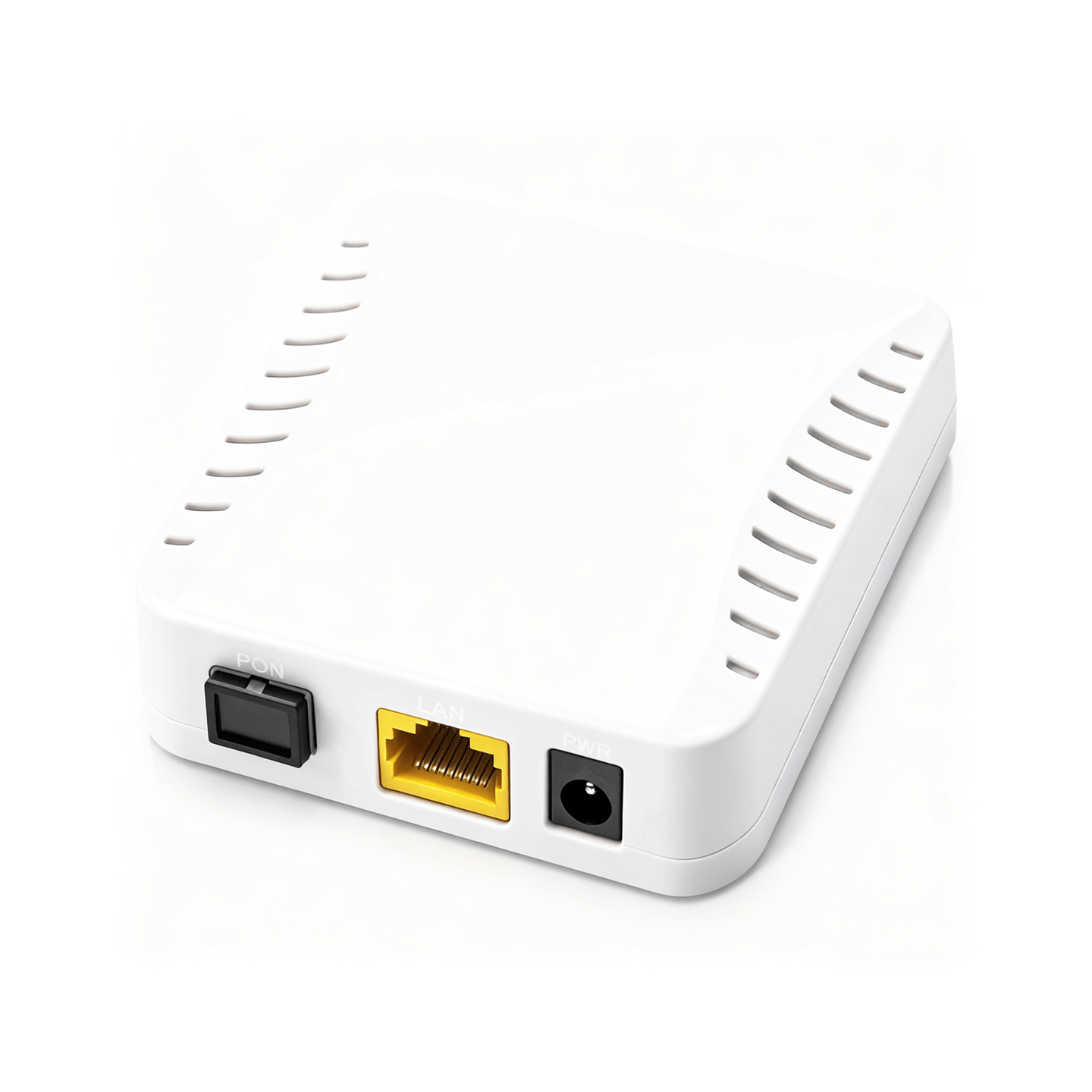

Device Rear View
Specification
Hardware
Dimension 78mm x 78mm x 21mm (L×W×H)
Net weight 0.06Kg (without package)
Operating condition Operating Temp: -10 ~ +55°C
Operating Humidity: 5 ~ 95% (non-condensed)
Storing condition Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non-condensed)
Power adapter DC 12V, 0.5A, external AC-DC power adaptor
Power supply ≤4W
Interface 1GE
Indicators POWER / PON / LOS / LAN1
Interface
PON interface • Interface Type: SC/UPC, CLASS B+
• Transmission distance: 0～20km
• Working wavelength: Up 1310nm; Down 1490nm;
• RX Optical power sensitivity: -27dBm
• Transmission rate:
  GPON: Up 1.244Gbps; Down 2.488Gbps
  EPON: Up 1.244Gbps; Down 1.244Gbps
LAN interface 1*GE, Auto-negotiation RJ45 connectors
Software
Networking
  • Flexible packet classification
  • Up to eight queues
  • SP/WRR/SP+WRR
  • Ingress rate limit
  • Egress shaping
Security
  • Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p
  • DoS attack defending
  • Multiple VPN (IPSec, PPTP) passthrough
  • MAC address filtering
  • Broadcast/ Unicast/ Multicast attack protection
  • Broadcast packet rate limit
  • Dual image for firmware auto rollback
Management
  • OMCI management
  • WEB GUI management
  • Local built-in diagnostic function
  • Logs and statistics
  • Remote upgrade by HTTP
PON Solution
PON Solution Diagram
Order Info
Part Number Description Accessories Pack
HG1001 1*XPON+1*GE AC-DC Power Adapter DC12V/0.5A
Production Facility Showcase
FAQ
❓ 1. Who Are We?
We are a Guangdong-based optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a 11-50 person team dedicated to serving global clients.
❓ 2. How Do We Guarantee Quality?
♦ Pre-production samples before mass production ♦ 100% final inspection before shipment
❓ 3. What Can You Buy From Us?
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
❓ 4. Why Choose Us?
We are a top-tier optical communication supplier with over 50 employees. Our core focus is PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.
❓ 5. What Services Can We Provide?
♦ Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc. ♦ Payment Currencies: USD, EUR, CNY, and more ♦ Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc. ♦ Languages: English, Chinese, Spanish, French, Russian, and more
❓ 6. What are the physical dimensions and weight of the HG1001 ONU?
The HG1001 ONU is highly compact and lightweight. Its physical dimensions are 78mm x 78mm x 21mm (L×W×H) and it has a net weight of 0.06Kg (without package), making it easy to deploy in small space constraints.
