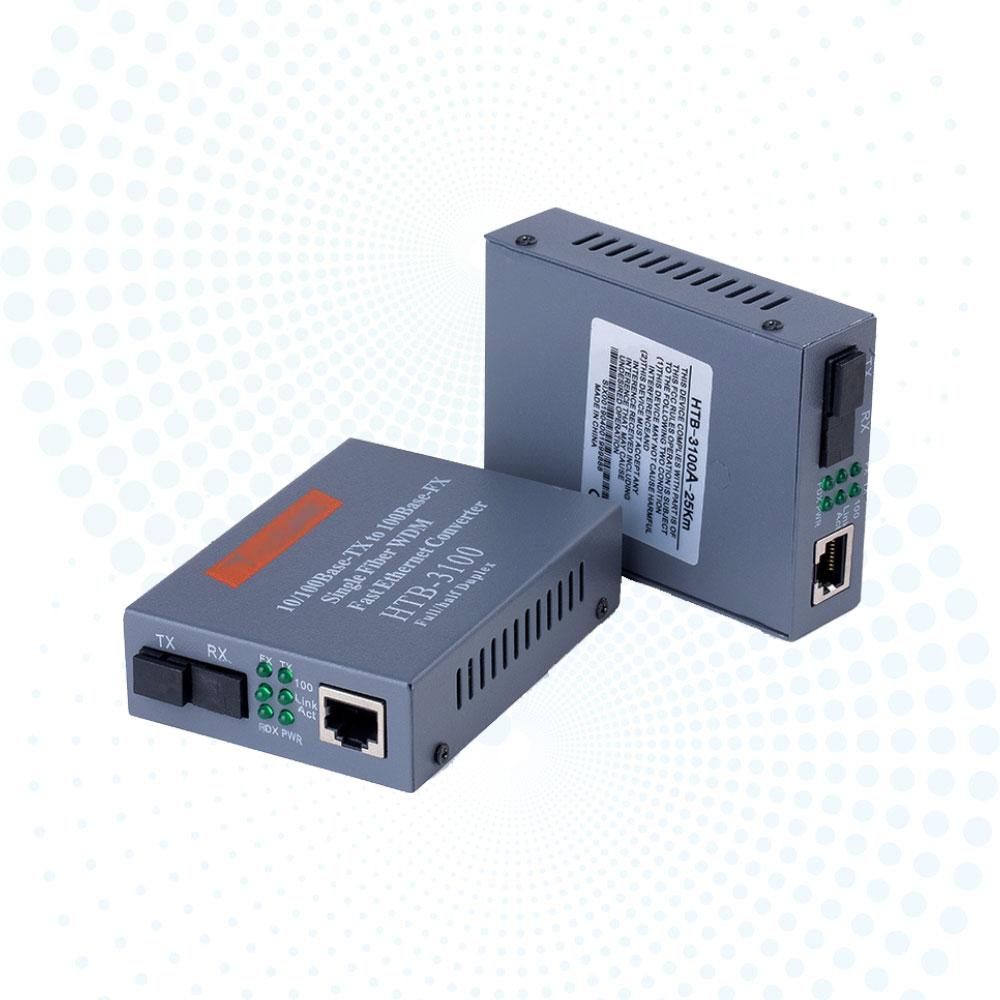

There are vents on both sides, which can provide better heat dissipation and ensure the normal high-speed operation of the machine.
Main control chip, realize data fast forwarding single fiber two-way transceiver Body module, strong anti-interference ability, high speed and stable performance.
Can adapt to a variety of working environment, community network, campus enterprise network. Fiber to the home, intelligent broadband, monitoring and security and other fields.
| HTB-3100AB Parameter Details | |
|---|---|
| Part Number | HTB-3100AB |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX |
| Ethernet Port | Connector: RJ45 Data Rate: 10/100Mbps Distance: 100m UTP Type: UTP-5E or higher level |
| Fiber Port | Connector: SC port Data Rate: 10/100Mbps Distance: 25km |
| Port | 1*RJ45 port, 1* fiber port (SC/LC/ST/FC Optional) |
| Forward / Filter Rate | 10M: 14,880/14,880pps 100M: 148,800/148,800pps |
| Power Supply | External: 5V DC 1A Built-in: 100 V to 240 V AC 50Hz to 60Hz Power Consumption: ≤5W |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) |
| Warranty | 1 Years |
| Model | Introduction | Function |
|---|---|---|
| HTB-3100AB | Fiber Media Converter 10/100Mbps 25km | Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 25km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100Mbps 1*Simplex SC -1*LAN SM 25km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| HTB-GS03AB | Fiber Media Converter 10/100/1000Mbps 3km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 3km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 3km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| HTB-GS03-20AB | Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC -1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
