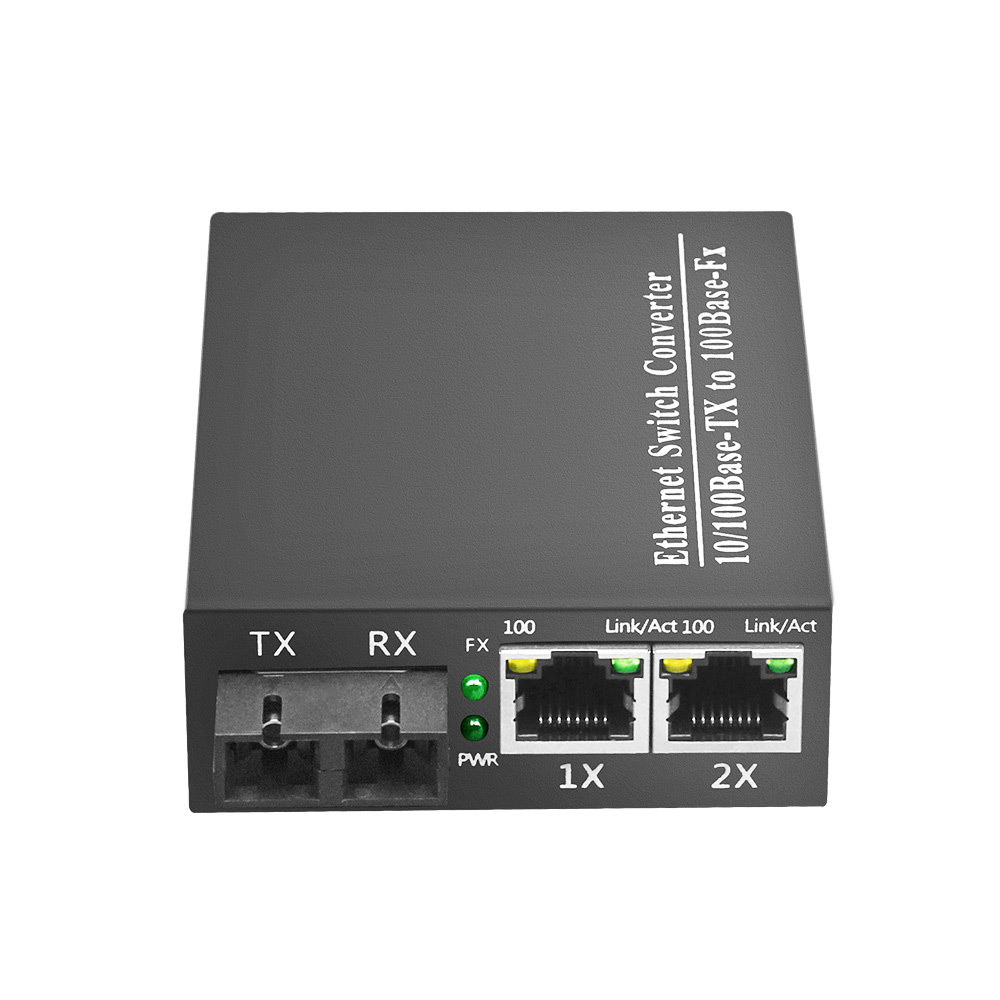

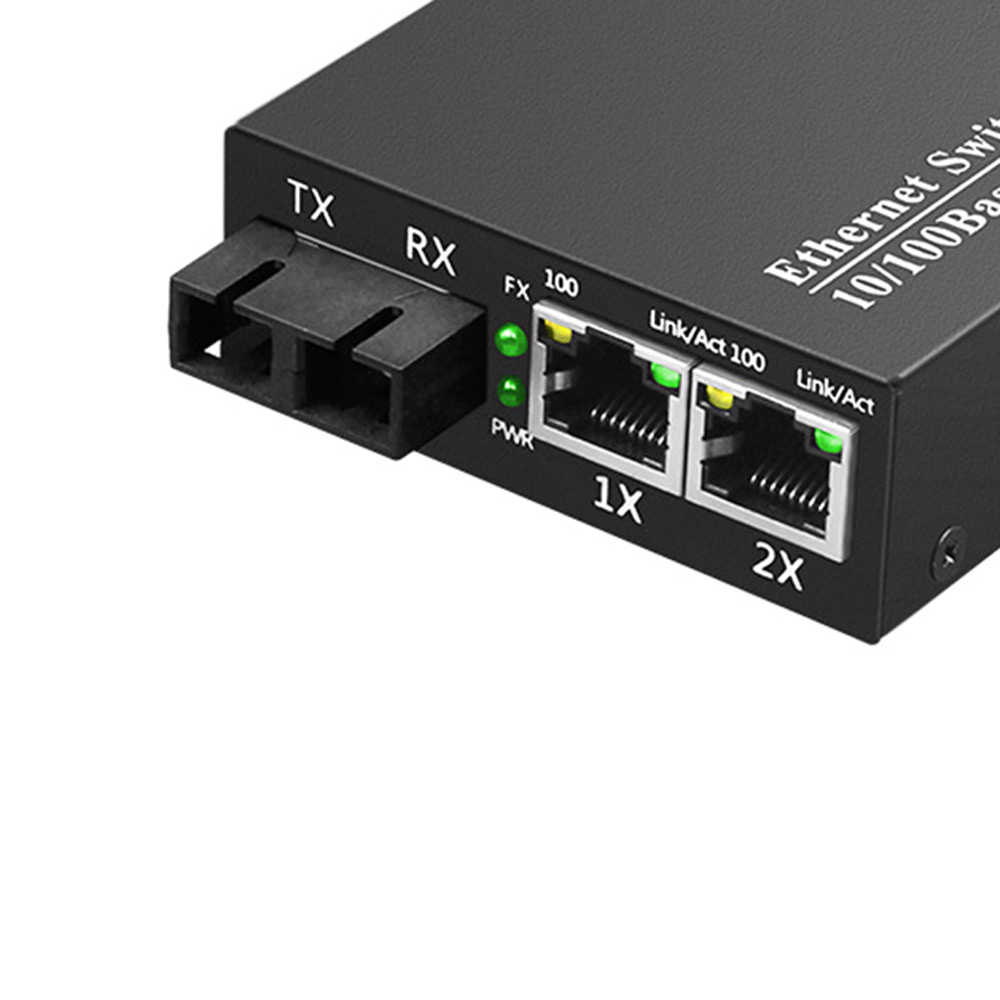

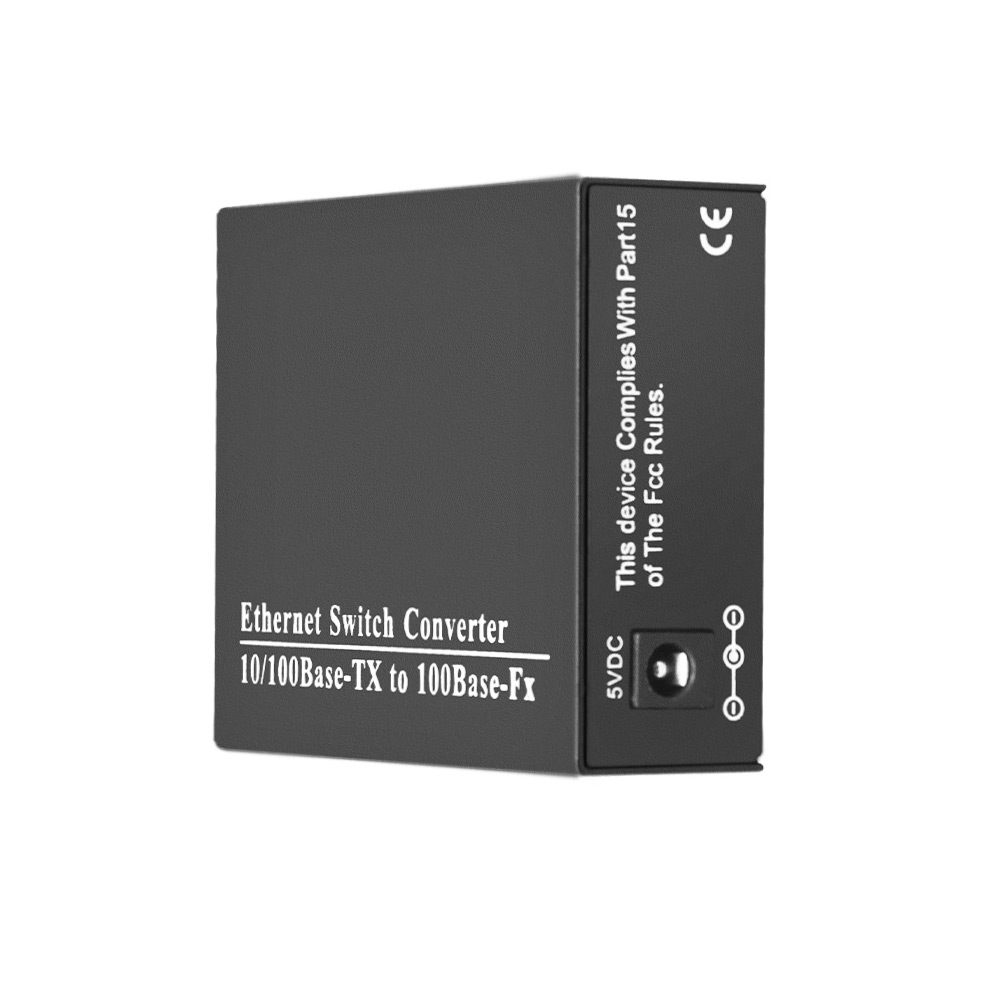

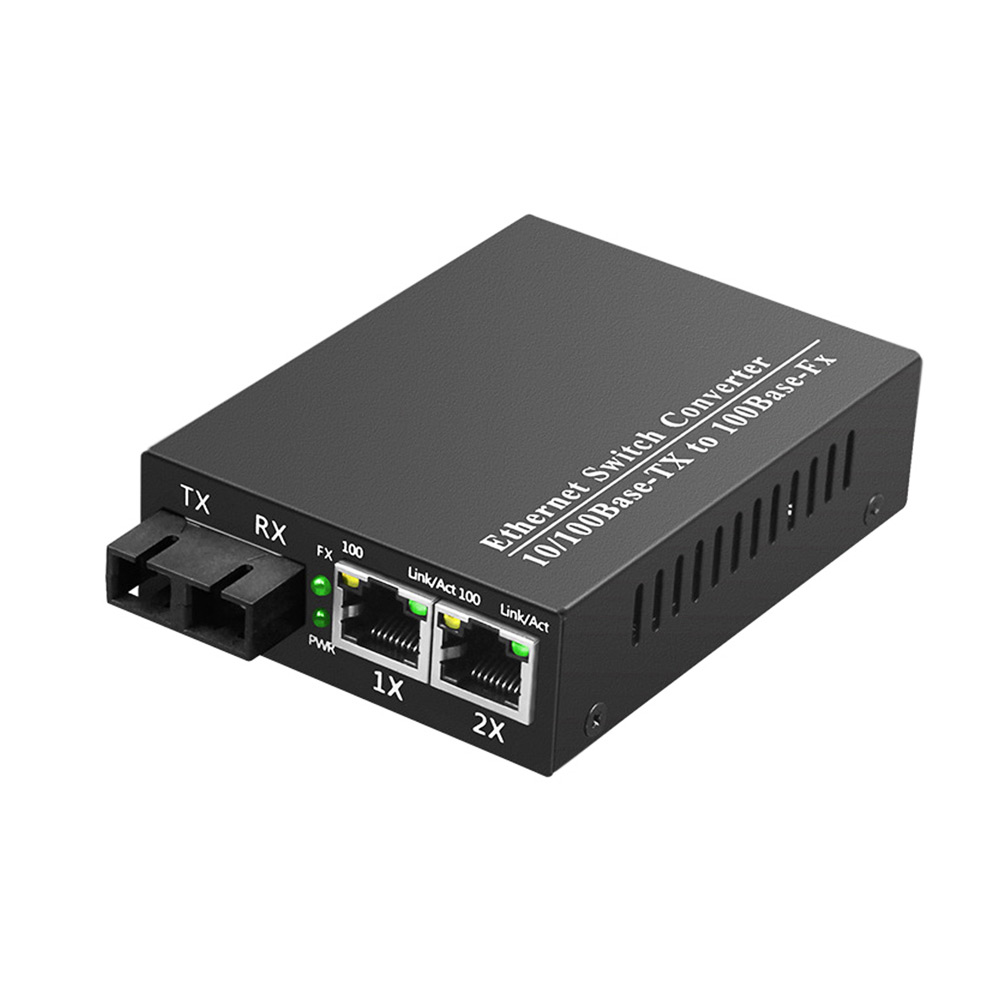

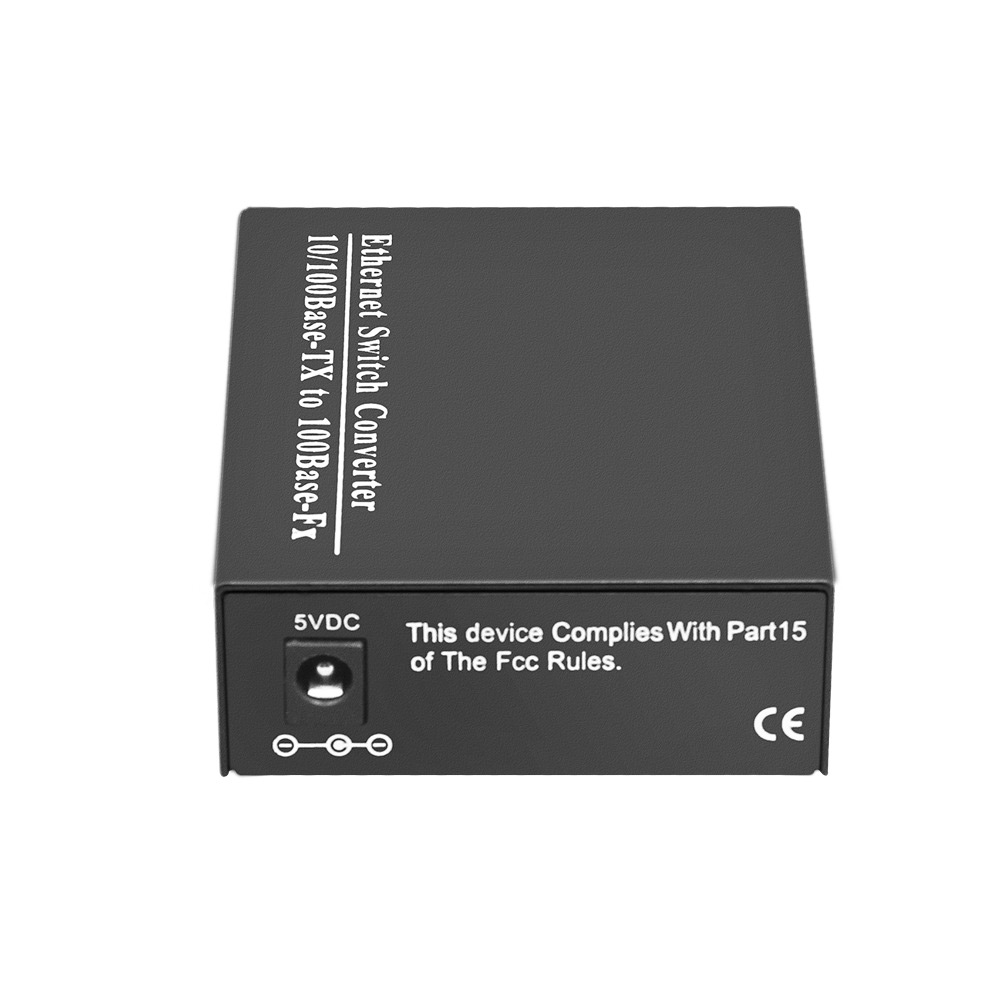

Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50
Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50
Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50
Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50
Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50
1 / 5
Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50
Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50
Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50
Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50
Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50

Single Mode SC Fiber Optic Converter 20KM Port Range RJ45 Media Optical Fiber Wired LAN 1310/1550nm Wavelength -20~50

Send Inquiry

Product Description

Product Design Banner
Product Design
Fiber Interface
1 SC optical fiber interface + 2 gigabit RJ45 interfaces ensure stable and smooth data transmission
Plug and Play
Plug-and-play, no setup required
Product Setup
Compact design and high efficiency architecture
Specification
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface 1*155Mbps SC optical fiber interface
1*10/100Mbps adaptive RJ45 port
Wavelength 1310nm
Distance Maximum transmission distance: 3km
Optical parameter Optical power: -17~-1dBm
Reception sensitivity: -22dBm
Media Cable: Category 5 or higher UTP and STP
Fiber: 50/125um or 62.5/125um multimode optical fiber
Power DC12V/1A
Size 95mm * 74mm * 27mm
Operating environment Working temperature: -20℃ to 60℃
Storage temperature: -40℃ to 85℃
Working humidity: 10% to 90% RH without condensation
Storage humidity: 5% to 90% RH without condensation
Order Info
Model Number Optic Fiber Wavelength Distance
RD-FE102-M Dual fiber Singlemode 850nm 550m
RD-FE102-A SMF(1) 1310nm/1550nm 3km
RD-FE102-B SMF 1550nm/1310nm 3km
RD-FE102-20A SMF 1310nm/1550nm 20km
RD-FE102-20B SMF 1550nm/1310nm 20km
RD-FE102-40A SMF 1310nm/1550nm 40km
RD-FE102-40B SMF 1550nm/1310nm 40km
(1) SMF: Single fiber Singlemode.
(2) Distance options: 0-120km.
FAQ
What types of products are available in your catalog?
We manufacture and supply a comprehensive range of fiber optic equipment, including FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other optical communication equipment.
How is product quality guaranteed?
Quality control is strictly managed through:
  • Pre-production samples tested before mass production
  • 100% final inspection carried out before shipment
What delivery and payment terms do you support?
We offer flexible trade and payment arrangements:
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more.
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
Does the fiber media converter require configuration?
No, the device features a plug-and-play design. It operates automatically upon connection without requiring any manual setup or software installation.
What are the optical transmission distance options?
The standard model supports a transmission distance of up to 3km. Additionally, optional configurations are available supporting distances ranging from 0 to 120km to suit various network setups.
What languages are supported by your customer service team?
To serve partners globally, support is available in English, Chinese, Spanish, French, Russian, and several other languages.
