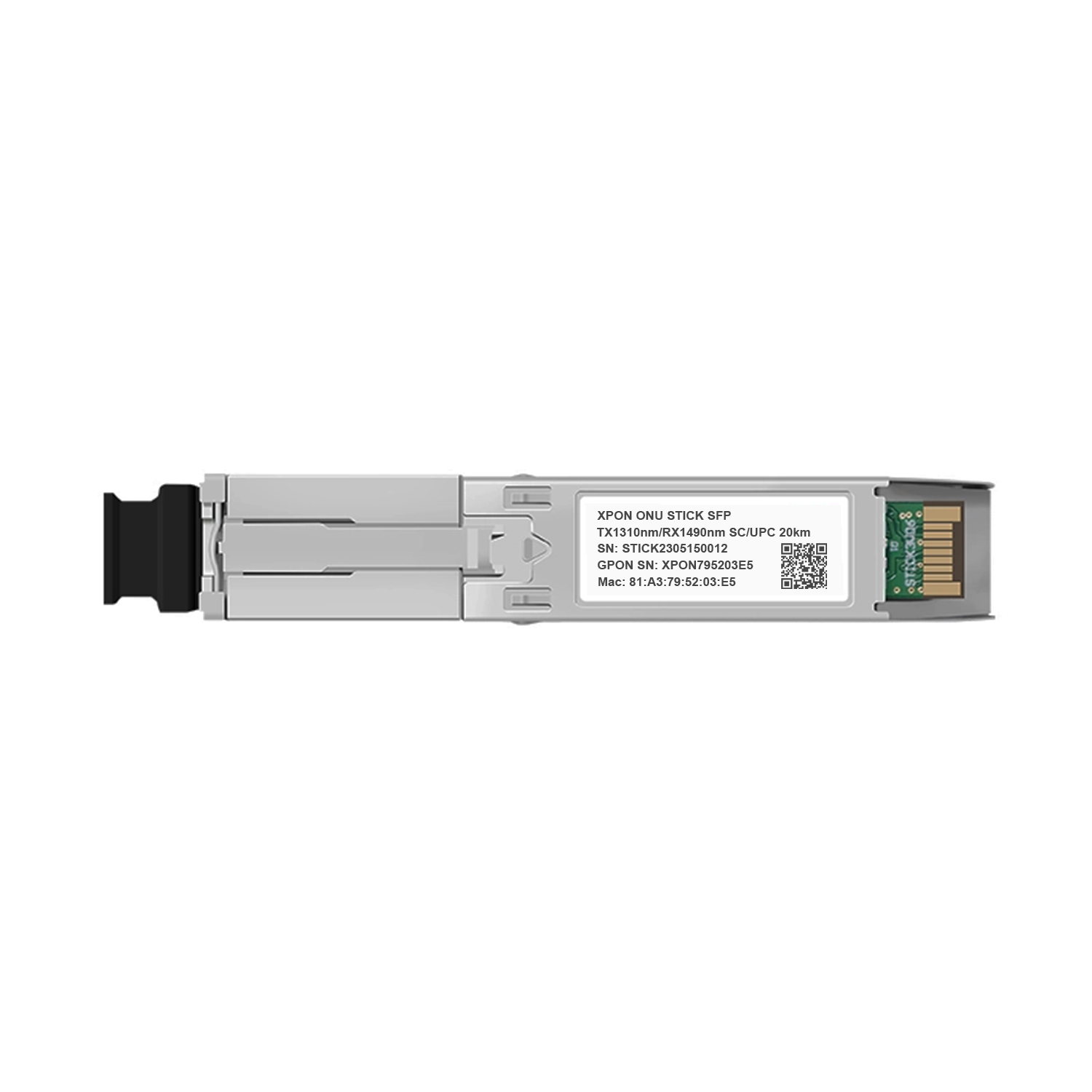

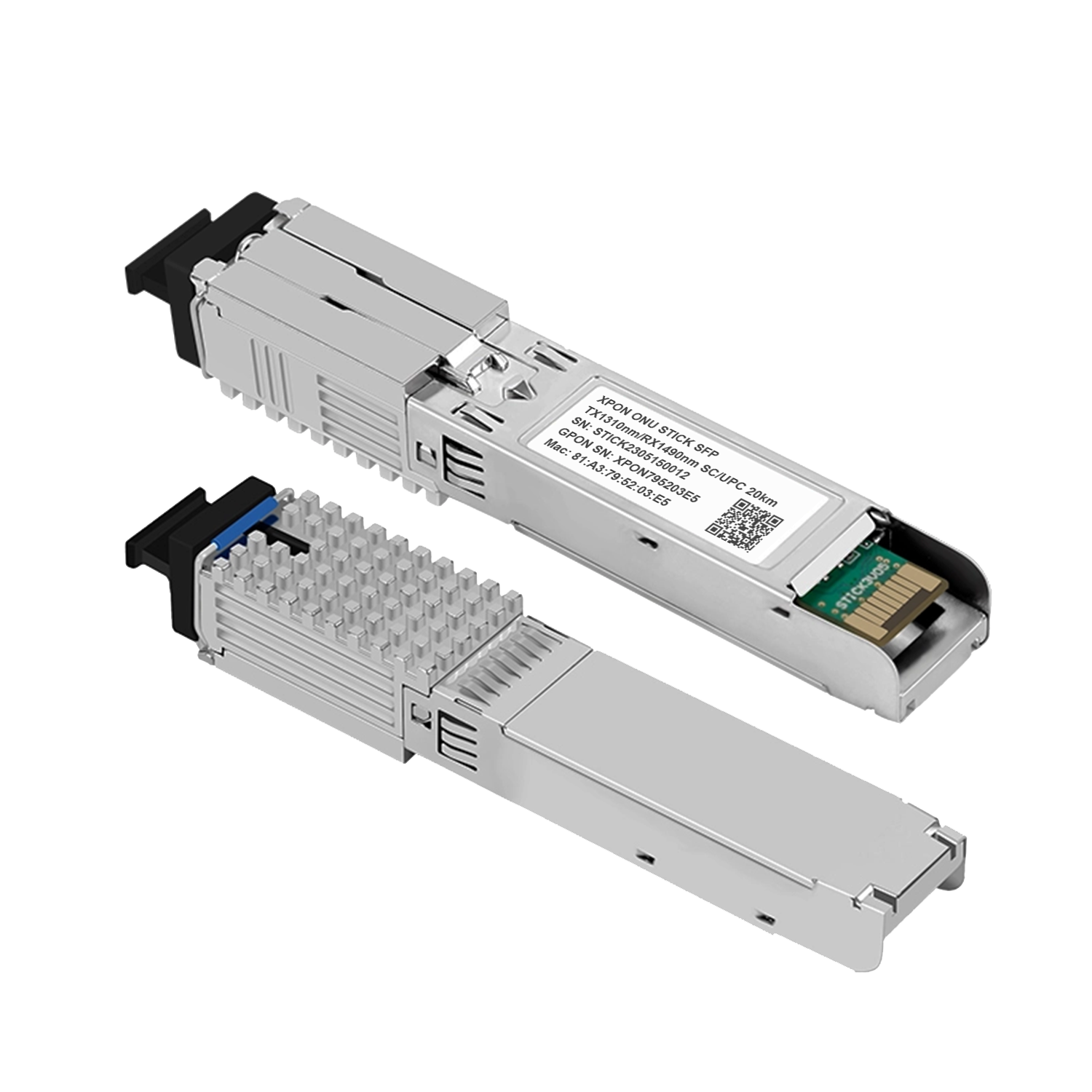

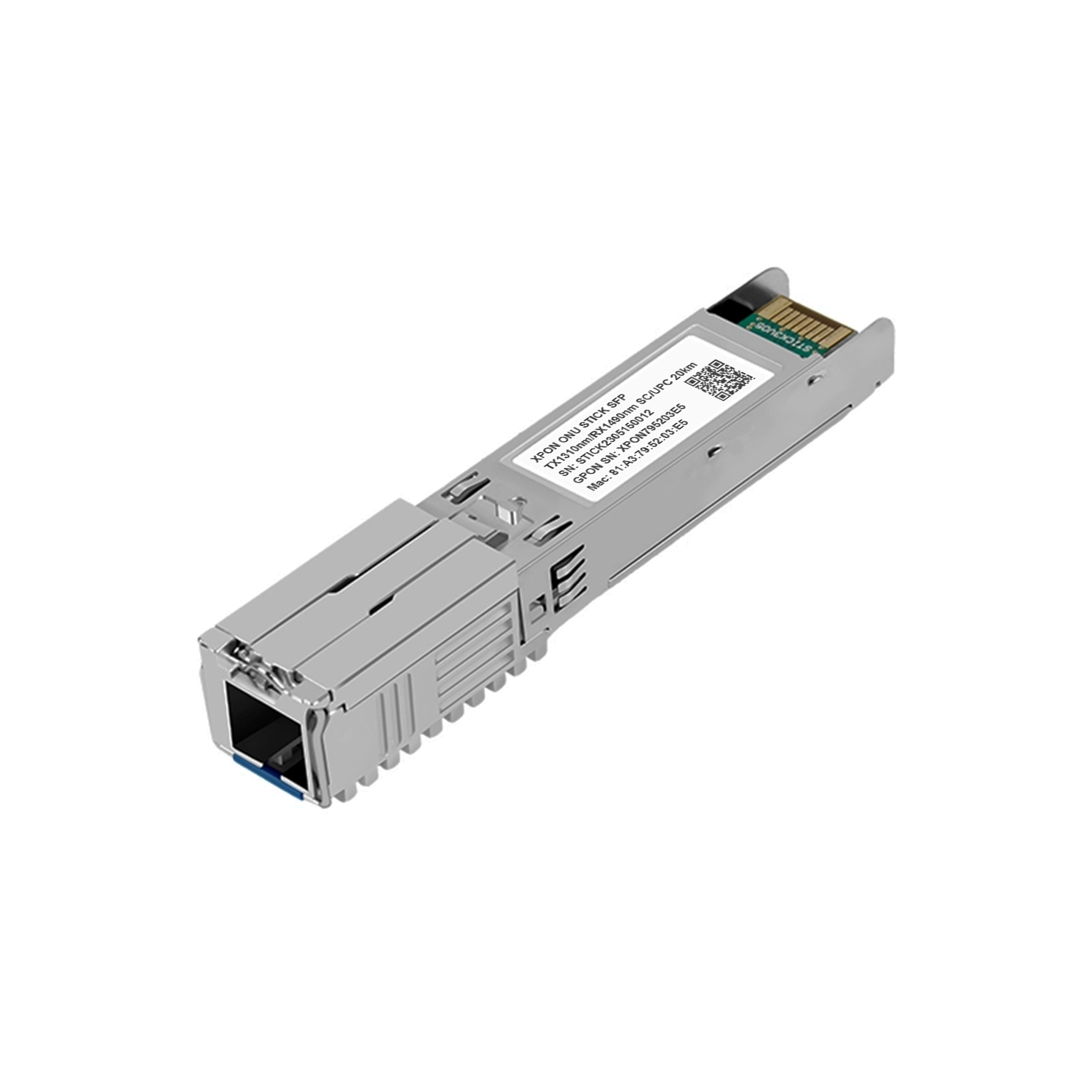

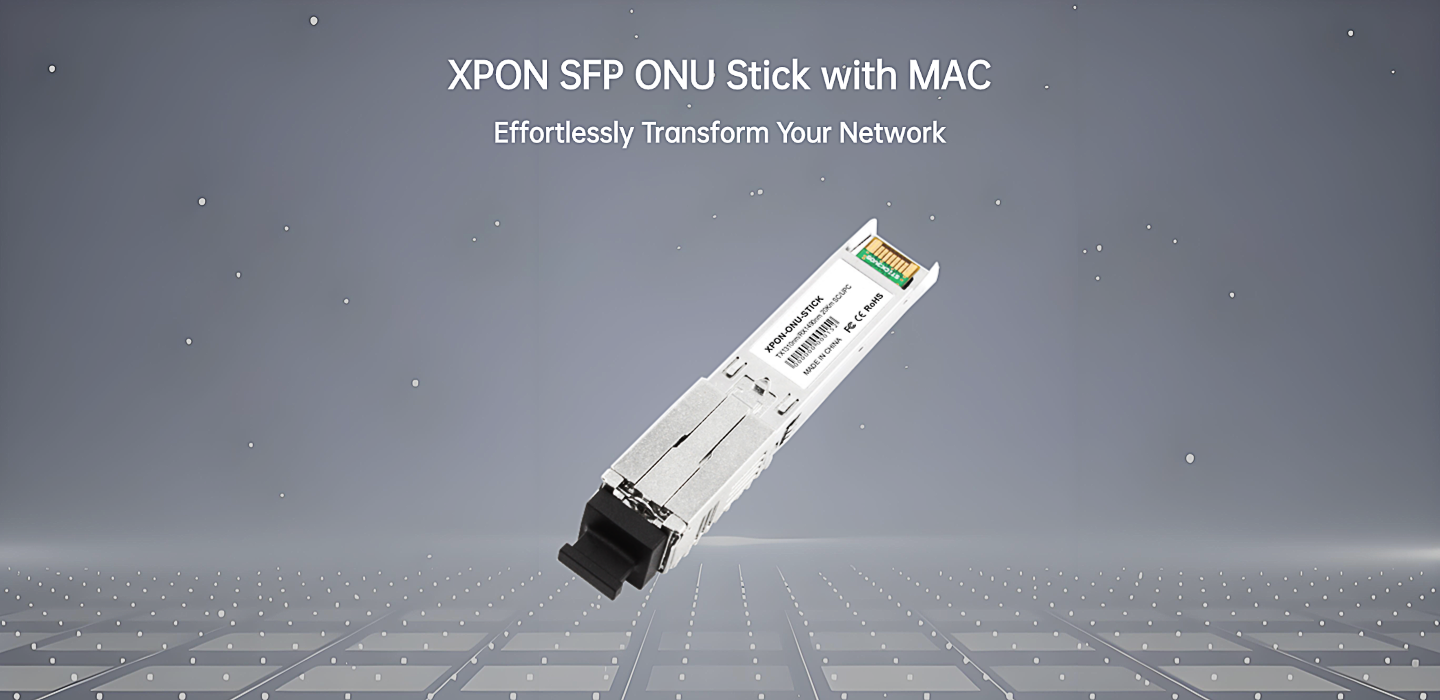

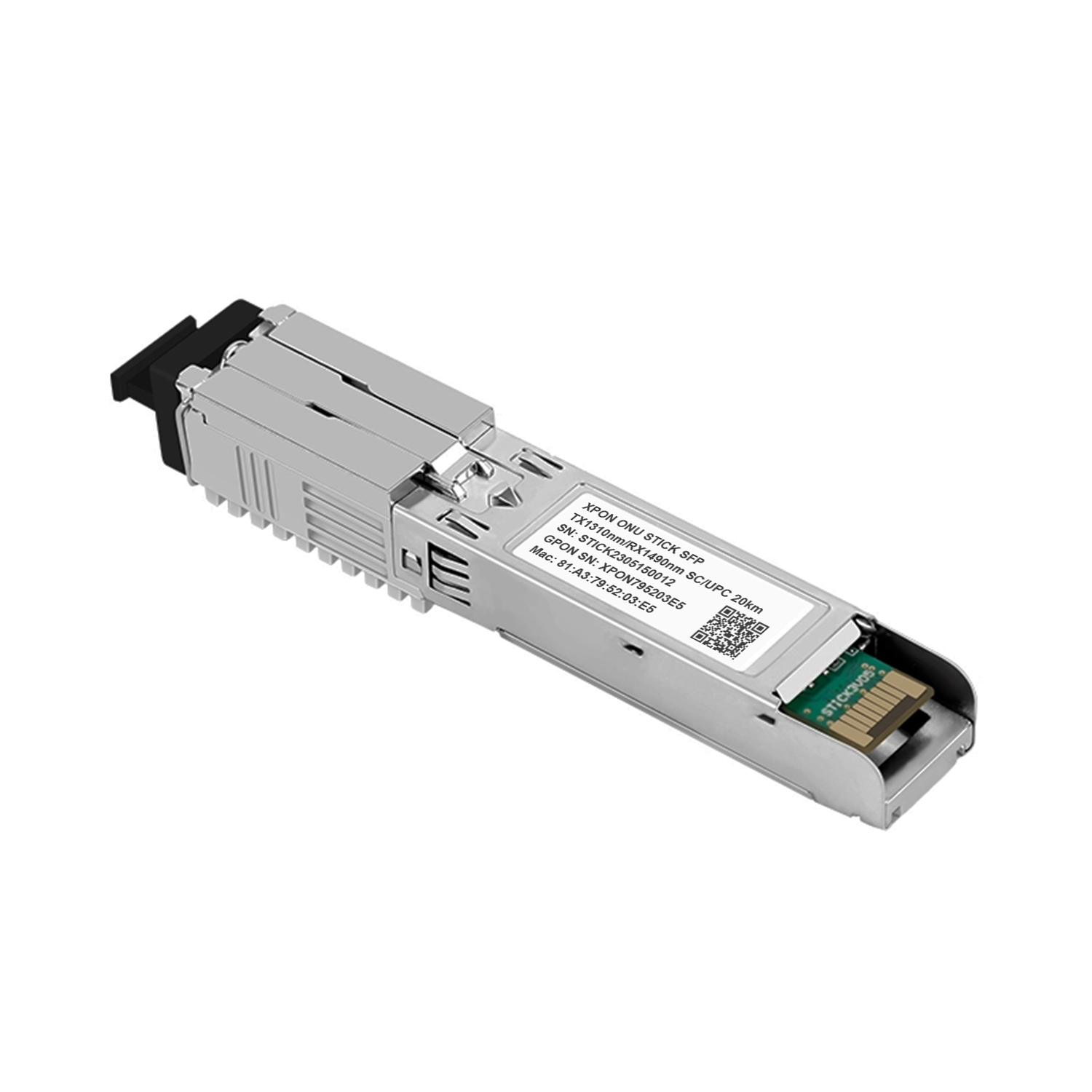

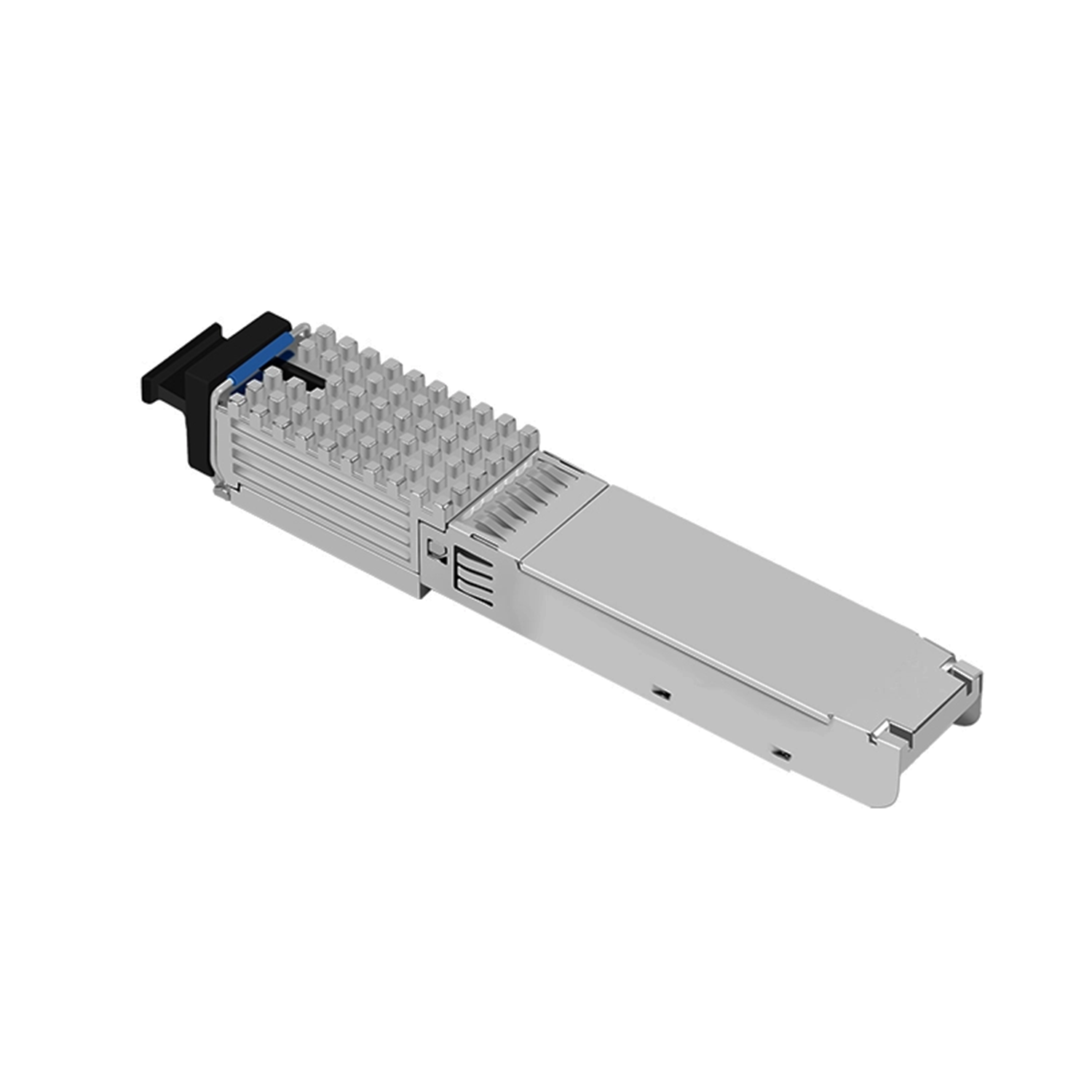

ONU stick is a bidirectional module with SC receptacle options (UPC/APC), operating over single-mode fiber and supporting links up to 20km. It complies with ITU-T G.984.x and IEEE802.3ah standards, operating at a 1310nm TX wavelength and a 1490nm RX wavelength. The module serves as an xPON ONU with integrated PON MAC functionality.

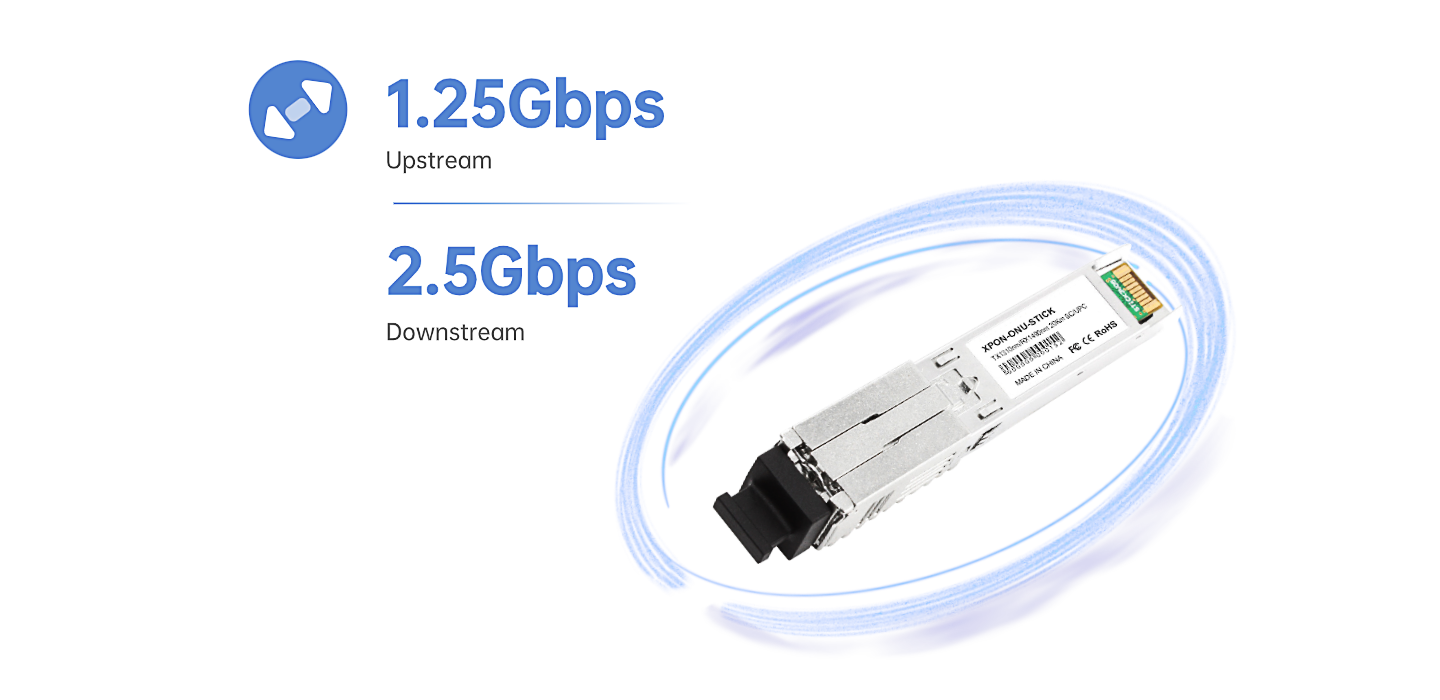

The SFP ONU supports bridge function and OMCI management, with support for EPON and GPON dual modes, offering 1.25Gbps upstream and up to 2.5Gbps downstream data rates.
Whether for home or business networks, the SFP ONU stick delivers reliable and high-speed network connectivity. It is easy to install and maintain, ideal for various deployment environments and effectively meeting users' demands for network upgrades.
| Parameter | Details |
|---|---|
| Standards | ITU-T G.984.x |
| Package | SFP+ |
| Optical Module | Class B+ |
| Data rate | 2.488Gbps/1.244Gbps D/U |
| Wavelength | 1310nm-tx/1490nm-rx |
| Optical interface | SC/APC, SC/UPC |
| Max Distance | 20KM |
| Power Dissipation | < 2W |
| TX Output | +0dBm - +5.0dBm |
| RX Input | < -28dBm |

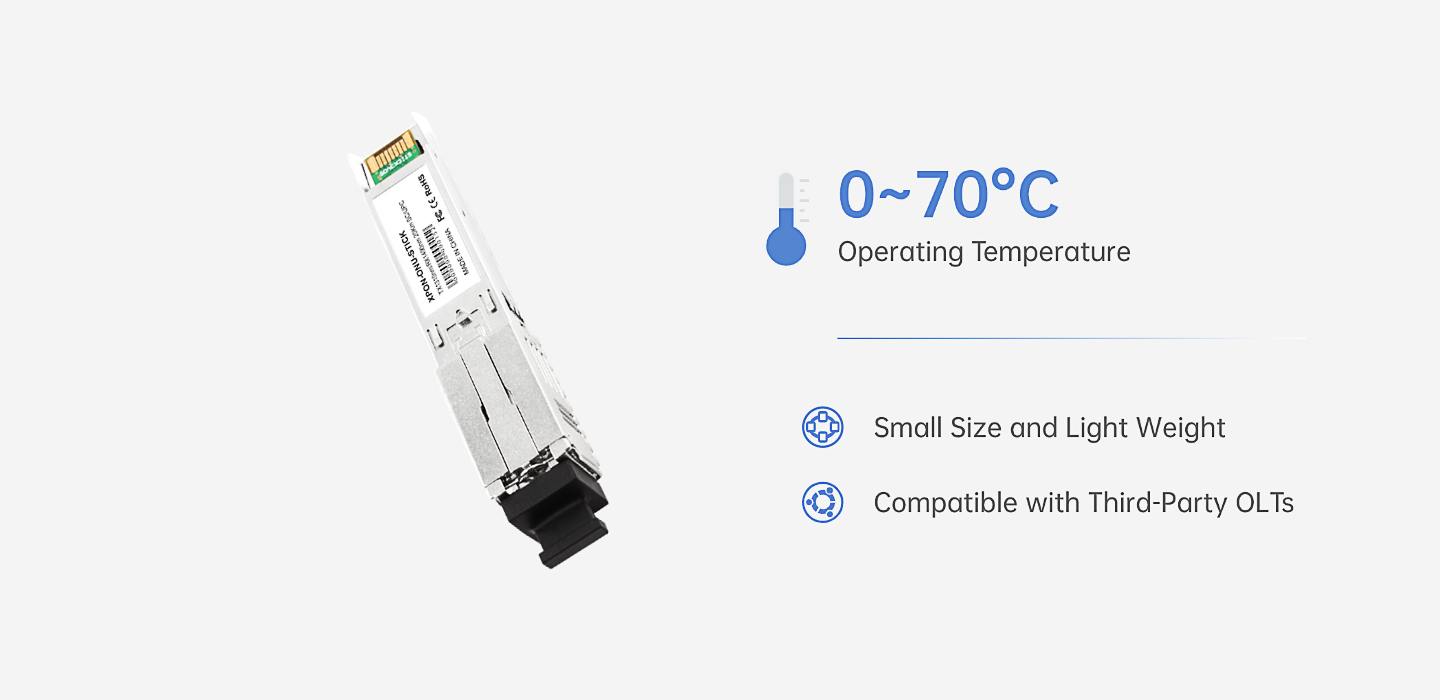

| Operating Temperature | 0 to 70 °C |
| Model | Description |
|---|---|
| XPONST1000 | SFP package with SC/UPC receptacle |
| XPONST1001 | SFP package with SC/APC receptacle |
