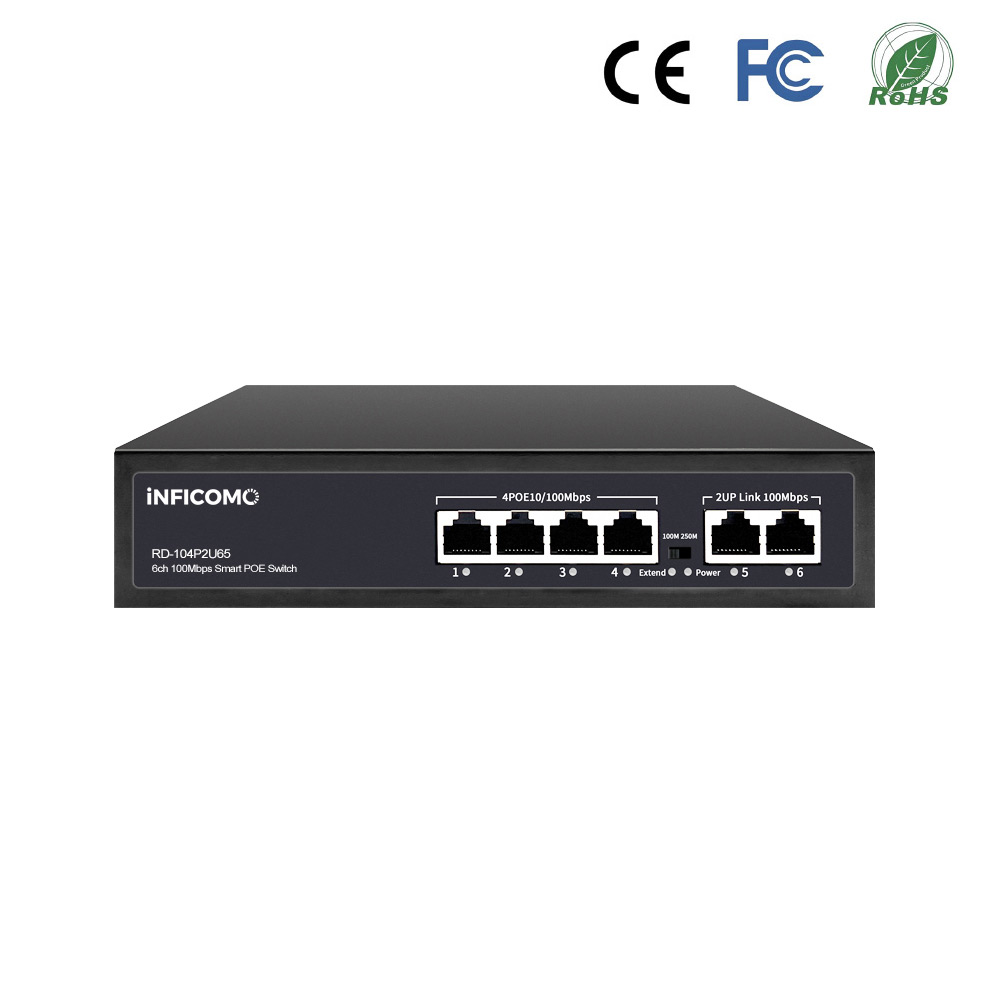

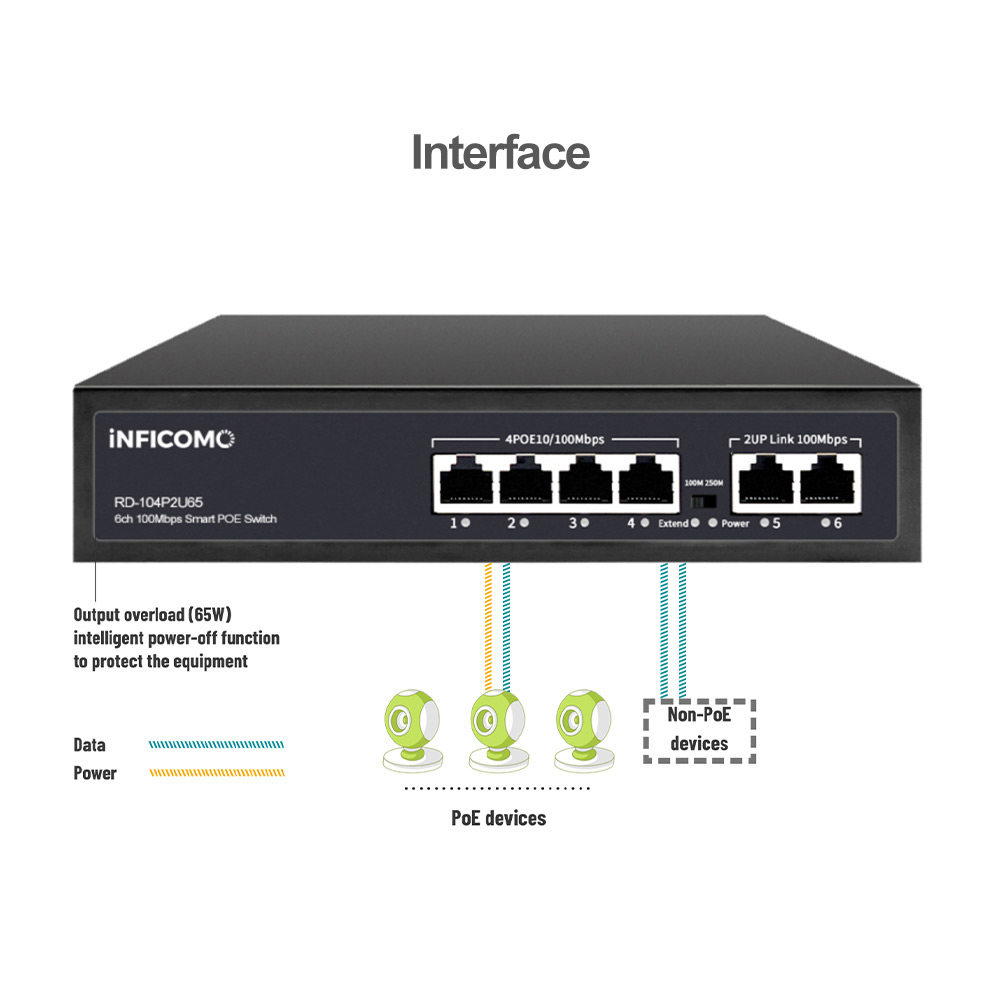

Full Power Output PoE Switch 4 Port 10/100Mbps with 2*100Mbps RJ45 Uplink for CCTV

Send Inquiry

Product Description

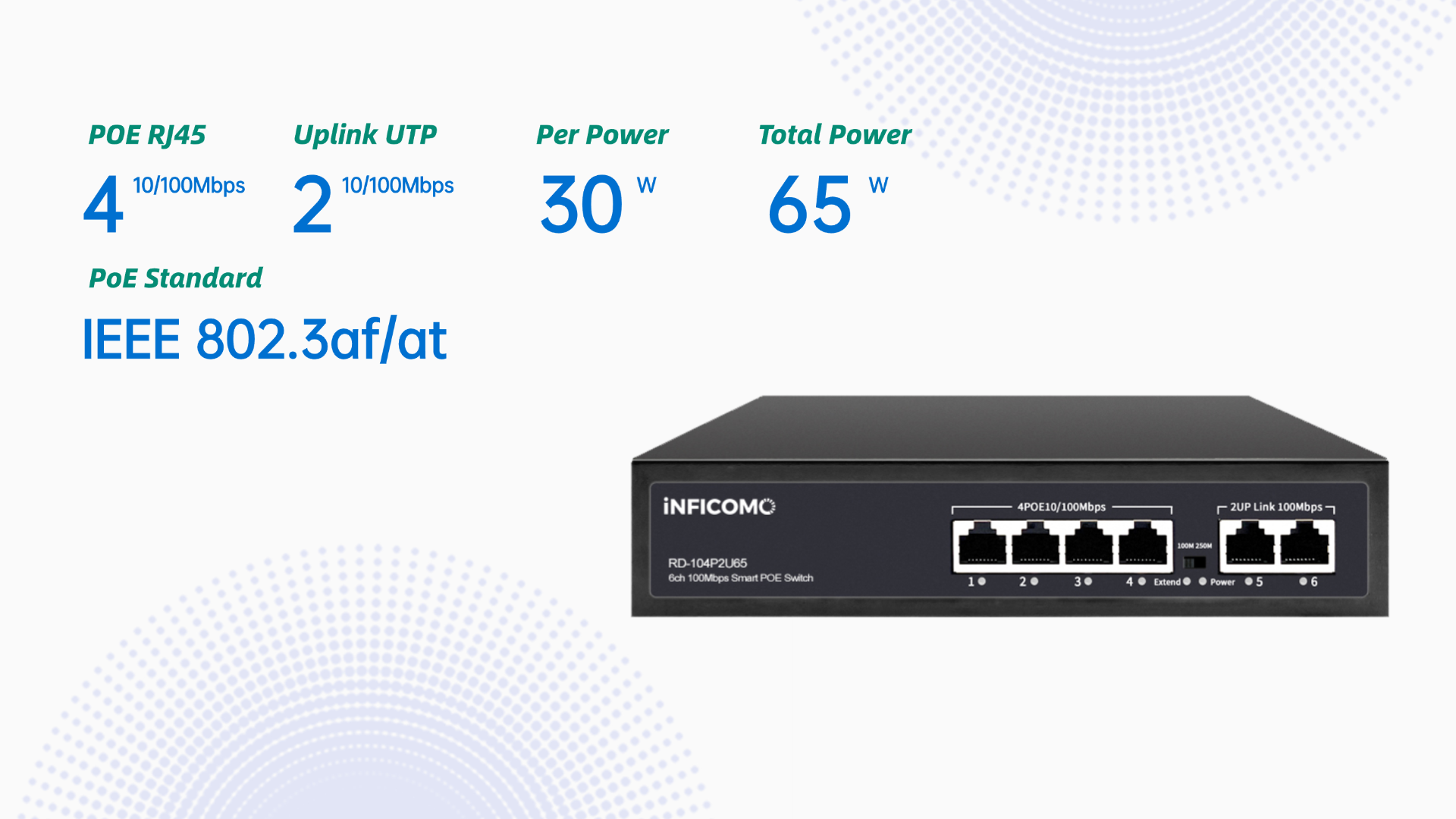

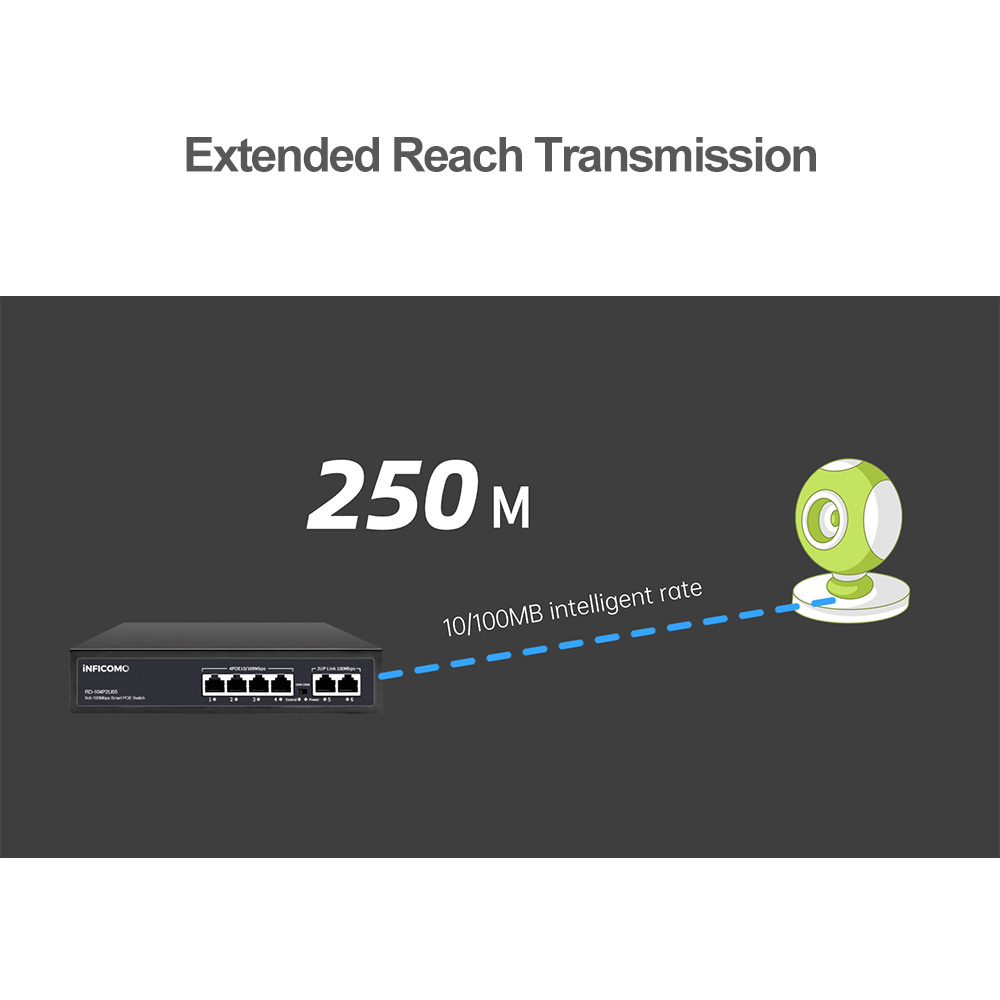

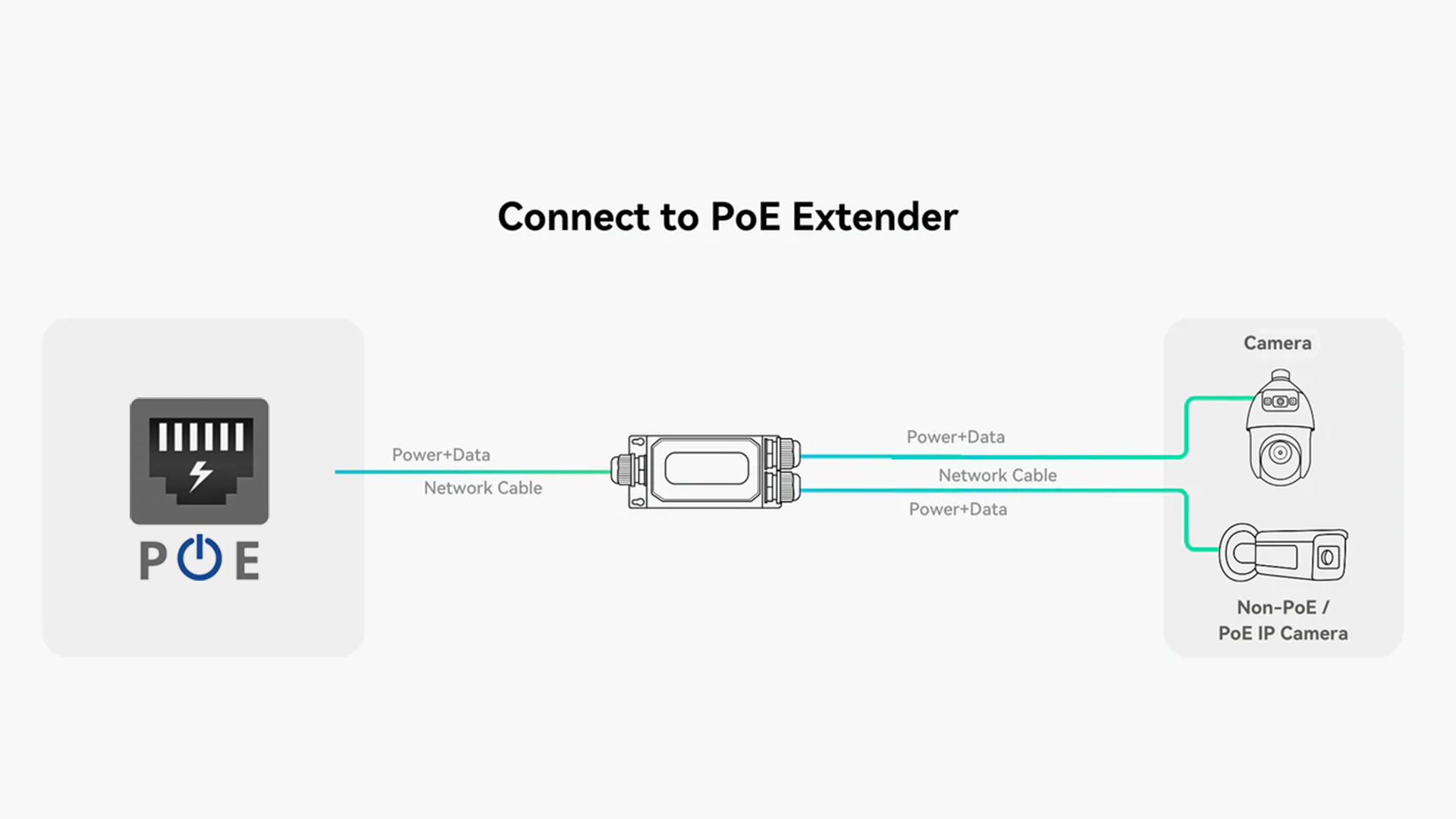

Long-Distance Transmission

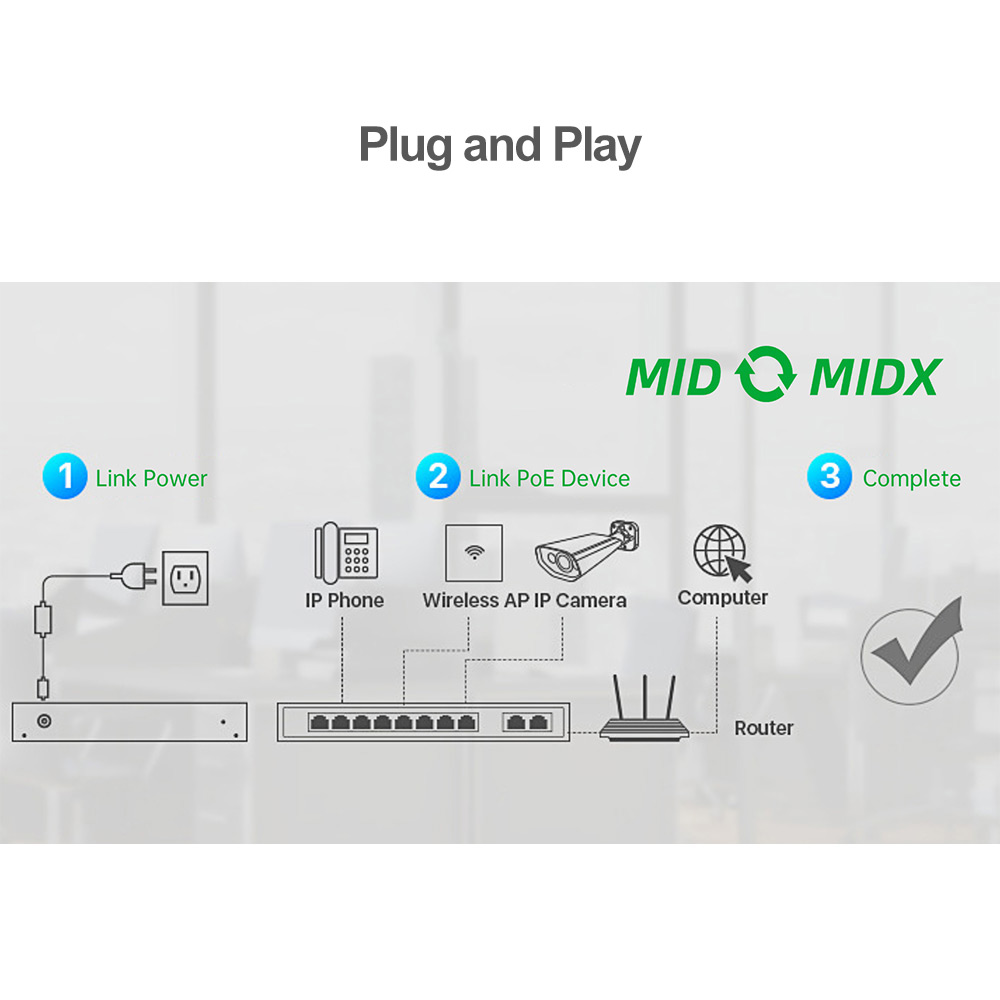

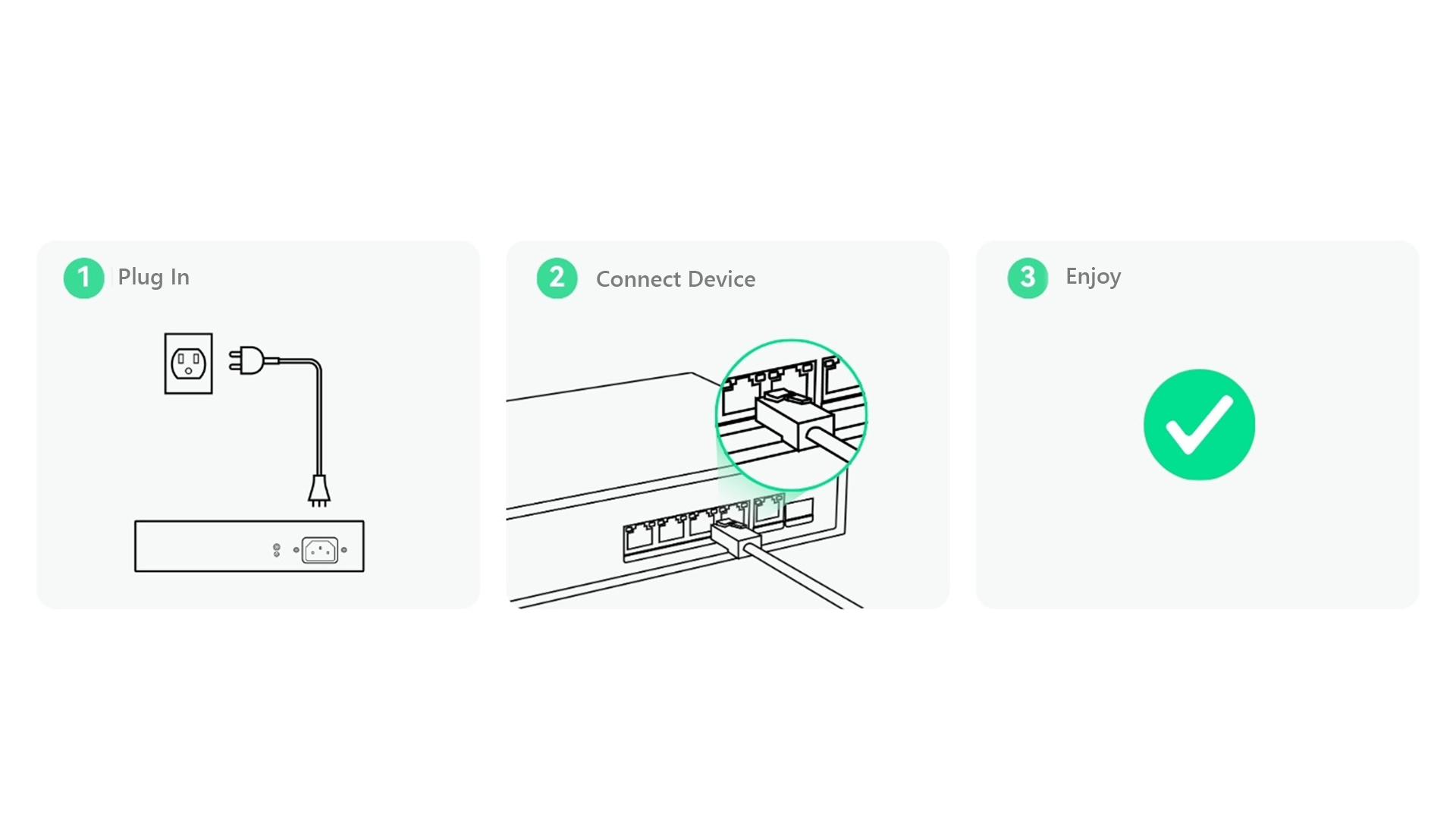

Plug-and-play

Easily Handles Various Networks

Wide-Working-Temperature Designed

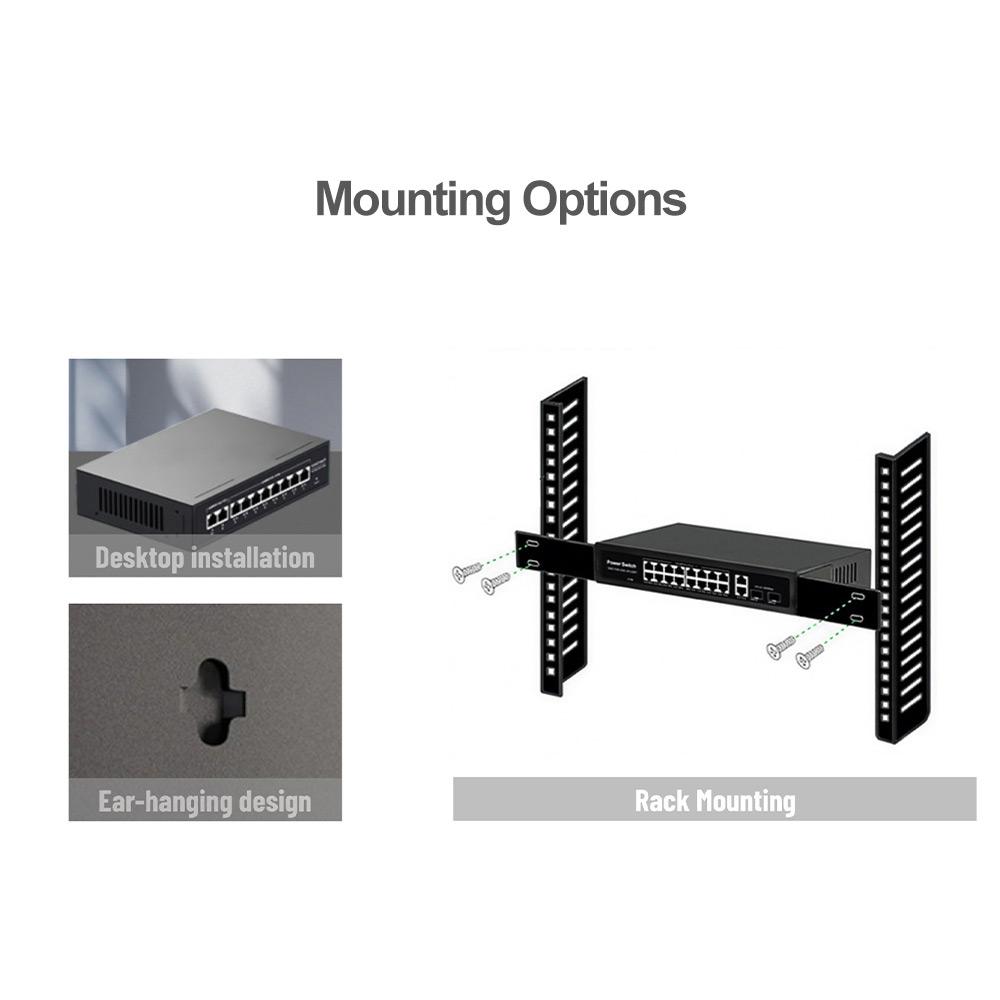

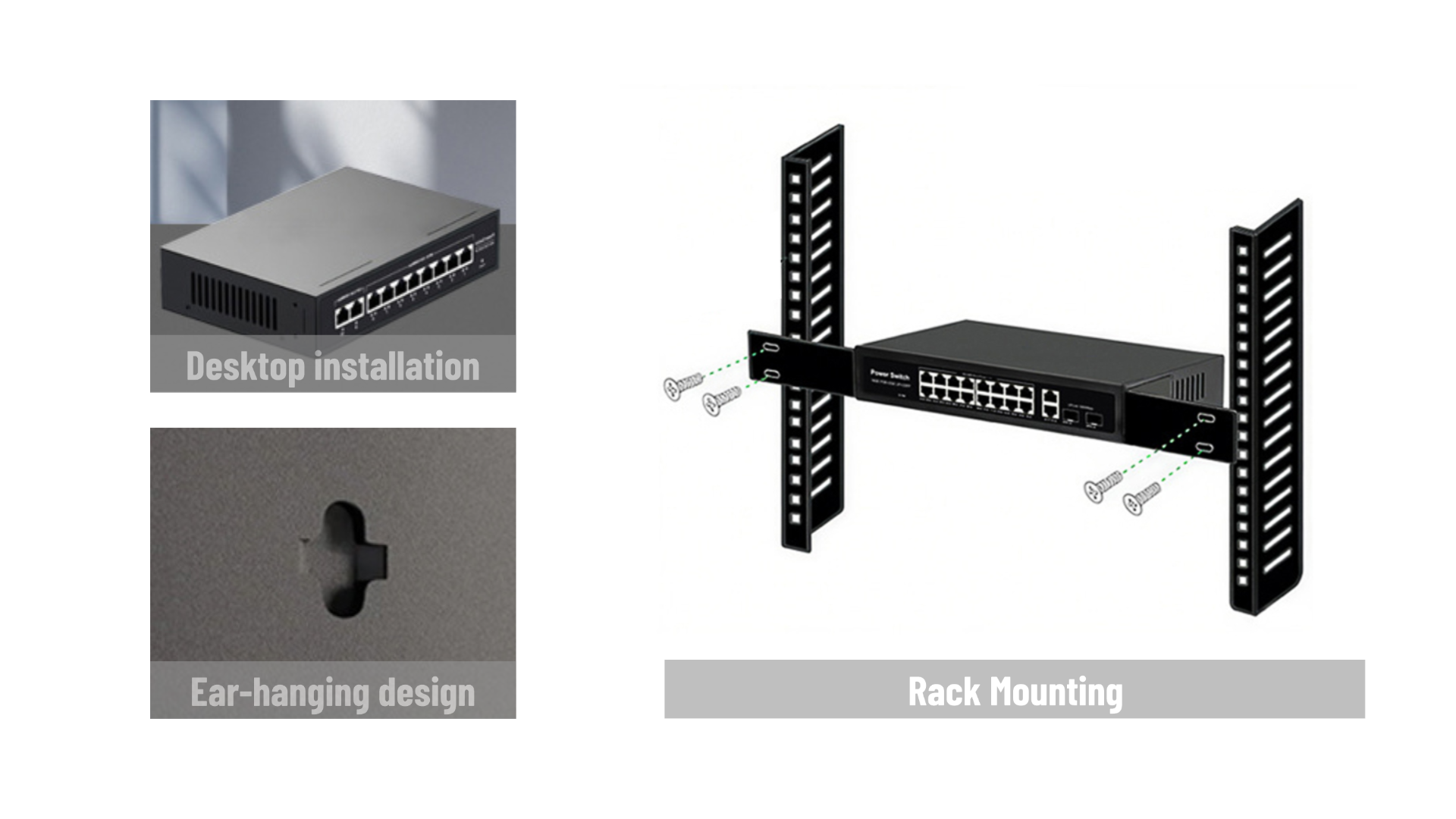

Flexible installation

Specification

Model	RD-104P2U65
Uplink Port	2*10/100Mbps adaptive
PoE Port	4*10/100Mbps adaptive
Total Power	65W
MAC	2K
Memory	768Kb
Frame	2048b
MPPS	0.89Mpps@64byte
Bandwidth	1.2G
100m	In common mode, all ports can communicate with each other

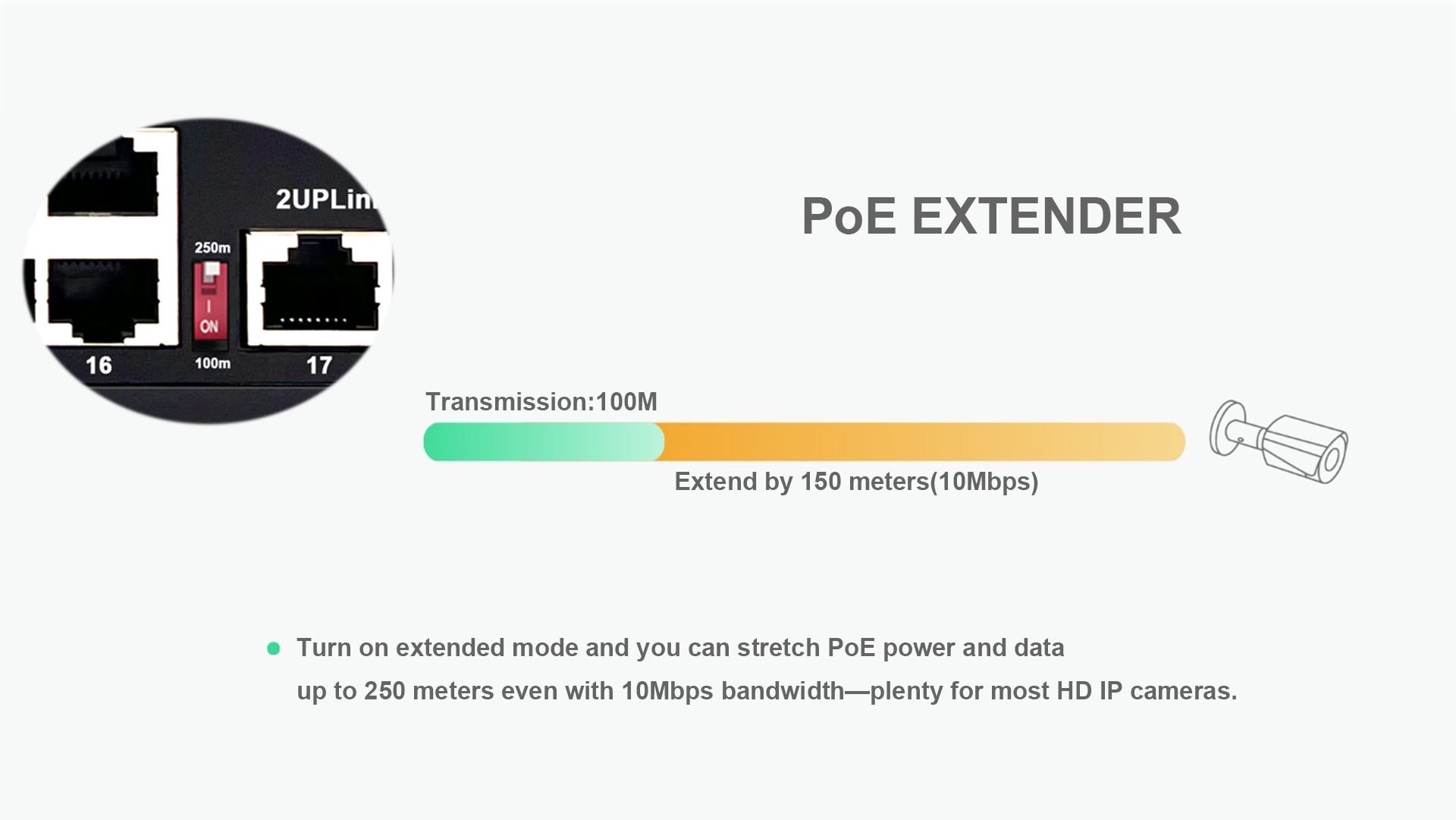

250m	Extended mode, 1-4 ports can transmit up to 250m, while 1-4 ports are isolated from each other and can communicate with 5-6 ports
Input voltage	AC100~240V, 50Hz
Operating	-20°C ~ 60°C
Storage	-40°C ~ 85°C
Humidity	5% ~ 95% No condensation
Size	201×118×44mm
Weight	N.G 0.8kg, W.G 0.9kg

Order Info

Model	Function
RD-104P2U65	Ports: 410/100Mbps POE RJ45 + 2100M Uplink UTP Power Supply: Per Port ≤ 30W & Whole Switch ≤ 60W / 52V / 1.05A Backbone Bandwidth: 1.2G Pin Assignment: Data signal port 1236; Power supply port 1236 (+12 -36) Transmission Distance: 250M Extend Functionality: Yes Supported Agreement: IEEE802.3AT/AF

FAQ

Q1: What is your MOQ request?

A1: Depends on products, different products have different MOQ, pls contact our sales for more details.

Q2: Do you Support ODM/OEM service?

A2: Yes, we can offer the customization service to you.

Q3: Does your products support other brands?

A3: Yes, all of our products is without lock, support to another brands too.

Q4: Are you the manufacturer or trading company?

A4: We are the manufacturer, we support factory view tour.

Q5: Do you offer free samples?

A5: Yes, for some models we are able to provide the free samples for your testing purpose.

Q6: Are you able to provide the local certificates?

A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
