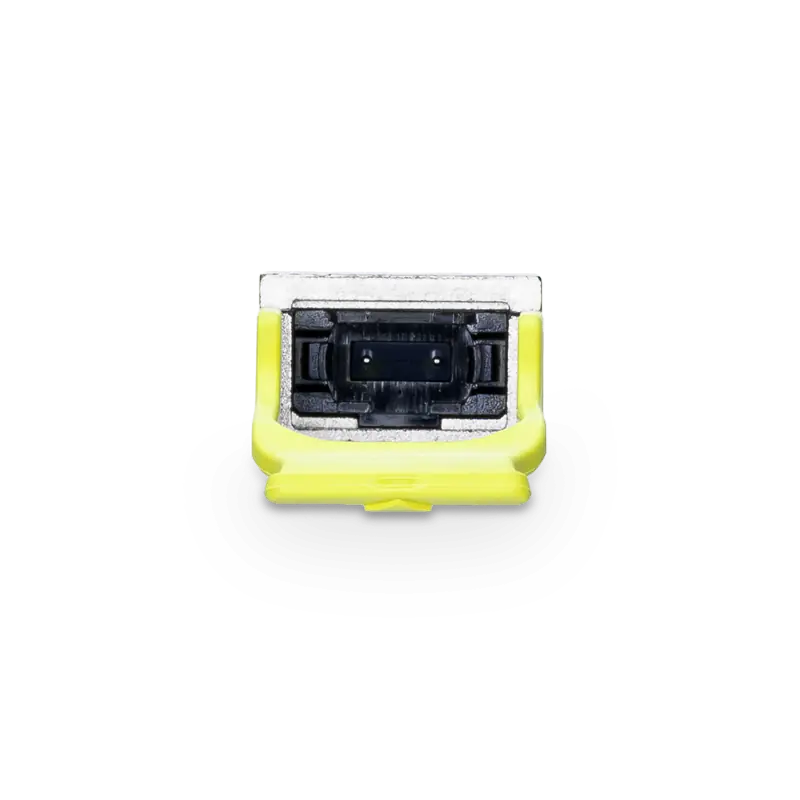

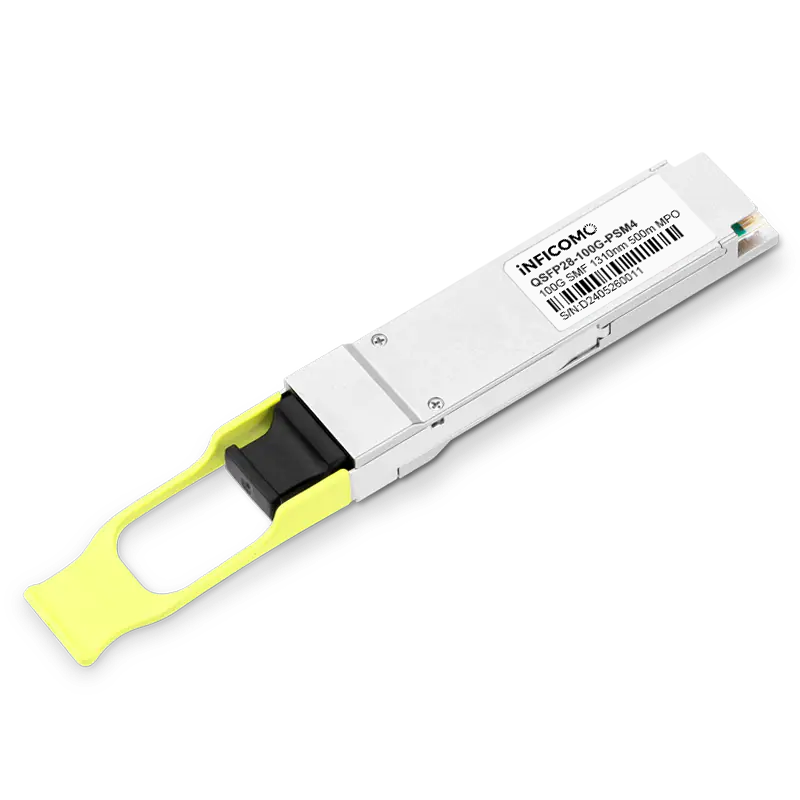

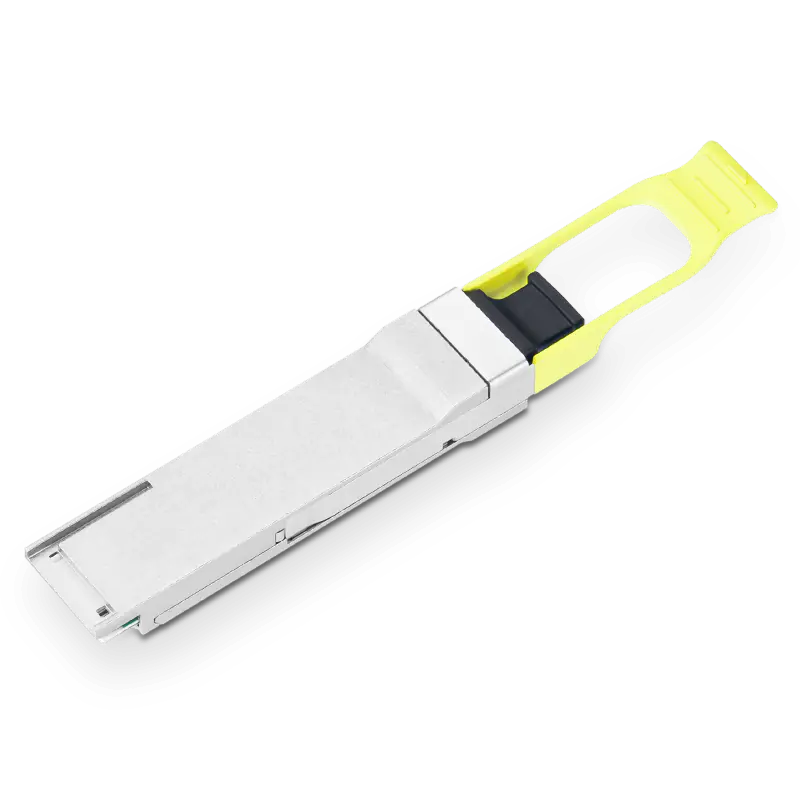

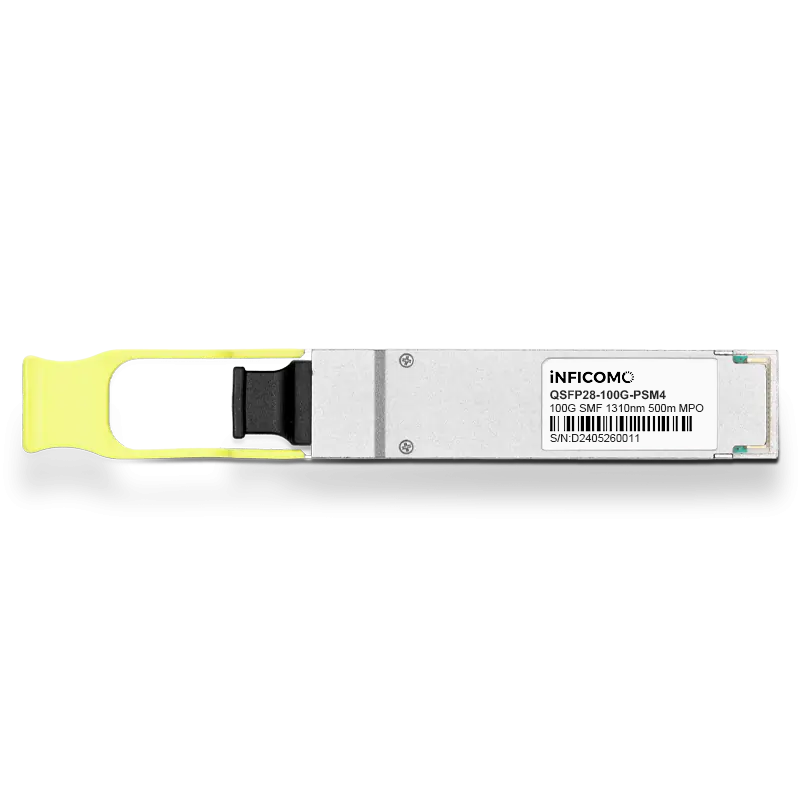

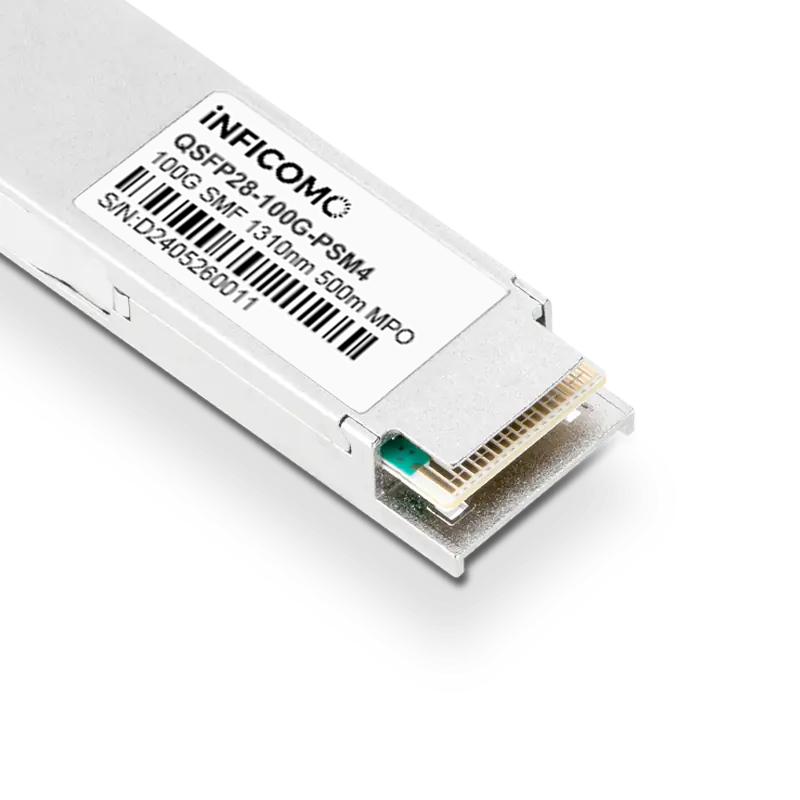

Optical Transceiver Module Compatible 100GBASE PSM4 QSFP MPO 1310nm 500m Over SMF QSFP-100G-PSM4-S

Specification

Part No.

QSFP-100G-PSM4

Form Factor

QSFP28

Max. Data Rate

103.125Gbps (4x 25.78Gbps)

Wavelength

1310nm

Max. Cable Distance

500m

Connector

MTP/MPO-12

Media

SMF

Transmitter Type

4x DFB

Receiver Type

TX Power

-9.4~2dBm

Receiver Sensitivity

-12.66dBm

Power Budget

3.26dB

Receiver Overload

2dBm

Power Consumption

≤3.5W

Extinction Ratio

>3.5dB

DDM/DOM

Supported

Warranty

2 Years

Commercial Temp Range

0 to 70°C (32 to 158°F)

Protocols

QSFP28 MSA Compliant

Quality & Interoperability

Newly-Made, Quality Guaranteed

Tested in Host Devices for Proven Interoperability

Comprehensive Testing Increases Reliability

Order Info

Model	Introduction
QSFP28-100G-SR4	100G QSFP28 MMF 850nm 100m MPO DOM
QSFP28-100G-PSM4	100G QSFP28 SMF 1310nm 500m MPO DOM
QSFP28-100G-CWDM4	100G QSFP28 SMF 1310nm CWDM4 2km LC DOM
QSFP28-100G-LR4	100G QSFP28 SMF 1310nm 10km LC DOM
QSFP28-100G-ER4	100G QSFP28 SMF 1310nm 40km LC DOM
QSFP28-100G-ZR4	100G QSFP28 SMF 1310nm 80km LC DOM

Frequently Asked Questions

Q Can you support OEM services?

Yes, customized OEM products are supported to meet specific deployment requirements.

Q How is quality control managed for these optic modules?

Every single optic module is individually tested in the dedicated test center, and verified for compatibility across a wide range of different network platforms and systems.

Q Is it possible to request a sample first?

Yes, sample units can be provided to verify and evaluate performance and quality.

Q What payment terms are accepted?

Standard payment terms including T/T, Western Union, and secure online orders are fully accepted.

Q What is the typical lead time for orders?

Standard in-stock orders typically ship within 3 days after payment. For bulk quantities or custom products, please coordinate directly with the support team for schedule confirmation.

Q What shipping methods are used and what is the delivery timeline?

Shipments are processed via major international express carriers such as DHL, UPS, FedEx, or TNT. Delivery normally takes 3-5 business days to arrive.

Product Detail

Optical Transceiver Module Compatible 100GBASE PSM4 QSFP MPO 1310nm 500m Over SMF QSFP-100G-PSM4-S

Product Description
