Home > Standard Series > OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network

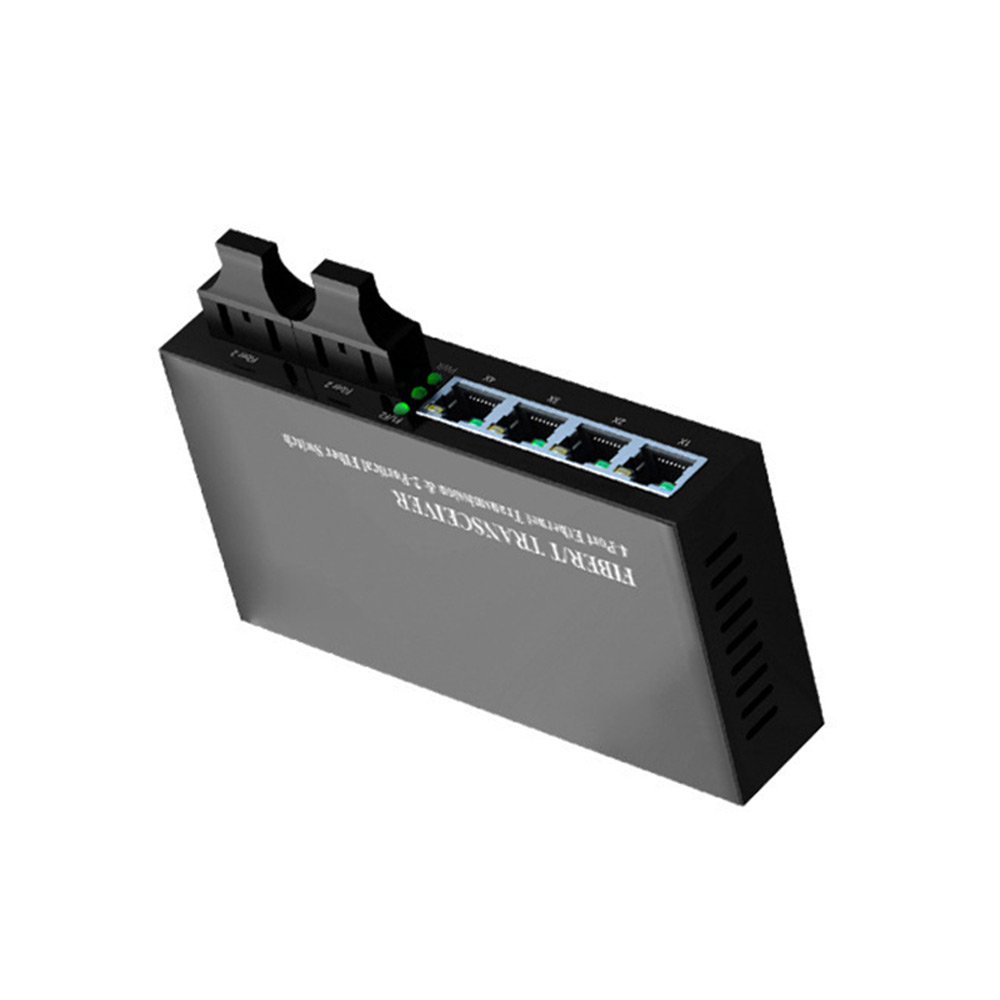

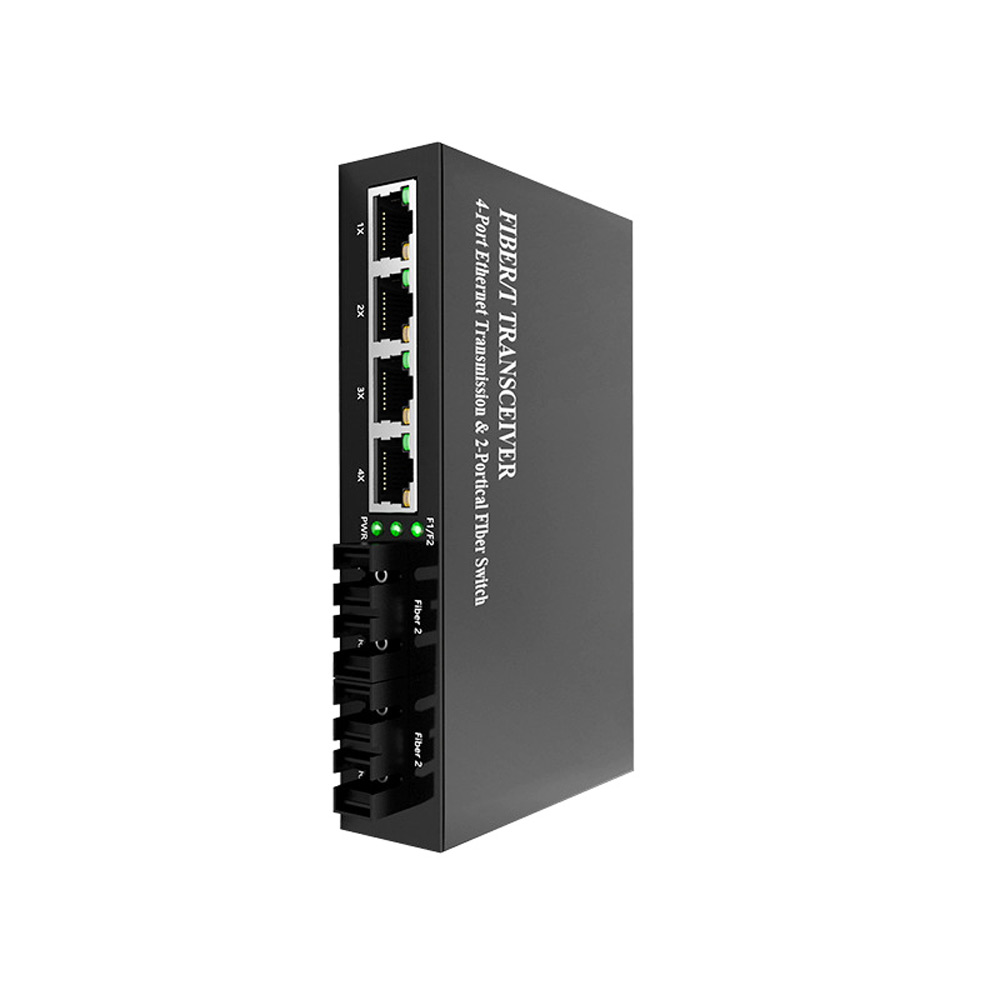

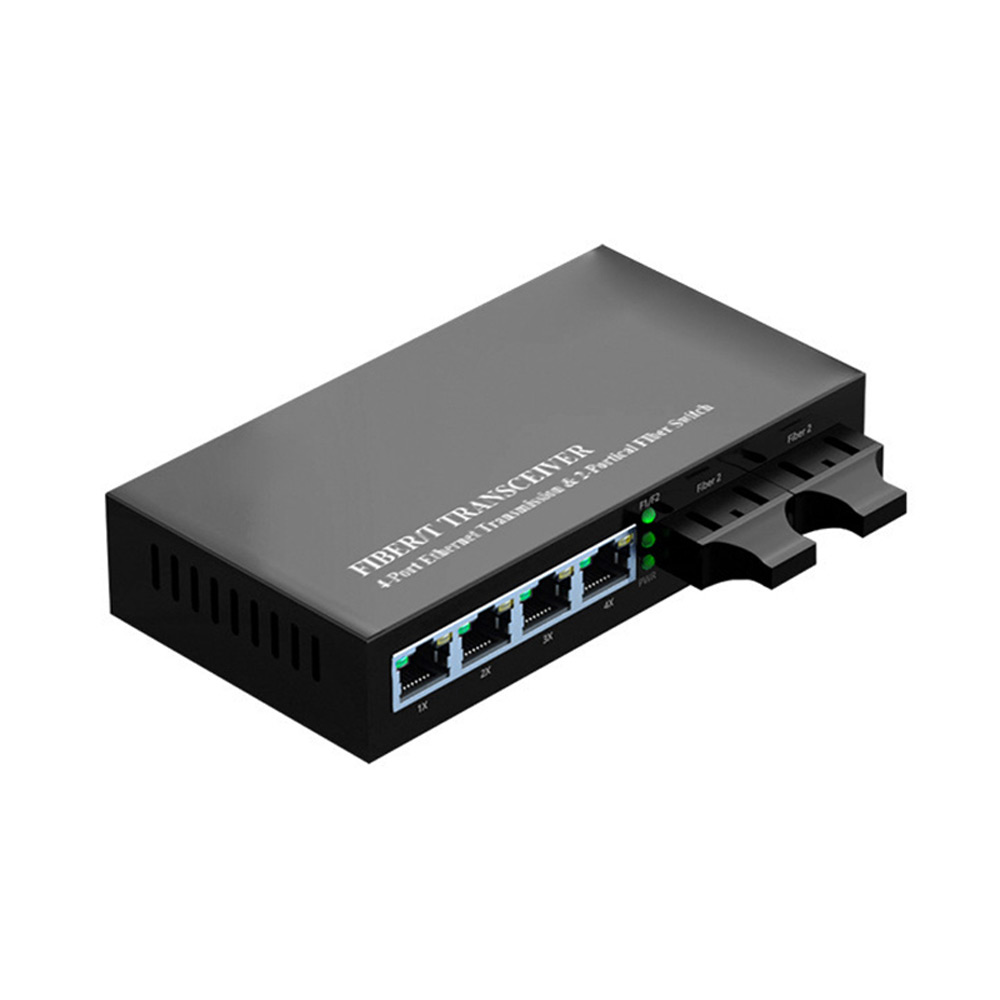

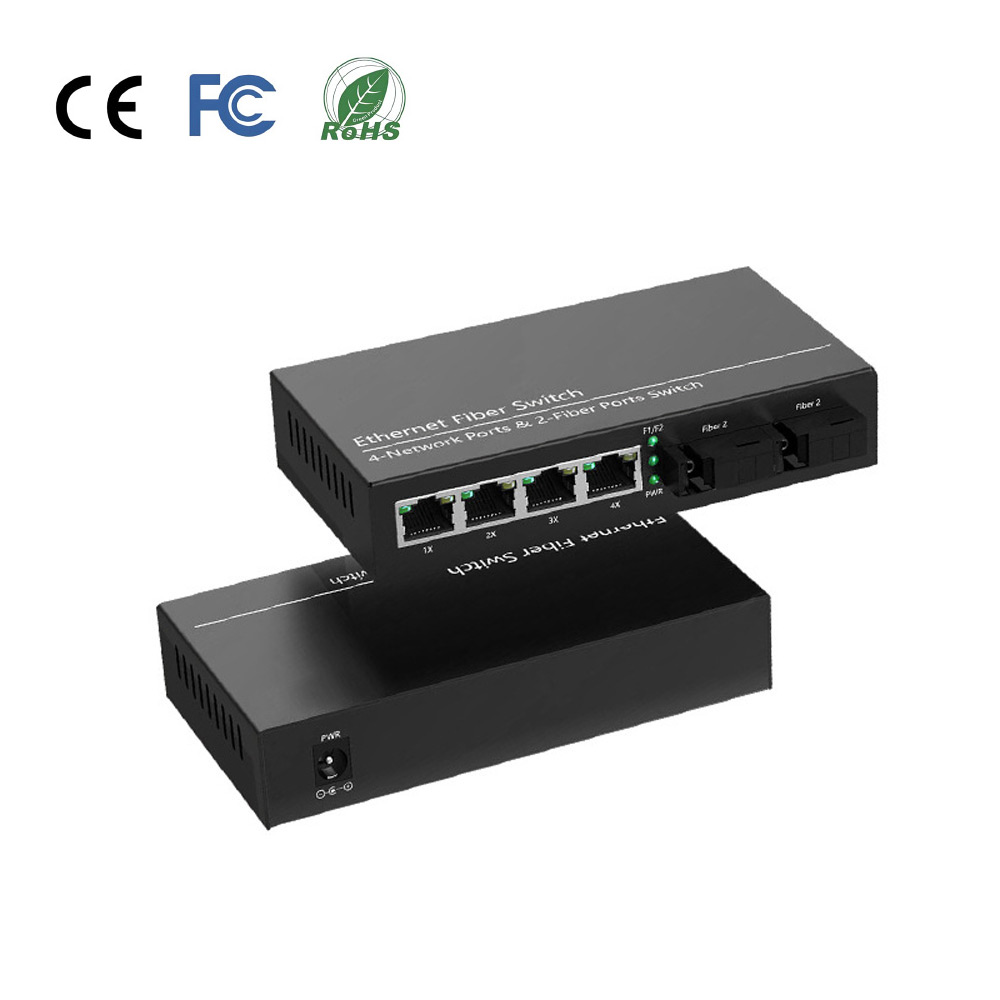

OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network
OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network
OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network
OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network
OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network
1 / 5
OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network
OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network
OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network
OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network
OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network

OEM 20km 2Fiber 8RJ45 Gigabit Fiber Optic Media Converter 10/100/1000Mbps SC for Large Network

Send Inquiry

Product Description

Fiber Switch Interface Side

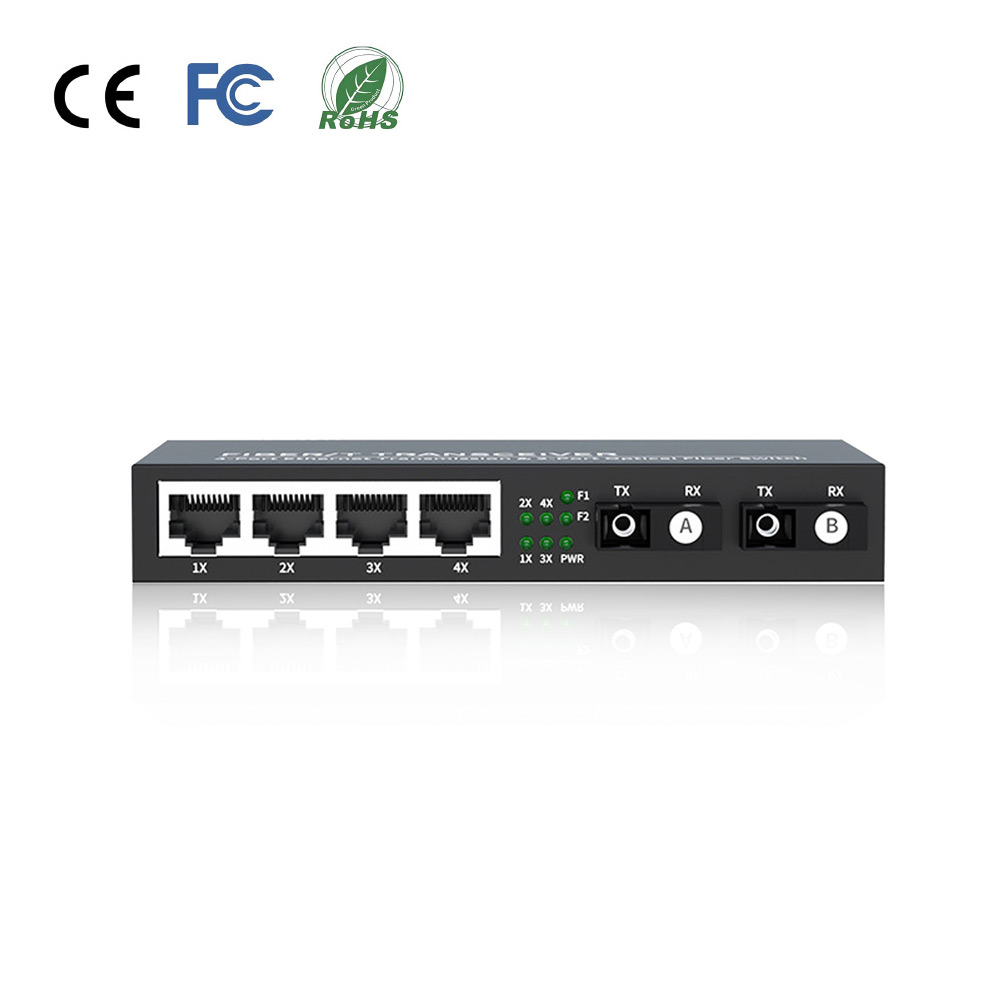

Fiber Switch Port View
🌐 2 Gigabit fiber port with 4*10/100/1000Mbps RJ45 port

Point-to-multipoint high-speed forwarding

Network Topology Diagram
⚡ Plug-and-play, no need for any configuration
Plug and Play Demonstration
📐 Product dimensions and interface definitions
Product dimensions and Ports specification
💡 Application
Application Scenario
Hardware Specifications
Standard ● IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface ● 2*1.25Gbps SC optical fiber interface
● 4*RJ45 10/100/1000Mbps
Distance ● 100m @CTE5
● 20km @SMF
Wavelength ● A: Tx1310nm/Rx1550nm
● B: Tx1550nm/Rx1310nm
Transmission media ● Cable: CTE5 or higher UTP and STP
● Optical Fiber: 9/125um single-mode optical fiber
Optical parameter ● Average emission power: -9 to -3 dBm
● Receiving sensitivity: -22 dBm
Power ● DC12V/2A
Size ● 128mm*78mm*26mm
Environment ● Operating temperature: -5℃ to 60℃
● Operating humidity: 10% to 90% RH (non-condensing)
● Storage temperature: -40℃ to 70℃
● Storage humidity: 5% to 90% RH (non-condensing)
Order Info
Model RD-GE204
Description Fiber Switch 10/100/1000MB 2*SC+4*RJ45 AB
ℹī¸ This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.
FAQ
Q1: What is your MOQ request?
A1: Depends on products, different products have different MOQ.
Q2: Do you Support ODM/OEM service?
A2: Yes, we can offer the customization service to you.
Q3: Does your products support other brands?
A3: Yes, all of our products is without lock, support to another brands too.
Q4: Are you the manufacturer or trading company?
A4: We are the manufacturer.
Q5: Do you offer free samples?
A5: Yes, for some models we are able to provide the free samples for your testing purpose.
Q6: Are you able to provide the local certificates?
A6: Yes, according to the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
