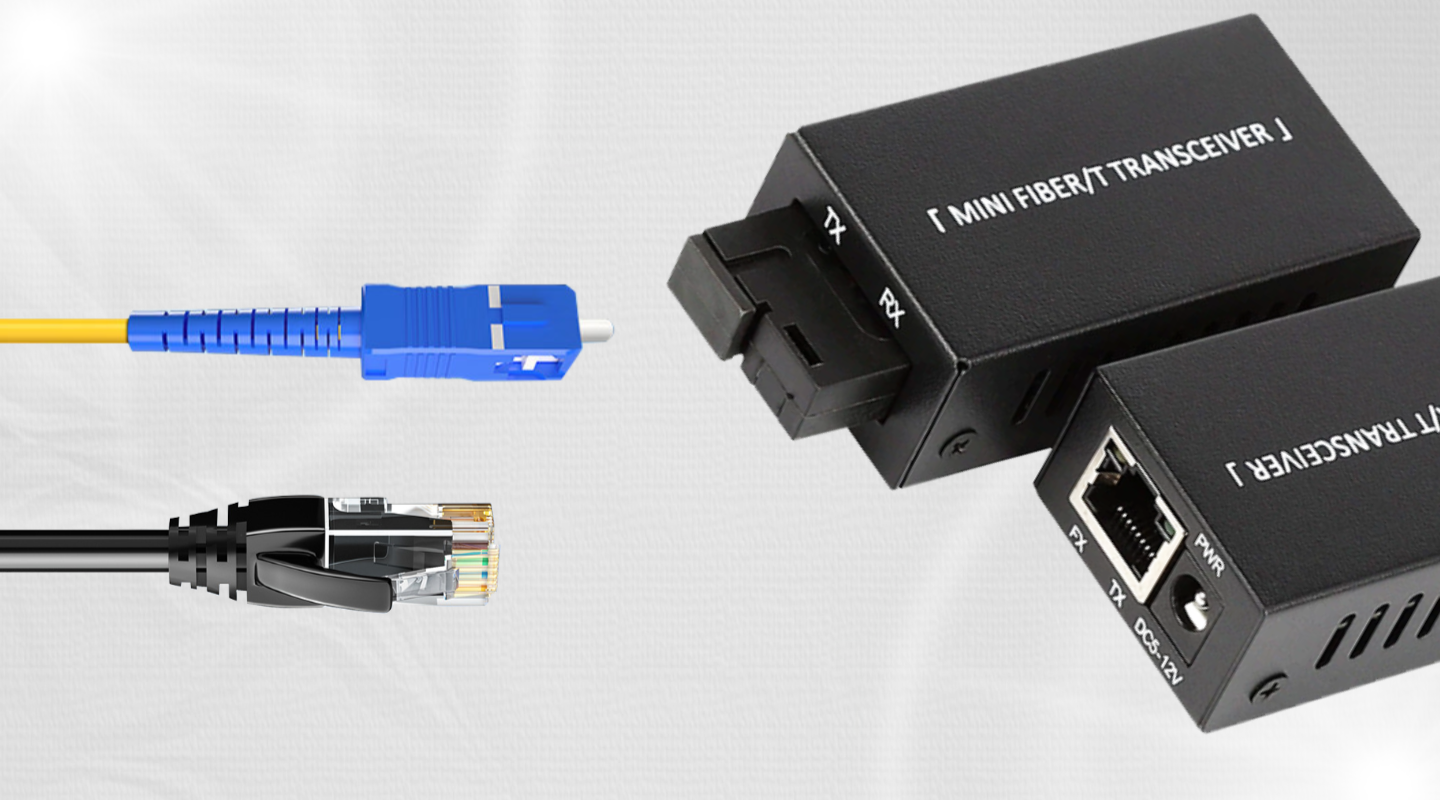

Efficient and Fast Connection. Simply Insert the Fiber Optic Cable to Connect the Device and Start Using It Immediately.
Point-to-point high-speed forwarding
| Specification | |
|---|---|

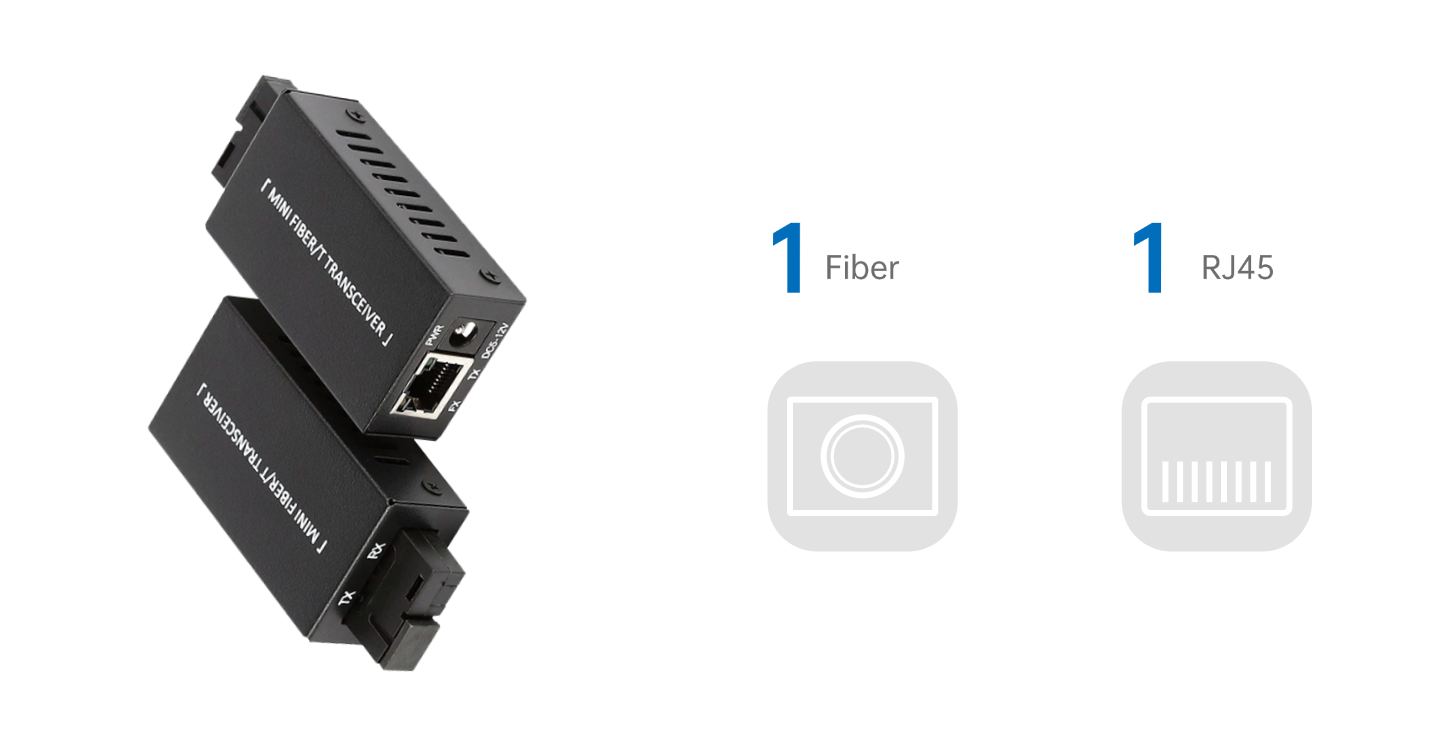

| Fixed Port | 1*10/100/1000Base-TX RJ45 port (Data) 1*1000M Optical Fiber Port |
| Network Protocol | IEEE802.3, IEEE802.3i 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-TX/FX |
| Port Specification | 10/100/1000BaseT(X) Auto |
| Transmission Mode | Store and Forward (full wirespeed) |
| Bandwidth | 1024Mbps |
| Packet Forwarding | 7.2Mpps |
| MAC Address | 4K |
| Buffer | 2.5M |
| MTBF | >100,000 hours |
| Transmission Distance |
10BASE-T: Cat3,4,5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (100 meter) 1000BASE-TX: Cat5 or later UTP (100 meter) Multi mode double fiber (MAX 850M/2KM) Single mode double fiber (default 20KM) Single mode single fiber (default 20KM) Optional 3-120KM Optical Fiber Module |
| Watt | ≤5W |

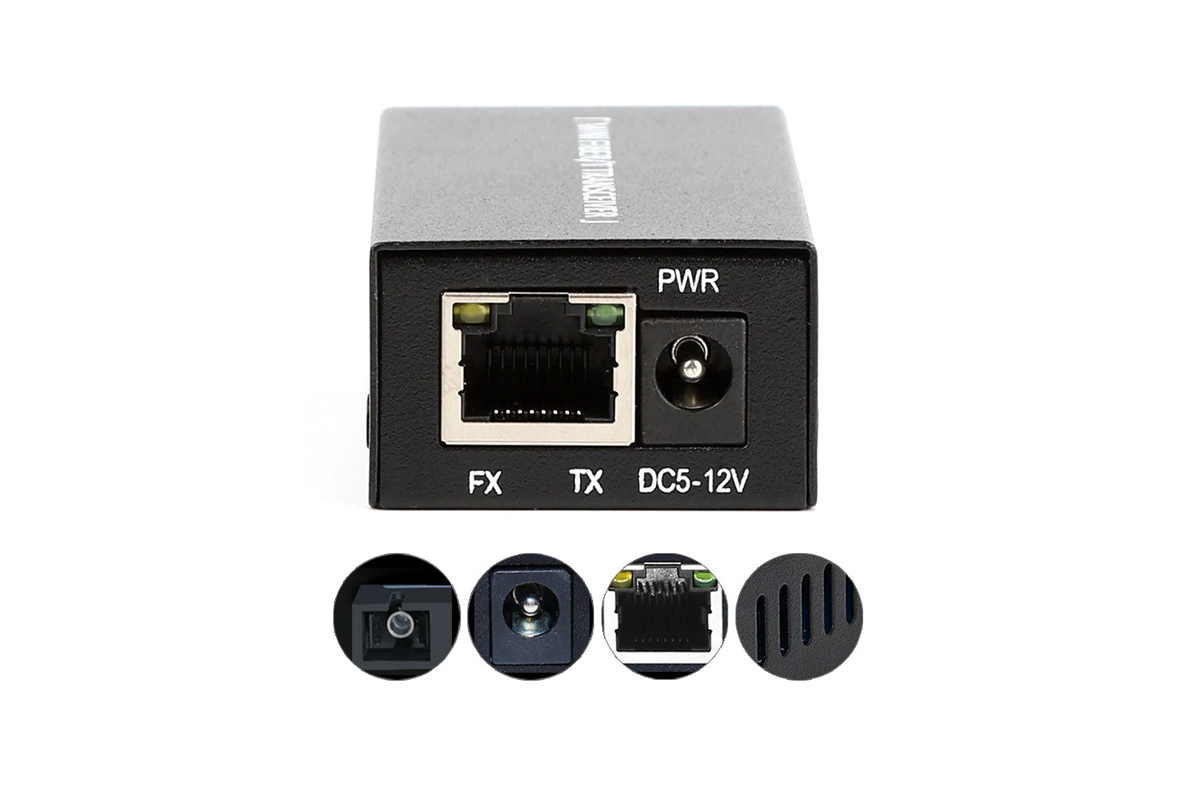

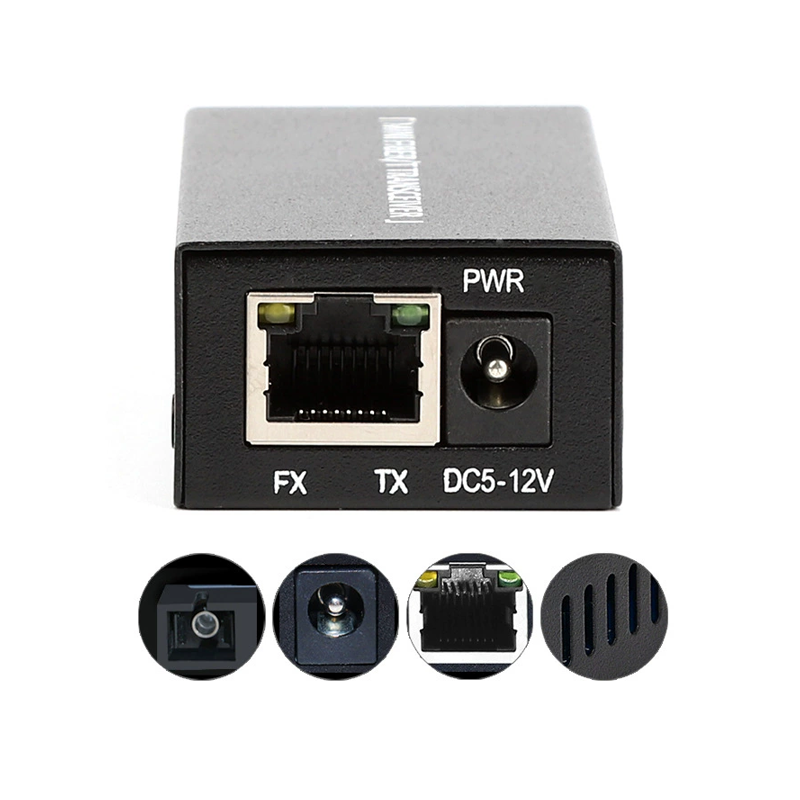

| LED Indicator |
PWR: Power LED PDX: Working status LED TX: Network Port LED FX: (Optical fiber LED) Link/Act (Optical Fiber Port State LED) |
| Power | External power: DC5V; Input: AC100~240V; 50/60Hz |
| Operating Temp/Humidity | 0 to +70°C; 5% to 90% RH Non-coagulation |
| Storage Temp/Humidity | -20 to +75°C; 5% to 95% RH Non-coagulation |

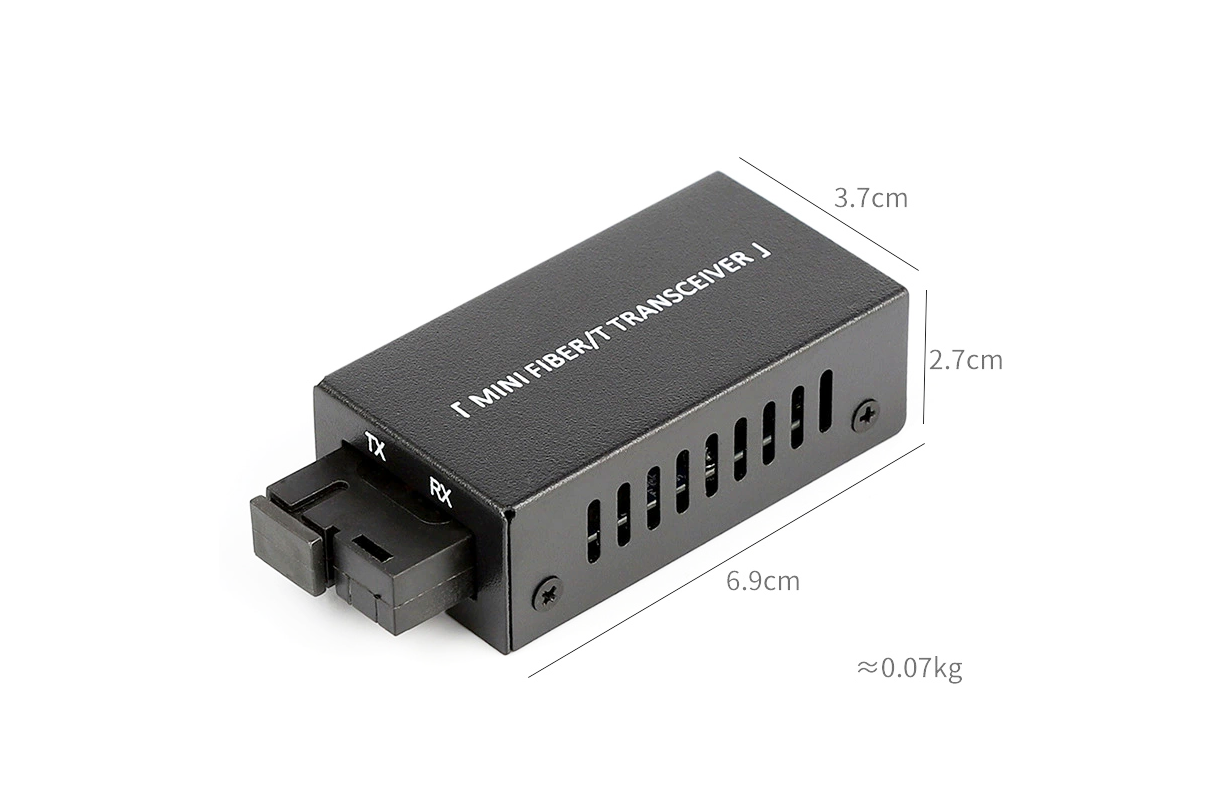

| Product / Packing Size | 67mm*42mm*22mm / 230mm*125mm*55mm |
| N.W/G.W | 0.18kg / 0.36kg |
| Installation | Desktop (optional wall hanger + machine hanger parts) |
| Lightning Protection Level | 3KV 8/20us, IP30 |
| Certificate | CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS; CNAS; MA |
| Warranty | Whole device for 1 year |
| Order Info | ||
|---|---|---|
| Model | Introduction | Function |
| RD-GS5601-M20A RD-GS5601-M20B |

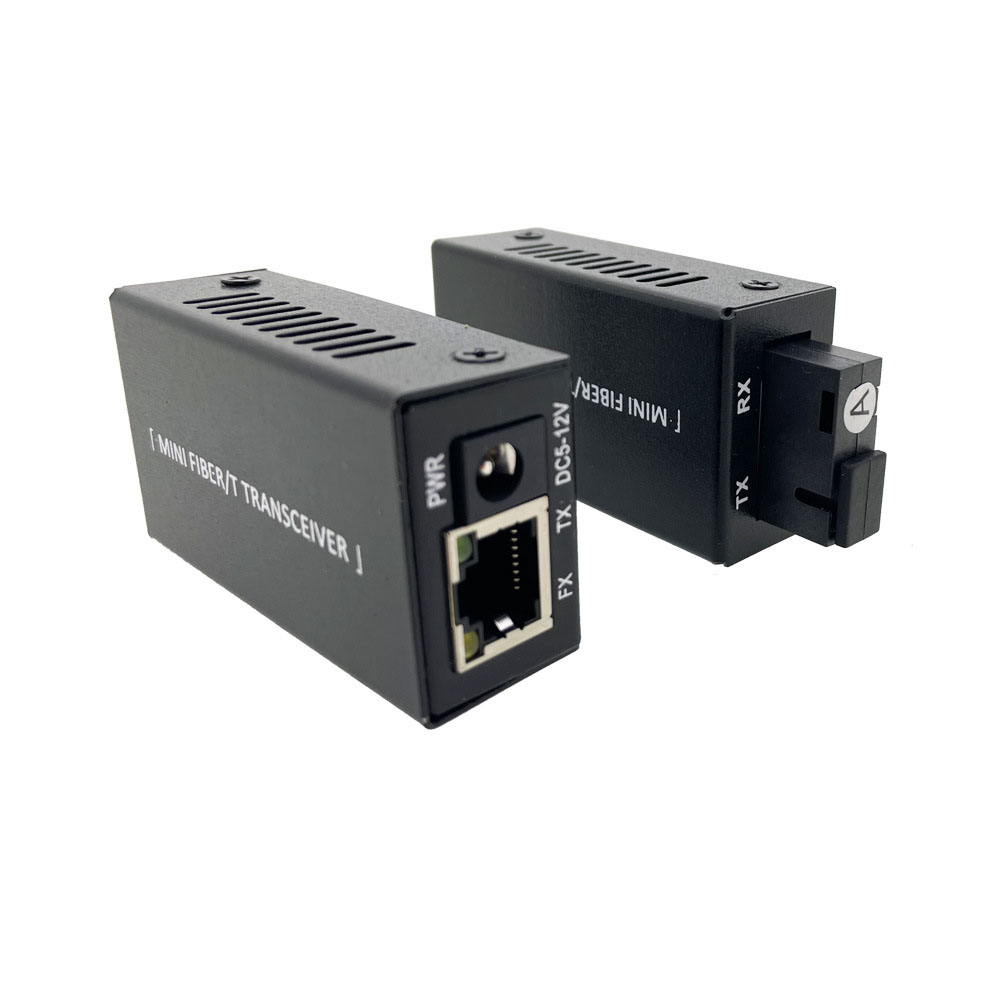

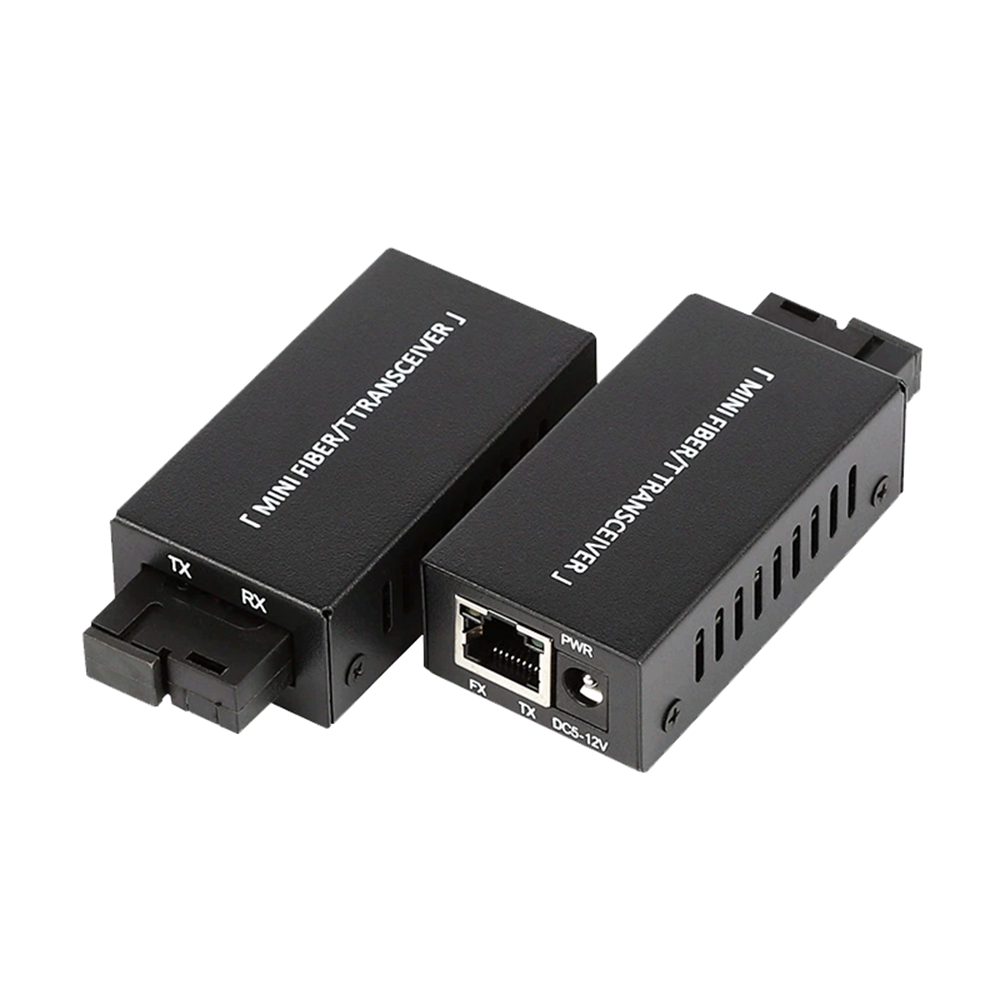

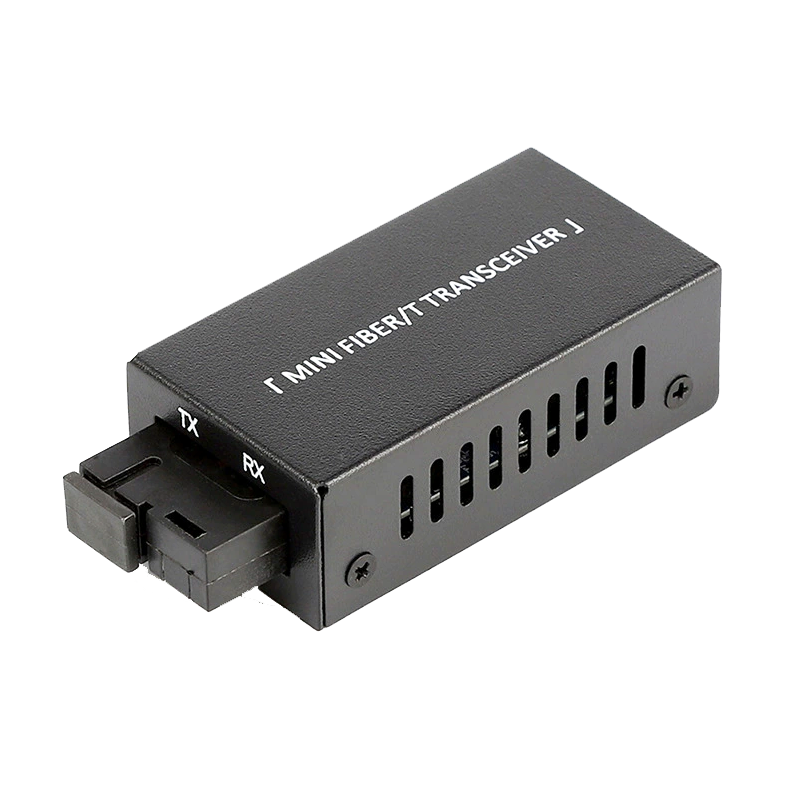

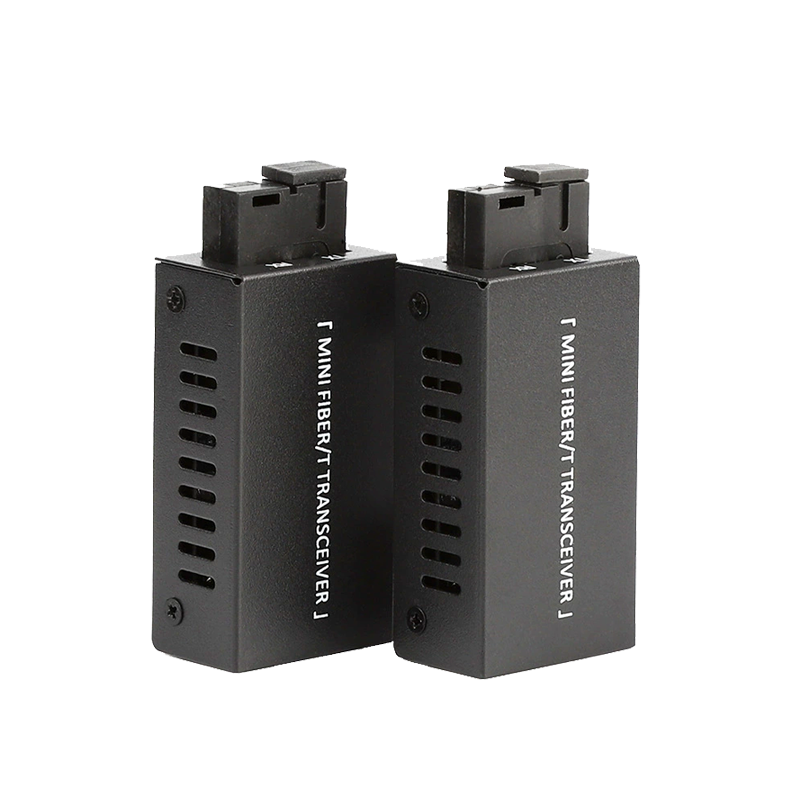

Mini Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS5601-20A RD-GS5601-20B |
Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm Fiber Media Converter, 10/100/1000Mbps 1*Simplex SC - 1*LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm |
| RD-GS5601-S20 | Fiber Media Converter 10/100/1000Mbps 20km | Fiber Media Converter, 10/100/1000Mbps 1*Duplex SC - 1*LAN SM 20km SC DC5V power supply, TRx:1310nm |
| RD-GS5601-SFP | 10/100/1000MB to SFP Media Converter | 10/100/1000M media converter, 1*RJ45+1*SFP port, External DC5V power supply. |
| RD-GS5601-SFP MINI | MINI 10/100/1000MB to SFP Media Converter | 10/100/1000M media converter, 1*RJ45+1*SFP port, media converter only |
| RD-GS5601-SFP PCBA | MINI 10/100/1000MB to SFP Media Converter PCBA | 10/100/1000M media converter, 1*RJ45+1*SFP port, Board only. |
