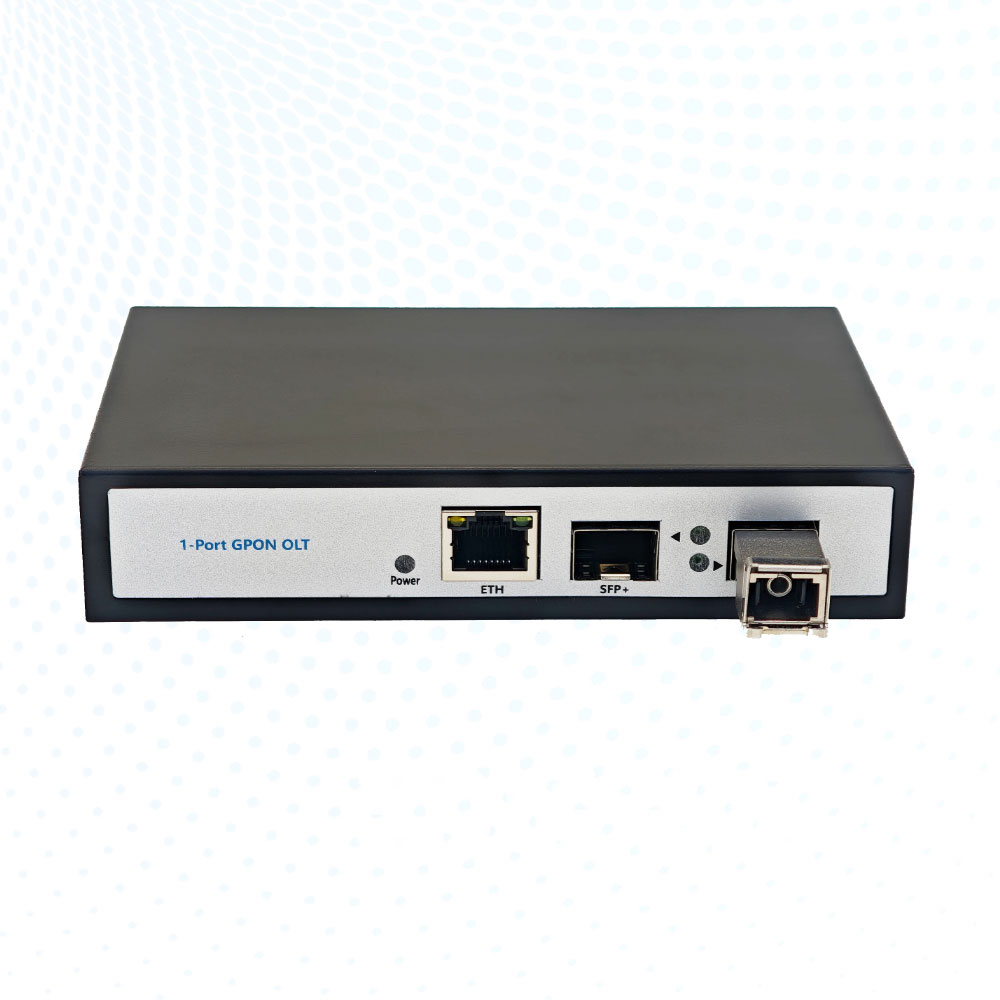

Mini GPON OLT 1 Port Fiber OLT for FTTH ISP and Telecom Operators

Product Description

Optical Network Terminal Showcase
Product Design
Product Design View 1
Product Design View 2
Product Design View 3
Specification
Item Specification
PON Port
  • 1*GPON (Class B+ / C+)
  • Uplink 1.244Gbps, Downlink 2.488Gbps, 20Km
  • Maximum Split Ratio 1:128
Uplink Ports
  • 1*10/100/1000Base-T RJ45 (2.5Gbps optional)
  • 1*10G Base-X SFP+ Optical Port
Dimensions
  • 140mm x 87mm x 28mm (L x W x H)
Weight
  • < 1 Kg
Power Consumption
  • < 18W
Power Supply
  • DC Input: 12V/2A
  • POE (Optional)
Operating Temperature
  • -10°C ~ +50°C
Storage Temperature
  • -40°C ~ +70°C
Operating Humidity
  • 5% ~ 95% (Non-condensing)
Software Features
Management GPON Functionality
  • CLI (Telnet/SSH)
  • Web UI (HTTP/HTTPS)
  • Compliant with ITU-T 984.x
  • Dynamic Bandwidth Allocation
Layer 2 Switching Security & Maintenance
  • 2K MAC Address Learning
  • Supports 4K VLANs
  • Supports Port VLAN: ACCESS / TRUNK
  • Multicast, Broadcast, Unknown Unicast Storm Control
  • Access Control List
  • Performance Statistics
  • ONU Authentication: SN/Password/Loid
  • Supports Data Encryption
  • Supports Uplink/Downlink FEC
  • Diagnosis and Link Monitoring
  • ONU Upgrade
Multicast
  • IGMPv2/IGMPv3 Snooping
Company Profile
Production Facility
FAQ
? Who Are We?
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a dedicated team serving global clients.
? How Do We Guarantee Quality?
  • Pre-production samples before mass production
  • 100% final inspection before shipment
? What Can You Buy From Us?
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
? Why Choose Us?
We are a top-tier optical communication supplier with a strong engineering team focusing on PON and switching solutions. We deliver reliable products and value-added service for partners worldwide.
? What Services Can We Provide?
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more.
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Languages: English, Chinese, Spanish, French, Russian, and more.
