Product Description

GPON OLT 8 Port
G5600V8 is a highly integrated, medium-capacity box-type GPON OLT. It can be widely used in operator FTTH access, private network access, government and enterprise park access, campus network access, and other access network construction.

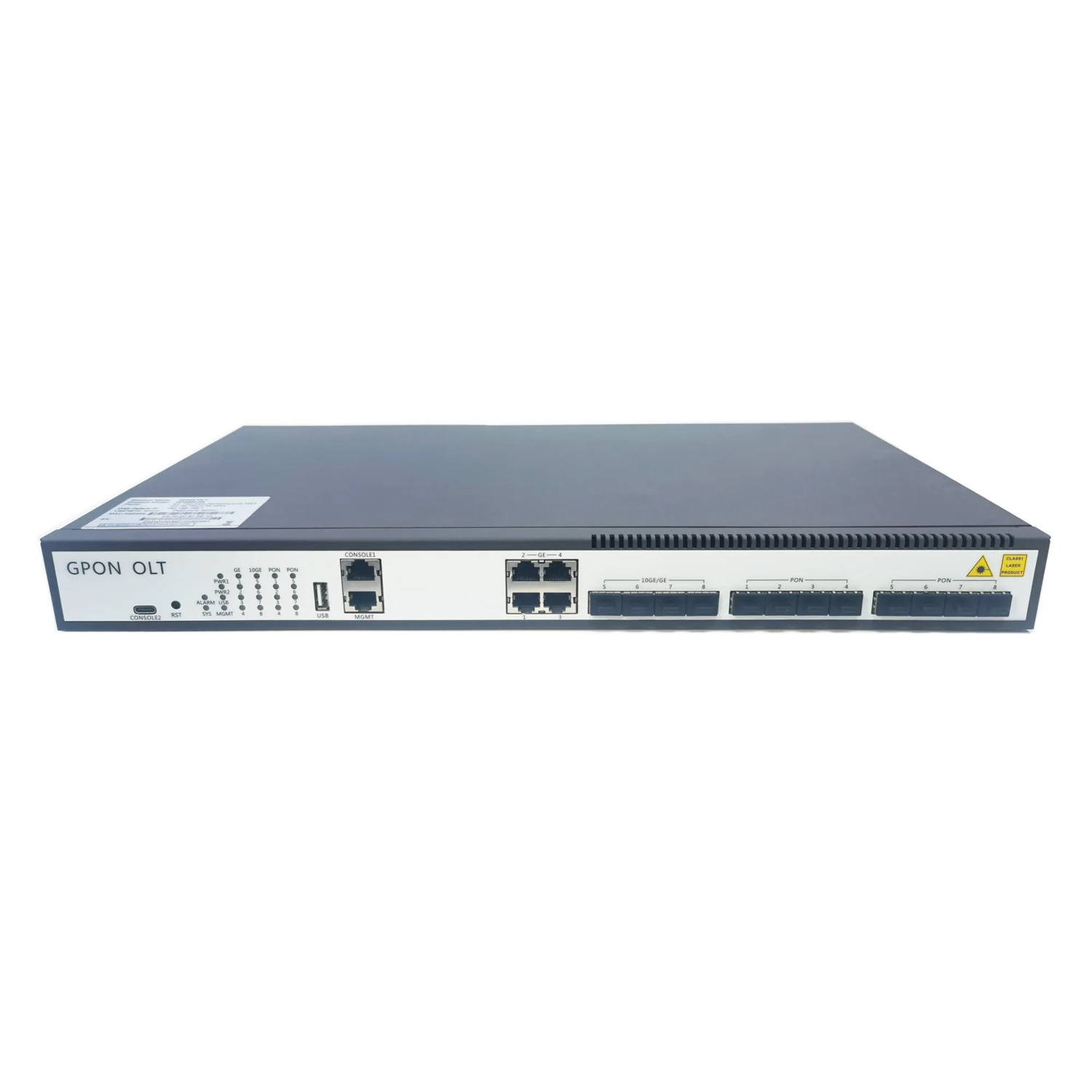

GPON OLT 8 Port Front View

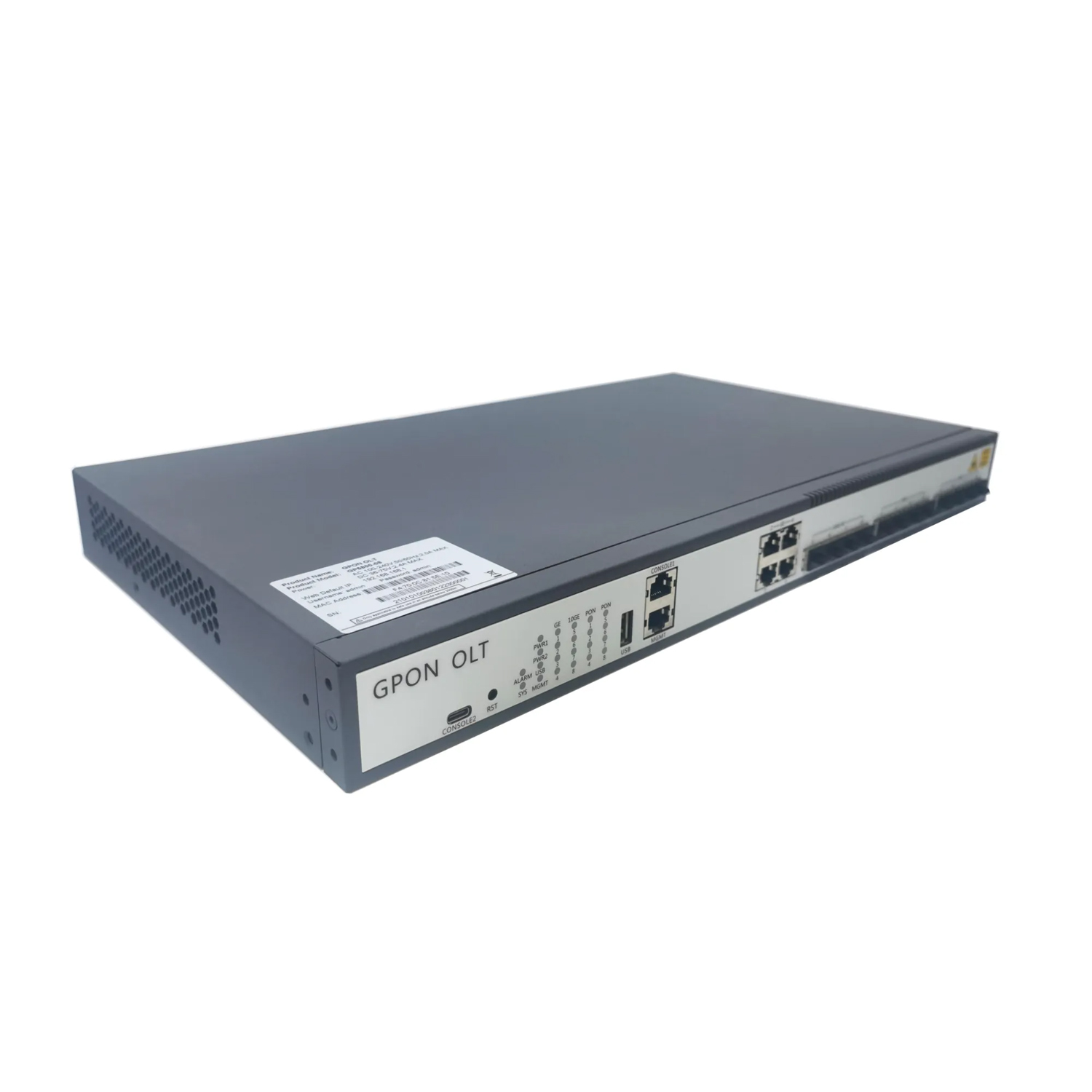

GPON OLT 8 Port Detail View
Specification
Attributes Description
Interface 8*GPON Port, 4*10/100/1000M Base-T;
4*1000M Base-X SFP/4*10GE SFP+
Exchange Capacity 118Gbps
Forwarding Rate 87.792Mpps
Memory & Flash DRAM: 2GB; Flash: 8GB
Management Port Console, MGMT, Type C
PON Comply with ITU-TG.984/G.988
Standard 60KM transmission distance;
1:128 Max splitting ratio; Standard OMCI management function
Open to any brand of ONTs; ONU batch software upgrade
Fan Fixed fans (three fans)
Power AC: 100~240V 47/63Hz;
DC: -36V~-75V
Power Consumption ≤55W
Weight ≤5kg
Dimensions (W *H *D) 440mm*44mm*260mm (not including mounting ears)
Environment Temperature Working Temperature: -10°C~55°C
Storage Temperature: -40°C~70°C
Environment Humidity Relative Humidity: 5%~95% (non-condensing)
Key Feature
✓ Maximum split ratio of 1:128, connecting up to 1024 ONTs
✓ Rich Layer 2/3 switching features, flexible management methods
✓ Comply with ITU-TG.984/G.988 standard
✓ Support FlexLink, STP, RSTP, MSTP, ERPS, LACP, ACL, QoS
✓ Support 64K MAC address
✓ Support RIP, OSPF, BGP, ISIS and IPV6
✓ Support ONU authentication, FEC, AES, DBA, Rogue ONU detection
✓ Support CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0, OMCI protocol
✓ Support Power redundancy backup
✓ Support batch software upgrades on ONUs
✓ Flexibly compatible with any brand of ONTs
Purchase Info
Model Number Description
G5600V8 8*GPON port+4GE RJ45+4*10GE/GE SFP uplink port
GPON PON Transceiver (GPON SFP-Transmit 1490nm/Receive 1310nm, 7dBm, SC interface-Class C++)
AC/DC optional dual power supply
EU & US power plug optional
FAQ
Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
OEM, ODM Service is available?
Support.
What is your MOQ?
No MOQ for any sample test.
Can I have a sample order for this product?
Support.
For Trade Terms, such as payment?
• Payment Terms: We mainly support T/T bank transfer, Paypal and Western Union.
• Price Terms: EXW.
• Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.
How about the Warranty?
Most products come with a 24-month warranty. Human causes and other brands are not included.
