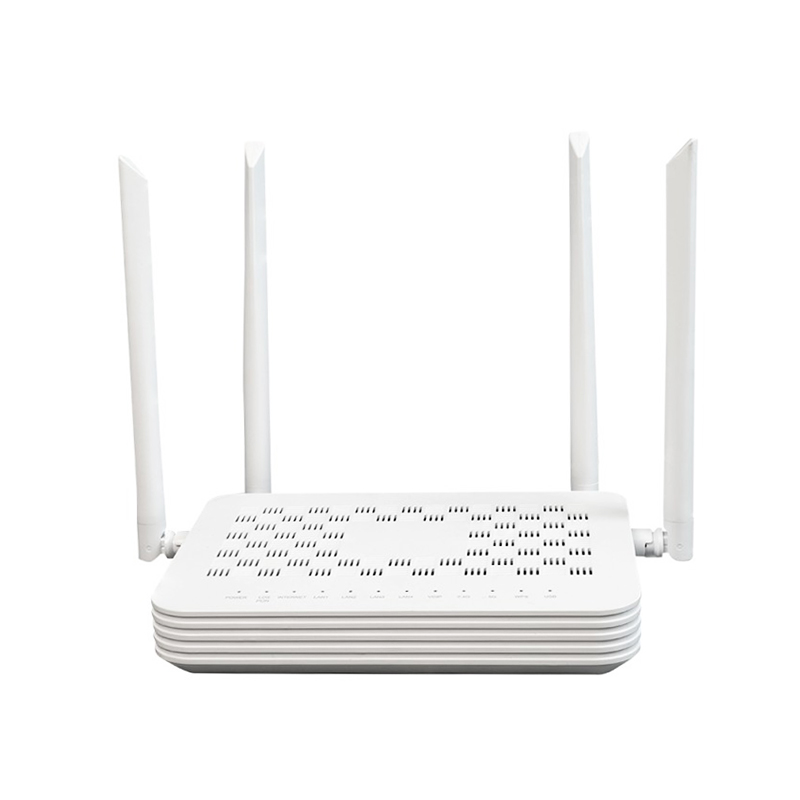

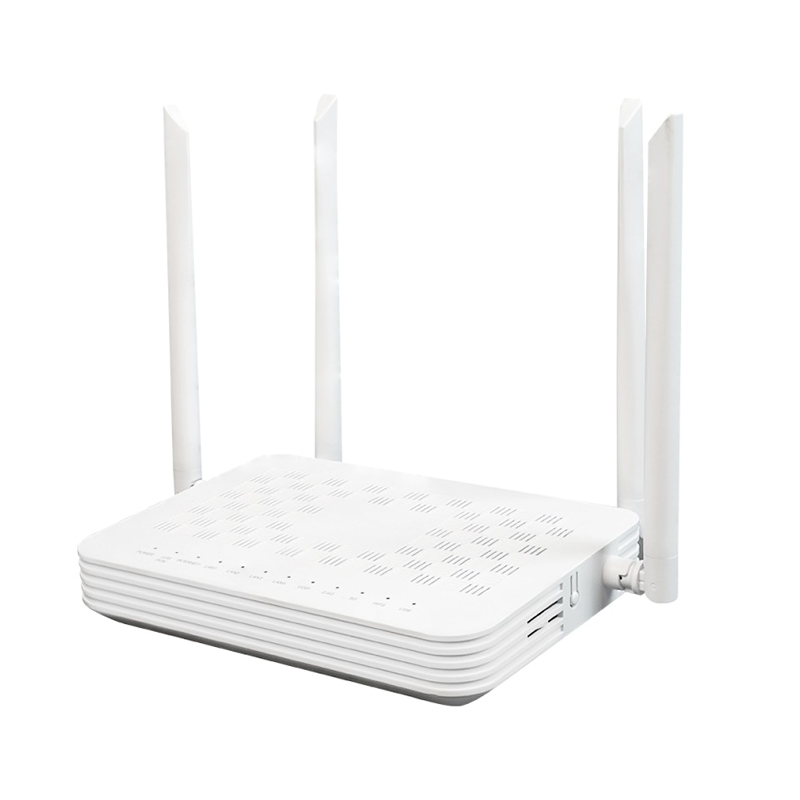

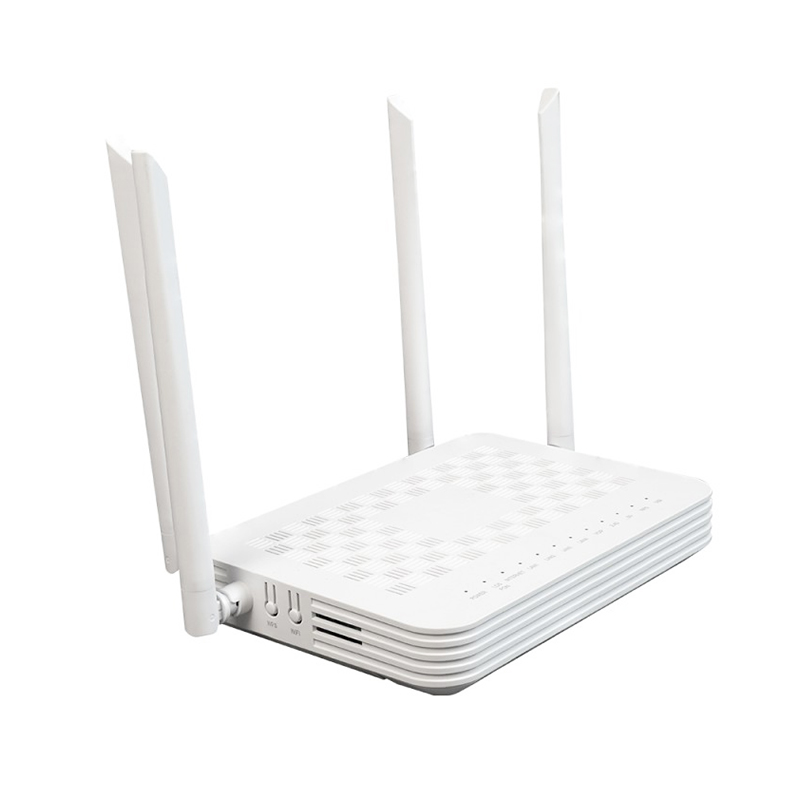

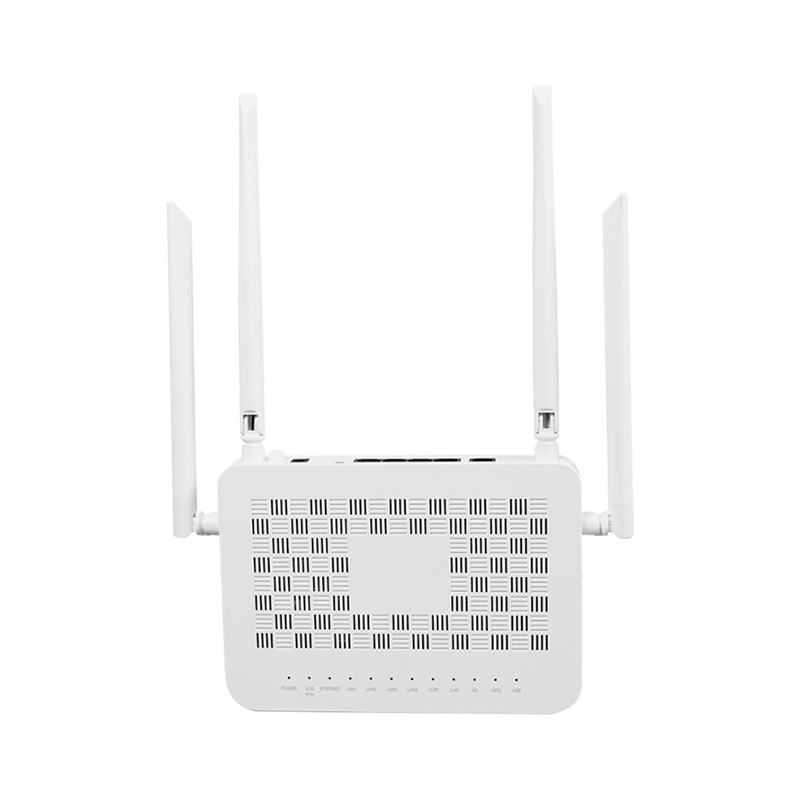

Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT
Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT
Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT
Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT
Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT
1 / 5
Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT
Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT
Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT
Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT
Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT

Intelligent XPON 4GE+USB+2.4GHz 5GHz Dual-Band WIFI5 AX1200 Router ONU ONT

Send Inquiry

Product Description

EPON/GPON Dual-mode Access
EPON/GPON Dual-mode Access Reduce the Investment of Operators

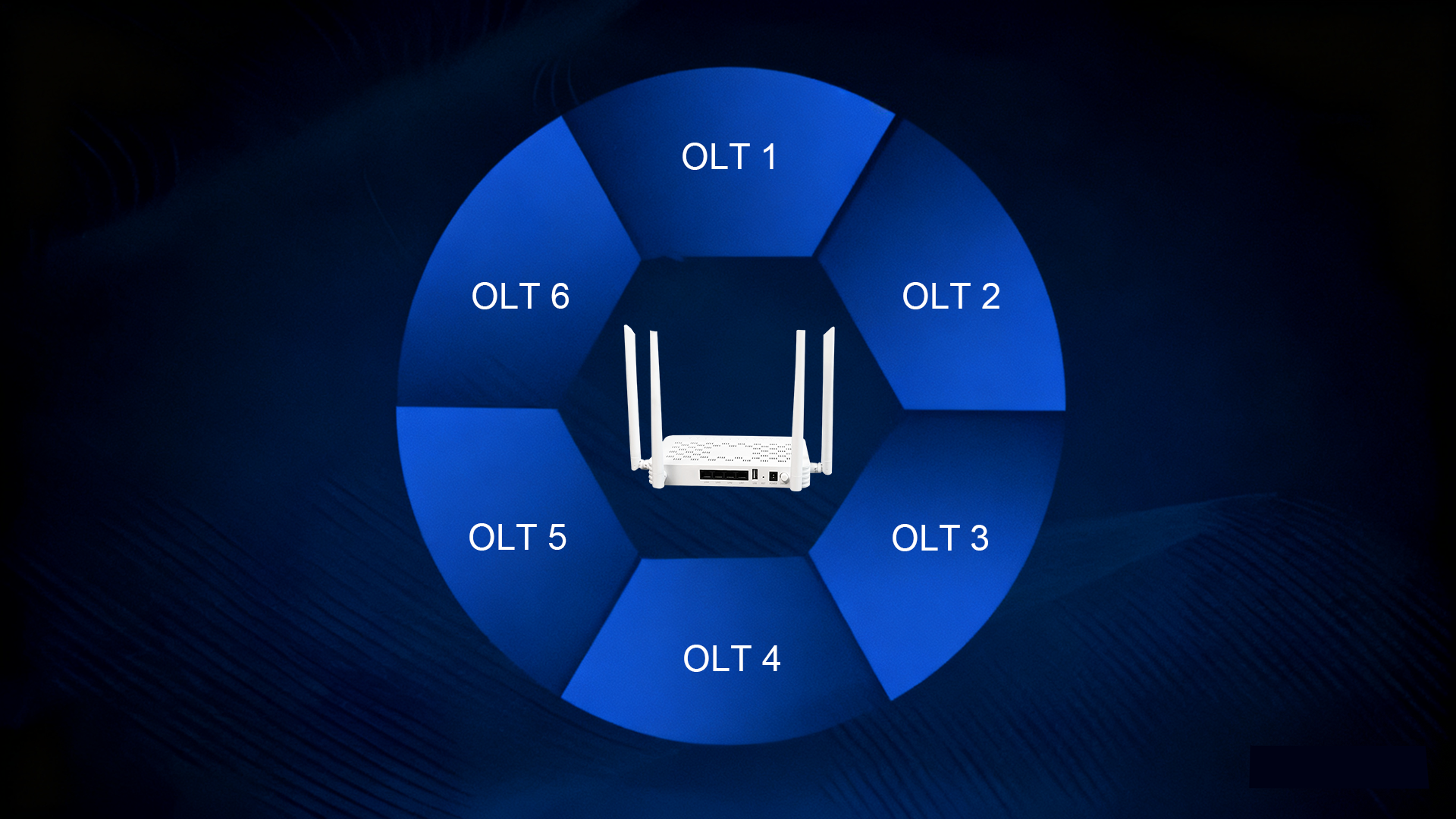

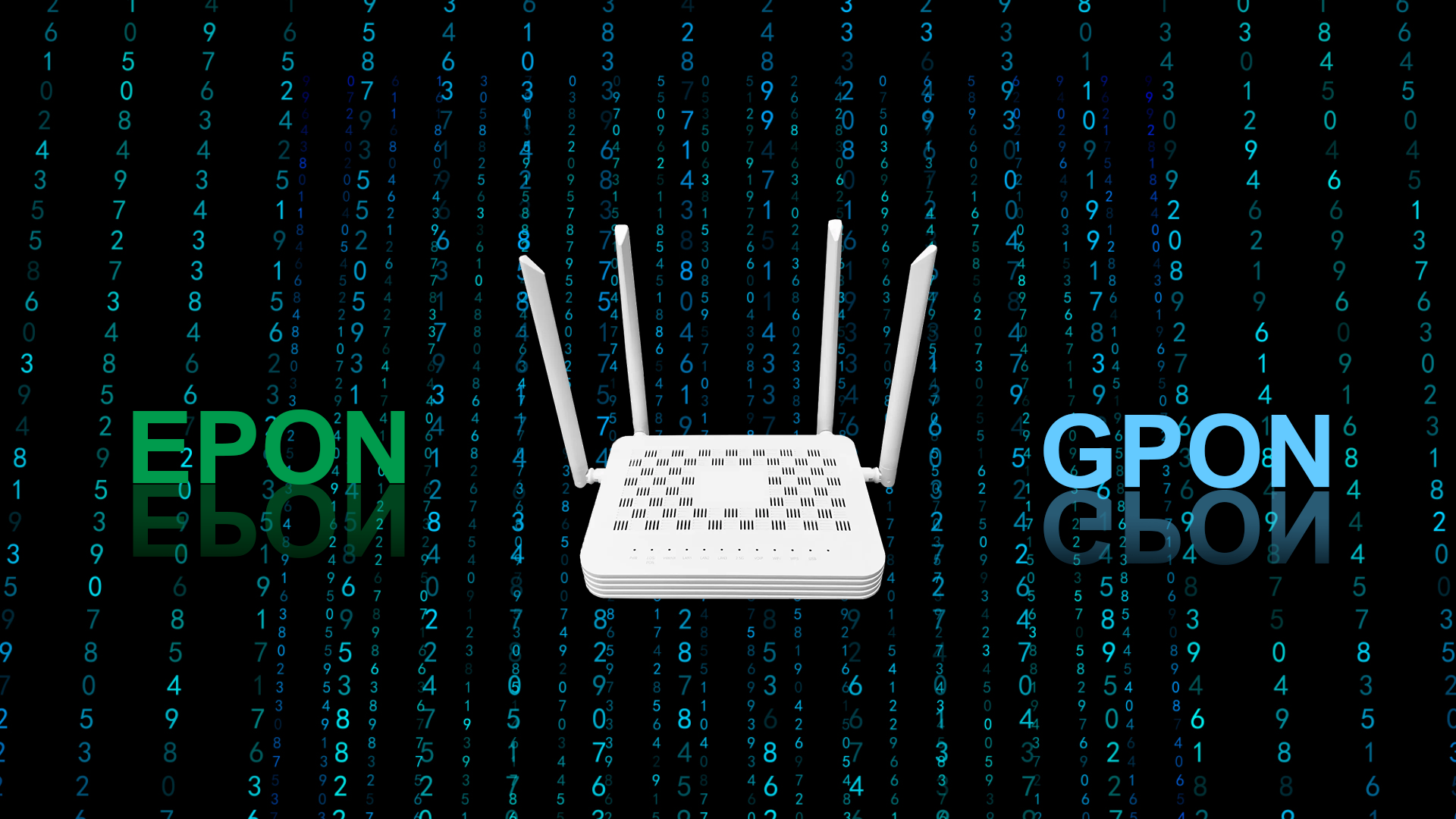

Compatible with Various OLT
Compatible with Various OLT, Flexible Networking
2.4G+5G Dual-band WiFi
2.4G+5G Dual-band WiFi, High-Speed Connection
Wide temperature range stability
Not afraid of harsh environments, with wide temperature range, high efficiency and stability
Multiple Application Scenarios
Application Scenario 1
Application Scenario 2
Specification

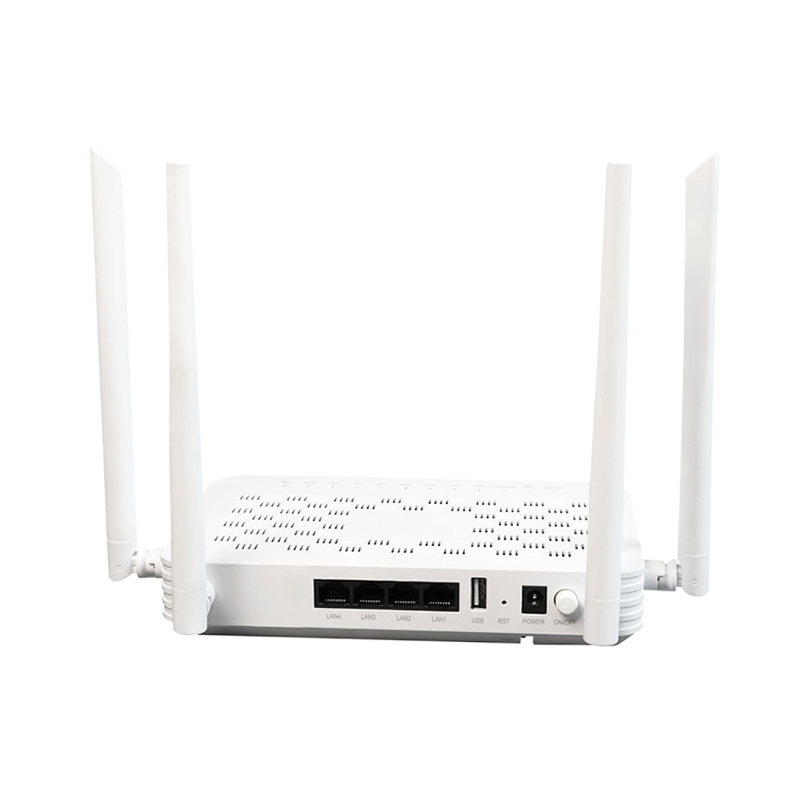

Interface 4GE+1USB+WIFI5+G/EPON
Button POWER + RST +WIFI+WPS
Flash & Memory Flash: 256MB; Memory: 512MB
Power Supply 12V/1A
Power Consumption ≤12W
Environment Standard Operating Temperature: -10°C~55°C
Storage Temperature: -20°C~70°C
Relative Humidity: 5%~95% (non-condensing)
Weight 0.35KG
Size 190mm*135mm*33mm (L*W*H)
Module Type Class B+, SC/UPC
Wavelength UP1310nm, Down1490nm
TX Optical Power 0.5~4dbm
RX Optical Sensitivity -28dBm
Transmission Distance 0~20km
Transmission Rate EPON: Upstream 1.25Gbps / Downstream 1.25Gbps
GPON: Upstream 1.25Gbps / Downstream 2.5Gbps
LAN Interface Type RJ45 (10/100/1000Mbps)
USB USB2.0
WIFI Dual-band WIFI5 AC1200 (2 × 2 MIMO (2.4G & 5G))
Order Info
Description XPON, 4*1000M Base-T, 1*WIFI-5 (2.4G & 5G 1200M), 1*USB, 12V/1A.
FAQ
Q Can you do OEM?
Yes, we can do OEM products according to your requirements.
Q How is quality control managed?
Every single optic module is individually tested in the test center, and also verified for compatibility on a variety of different network equipment.
Q Can I get a sample first?
Yes, we can provide samples for you to check and verify the quality.
Q What are the payment terms?
We accept T/T, Western Union, Alibaba orders, and other mutually agreed payment methods.
Q What is the lead time?
For regular in-stock orders, shipment is dispatched around 3 days after receiving the payment. For large quantities & customized products, please coordinate the lead time directly with the sales team.
Q How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive at your destination.
