Intelligent 16 Ports Olt Gpon Olts Optical Line Terminal Compatible with GPON XPON ONU
Intelligent 16 Ports Olt Gpon Olts Optical Line Terminal Compatible with GPON XPON ONU
Intelligent 16 Ports Olt Gpon Olts Optical Line Terminal Compatible with GPON XPON ONU
Intelligent 16 Ports Olt Gpon Olts Optical Line Terminal Compatible with GPON XPON ONU
1 / 4
Intelligent 16 Ports Olt Gpon Olts Optical Line Terminal Compatible with GPON XPON ONU
Intelligent 16 Ports Olt Gpon Olts Optical Line Terminal Compatible with GPON XPON ONU
Intelligent 16 Ports Olt Gpon Olts Optical Line Terminal Compatible with GPON XPON ONU
Intelligent 16 Ports Olt Gpon Olts Optical Line Terminal Compatible with GPON XPON ONU

Intelligent 16 Ports Olt Gpon Olts Optical Line Terminal Compatible with GPON XPON ONU

Send Inquiry

Product Description

GPON OLT 16 Port
G5600V16
G5600V16 is highly integrated, medium-capacity box-type GPON OLT, it can be widely used in operator FTTH access, private network access, government and enterprise park access, campus network access and other access network construction.

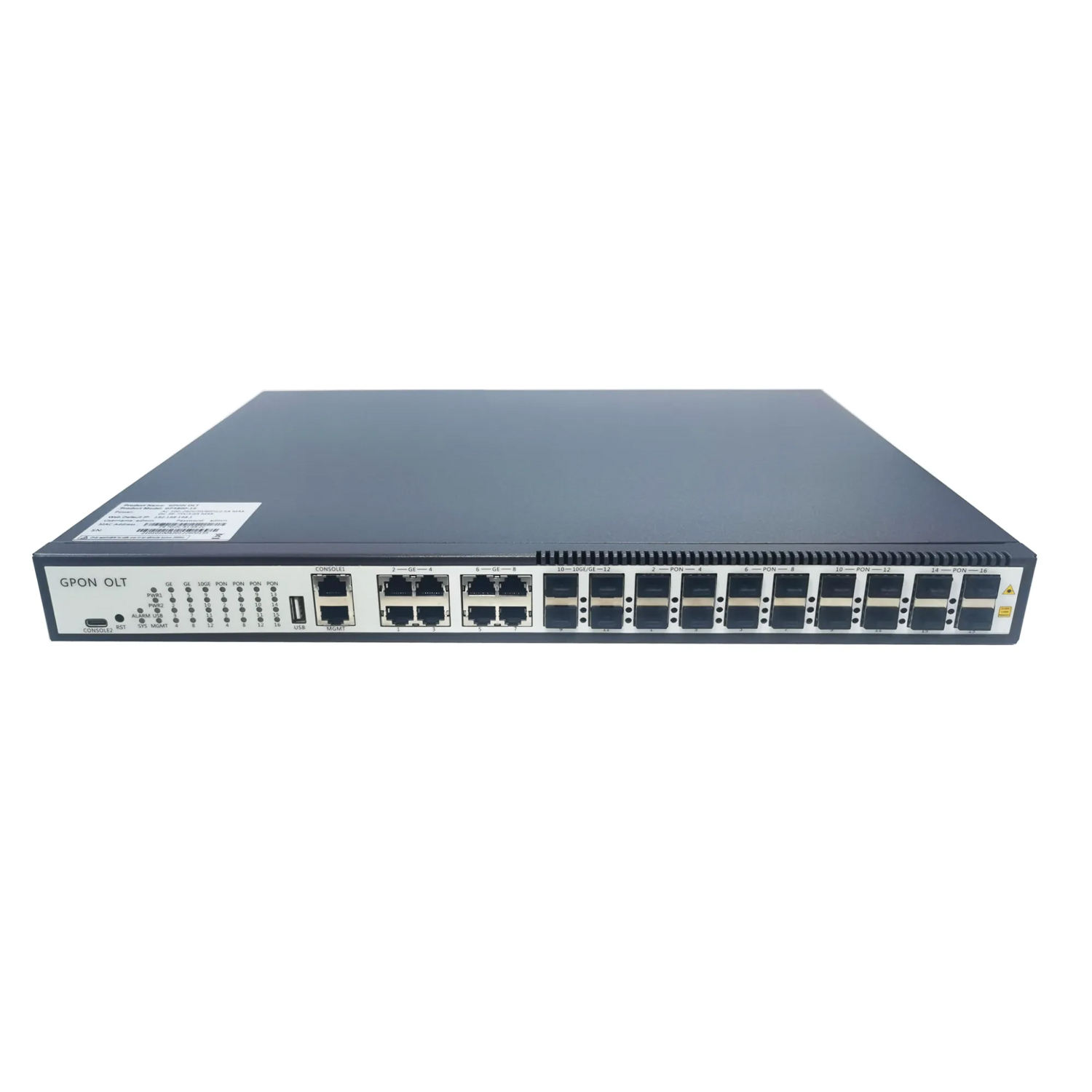

GPON OLT 16 Port Front View

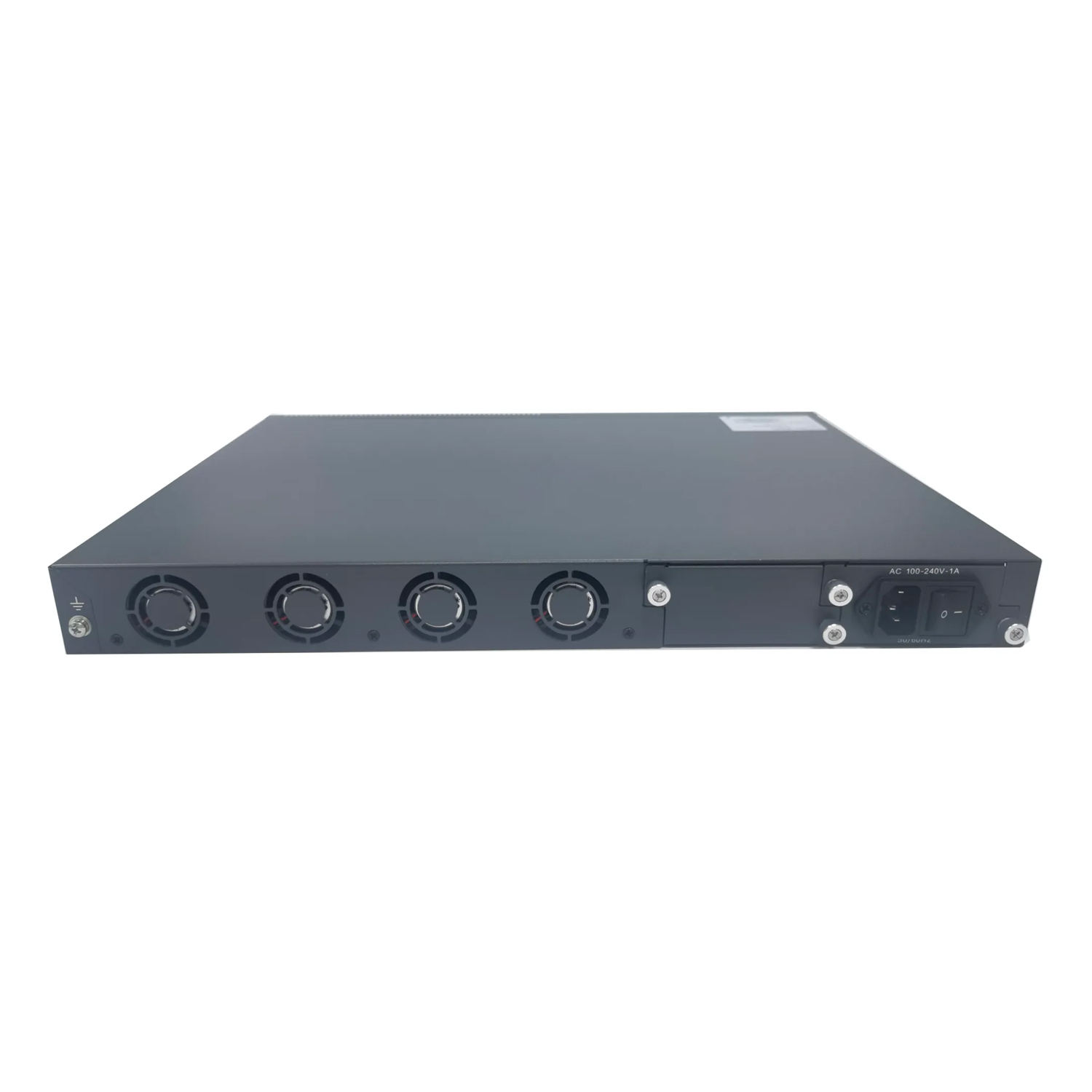

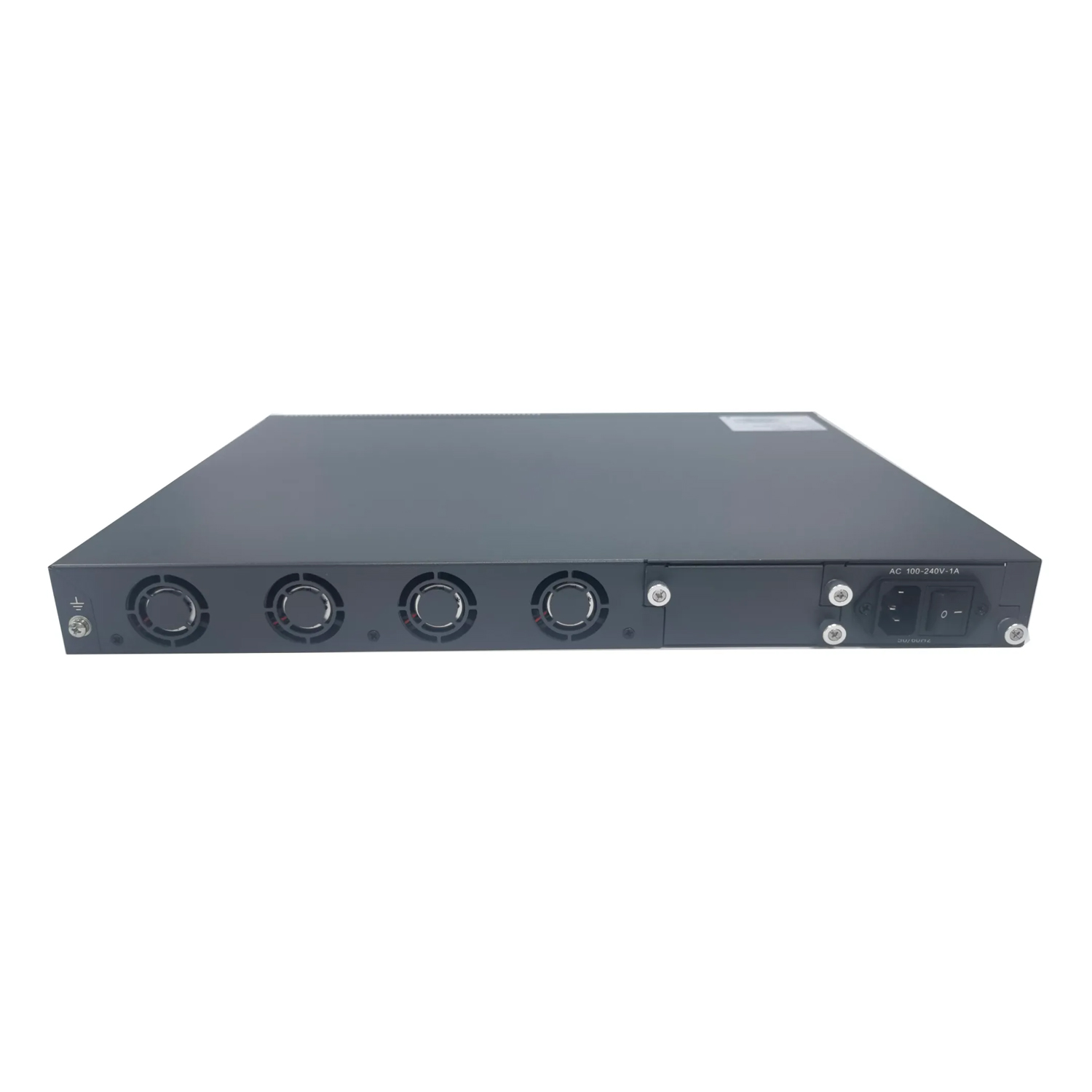

GPON OLT 16 Port Back View
Specification
Attributes Description
Interface 16*GPON Port, 8*10/100/1000M Base-T;
4*1000M Base-X SFP/4*10GE SFP+
Exchange Capacity 156Gbps
Forwarding Rate 116.064Mpps
Memory & Flash DRAM: 2GB; Flash: 8GB
Management Port Console, MGMT, Type C
PON Comply with ITU-TG.984/G.988
Standard 60KM transmission distance;
1:128 Max splitting ratio; Standard OMCI management function
Open to any brand of ONTs; ONU batch software upgrade
Fan Fixed fans (four fans)
Power AC: 100~240V 47/63Hz;
DC: -36V~-75V
Power Consumption ≤65W
Weight 6.5kg
Dimensions (W *H *D) 440mm*44mm*320mm (not including mounting ears)
Environment Temperature Working Temperature: -10°C~55°C
Storage Temperature: -40°C~70°C
Environment Humidity Relative Humidity: 5%~95% (non-condensing)
Key Feature
  • Maximum split ratio of 1:128, connecting up to 2048 ONTs
  • Rich Layer 2/3 switching features, flexible management methods
  • Comply with ITU-TG.984/G.988 standard
  • Support FlexLink, STP, RSTP, MSTP, ERPS, LACP, ACL, QoS
  • Support 64K MAC address
  • Support RIP, OSPF, BGP, ISIS and IPV6
  • Support ONU authentication, FEC, AES, DBA, Rogue ONU detection
  • Support CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0, OMCI protocol
  • Support Power redundancy backup
  • Support batch software upgrades on ONUs
  • Flexibly compatible with any brand of ONT
Purchase Info
Model Number Description
G5600V16 16*GPON port+8GE RJ45+4*10GE/GE SFP uplink port
GPON PON Transceiver
(GPON SFP-Transmit 1490nm/Receive 1310nm, 7dBm, SC interface-Class C++)
AC/DC optional dual power supply
EU & US power plug optional
Company Profile
Company Profile Image
FAQ
Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
OEM, ODM Service is available?
Support.
What is your MOQ?
No MOQ for any sample test.
Can I have a sample order for this product?
Support.
For Trade Terms, such as payment?
• Payment Terms: We mainly support T/T bank transfer, Paypal and Western Union.
• Price Terms: EXW Shenzhen.
• Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent.
How about the Warranty?
Most products come with a 24-month warranty. Human causes and other brands are not included.
