Inficomo RD-FE204 Good Price 100MB 2 Optical 4 Electric Single Mode Single Fiber Media Converter for FTTH CCTV

Product Description

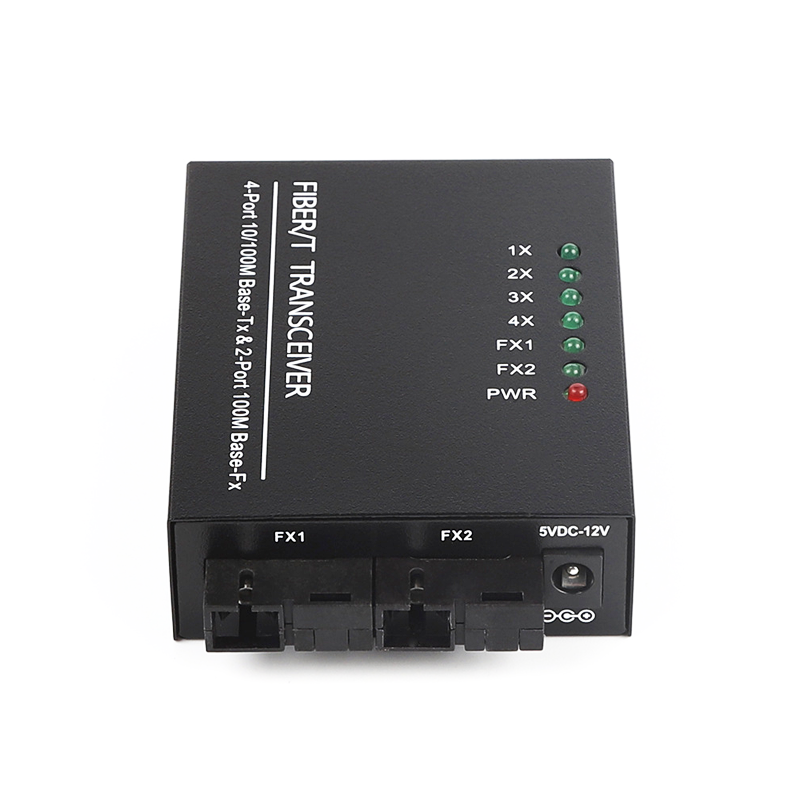

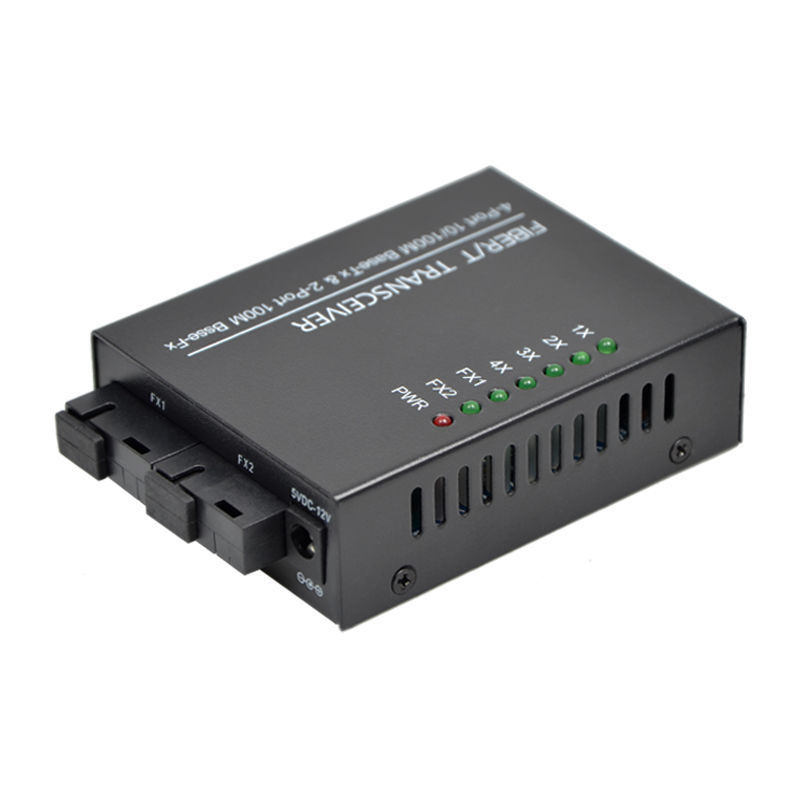

Fiber Port View

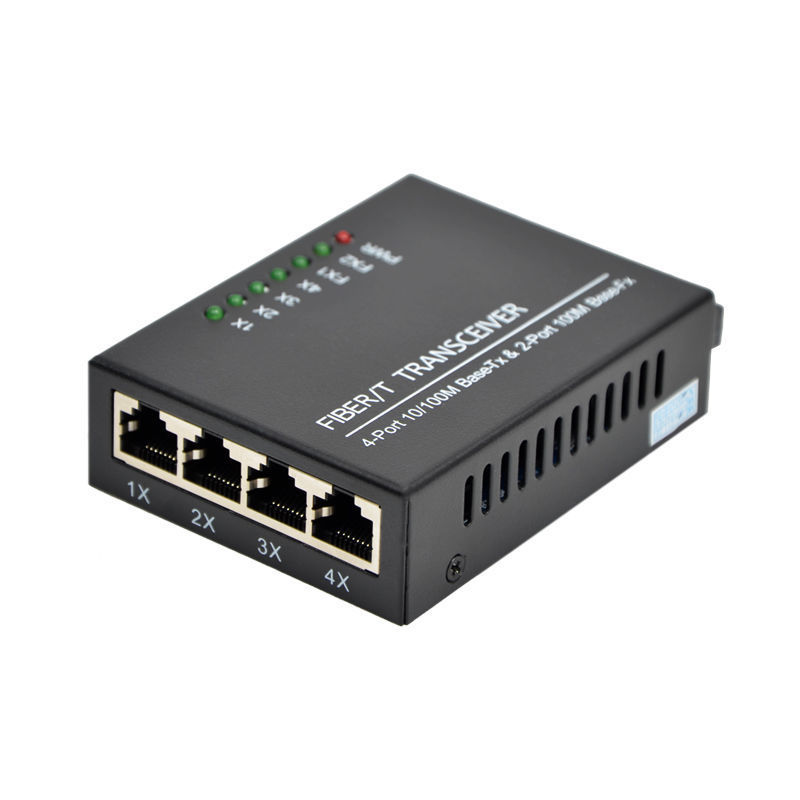

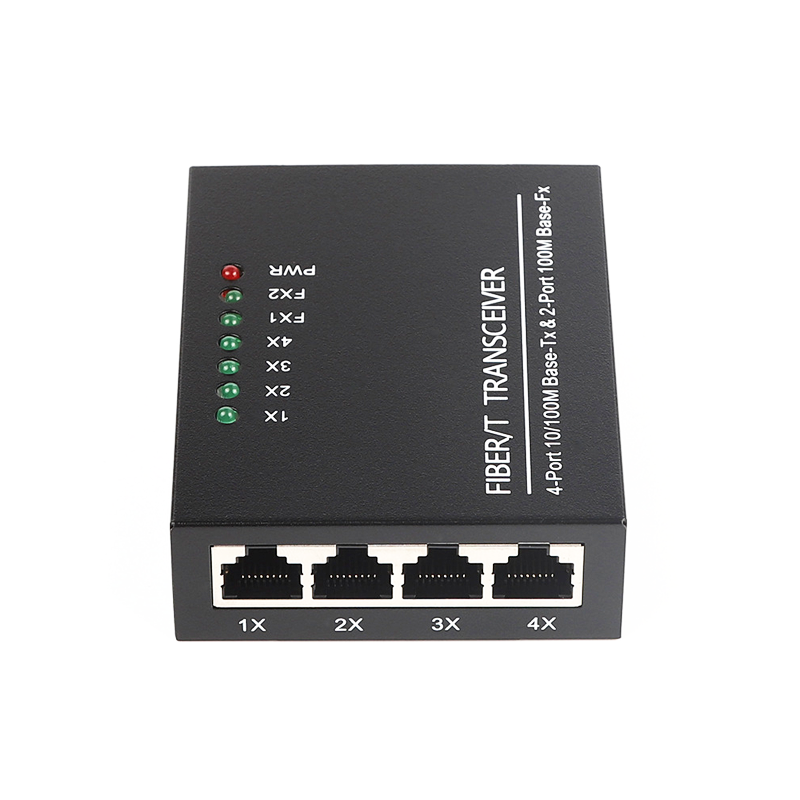

RJ45 Port View

2 fiber port with 4*10/100Mbps RJ45 port

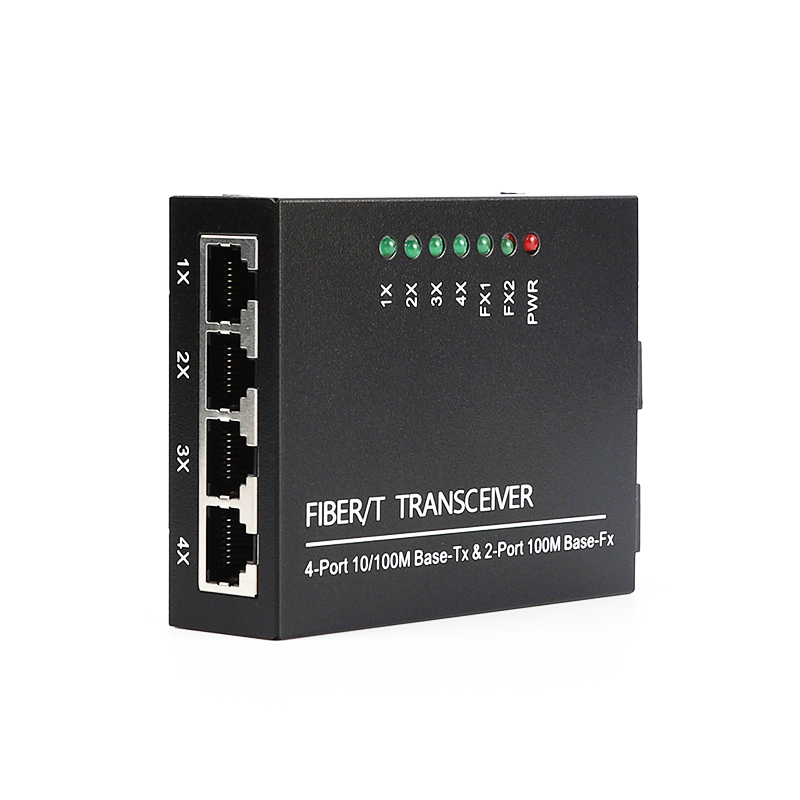

Product Layout

Plug-and-play, no need for any configuration

Connection Setup

Product dimensions and interface definitions

Product Dimensions
Hardware Specifications
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface
  • 2*155Mbps SC optical fiber interface
  • 4*RJ45 10/100Mbps
Distance
  • 100m @CTE5
  • 20km @SMF
Wavelength
  • A: Tx1310nm / Rx1550nm
  • B: Tx1550nm / Rx1310nm
Transmission media
  • Cable: CTE5 or higher UTP and STP
  • Optical Fiber: 9/125um single-mode optical fiber
Optical parameter
  • Average emission power: -9 to -3 dBm
  • Receiving sensitivity: -22 dBm
Power DC5V/2A
Size 94mm*73mm*26mm
Environment
  • Operating temperature: -5°C to 60°C
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Storage temperature: -40°C to 70°C
  • Storage humidity: 5% to 90% RH (non-condensing)
Order Info
RD-FE204 Fiber Switch 10/100MB 2*SC+4*RJ45 AB

This product is set by default to have a fiber transmission distance of 20 kilometers. However, you can also purchase it based on the actual distance required.

FAQ

Q1: What is your MOQ request?

A1: Depends on products, different products have different MOQ.

Q2: Do you Support ODM/OEM service?

A2: Yes, we can offer the customization service to you.

Q3: Does your products support other brands?

A3: Yes, all of our products is without lock, support to another brands too.

Q4: Are you the manufacturer or trading company?

A4: We are the manufacturer, we support factory view tour.

Q5: Do you offer free samples?

A5: Yes, for some models we are able to provide the free samples for your testing purpose.

Q6: Are you able to provide the local certificates?

A6: Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
