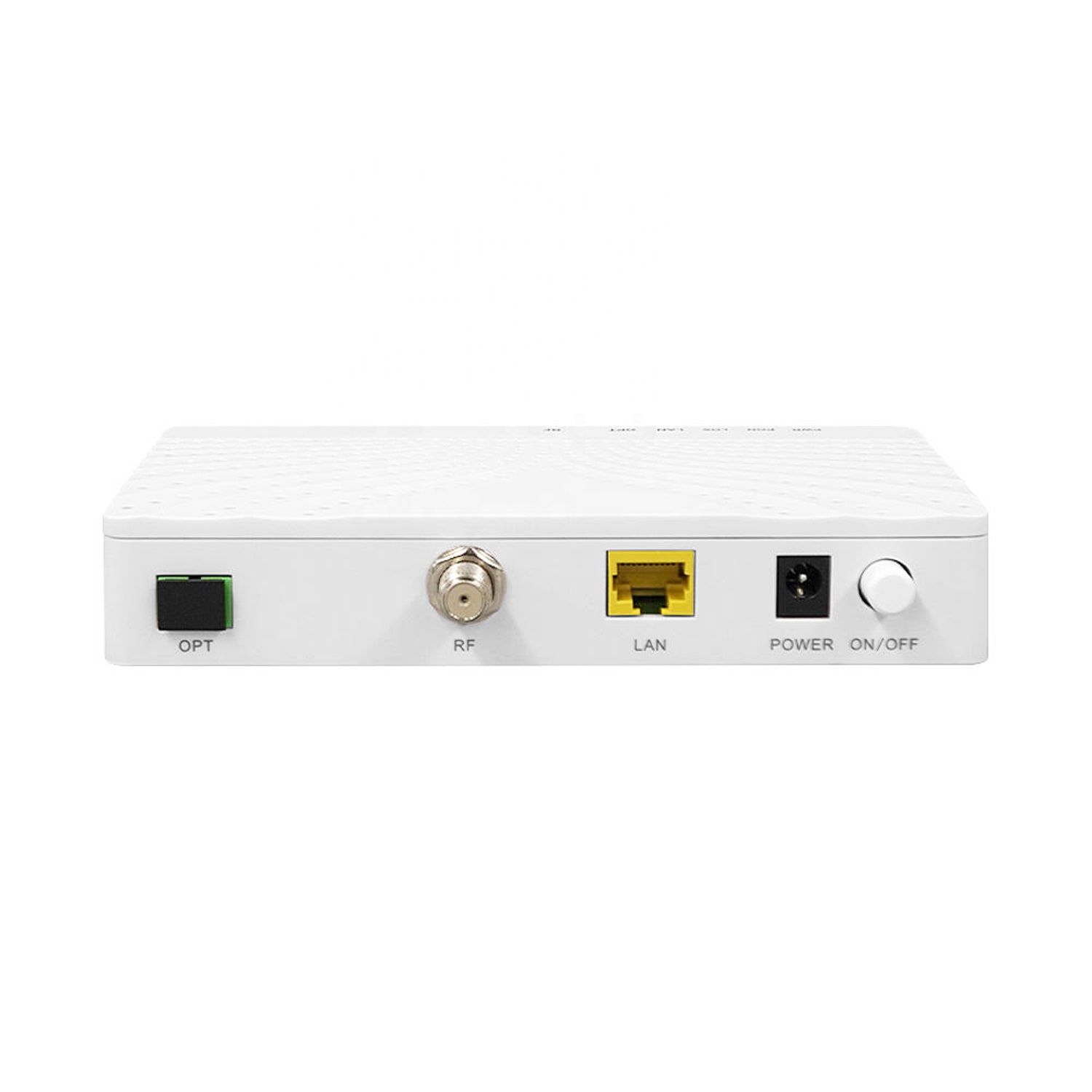

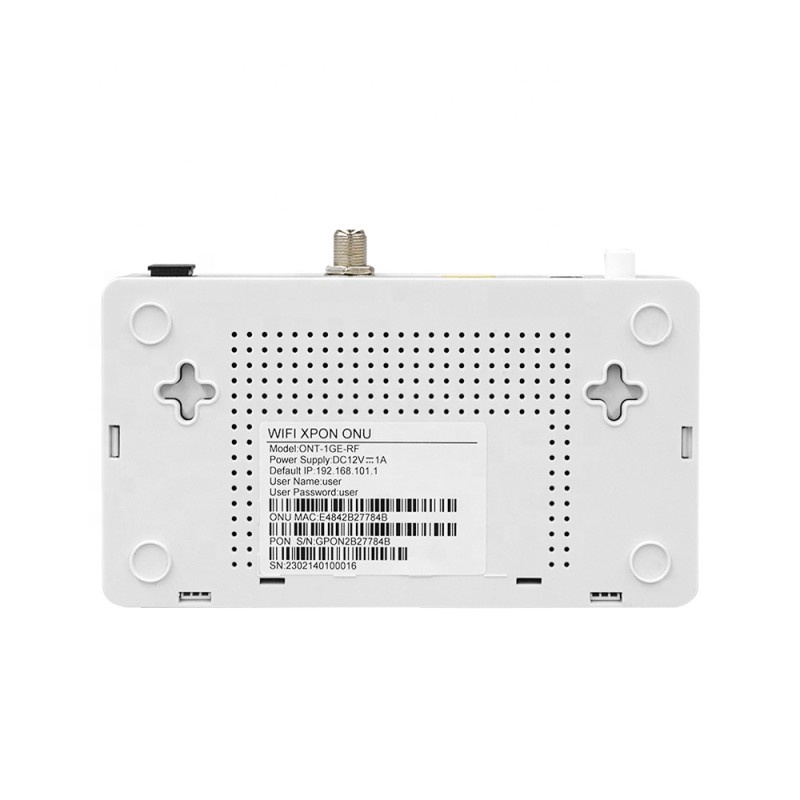

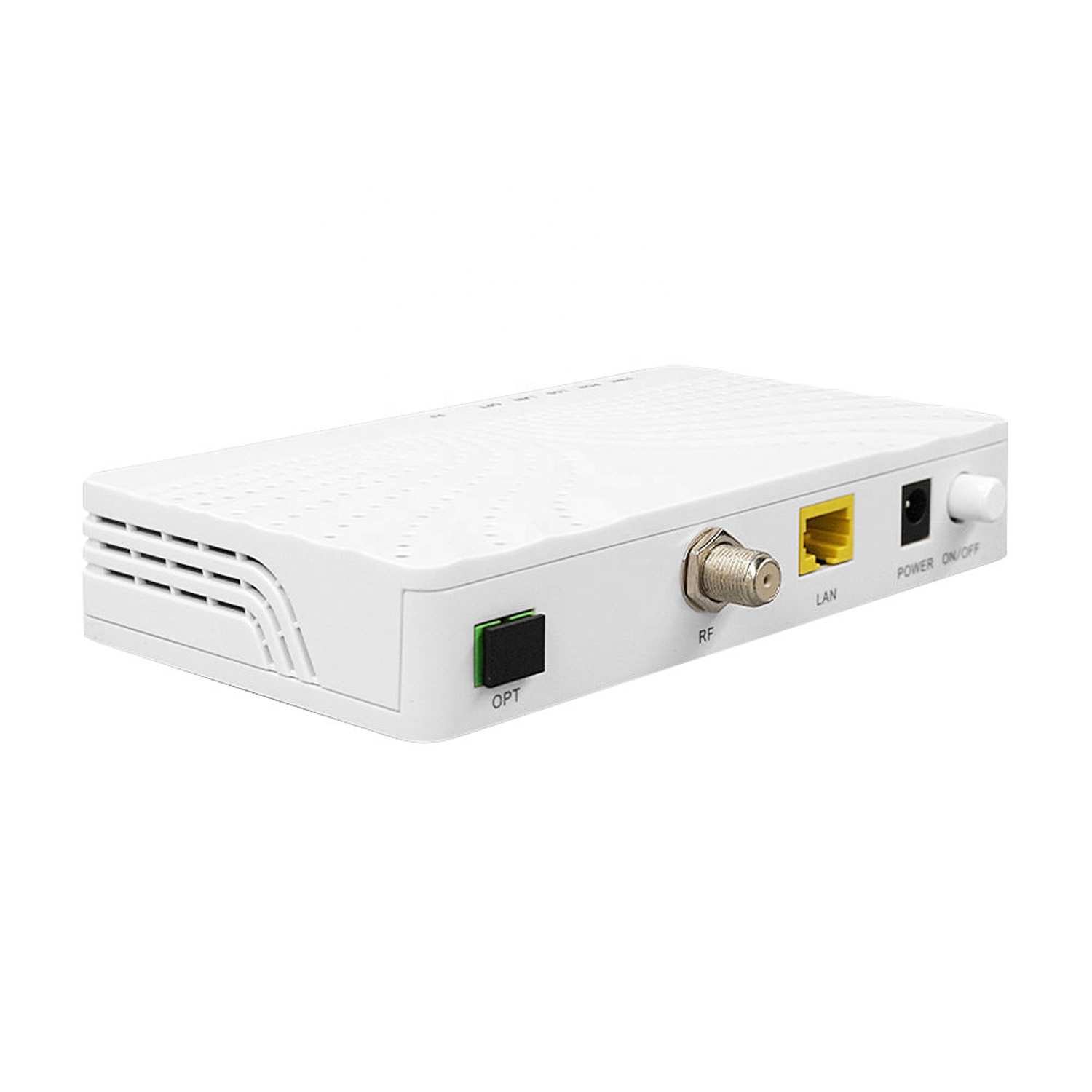

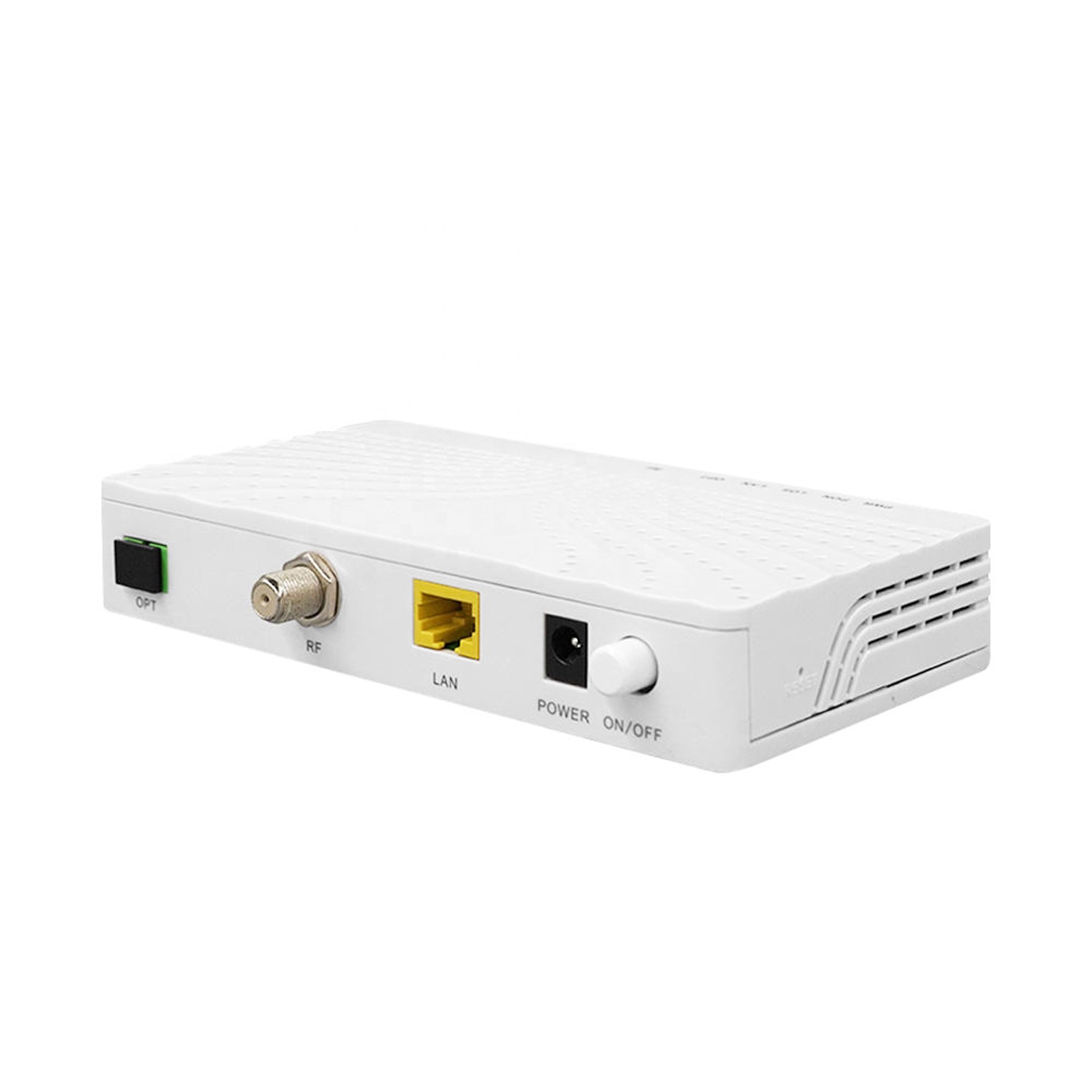

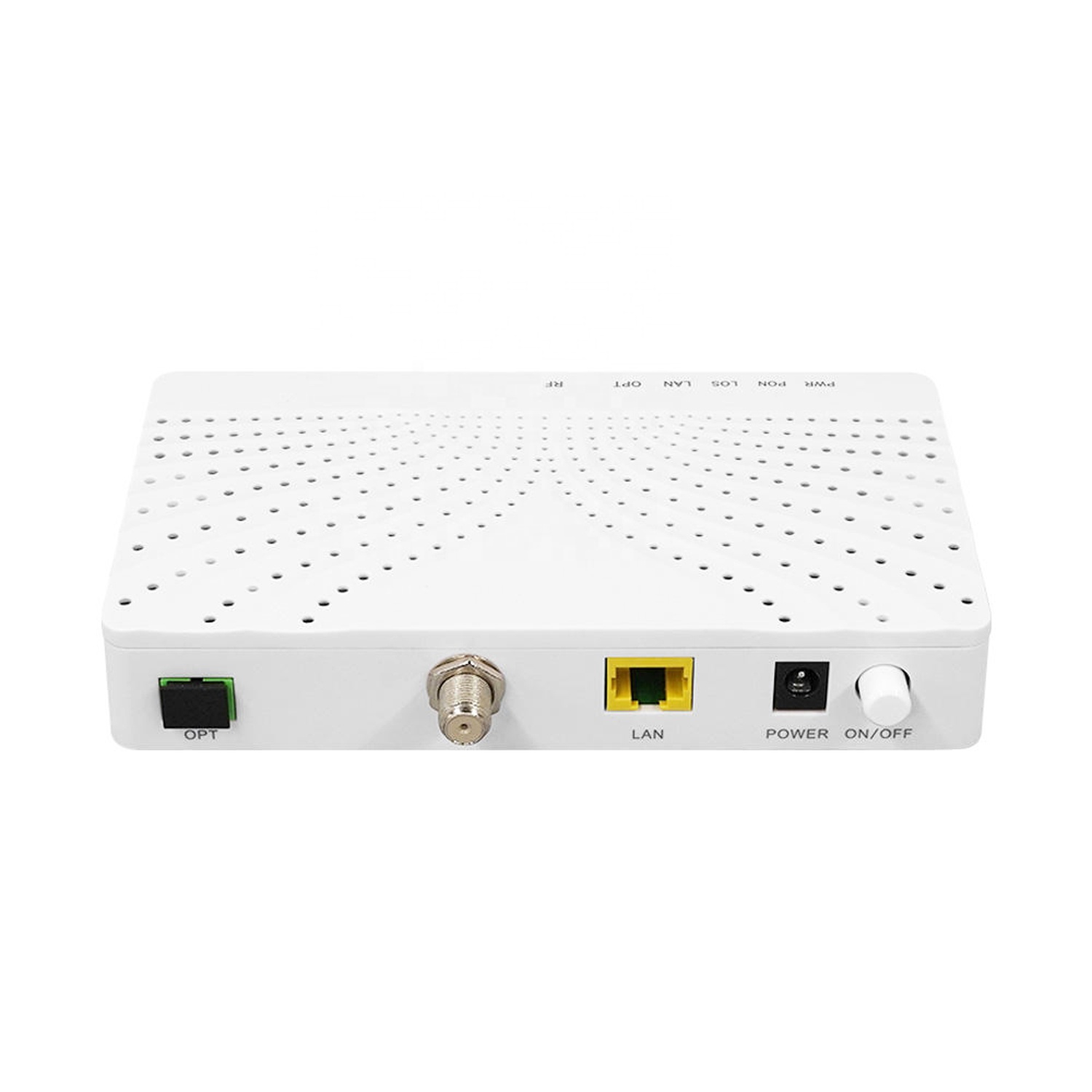

High Quality Fiber Catv Internet XPON GPON EPON ONT 1GE+CATV XPON ONU

Send Inquiry

Product Description

XPON Dual Mode | GE LAN | CATV Service

CATV ONT HG1011

Support HGU/SFU Feature, Flexible Access Network

Support Bridge Mode & Router Mode

Easy Management

Support remote control

Small Size, Plug & Play

Easy to Deploy

Hardware Specifications

Ethernet Interface	Interface type: 1* RJ45 Interface parameters: 10/100/1000BASE-T
Buttons	Rest Button
LED	POWER/PON/LOS/LAN1/RF/OPT
PON Interface	Interface Type: SC/APC, CLASS B+ Transmission distance: 0 ~ 20km Working wavelength: Up 1310nm, Down 1490nm, CATV 1550nm RX Optical power sensitivity: -27dBm Transmission rate: GPON: Up 1.244Gbps, Down 2.488Gbps; EPON: Up 1.244Gbps, Down 1.244Gbps
Power Supply	DC 12V/1A
Power Consumption	<18W
Working temperature	-20℃ ~ +50℃
Environment humidity	5% ~ 95% (non-condensing)
Dimension	157mm x 86mm x 28mm (L×W×H)
Net Weight	0.15Kg (without package)

Function Data

PON Mode	XPON Dual Mode
Uplink Mode	Bridging and Routing Mode Well connect with OLTs of mainstream
CATV	Support CATV Remote management
Standard	Support CTC OAM 2.1 and 3.0 Support ITUT984.x OMCI
Layer2	802.1D & 802.1ad bridging 802.1p CoS 802.1Q VLAN
Layer3	IPv4 DHCP Client/Server PPPoE, NAT, DMZ, DDNS
Multicast	IGMP v2/v3, IGMP snooping
Security and Firewall	Prevent Rogue ONU DDOS, Filtering Based on ACL/MAC/URL
O&M	Support EMS\WEB\Telnet\CLI

Order Info

Part Number	Description	Accessories Pack
HG1011	1XPON+1GE+CATV	AC-DC Power Adapter DC12V/1A

FAQ

Q1 What is your MOQ request?

A1 Depends on products, different products have different MOQ, pls contact our sales for more details.

Q2 Do you Support ODM/OEM service?

A2 Yes, we can offer the customization service to you.

Q3 Does your products support other brands?

A3 Yes, all of our products is without lock, support to another brands too.

Q4 Are you the manufacturer or trading company?

A4 We are the manufacturer, we support factory view tour.

Q5 Do you offer free samples?

A5 Yes, for some models we are able to provide the free samples for your testing purpose.

Q6 Are you able to provide the local certificates?

A6 Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
