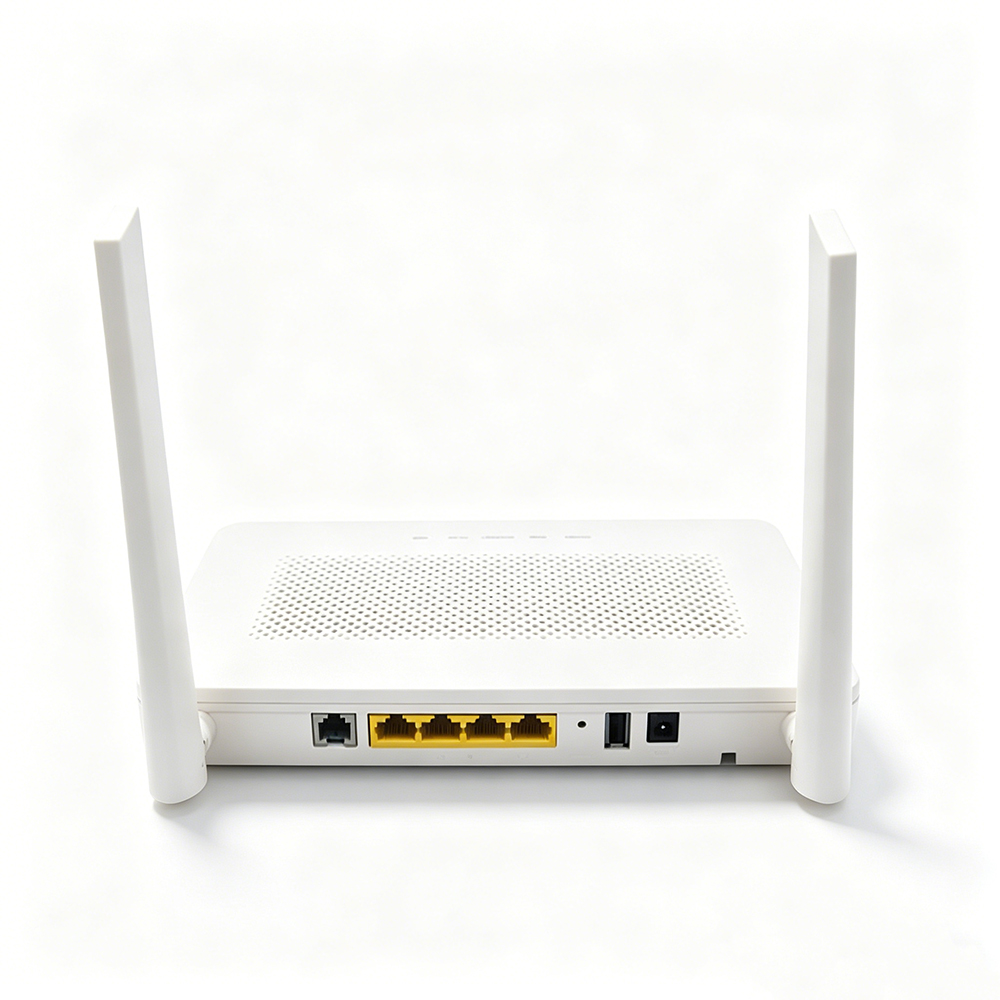

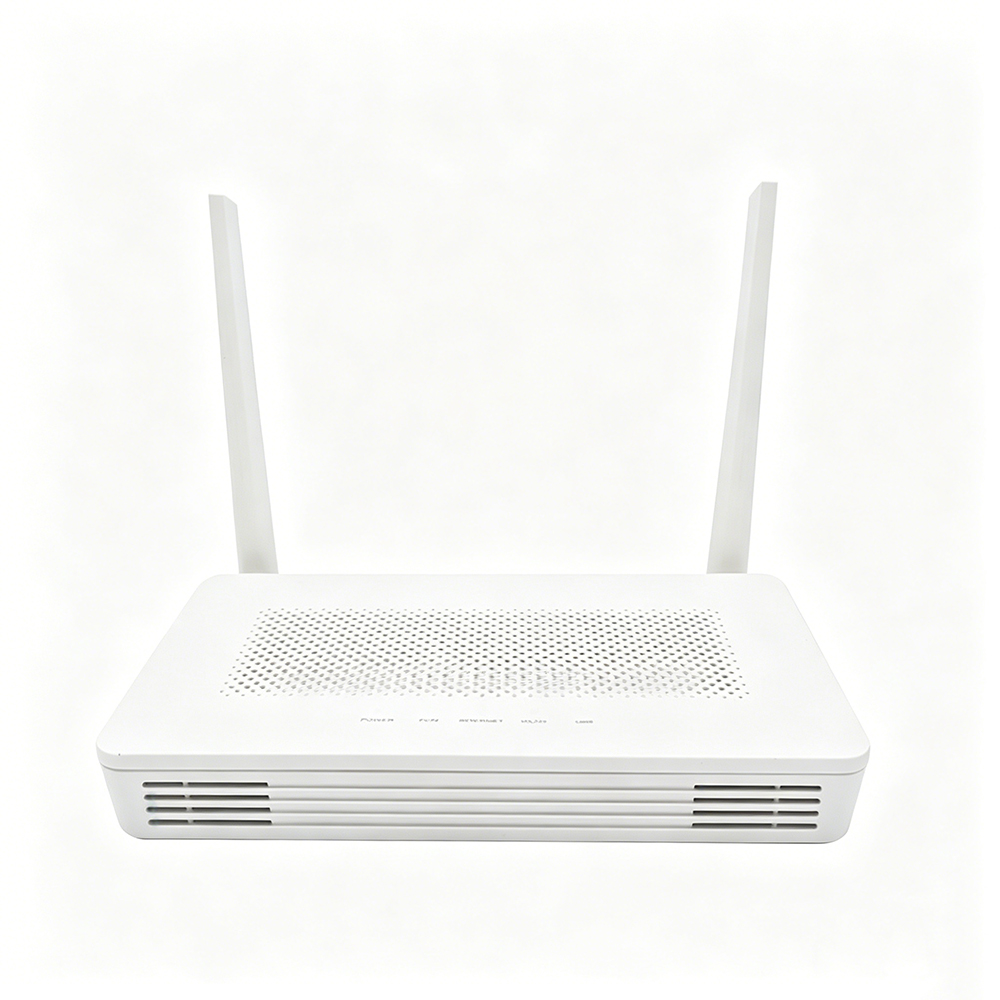

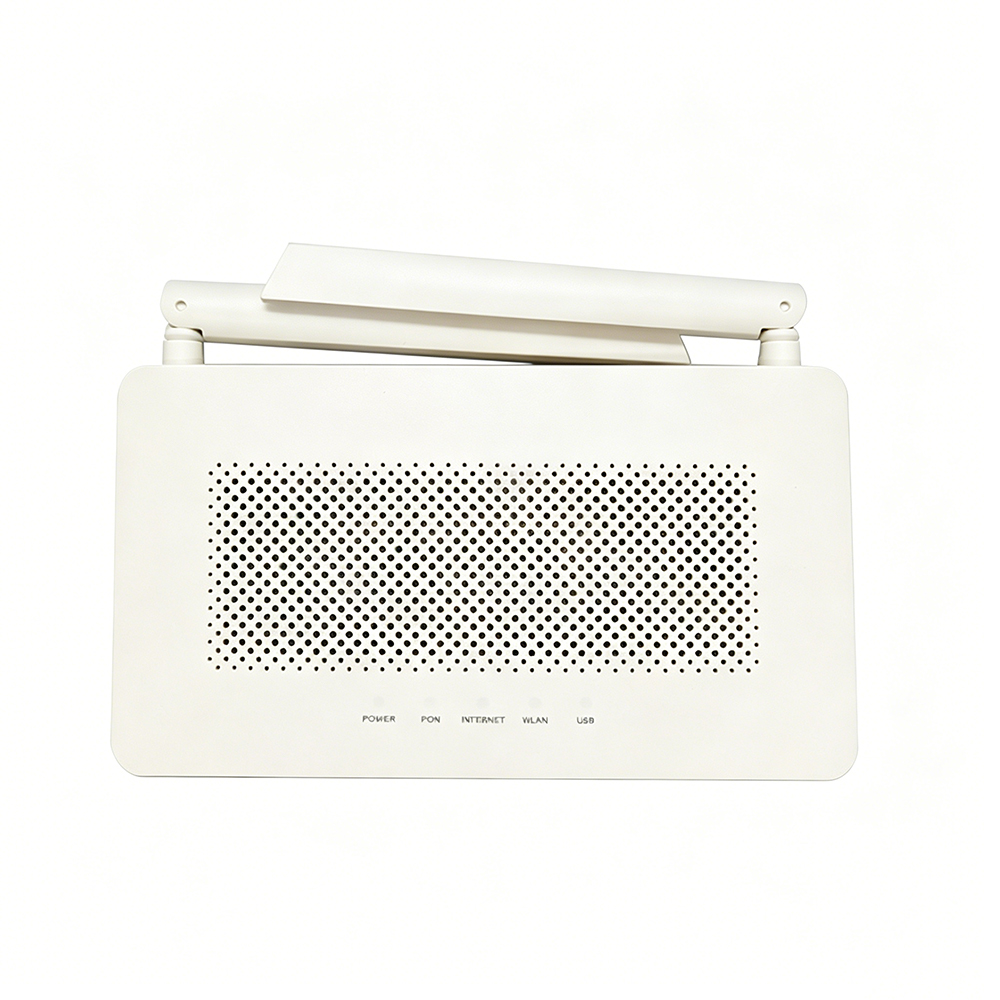

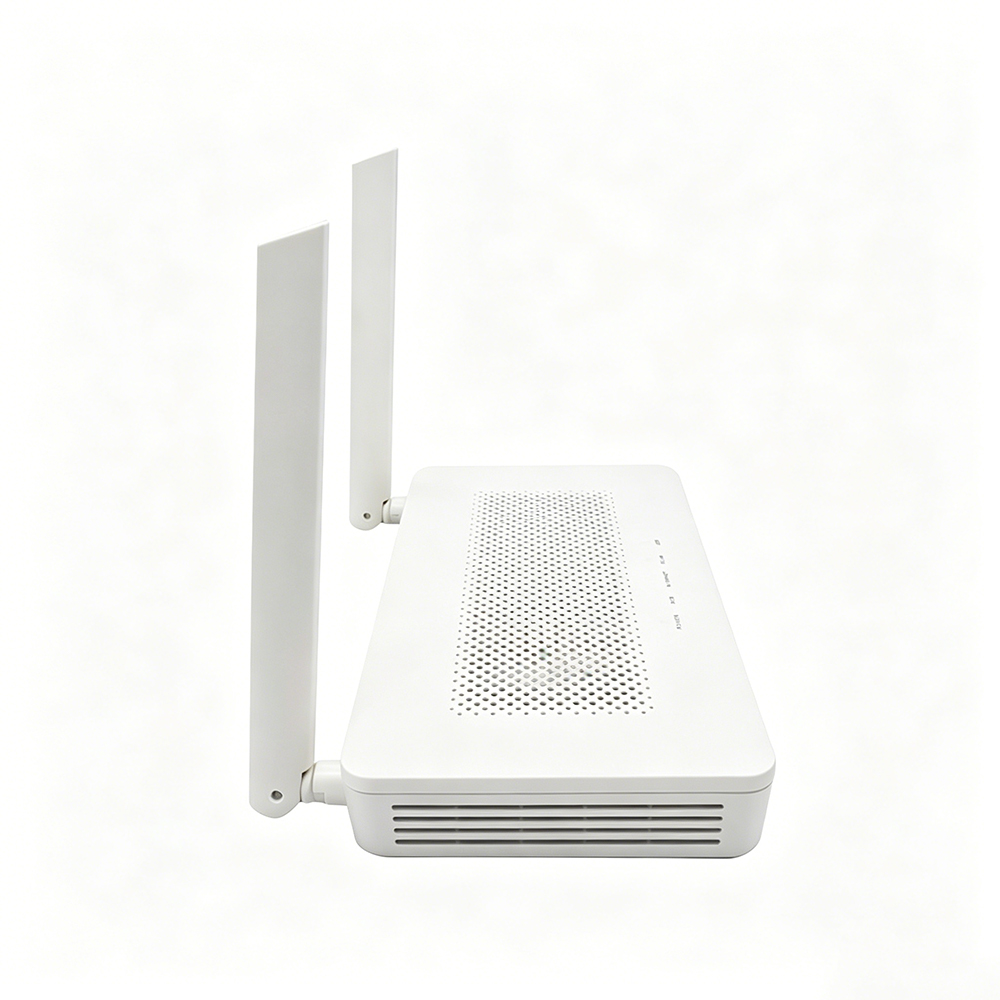

| GPON ONU EG8145V5 XPON ONT 4GE+1VOIP+WIFI+2.4G+5G SC/UPC SC/APC FTTH | |
|---|---|
| Dimensions (H x W x D) | 30 mm x 173 mm x 120 mm (without external antenna and pads) |
| Weight | About 250 g |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100 V to 240 V AC, 50 Hz/60 Hz |
| System Power Supply | 11 V to 14 V DC, 1.5 A |
| Static Power Consumption | 5.3 W |
| Maximum Power Consumption | 18 W |
| Ports | 1POTS+4GE+2.4G/5G Wi-Fi+1USB |
| Optical Connector | SC/APC SC/PC |
| Indicators | Power/PON/LOS/LAN/TEL/WLAN/WPS |
| Power Consumption | 12W |
| Part Number | Description |
|---|---|
| HG8145V5 | GPON ONU, 4×GE + 1×POTS + 1×USB + 2.4G/5G Wi-Fi 5dBi, external DC 12V/1.5A power supply. |
