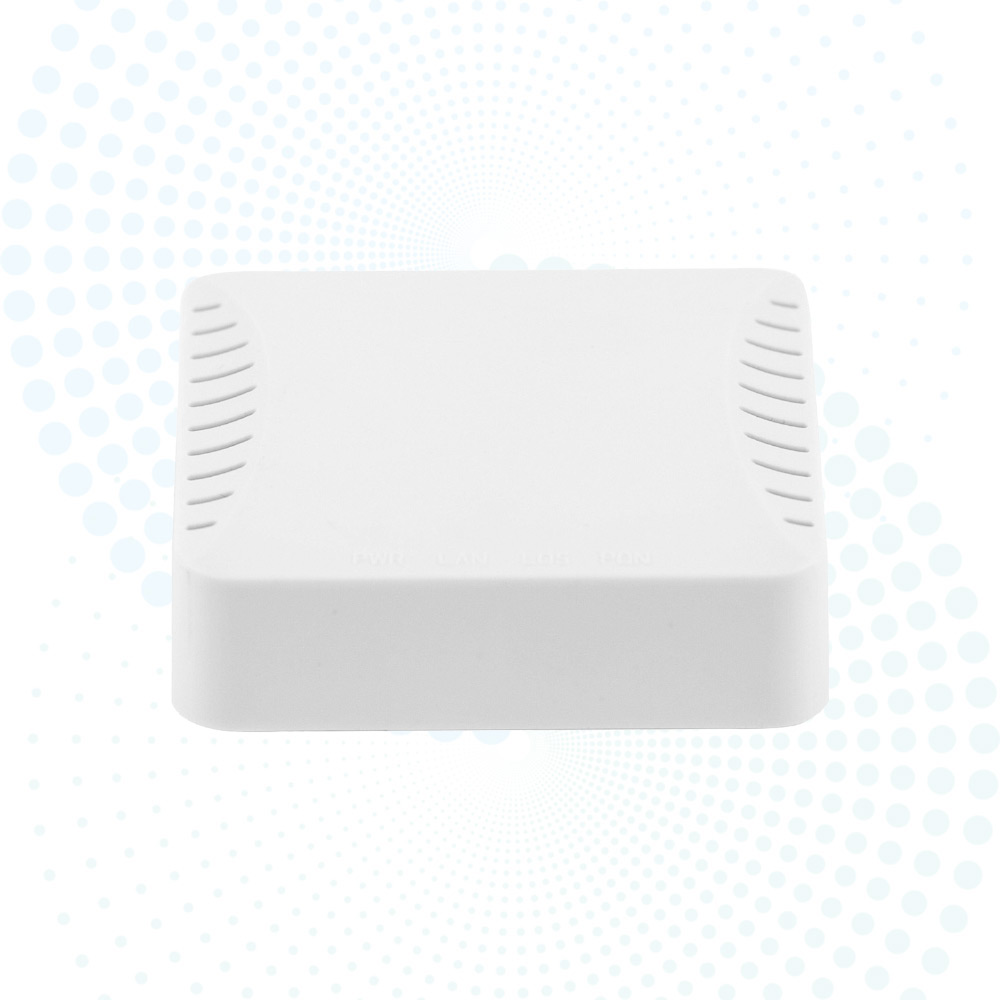

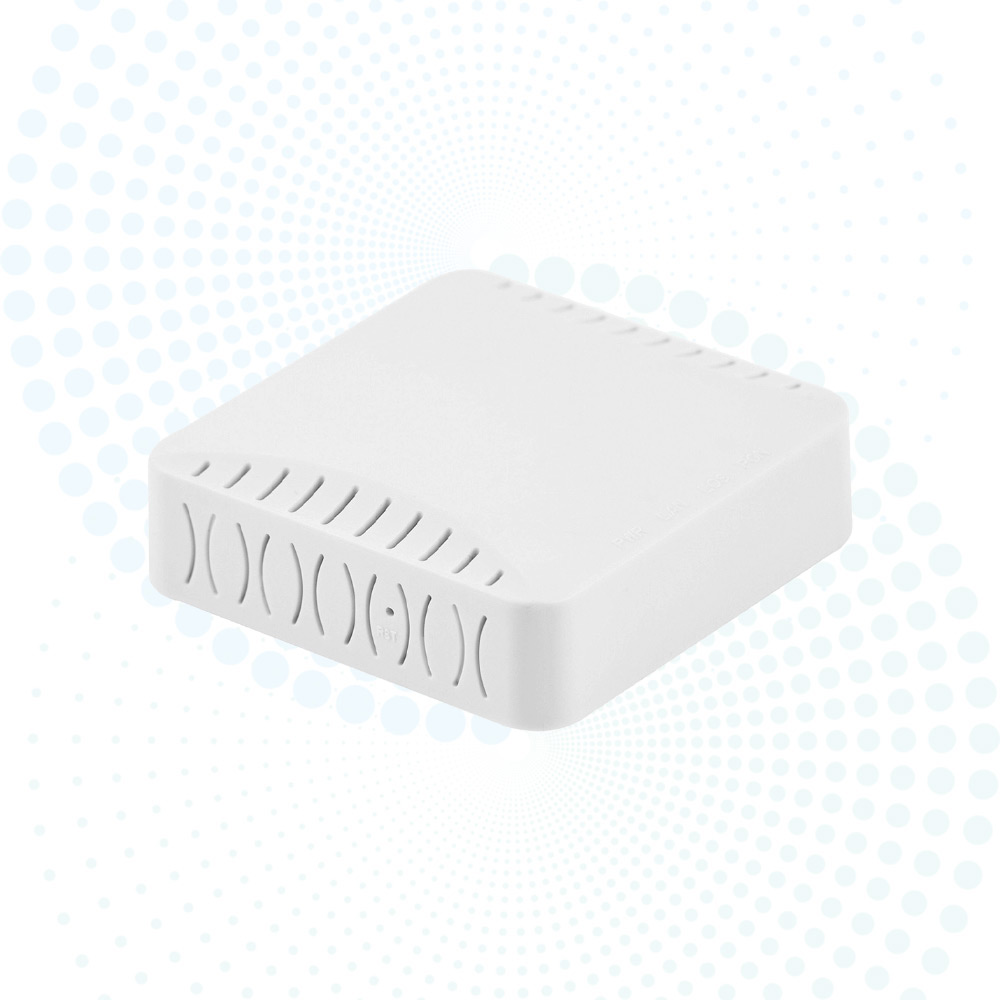

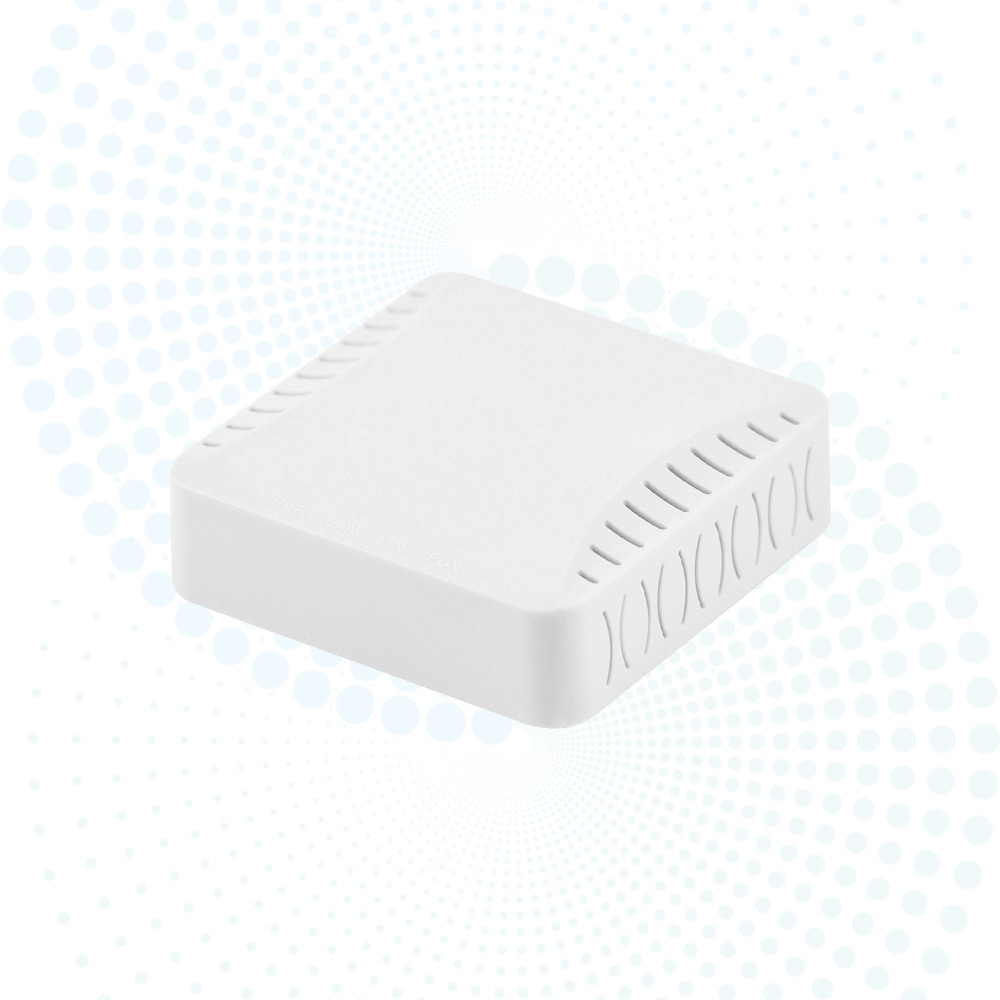

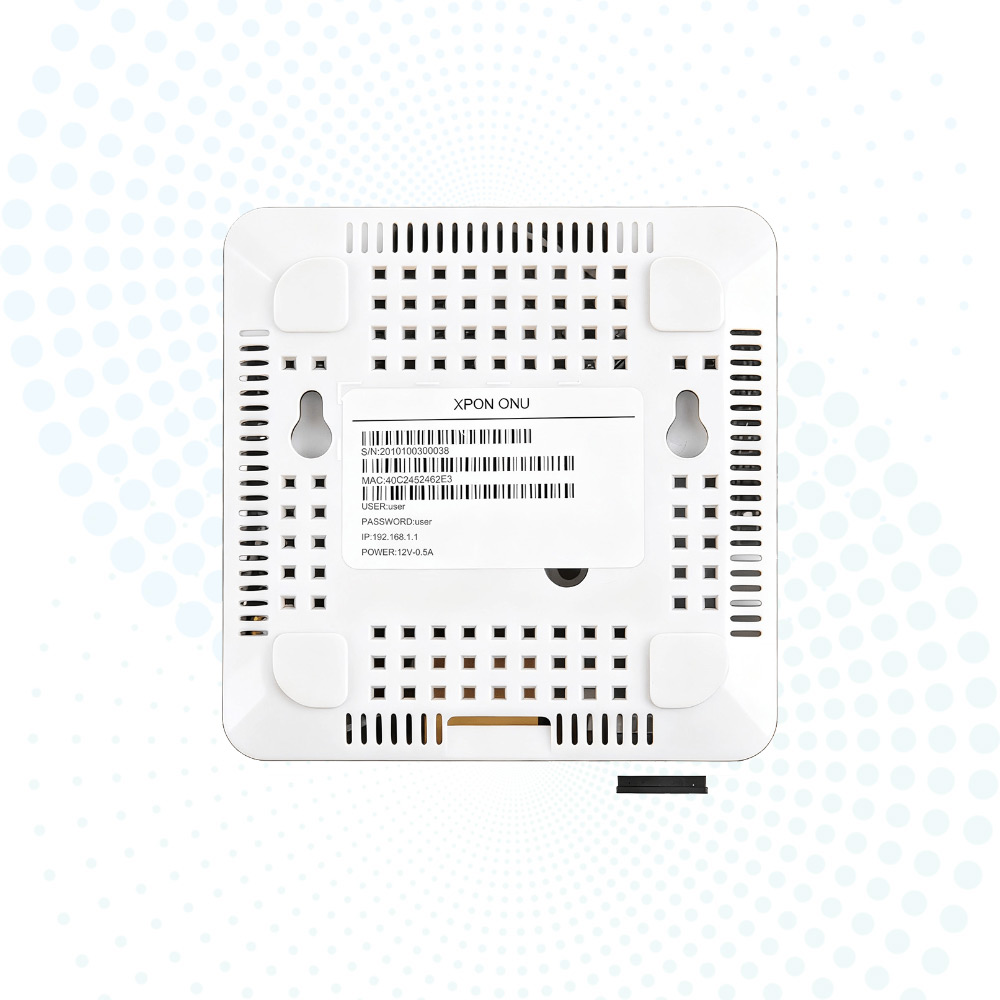

HG1001 XPON ONU 1GE FTTH GPON EPON ONT Fiber Optic Modem SC UPC Mini ONU

Send Inquiry

Product Description

Hardware Specification

Hardware Parameters

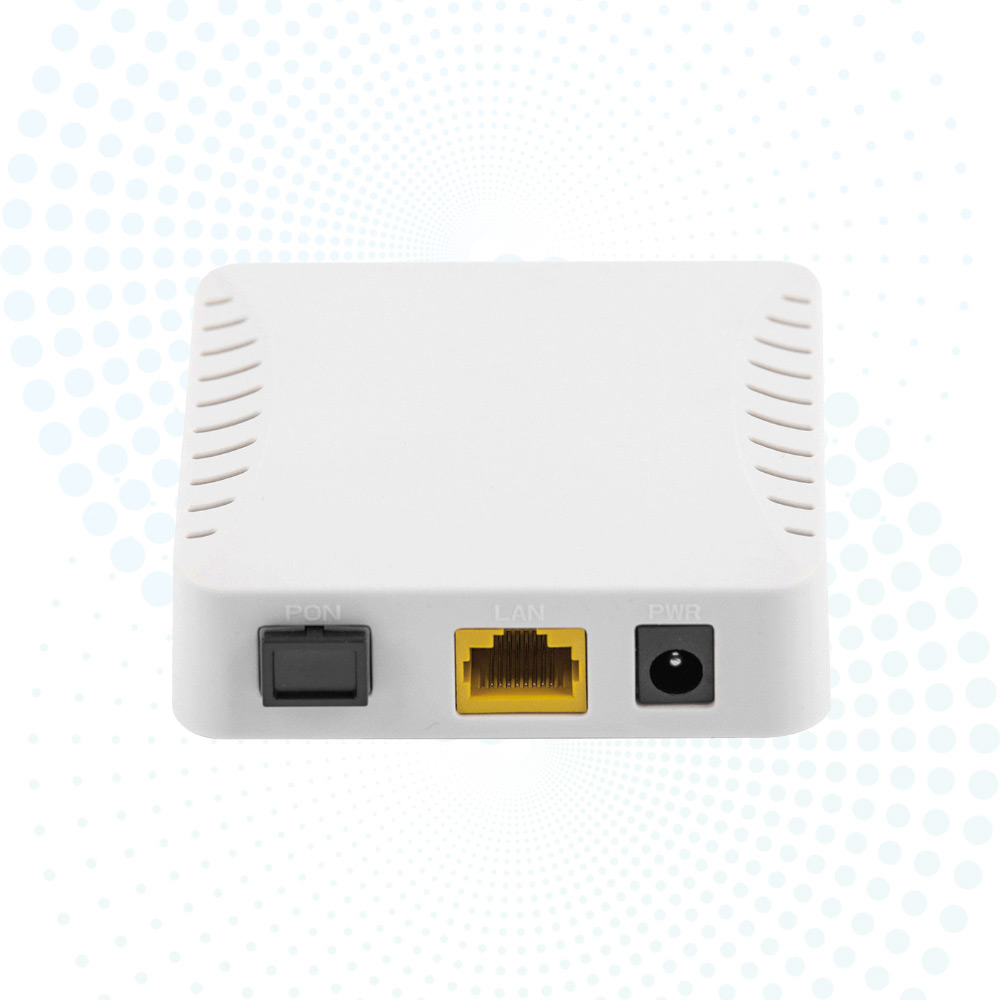

Ethernet Interface	• Interface type: 1* RJ45 • Interface parameters: 10/100/1000BASE-T
Buttons	Reset Button
LED Indicators	POWER / PON / LOS / LAN1
PON Interface	• Interface Type: SC/UPC, CLASS B+ • Transmission distance: 0~20km • Working wavelength: Up 1310nm; Down 1490nm • RX Optical power sensitivity: -27dBm • Transmission rate: GPON: Up 1.244Gbps; Down 2.488Gbps • Transmission rate: EPON: Up 1.244Gbps; Down 1.244Gbps
Power Supply	DC 12V/0.5A
Power Consumption	<18W
Working Temperature	-20°C ~ +50°C
Environment Humidity	5% ~ 95% (non-condensing)
Dimension	78mm x 78mm x 21mm
Net Weight	0.06Kg (without package)

Software Capabilities

Software Features
Networking	• Flexible packet classification • Up to eight queues • SP/WRR/SP+WRR • Ingress rate limit • Egress shaping
Security	• Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p • DoS attack defending • Multiple VPN (IPSec, PPTP) passthrough • MAC address filtering • Broadcast/ Unicast/ Multicast attack protection • Broadcast packet rate limit • Dual image for firmware auto rollback
Management	• OMCI management • WEB GUI management • Local built-in diagnostic function • Logs and statistics • Remote upgrade by HTTP

Professional Capabilities

Quality Assurance:

Available Services:

Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery.
Supported Languages: English, Chinese, Spanish, French, Russian.
Comprehensive fiber optic product range: FTTH ONU/OLT, SFP Modules, Media Converters, and PoE Switches.

Frequently Asked Questions

Does this device support both GPON and EPON modes?

Yes, it is a dual-mode ONU that automatically adapts to GPON or EPON OLT networks.

What is the maximum transmission distance for the PON interface?

The device supports a transmission distance of up to 20km using SC/UPC fiber connections.

What kind of security features are included?

It includes DoS attack defense, MAC address filtering, traffic filtering based on VLAN ID or 802.1p, and broadcast/multicast protection.

Can the firmware be upgraded remotely?

Yes, the device supports remote firmware upgrades via HTTP and management via OMCI or Web GUI.

What are the power requirements for this ONU?

It operates on a DC 12V/0.5A power supply with low power consumption (less than 18W).
