HG1001 GPON XPON ONU 1GE Optical Network Terminal Fiber Modem for ISP FTTH Network

Product Description

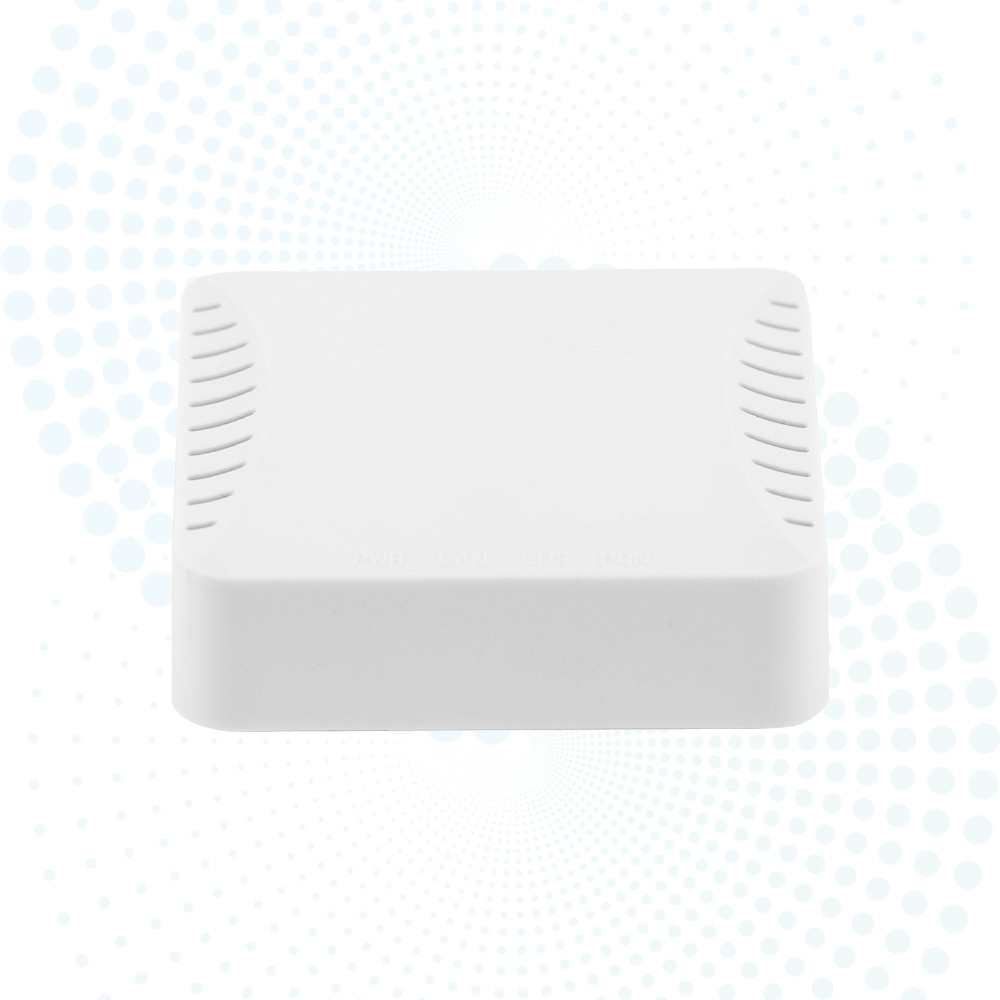

Product Display Front

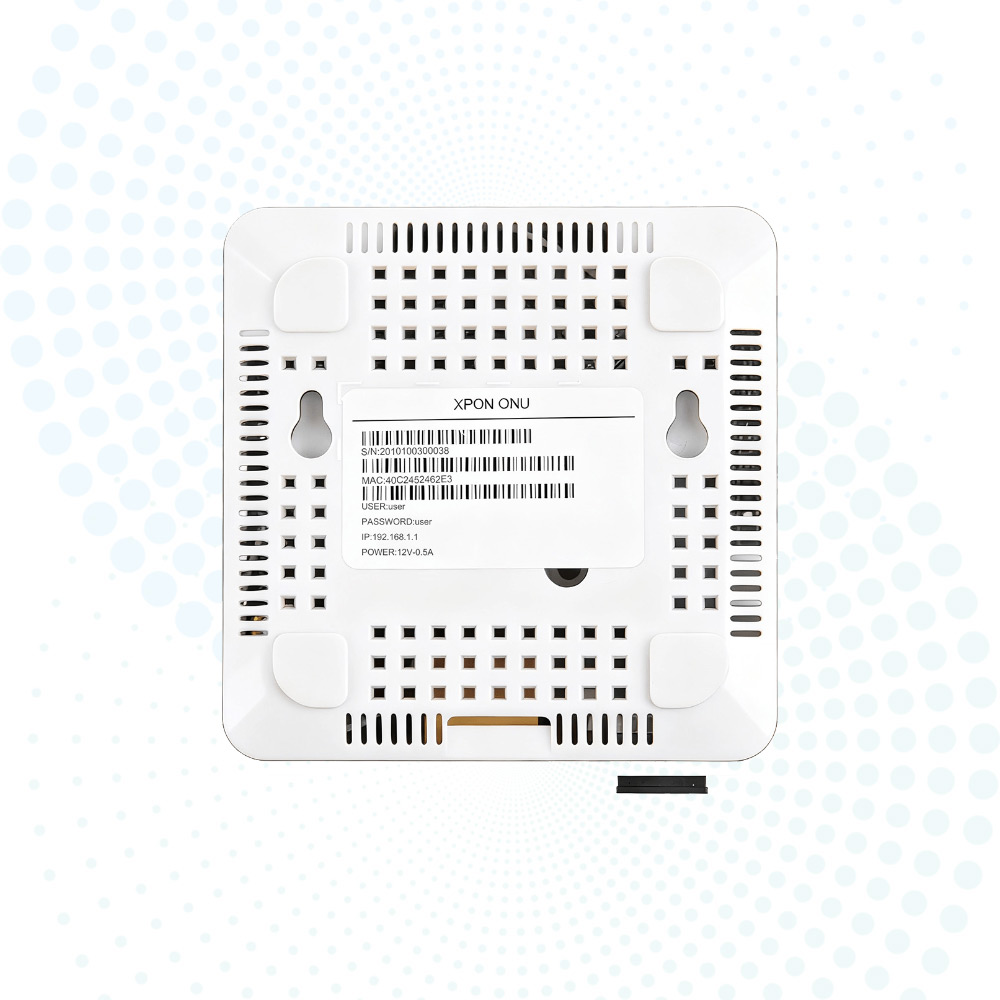

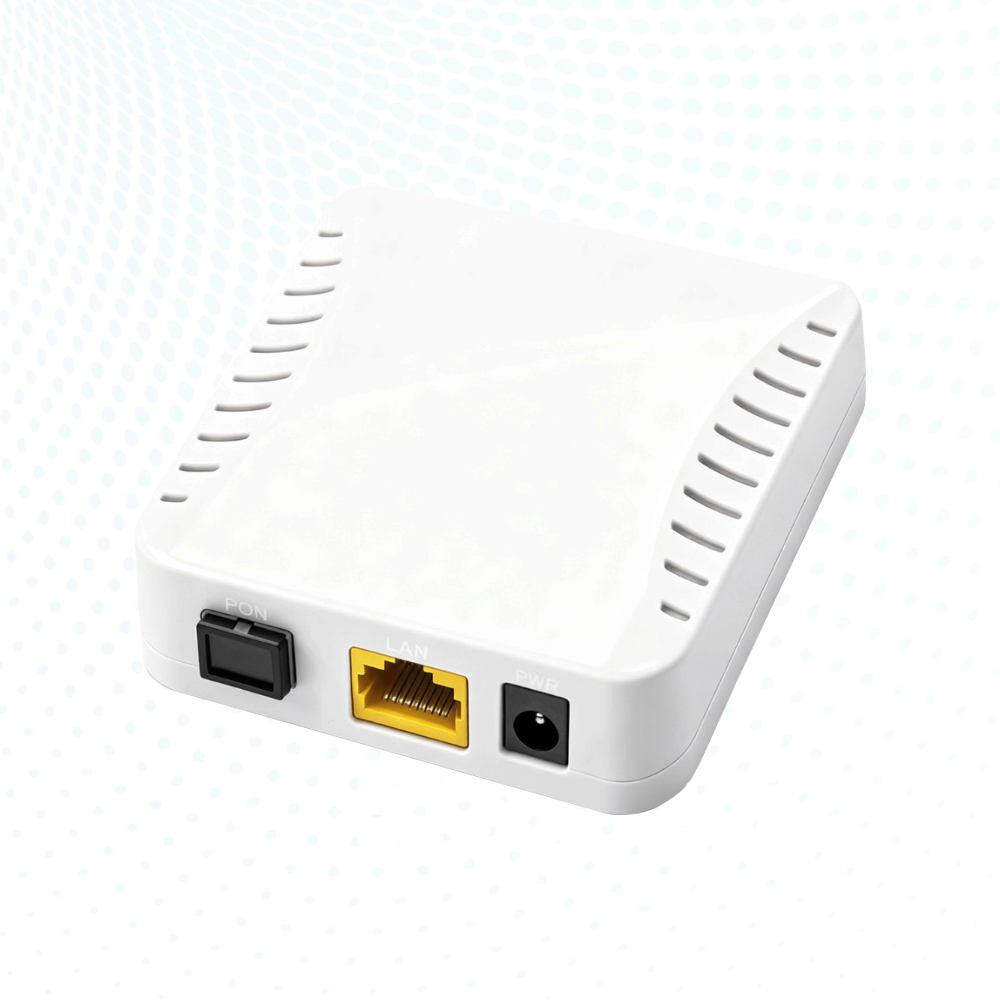

Product Display Back
Specifications
Hardware Architecture
Ethernet Interface
  • Interface type: 1* RJ45
  • Interface parameters: 10/100/1000BASE-T
Buttons Reset Button
LED Indicators POWER / PON / LOS / LAN1
PON Interface
  • Interface Type: SC/UPC, CLASS B+
  • Transmission distance: 0 ~ 20km
  • Working wavelength: Upstream 1310nm; Downstream 1490nm
  • RX Optical power sensitivity: -27dBm
  • Transmission rate:
    • GPON: Upstream 1.244Gbps; Downstream 2.488Gbps
    • EPON: Upstream 1.244Gbps; Downstream 1.244Gbps
Power Supply DC 12V/0.5A
Power Consumption <18W
Working Temperature -20℃ ~ +50℃
Environment Humidity 5% ~ 95% (non-condensing)
Dimensions 78mm x 78mm x 21mm
Net Weight 0.06Kg (without package)
Software Capabilities
Networking
  • Flexible packet classification
  • Up to eight queues
  • SP / WRR / SP+WRR
  • Ingress rate limit
  • Egress shaping
Security
  • Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p
  • DoS attack defending
  • Multiple VPN (IPSec, PPTP) passthrough
  • MAC address filtering
  • Broadcast / Unicast / Multicast attack protection
  • Broadcast packet rate limit
  • Dual image for firmware auto rollback
Management
  • OMCI management
  • WEB GUI management
  • Local built-in diagnostic function
  • Logs and statistics
  • Remote upgrade by HTTP
Hardware Structure Diagram
Application Scenario Diagram
Profile Overview
Production Facility
FAQ
1. Who Are We?

We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a 11-50 person team dedicated to serving global clients.

2. How Do We Guarantee Quality?
  • Pre-production samples before mass production
  • 100% final inspection before shipment
3. What Can You Buy From Us?

FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.

4. Why Choose Us?

We are a top-tier optical communication supplier with over 50 employees. Our core focus is PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.

5. What Services Can We Provide?
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Languages Spoken: English, Chinese, Spanish, French, Russian, and more
6. What technical highlights does the hardware configuration support?

The hardware is configured with a high-performance gigabit RJ45 port (10/100/1000BASE-T) and a versatile PON interface supporting SC/UPC (CLASS B+). It delivers downstream rates up to 2.488Gbps for GPON and 1.244Gbps for EPON, ensuring robust data transmission over a distance of up to 20km.
