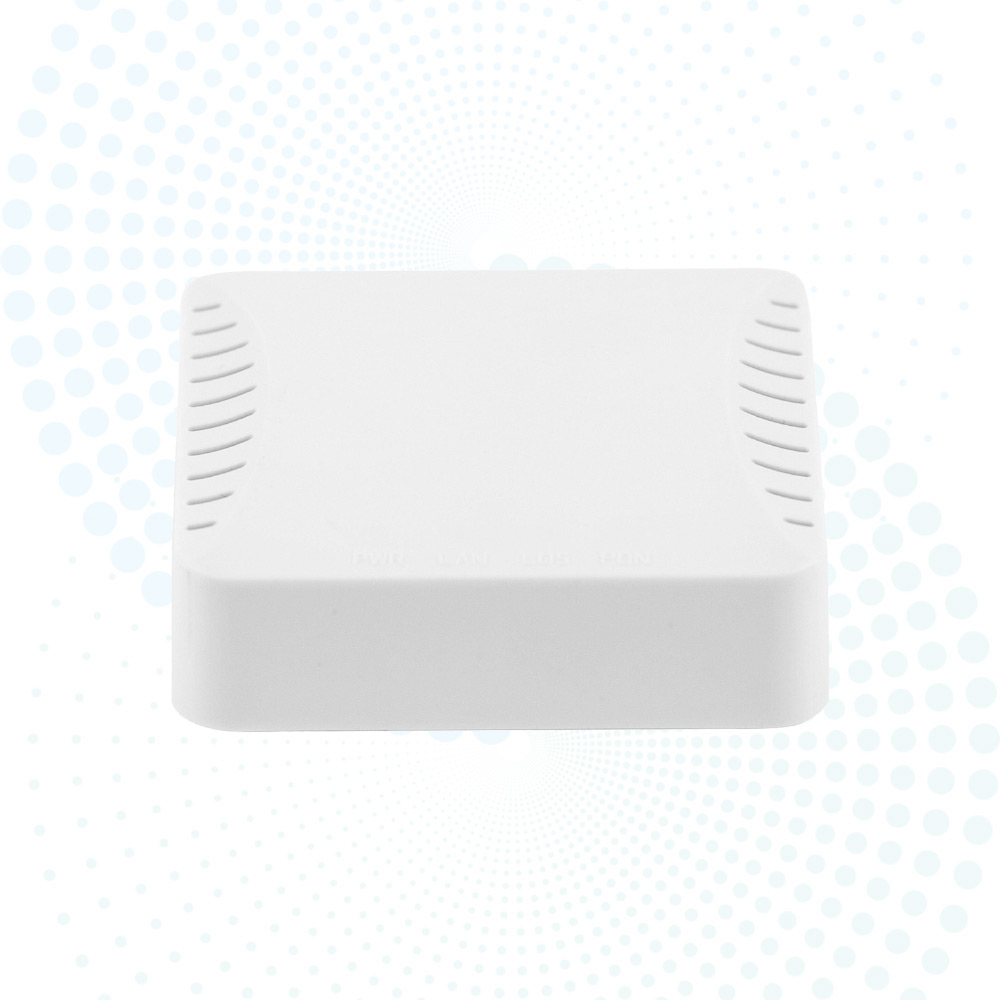

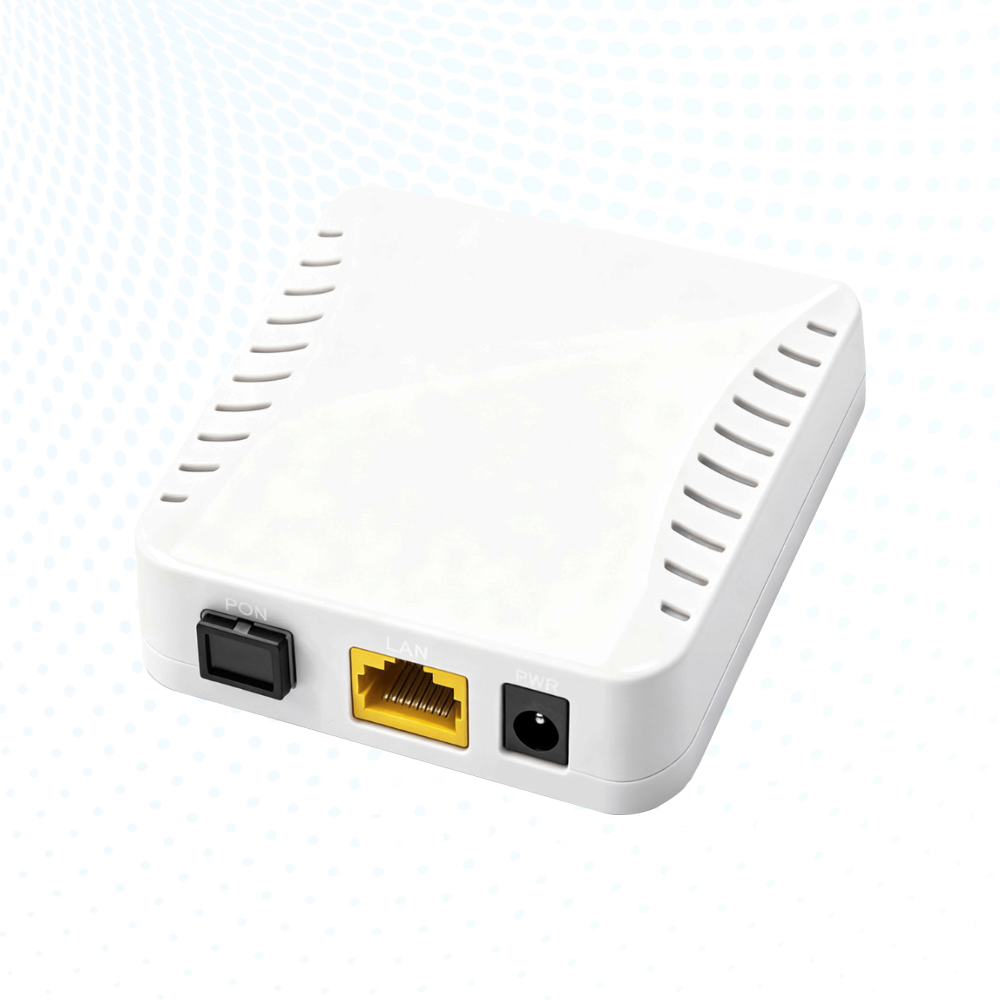

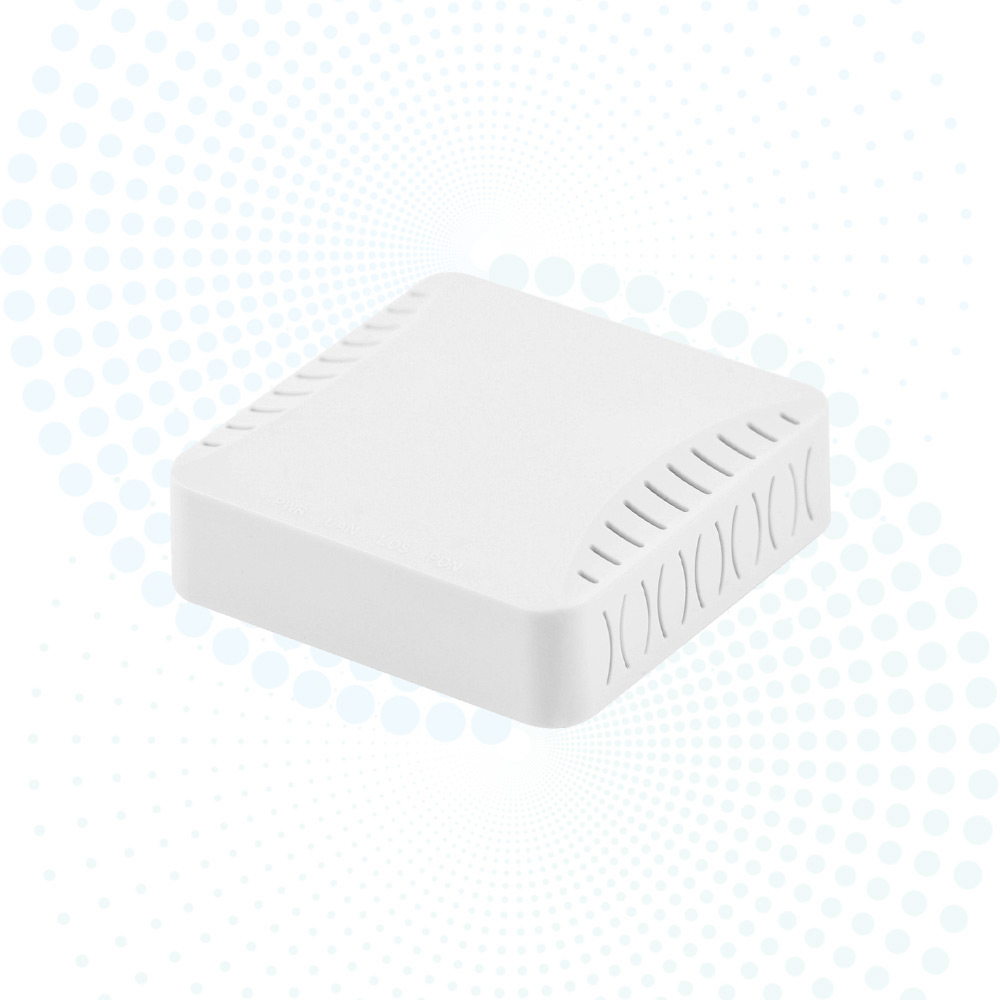

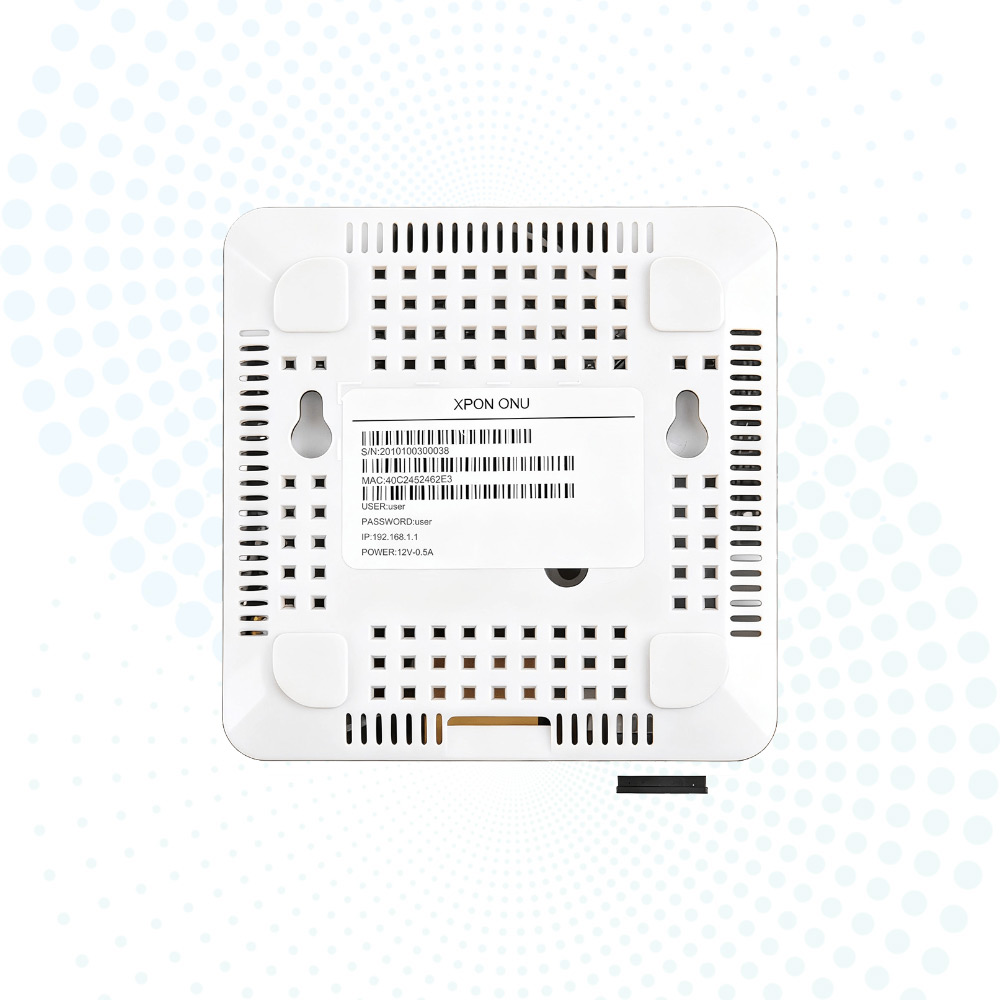

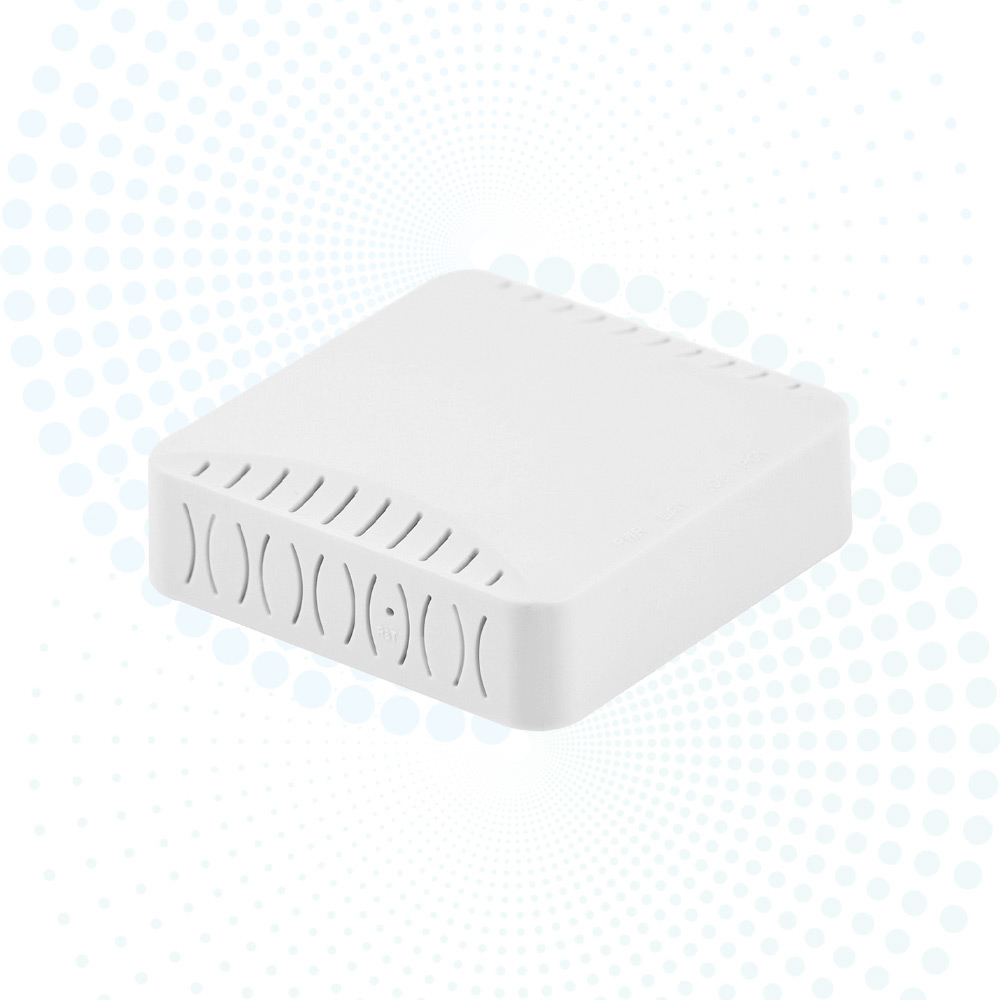

HG1001 FTTH XPON ONU 1GE Gigabit Fiber Modem Compatible with GPON EPON OLT

Product Description

Product Overview 1
Product Overview 2
Specification
Hardware
Ethernet Interface
  • Interface type: 1* RJ45
  • Interface parameters: 10/100/1000BASE-T
Buttons Rest Button
LED POWER / PON / LOS / LAN1
PON Interface
  • Interface Type: SC/UPC, CLASS B+
  • Transmission distance: 0~20km
  • Working wavelength: Up 1310nm; Down 1490nm;
  • RX Optical power sensitivity: -27dBm
  • Transmission rate:
    • GPON: Up 1.244Gbps; Down 2.488Gbps
    • EPON: Up 1.244Gbps; Down 1.244Gbps
Power Supply DC 12V/0.5A
Power Consumption <18W
Working temperature -20℃ ~ +50℃
Environment humidity 5% ~ 95% (non-condensing)
Dimension 78mm x 78mm x 21mm
Net Weight 0.06Kg (without package)
Software
Networking
  • Flexible packet classification
  • Up to eight queues
  • SP/WRR/SP+WRR
  • Ingress rate limit
  • Egress shaping
Security
  • Traffic filtering based on UNI port, VLAN ID, 802.1p, UNI+802.1p or VLAN+802.1p
  • DoS attack defending
  • Multiple VPN (IPSec, PPTP) passthrough
  • MAC address filtering
  • Broadcast/ Unicast/ Multicast attack protection
  • Broadcast packet rate limit
  • Dual image for firmware auto rollback
Management
  • OMCI management
  • WEB GUI management
  • Local built-in diagnostic function
  • Logs and statistics
  • Remote upgrade by HTTP
Hardware Details 1
Hardware Details 2
Overview
Manufacturing Center
FAQ
Who Are We?
We are an optical communication manufacturer founded in 2017. Our products are sold worldwide, with key markets including Asia, North America, Europe, the Middle East, and South America. We have a 11-50 person team dedicated to serving global clients.
How Do We Guarantee Quality?
  • Pre-production samples before mass production
  • 100% final inspection before shipment
What Can You Buy From Us?
FTTH ONU/OLT, SFP Modules, Fiber Media Converters, PoE Switches, and other fiber optic equipment.
Why Choose Us?
We are a top-tier optical communication supplier with over 50 employees. Our core focus is PON and switching solutions, supported by a strong engineering team. We deliver reliable products and value-added service for partners worldwide.
What Services Can We Provide?
  • Delivery Terms: FOB, CFR, CIF, EXW, DDP, Express Delivery, etc.
  • Payment Currencies: USD, EUR, CNY, and more
  • Payment Methods: T/T, L/C, PayPal, Western Union, Credit Card, Escrow, etc.
  • Languages: English, Chinese, Spanish, French, Russian, and more
