| Specifications | |
|---|---|
| Model | RD-G08P21U120 |
| Chip Solutions | RTL8367S+RTL8367S+2*DH2184 |
| Standards/Protocols | IEEE 802.1Q , IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af/at |
| Network Media |
10BASE-T: Unshielded Category 3, 4, 5 twisted pair (max. 100m) 100BASE-TX/100BASE-T: Unshielded Category 5, Ultra Category 5 or above twisted pair (max. 100m) 1000BASE-TX/1000BASE-T: Super Category 6 or above twisted pair (max. 100m) |
| Interfaces |

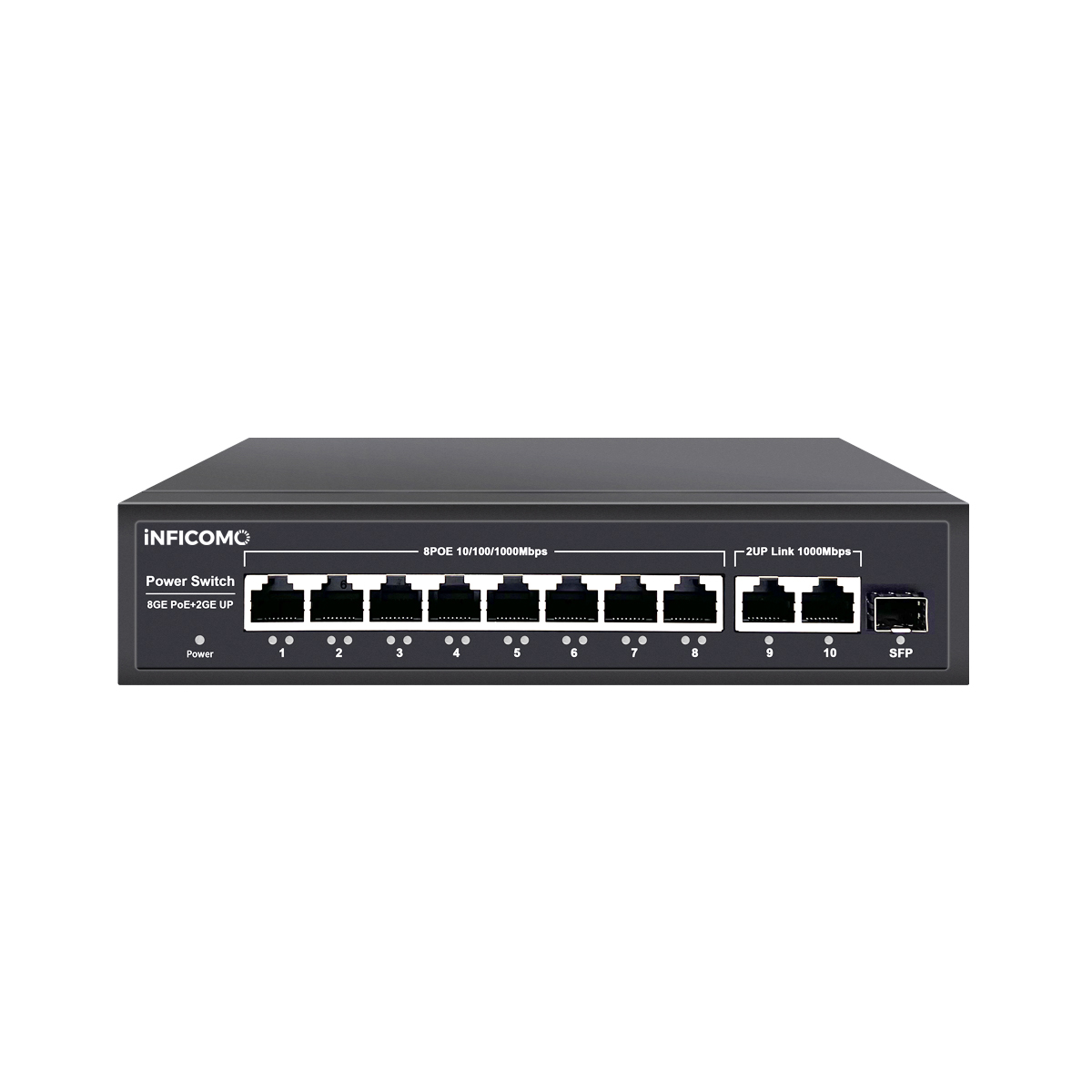

8 10/100/1000M RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 2 10/100/1000M UP-LINK ports 1 SFP 10M/100M/1000Mbps UP LINK port |
| Forwarding Mode | store-and-forward (computing) |
| MAC Address Capacity | 2K |
| Switching Capacity | 22Gbps |
| Packet Forwarding Rate | 16.368Mpps |
| Packet Cache | 1.5Mbits |
| Jumbo frames | 9216-byte |
| Power Supply | built-in DC: 52V, 120W |
| Power Supply Pins | 1/2(+), 3/6(-)(POE ports only) |
| POE Port Output Power | Single port output max.30W |
| Speed Limit Function | 10M speed limit switchable via toggle switch, transmission distance up to 250 meters |
| Static power consumption | Maximum: 0.728W (220V/50Hz) |
| Environment |
Operating Temperature: -10°C~70°C (32°F~127°F) Storage Temperature: -40°C~85°C (-40°F~185°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Housing Material | Standard Hardware Enclosure |
| Dimensions (L×W×H) | 201×132×44mm |
