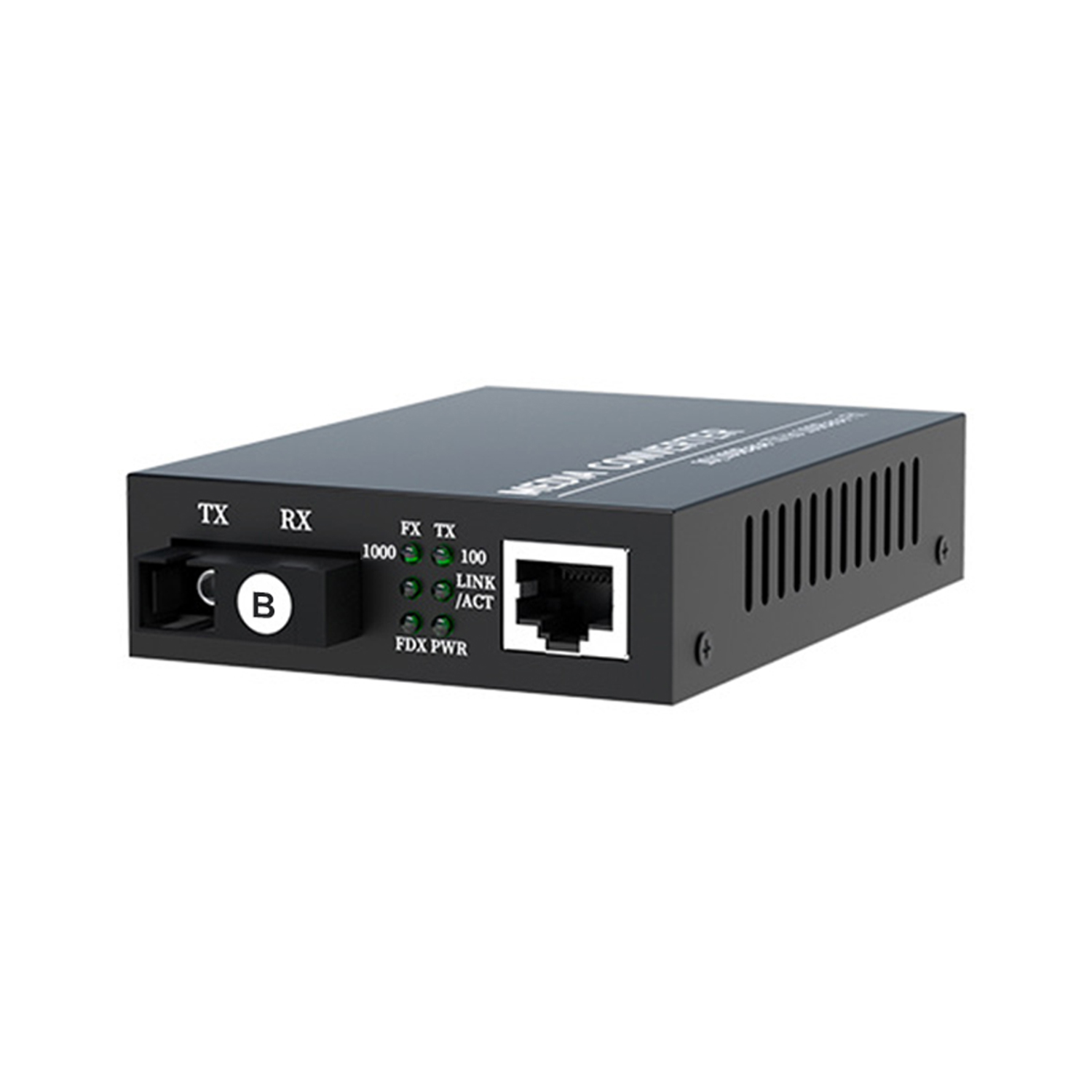

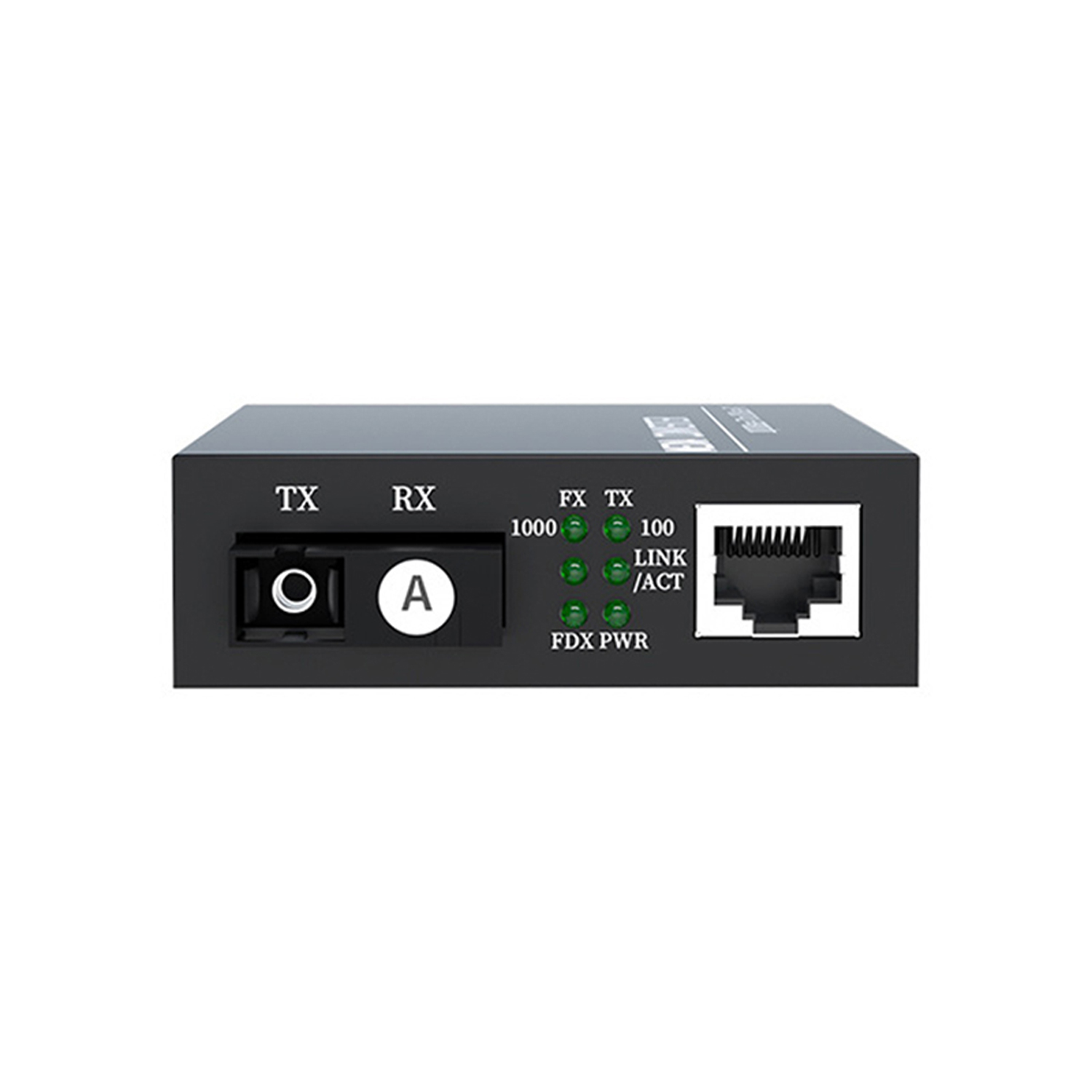

Fiber Optic Equipment Data Optical Transceiver 10M/100M/1000M Fiber Media Converter

Send Inquiry

Product Description

1 Gigabit fiber port with 1*10/100/1000Mbps RJ45 port

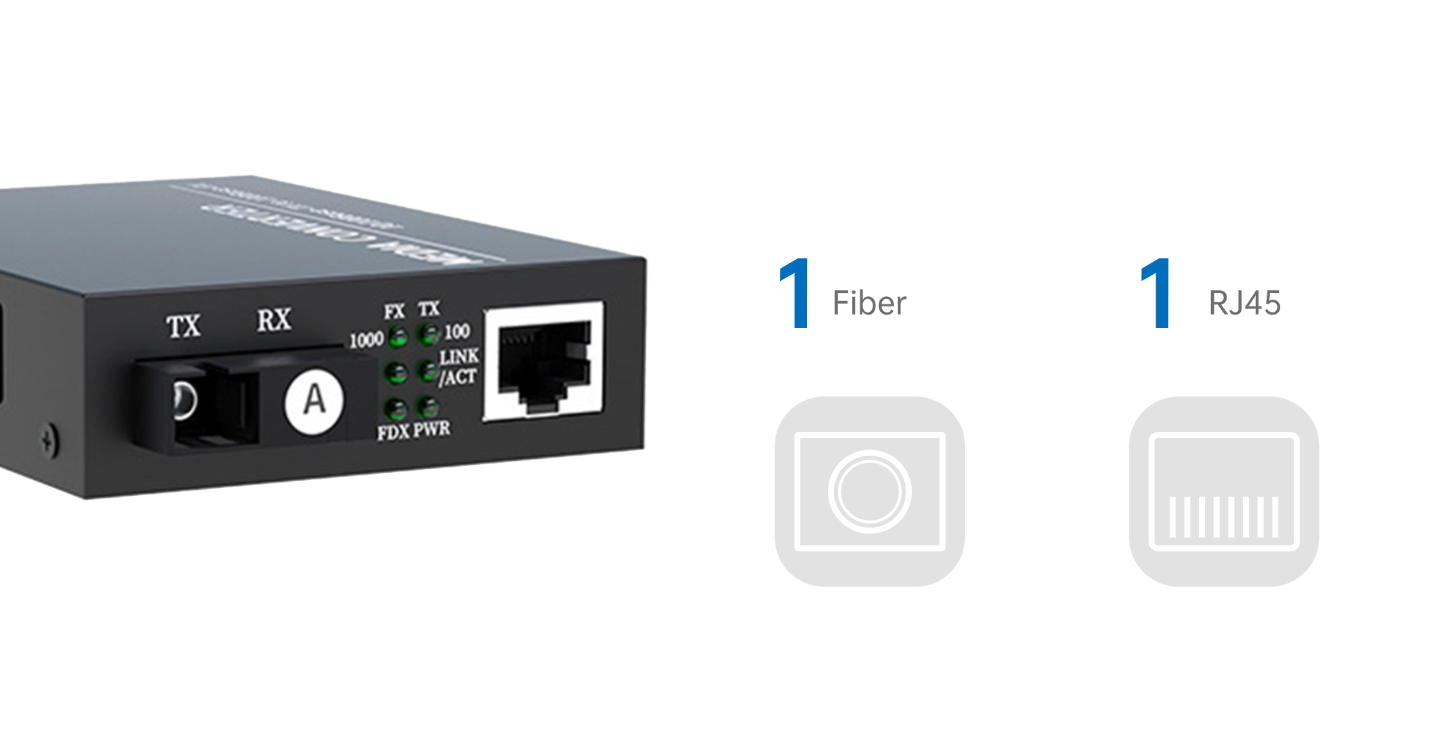

Point-to-point high-speed forwarding

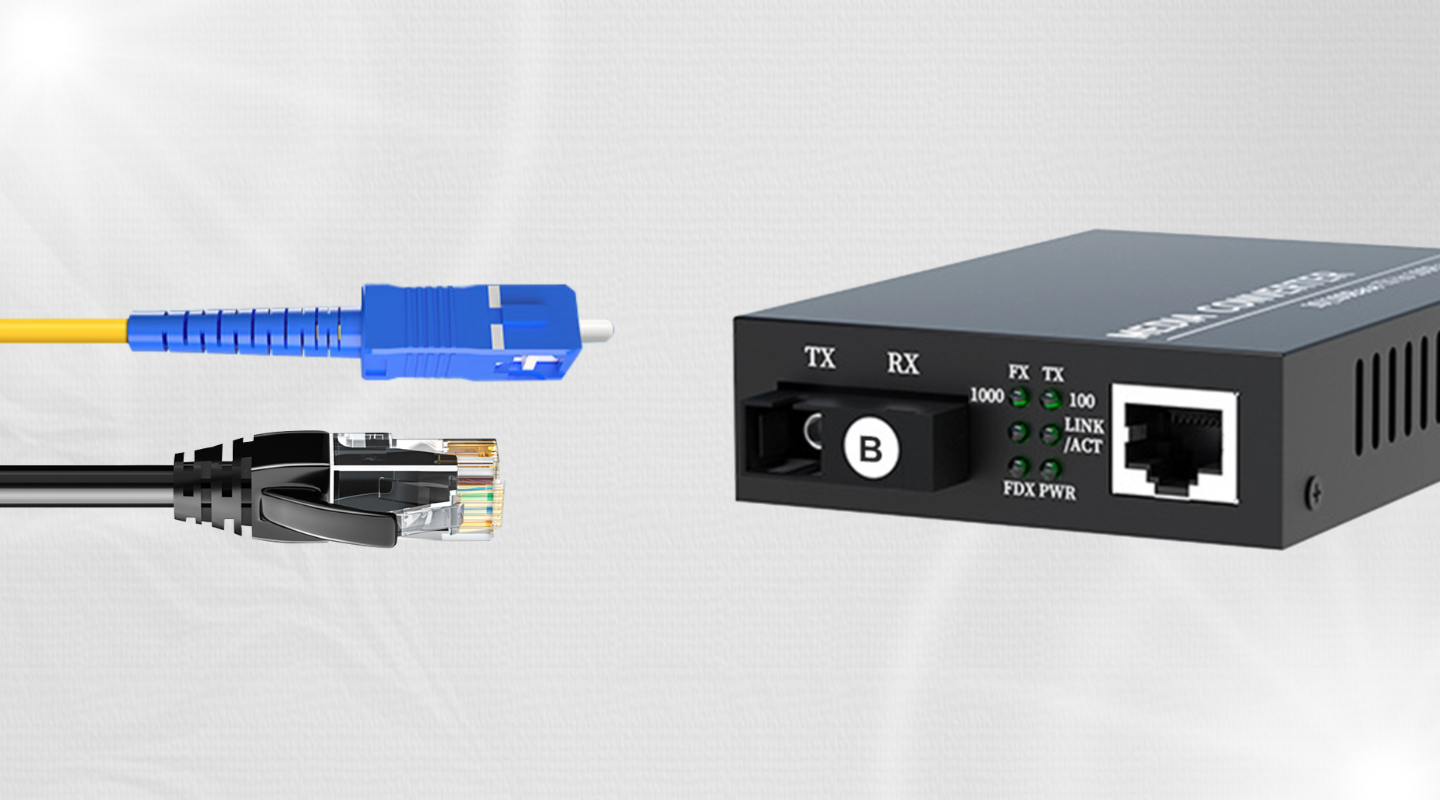

Plug-and-play, no need for any configuration

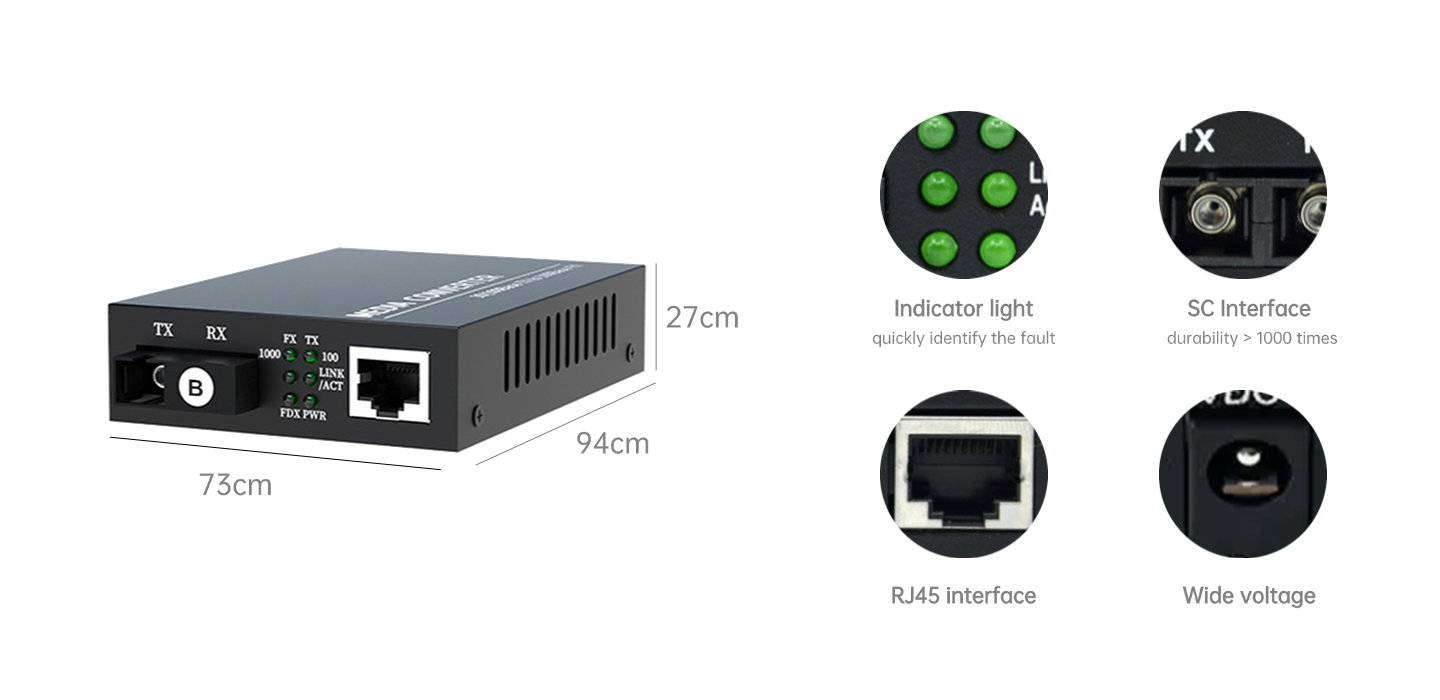

Product dimensions and interface definitions

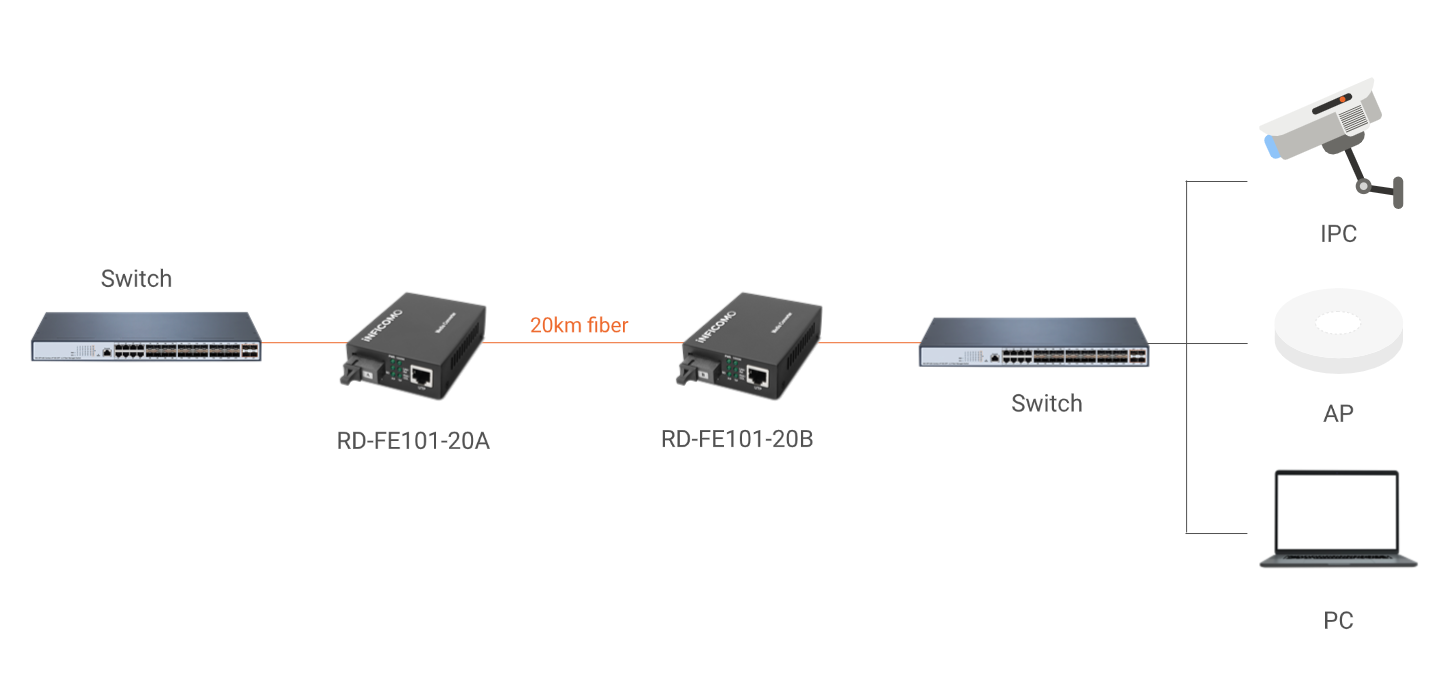

Application

Specification
Product Name	Single Port Single Fiber Gigabit Media Converter
Model	RD-GS5601
Description	Gigabit single electrical port, single mode single fiber Ethernet media converter
Interface	1x copper cable RJ45 port +1x fiber LC port
Transmission	20km. can be customized 40km, 60km or 100km
Optic Fiber	Single fiber, single mode
Broadband	1.25G
Rate	1000MHz
Network Media	100BASE-TX/1000BASE-TX: Cat5 and more UTP
Protocol	IEEE 802.3i;IEEE 802.3u;IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI
Architecture	Store and forward
EMI Safety	FCC Class A, CE
Power Supply	External power supply
Total Power	5W
Warranty	1 year warranty, life-long maintenance

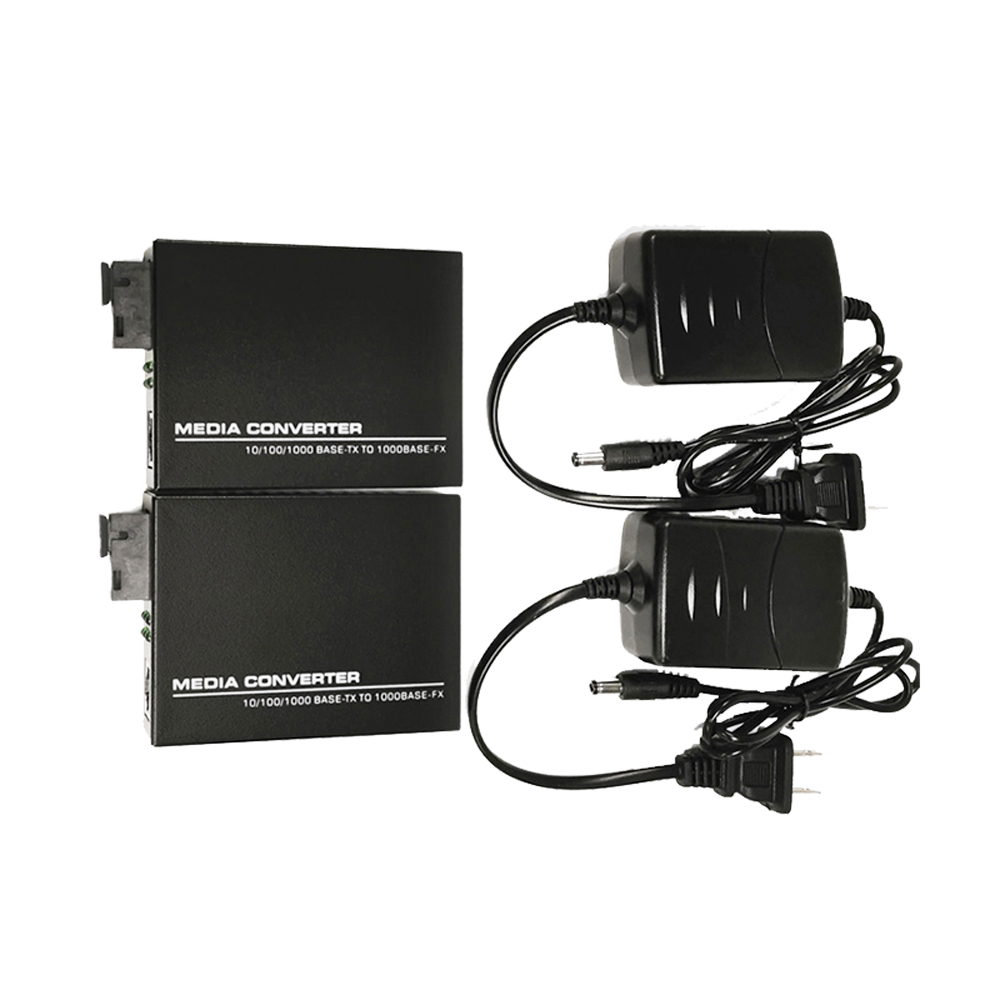

Packing List	Gigabit Fiber Media Converter, User Guide, Power Adapter

Model	Introduction	Function

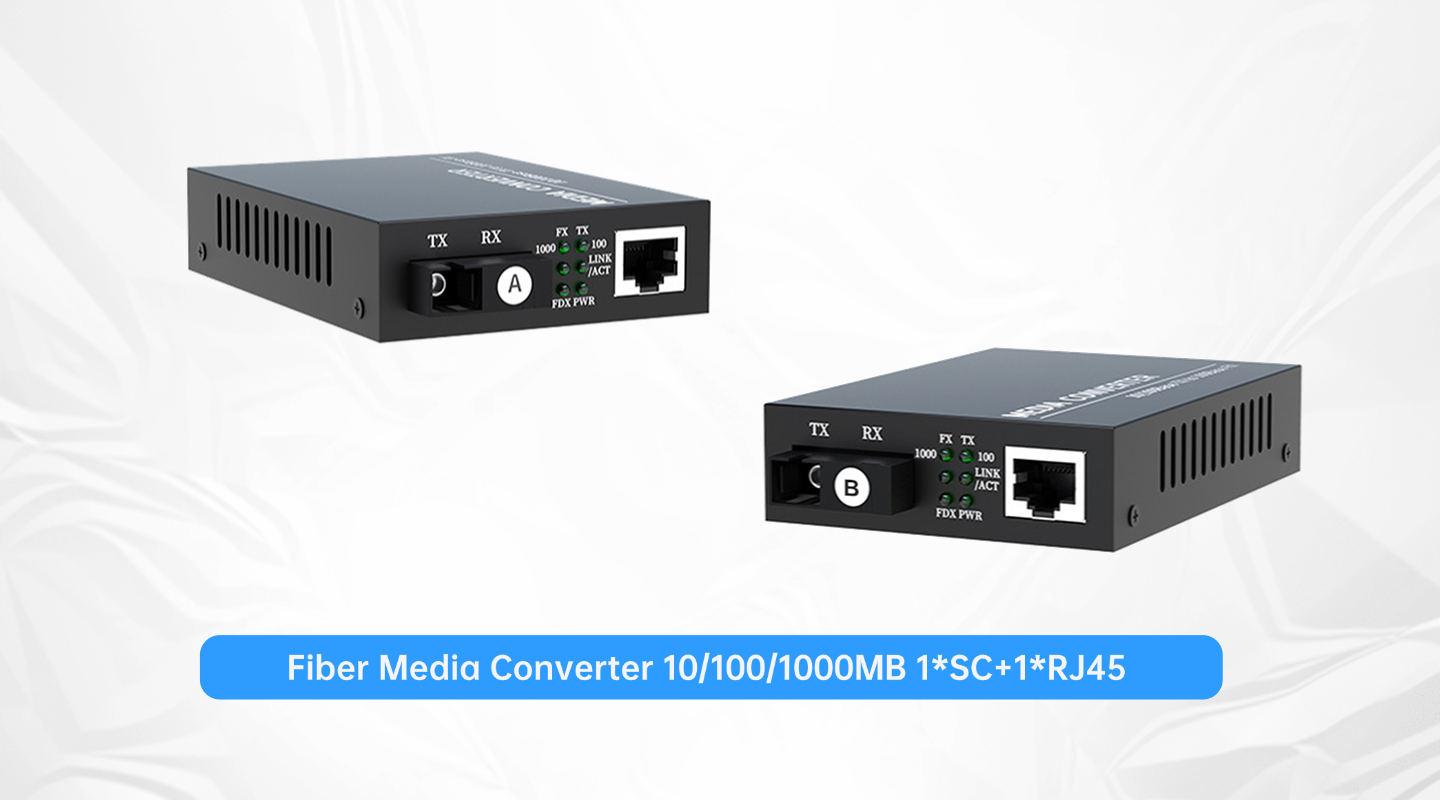

RD-GS5601-M20A RD-GS5601-M20B	Mini Fiber Media Converter 10/100/1000Mbps 20km	Fiber Media Converter, 10/100/1000Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm, B:Tx1550nm/Rx1310nm
RD-GS5601-20A RD-GS5601-20B	Fiber Media Converter 10/100/1000Mbps 20km	Fiber Media Converter, 10/100/1000Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm, B:Tx1550nm/Rx1310nm
RD-GS5601-S20	Fiber Media Converter 10/100/1000Mbps 20km	Fiber Media Converter, 10/100/1000Mbps 1Duplex SC -1LAN SM 20km SC DC5V power supply, TRx:1310nm
RD-GS5601-SFP	10/100/1000MB to SFP Media Converter	10/100/1000M media converter, 1RJ45+1SFP port, External DC5V power supply.
RD-GS5601-SFP MINI	MINI 10/100/1000MB to SFP Media Converter	10/100/1000M media converter, 1RJ45+1SFP port,media converter only

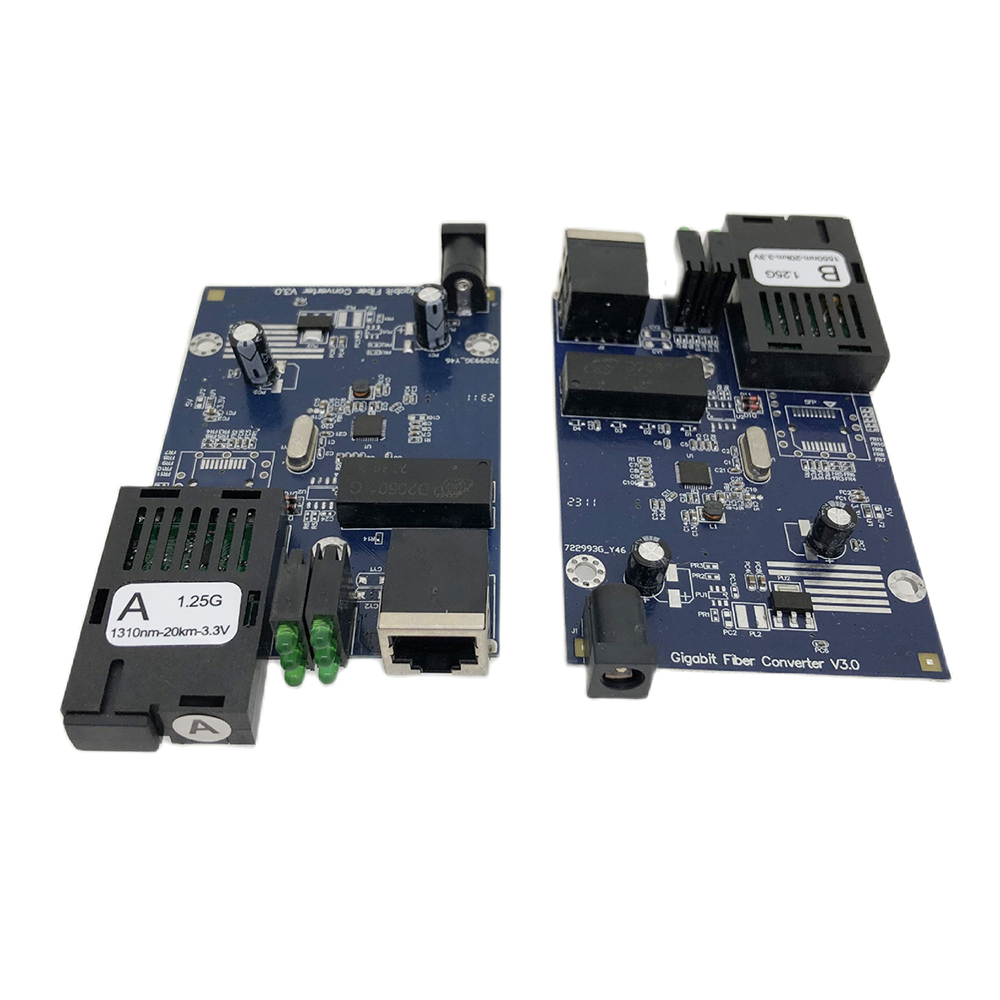

RD-GS5601-SFP PCBA	MINI 10/100/1000MB to SFP Media Converter PCBA	10/100/1000M media converter, 1RJ45+1SFP port,Board only.

Note: For customized orders, such as transmission distance, please contact us for a quotation.

FAQ

What is your MOQ request?

Depends on products, different products have different MOQ, please contact our sales for more details.

Do you Support ODM/OEM service?

Yes, we can offer the customization service to you.

Does your products support other brands?

Yes, all of our products is without lock, support to another brands too.

Are you the manufacturer or trading company?

We are the manufacturer, we support factory view tour.

Do you offer free samples?

Yes, for some models we are able to provide the free samples for your testing purpose.

Are you able to provide the local certificates?

Yes, according the contract agreement, we are able to apply for the local certificates for you, such as Postel/CE/Rohs/Anatel etc.
