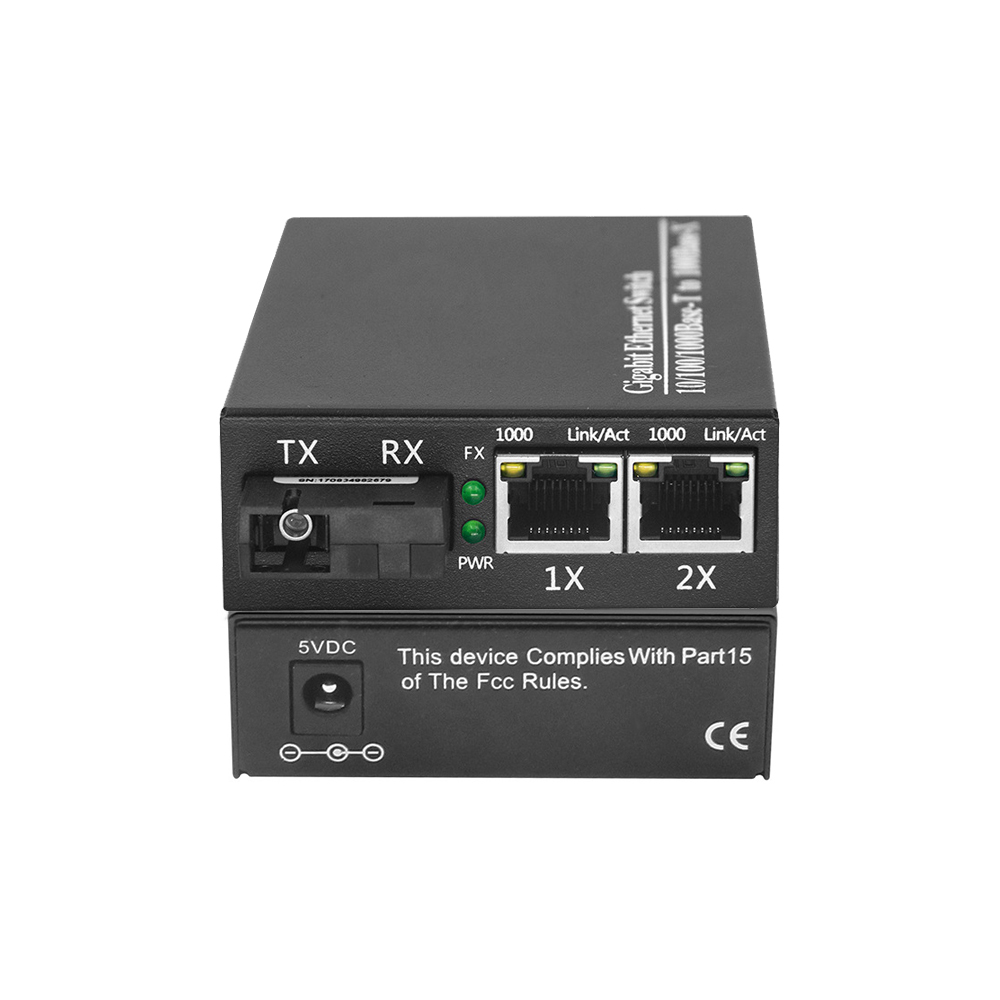

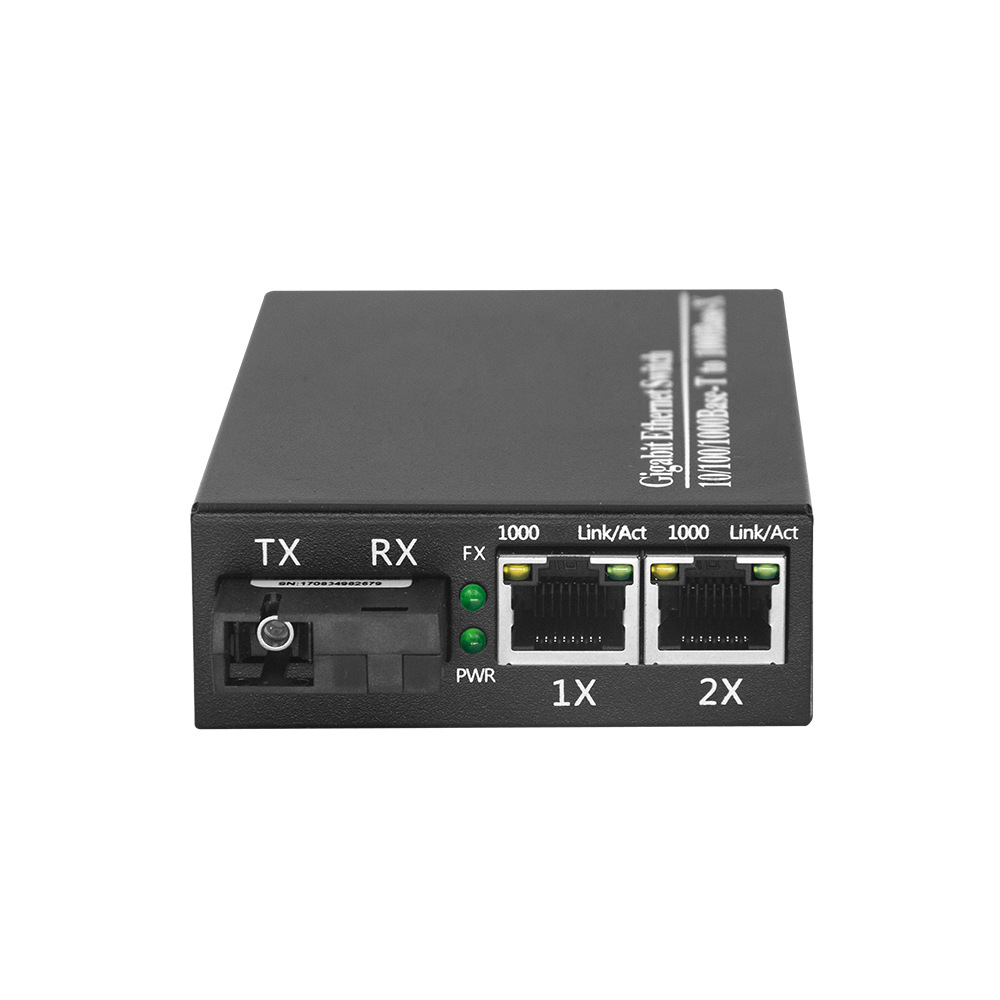

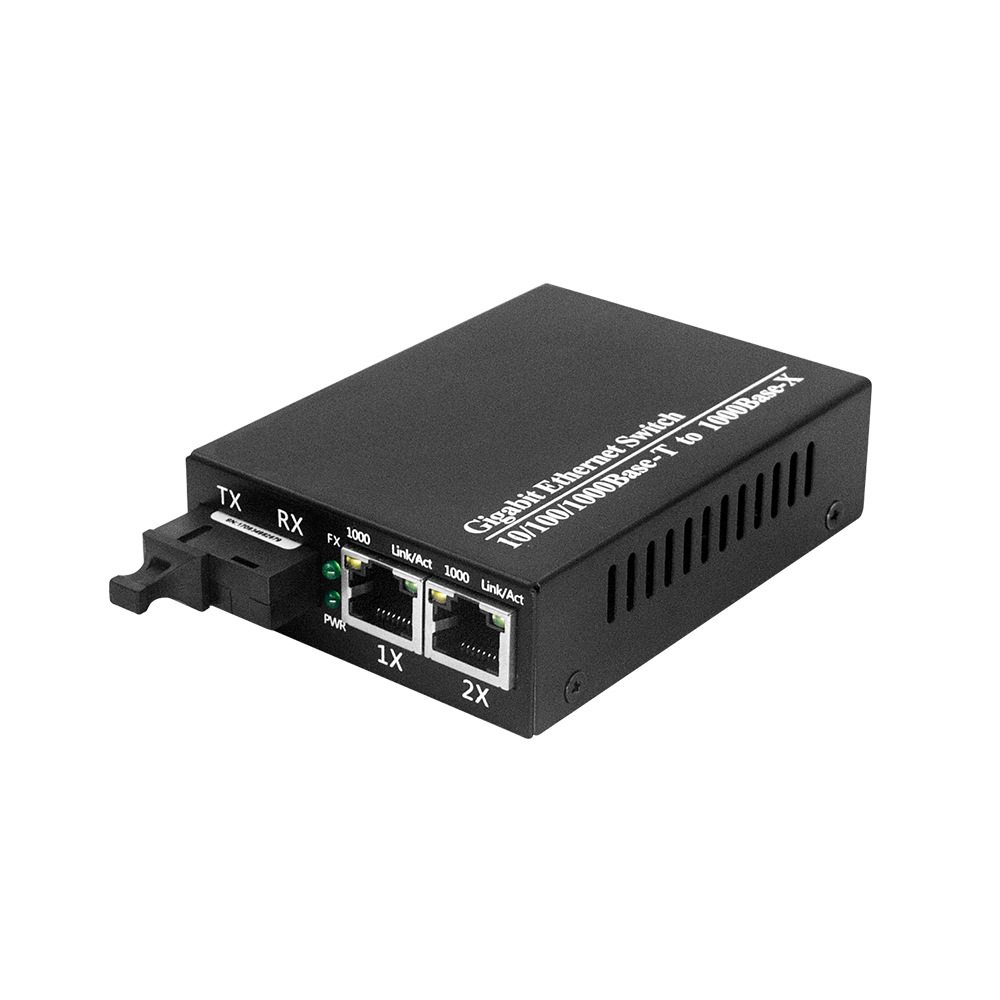

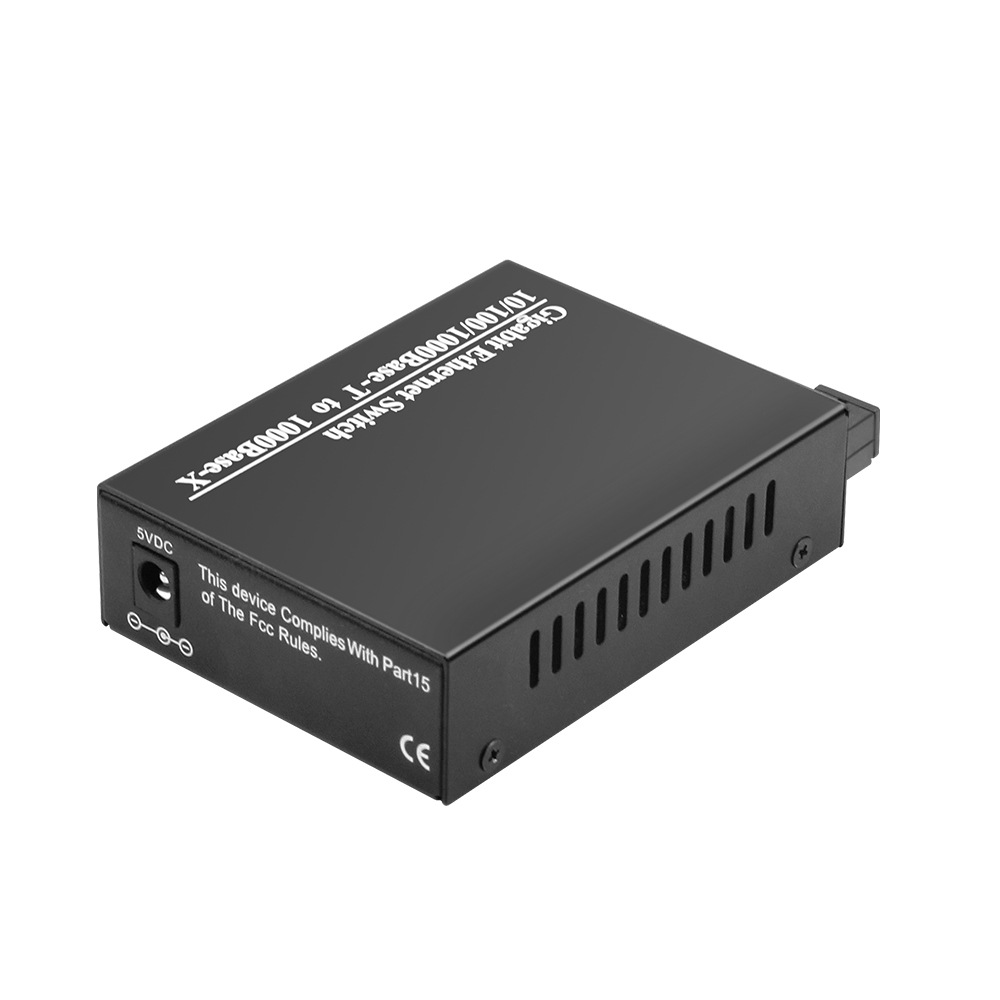

Fiber Optic Equipment 3 Ports 10/100M Media Converter 20KM SC Fiber Optical Ethernet Media Converters

Description

1 fiber to 2 UTP switch uses 1X9 fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 2km max on MMF and 100km max on SMF. Standard in-stock fiber interface is SC. ST and FC available upon requests.

Features

11 x SMF/MMF, simplex/duplex fiber port
22 x 10/100/1000M auto-sensing Half/Full duplex RJ45 ports
3Excellent cooling system with unique HIC solution
4Follow control and broadcast storm control
5IEEE802.3/u/x compliant
6Conspicuous LED indicators for power/link diagnose/data
750,000 hours MTBF

Technical Specification

Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
Protocol	CSMA/CD
Fiber	1 x Single fiber or Dual fiber
Distance	Single fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM: 20-100km
Optical interface	SC (ST, FC)
Ethernet Interface	2 x MDI/MDIX RJ45 ports

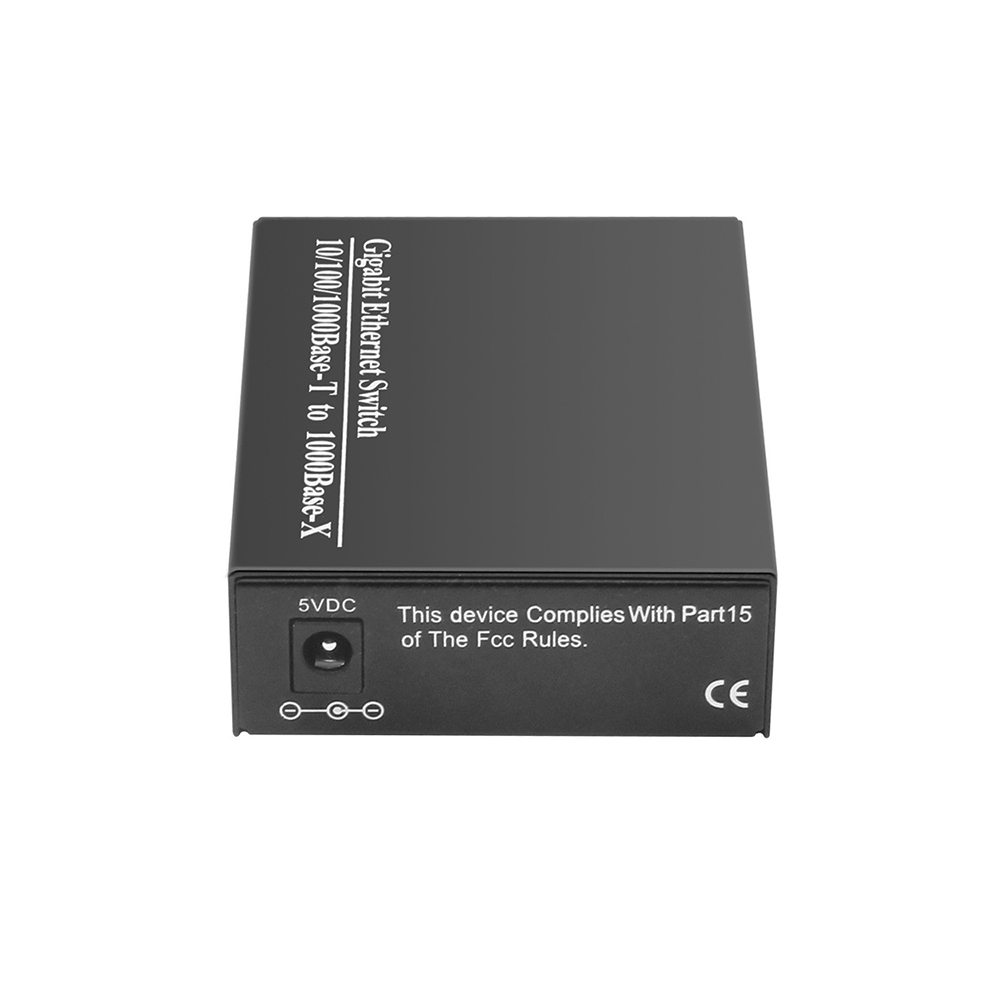

Power Supply	DC5V 1A (external power)
Operating Temperature	0°C ~ +50°C
Storage Temperature	-30°C ~ +60°C
Humidity	5%~90% non-condensing
Dimension	158mm × 100mm × 27mm
Weight	0.78 kg (Gross Weight)
