Soras Tech
1 / 5
High speed and stable quality chip. We pursue excellence, quality is still, live up to ten thousand praise.

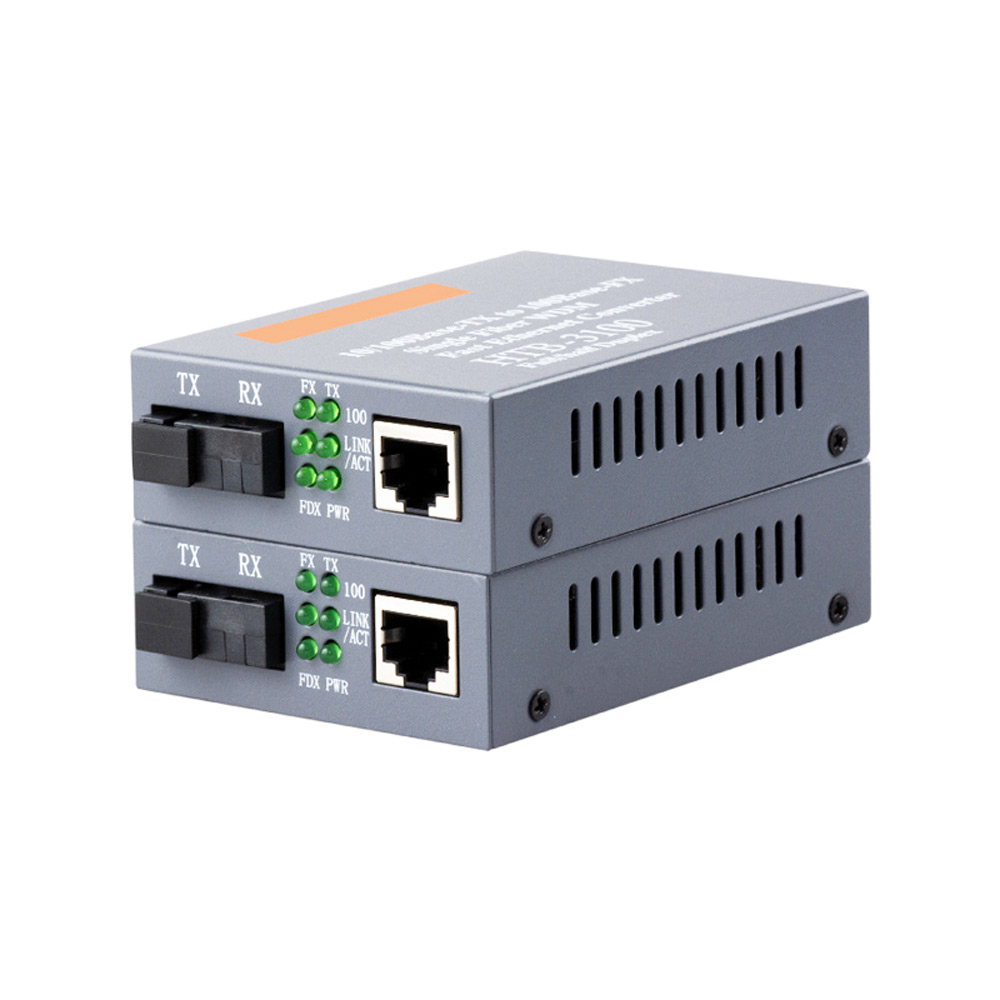

There are vents on both sides, which can provide better heat dissipation and ensure the normal high-speed operation of the machine.
High performance main control chip realizes fast data forwarding. Single-fiber two-way transceiver body module offers strong anti-interference ability, high speed, and stable performance.
Adapts seamlessly to a variety of working environments, including community networks, campus enterprise networks, fiber to the home (FTTH), intelligent broadband, monitoring, and security fields.
| Part Number | HTB-3100AB |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX |
| Ethernet Port | Connector: RJ45 Data Rate: 10/100Mbps Distance: 100m UTP Type: UTP-5E or higher level |
| Fiber Port | Connector: SC port Data Rate: 10/100Mbps Distance: 25km |
| Port | 1*RJ45 port, 1* fiber port (SC/LC/ST/FC Optional) |
| Forward / Filter Rate | 10M: 14,880/14,880pps 100M: 148,800/148,800pps |
| Power Supply | External : 5V DC 1A Built-in: 100 V to 240 V AC 50Hz to 60Hz Power Consumption : ≤5W |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) |
| Warranty | 1 Year |
The transceiver supports stable data transmission for distances up to 25km over single-mode optical fiber cabling.
Yes, the RJ45 Ethernet port automatically supports 10/100Mbps auto-negotiation and auto MDI/MDI-X crossover functions.
It comes with a standard SC port for optical fiber connections and an RJ45 port for copper cabling. LC, ST, or FC interfaces are optional.
No, this transceiver features a full plug-and-play design. You only need to plug in the optical and network cables to begin using it.
Vents on both sides allow optimal heat dissipation, ensuring the device remains cool under high speed operations to extend its overall lifetime.
This optical fiber transceiver includes a comprehensive 1-year product warranty coverage.
