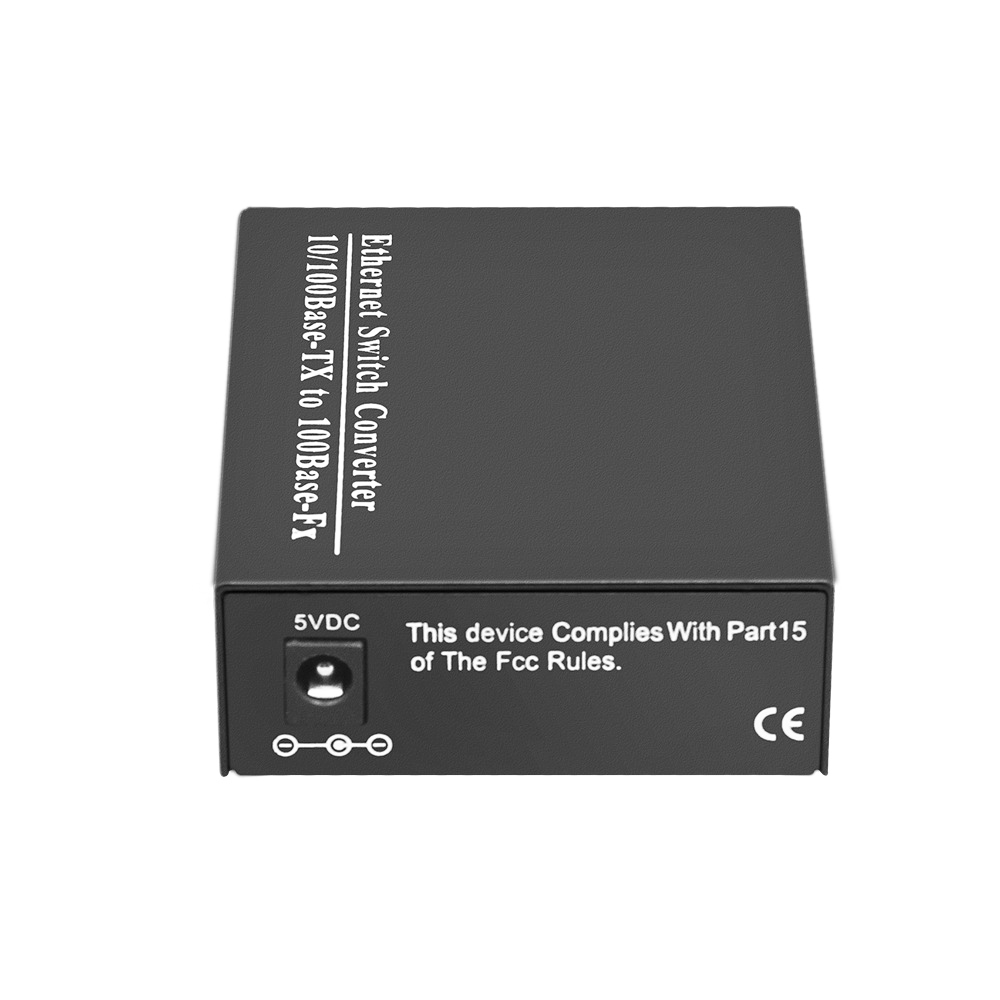

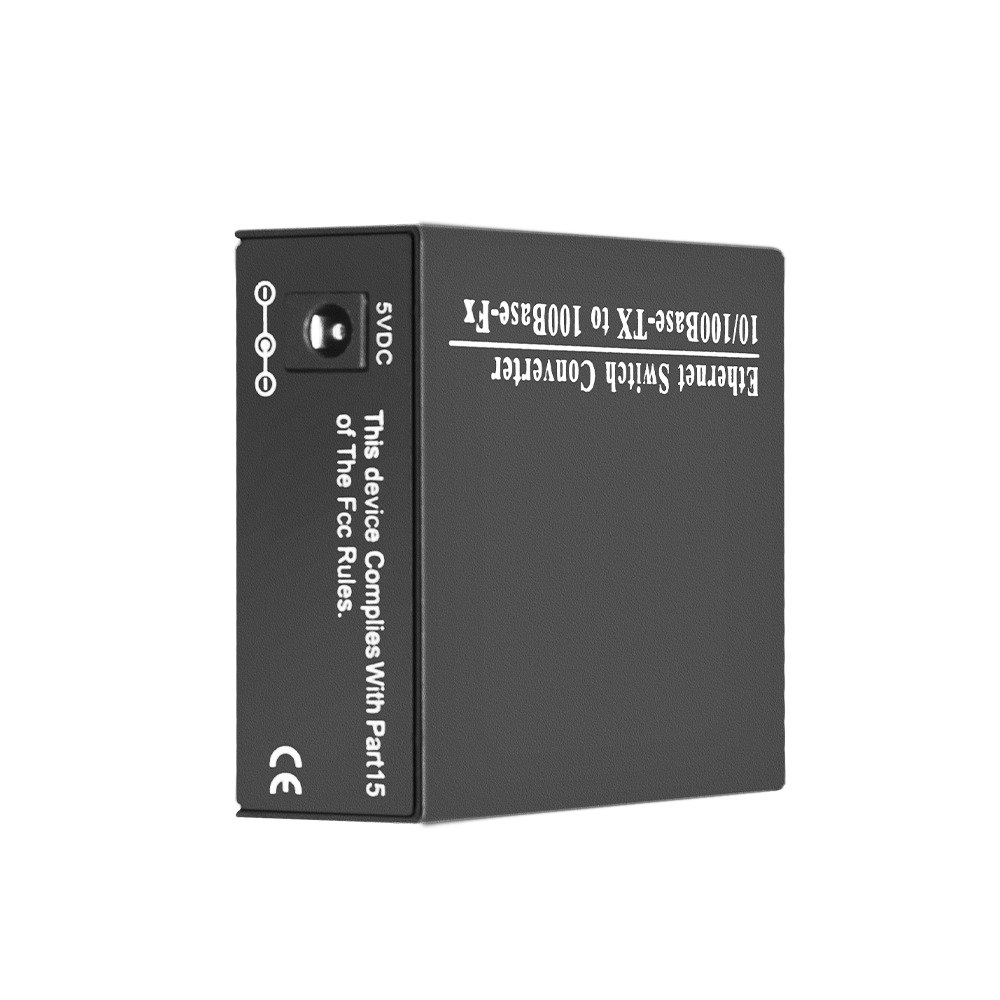

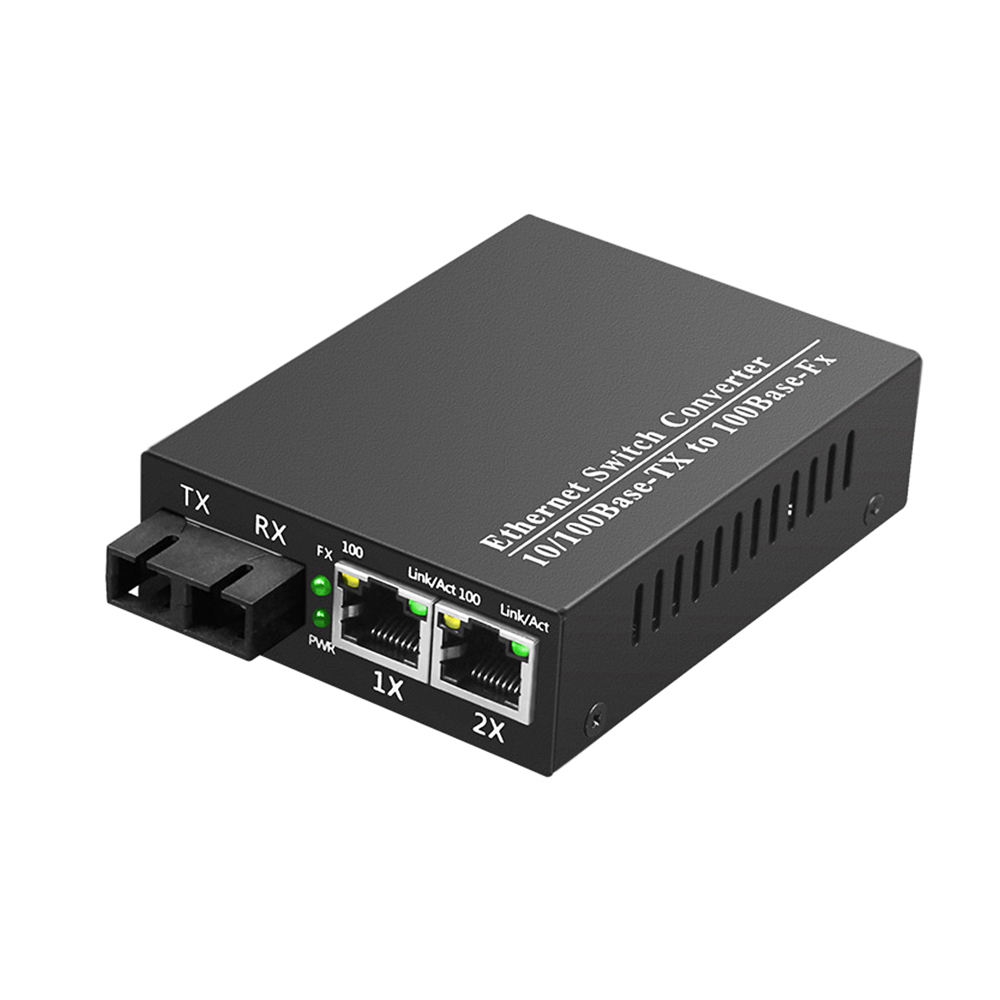

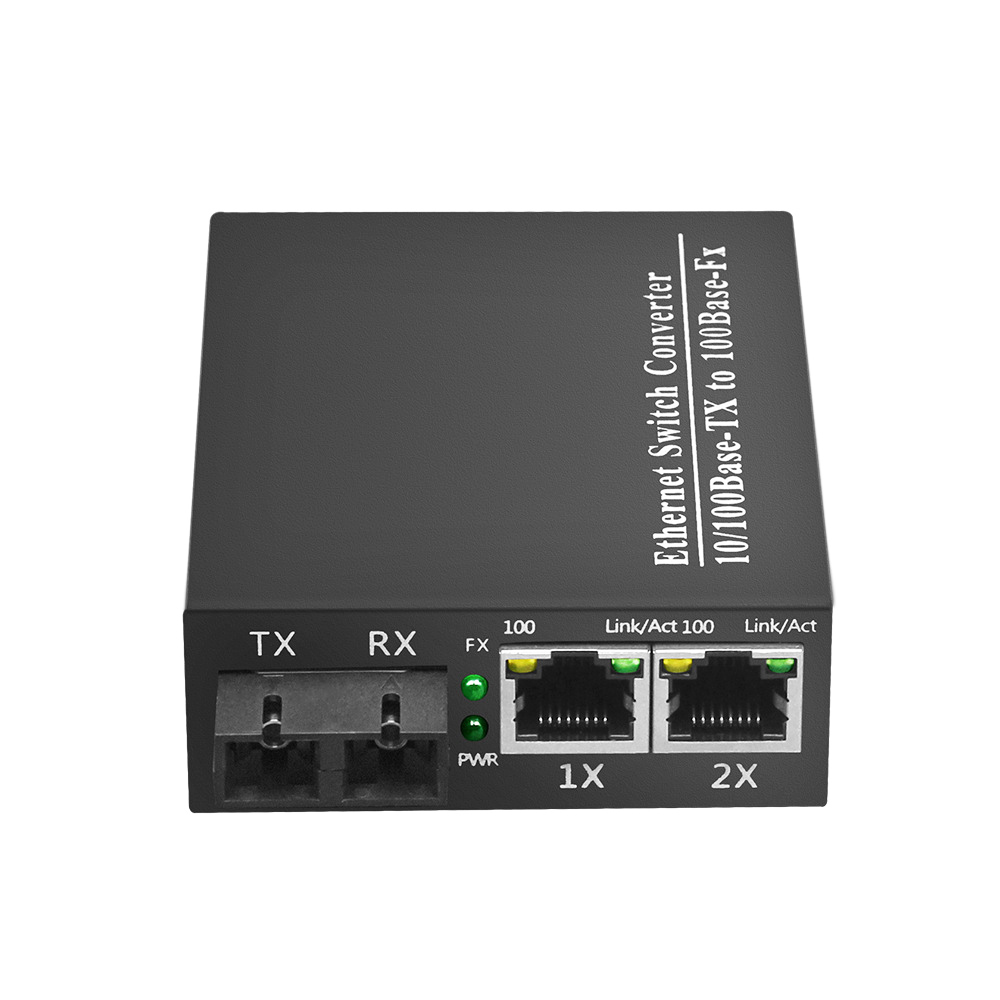

Factory Outlet Unmanaged 10/100Mbps Fiber Switch 2 Electrical Ports 1 Optical Simplex Media Converter for Video Surveillance

Send Inquiry

Product Description

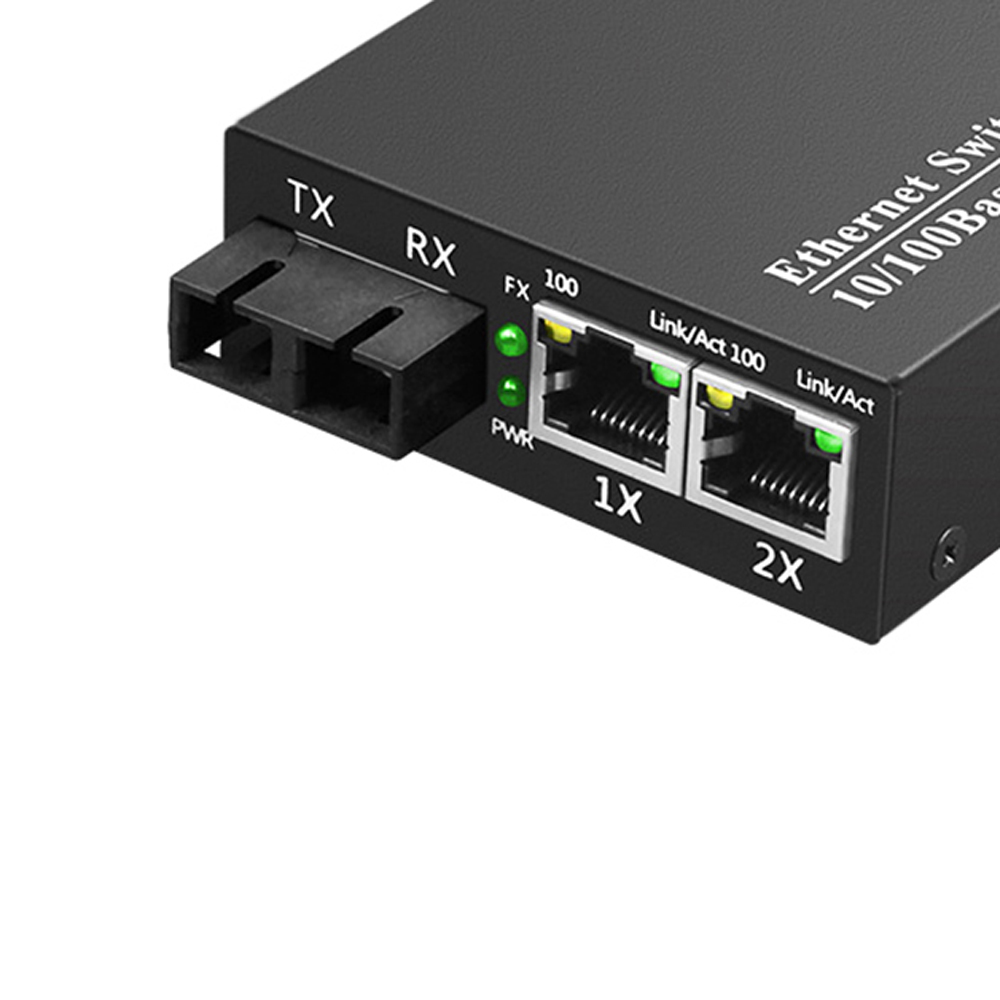

1 SC optical fiber interface + 2 gigabit RJ45 interfaces ensure stable and smooth data transmission

Plug-and-play, no setup required

Hardware Specifications
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface	1155Mbps SC optical fiber interface 110/100Mbps adaptive RJ45 port
Wavelength	1310nm
Distance	Maximum transmission distance: 3km
Optical parameter	Optical power: -17~-1dBm Reception sensitivity: -22dBm
Media	Cable: Category 5 or higher UTP and STP Fiber: 50/125um or 62.5/125um multimode optical fiber
Power	DC12V/1A
Size	95mm74mm27mm
Operating environment	Working temperature: -20°C to 60°C Storage temperature: -40°C to 85°C Working humidity: 10% to 90% RH without condensation Storage humidity: 5% to 90% RH without condensation

Model Number	Optic Fiber	Wavelength	Distance
RD-FE102-M	Dual fiber Singlemode	850nm	550m
RD-FE102-A	SMF(1)	1310nm/1550nm	3km
RD-FE102-B	SMF	1550nm/1310nm	3km
RD-FE102-20A	SMF	1310nm/1550nm	20km
RD-FE102-20B	SMF	1550nm/1310nm	20km
RD-FE102-40A	SMF	1310nm/1550nm	40km
RD-FE102-40B	SMF	1550nm/1310nm	40km

(1) SMF: Single fiber Singlemode.

(2) Distance options: 0-120km.
