| Basic Parameters | |
|---|---|
| Ports | 1 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 1 x USB SC/UPC XPON |
| Working Environment |
Operating temperature: 0ºC to 40ºC Environment humidity: 5% to 95% (noncondensing) |
| Static Power | 5.3 W |
| Max. Power | 18 W |
| Power Specs |
Power adapter input: 100 to 240 V AC, 50–60 Hz System power supply: 11–14 V DC, 1.5 A |
| WLAN |
2.4GHz: 802.11n 5GHz: 802.11ax |
| Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| GPON Port |
Class B+
Receiver sensitivity: –27 dBm to –29 dBm
Overload optical power: –8 dBm
Wavelengths: US 1310 nm, DS 1490 nm
Wavelength Blocking Filter (WBF) of G.984.5
Flexible mapping between the GEM port and TCONT
GPON: consistent with the SN or password authentication defined in G.984.3
Bi-directional FEC
SR-DBA and NSR-DBA
Type B (single-homing and dual-homing)
|
| WLAN Specs |
IEEE 802.11 b/g/n/ax (2.4G)
IEEE 802.11 a/n/ac/ax (5G)
2 x 2 MIMO (2.4G) & 2 x 2 MIMO (5G)
Antenna gain: 5 dBi
WMM/Multiple SSIDs/WPS
2.4G and 5G concurrency
Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G)
Beamforming & Band steering
DL OFDMA & DL MU-MIMO
1024 QAM with 160 MHz frequency bandwidth
WPA3 Security
|
| Dimensions | 195 mm x 125 mm x 35 mm (length x width x height) |
| Weight | About 400g |

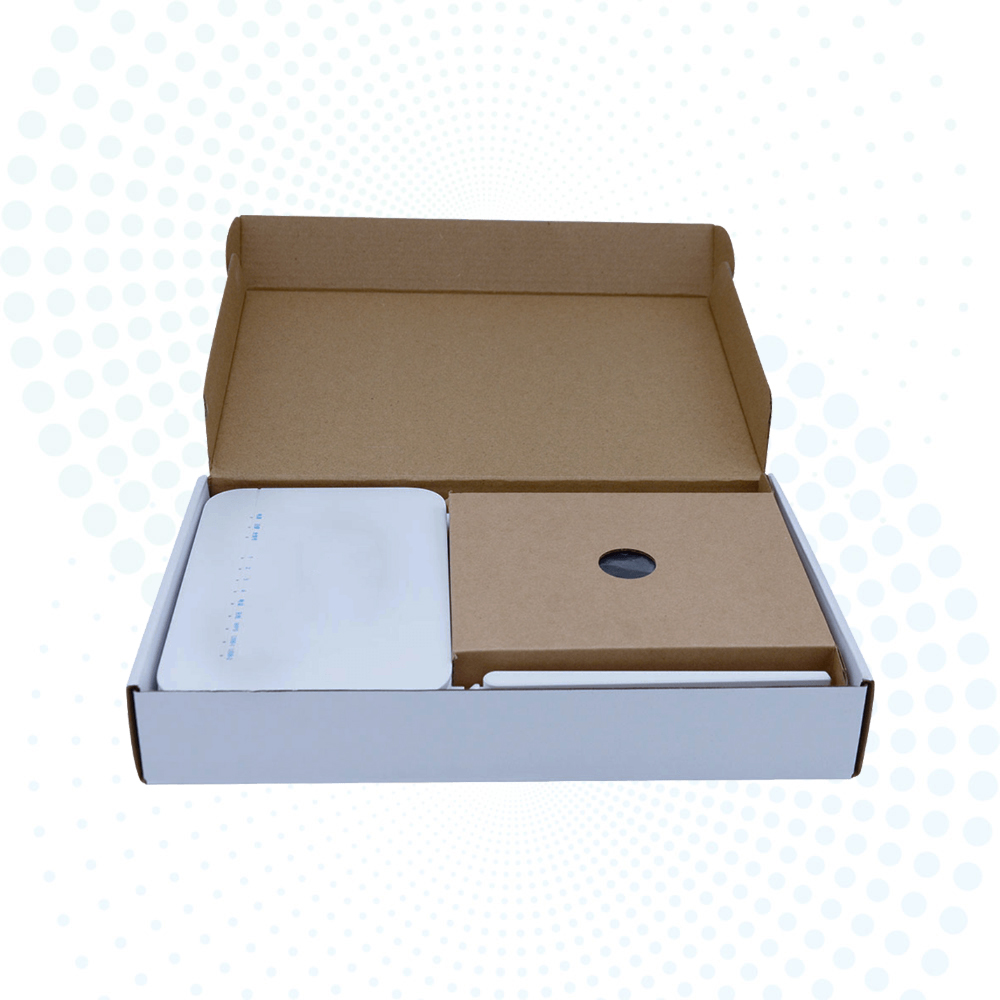

| Description | Accessories Pack |
|---|---|
| GPON ONU, 1*GPON + 4*GE RJ45 + 1*RJ11 POTS + 1*USB + 2.4GHz & 5GHz Wi-Fi 6 (2*External 5dBi antennas) | Power Adapter |
