Home > Standard Series > F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware

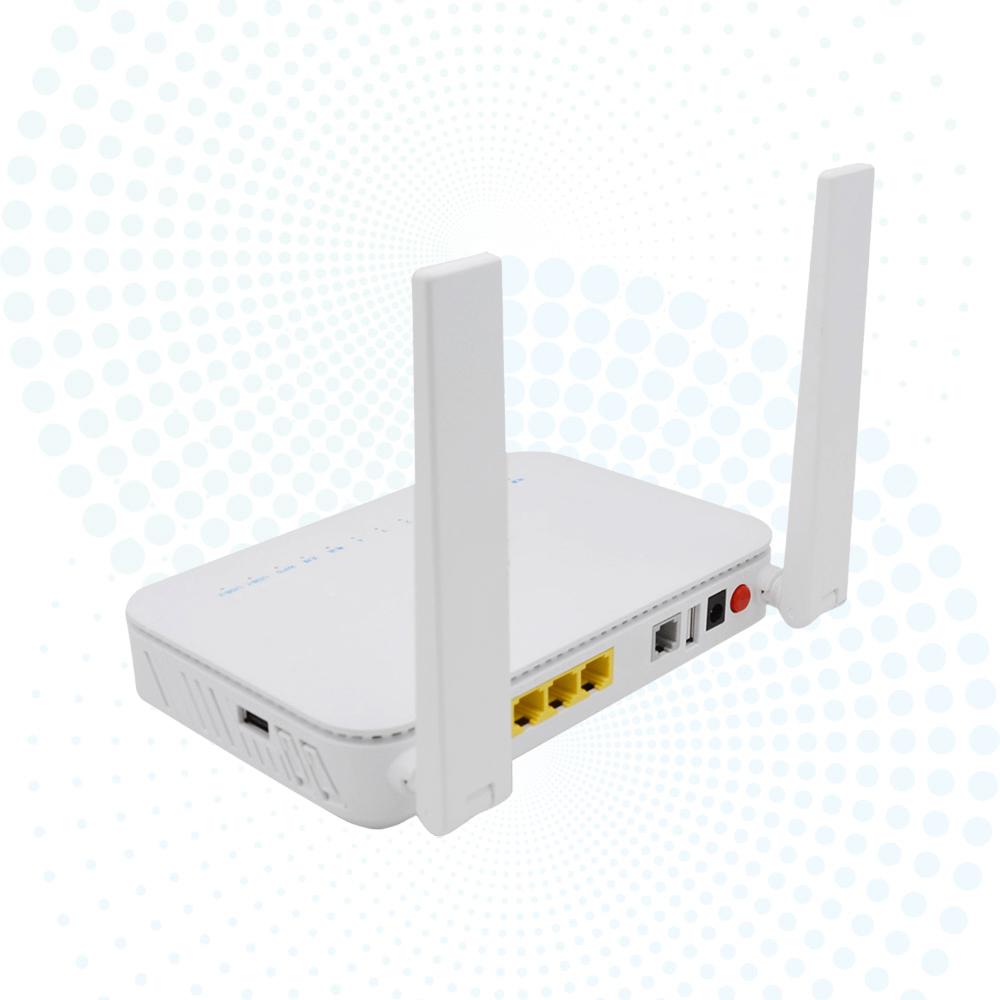

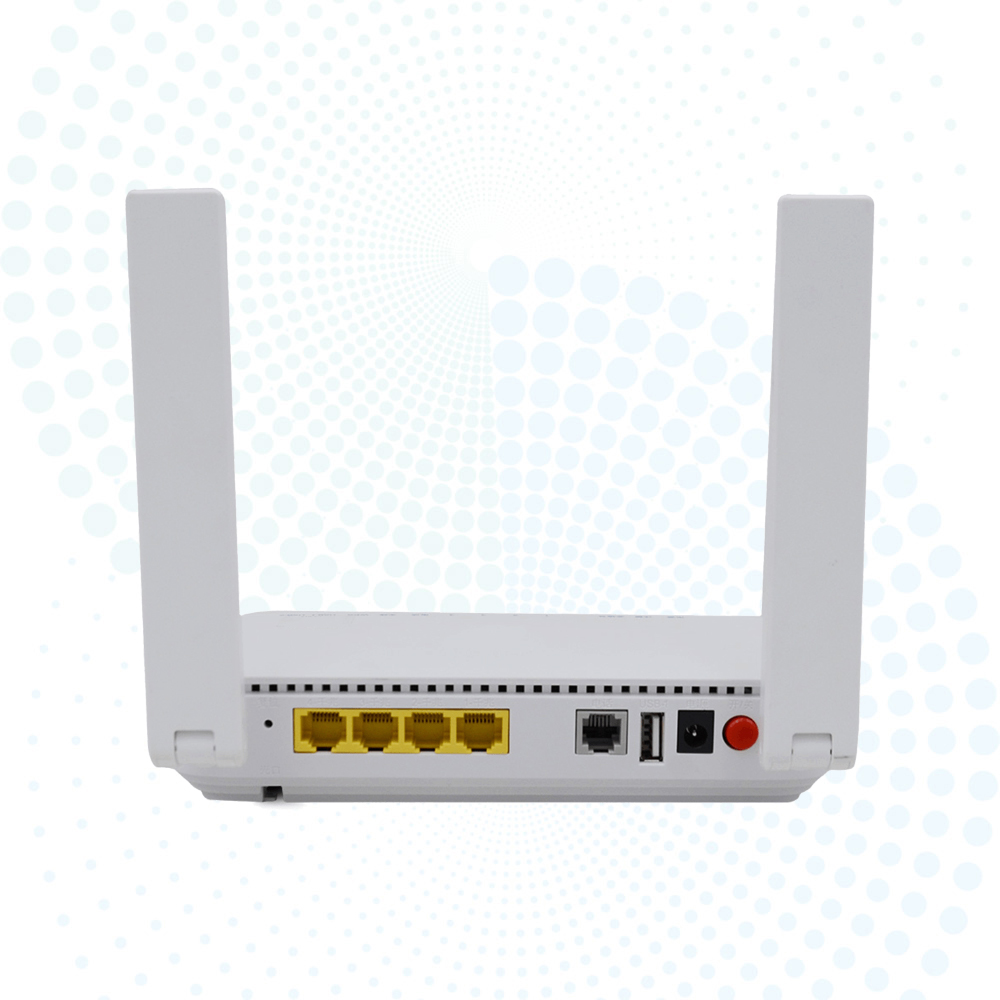

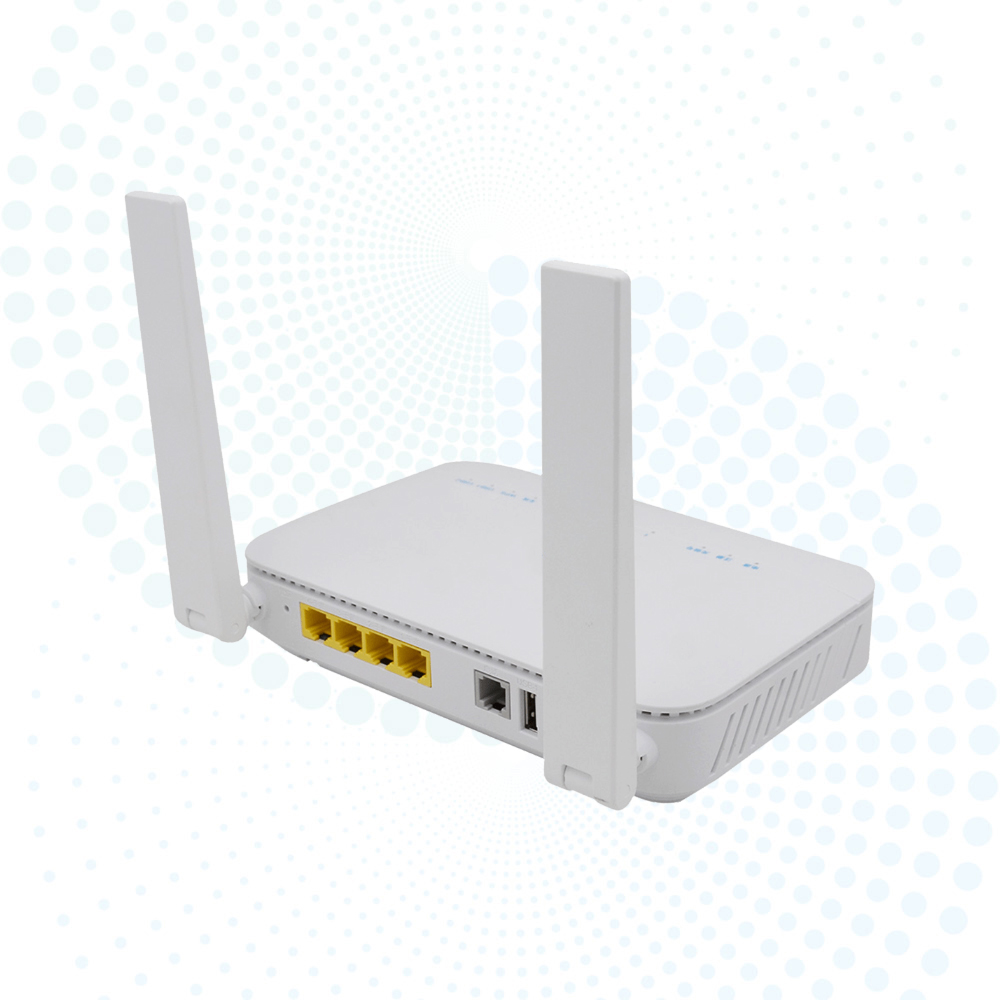

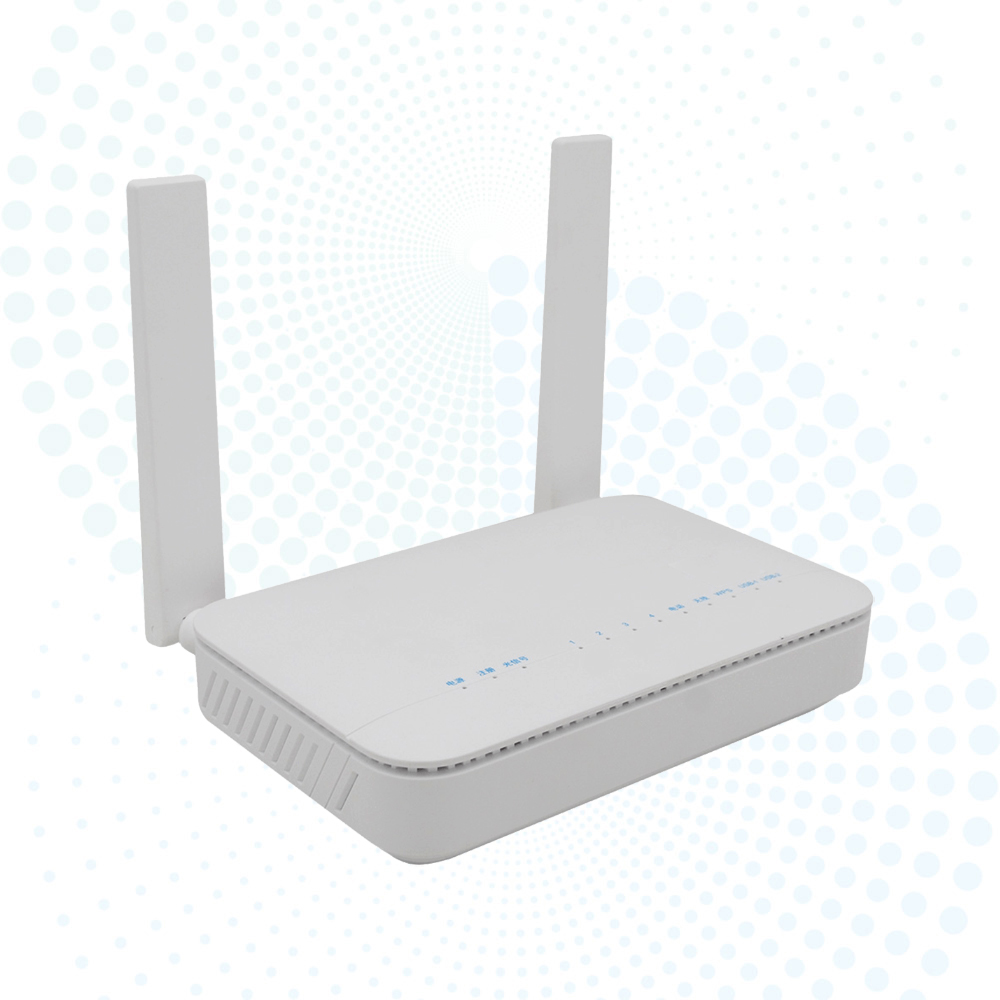

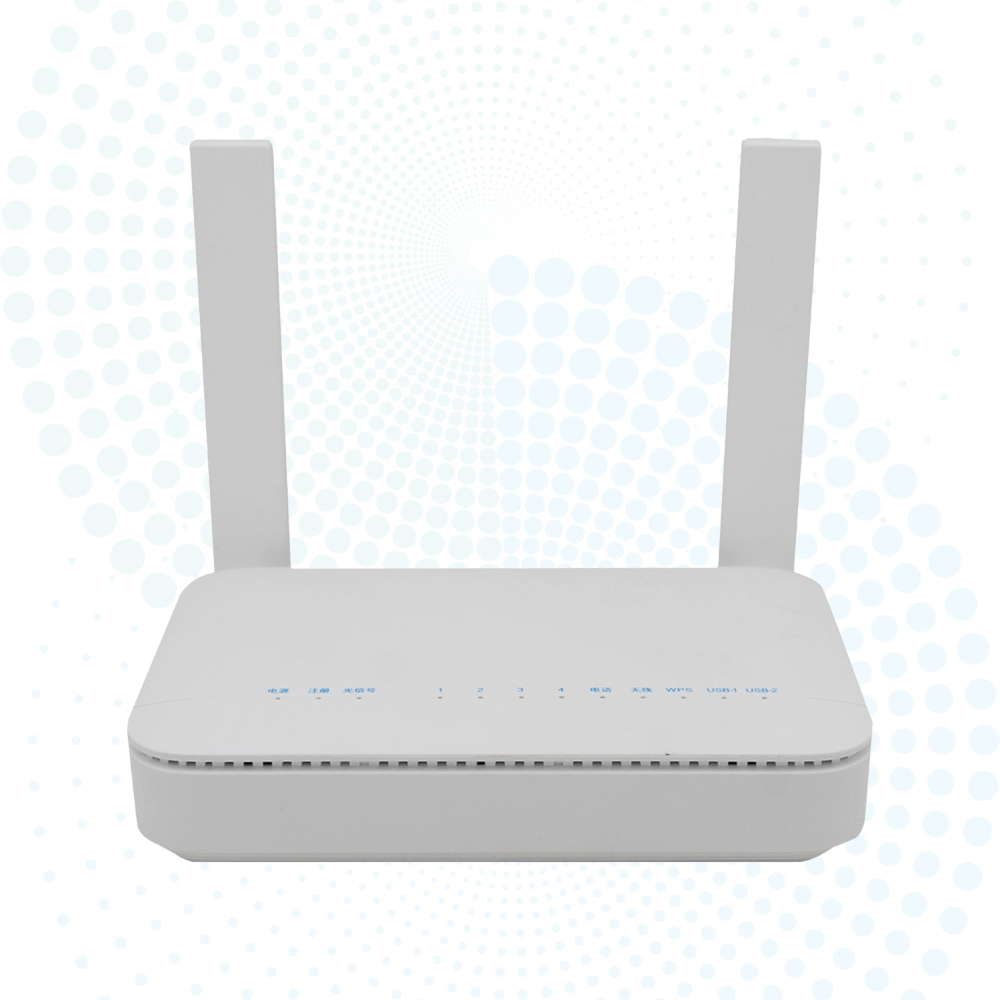

F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware
F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware
F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware
F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware
F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware
1 / 5
F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware
F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware
F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware
F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware
F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware

F6610M ONU WiFi6 XPON ONU AX3000 Dual Band 4GE+1TEL+2USB GPON ONT with English Firmware

Send Inquiry

Product Description

Product Showcase
Product Design
Product Design View 1
Product Design View 2
Product Design View 3
Product Design View 4
Product Design View 5
Product Design View 6
Specification
Basic Parameters
Ports 1 x POTS + 4 x GE + 2.4G/5G 11ax Wi-Fi + 1 x USB
SC/UPC XPON
Working environment Operating temperature: 0°C to 40°C
Environment humidity: 5% to 95% (noncondensing)
Static power consumption 5.3 W
Max. power consumption 18 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 V DC, 1.5 A
WLAN 2.4GHZ: 802.11n
5GHZ: 802.11ax
Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
GPON Port
  • Class B+
  • Receiver sensitivity: –27 dBm to –29 dB
  • Overload optical power: –8 dBm
  • Wavelengths: US 1310 nm, DS 1490 nm
  • Wavelength Blocking Filter (WBF) of G.984.5
  • Flexible mapping between the GEM port and TCONT
  • GPON: consistent with the SN or password authentication defined in G.984.3
  • Bi-directional FEC
  • SR-DBA and NSR-DBA
  • Type B (single-homing and dual-homing)
WLAN Specs
  • IEEE 802.11 b/g/n/ax (2.4G)
  • IEEE 802.11 a/n/ac/ax (5G)
  • 2 x 2 MIMO (2.4G)
  • 2 x 2 MIMO (5G)
  • Antenna gain: 5 dBi
  • WMM/Multiple SSIDs/WPS
  • 2.4G and 5G concurrency
  • Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G)
  • Beamforming
  • Band steering
  • DL OFDMA
  • DL MU-MIMO
  • 1024 QAM
  • 160 MHz frequency bandwidth
  • WPA3
Dimensions 195 mm x 125 mm x 35 mm (length x width x height)
Weight About 400g
Order Info
Description Accessories Pack
GPON ONU, 1*GPON + 4*GE RJ45 + 1*RJ11 POTS + 1*USB+ 2.4GHz&5GHz Wi-Fi6 (2*External 5dBi antennas) Power Adapter
